MF14M1-L57AT00 datasheet, PDF - EEWORLD Datasheet

MF14M1-L57AT00: DescriptionDRAM Card, 1MX32, 70ns, MOS; Categorystorage storage; File Size401KB，12 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

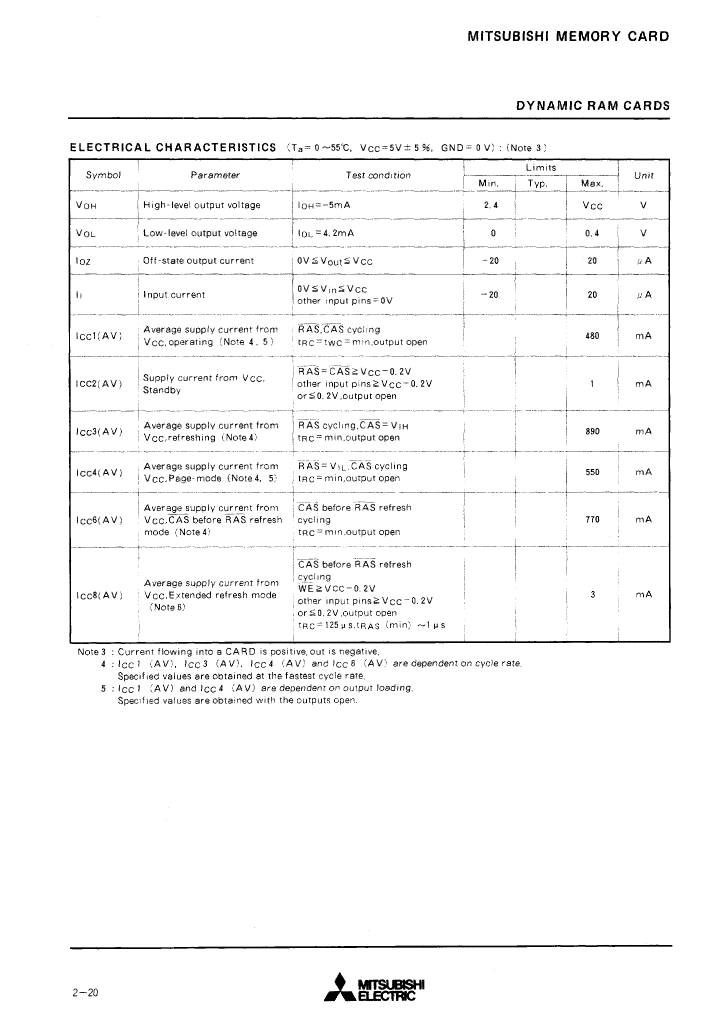

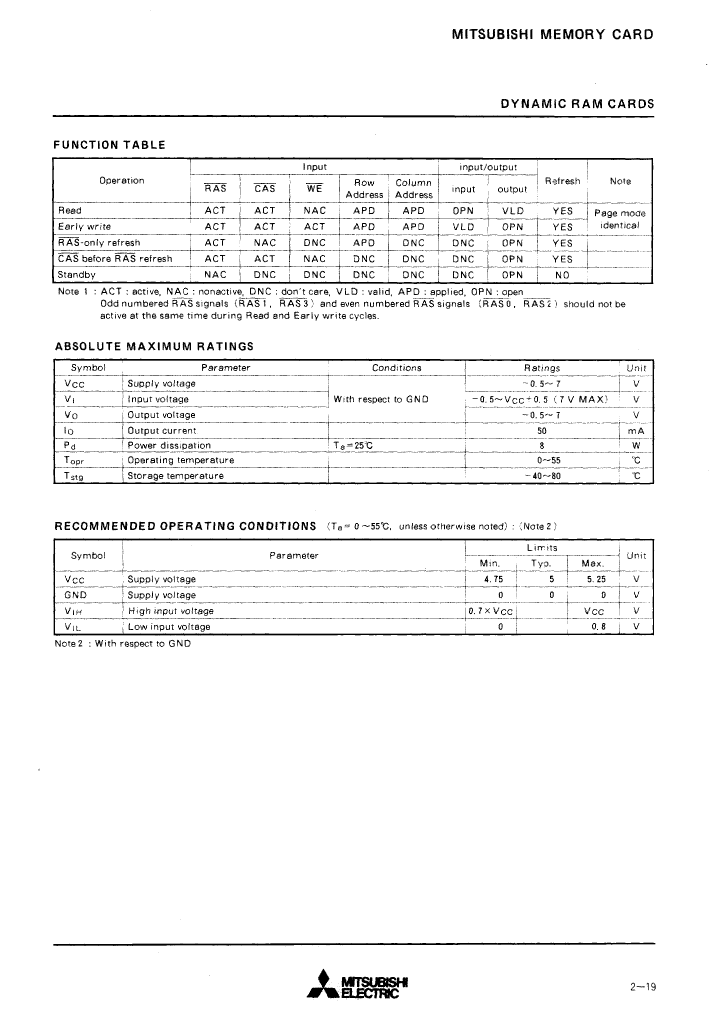

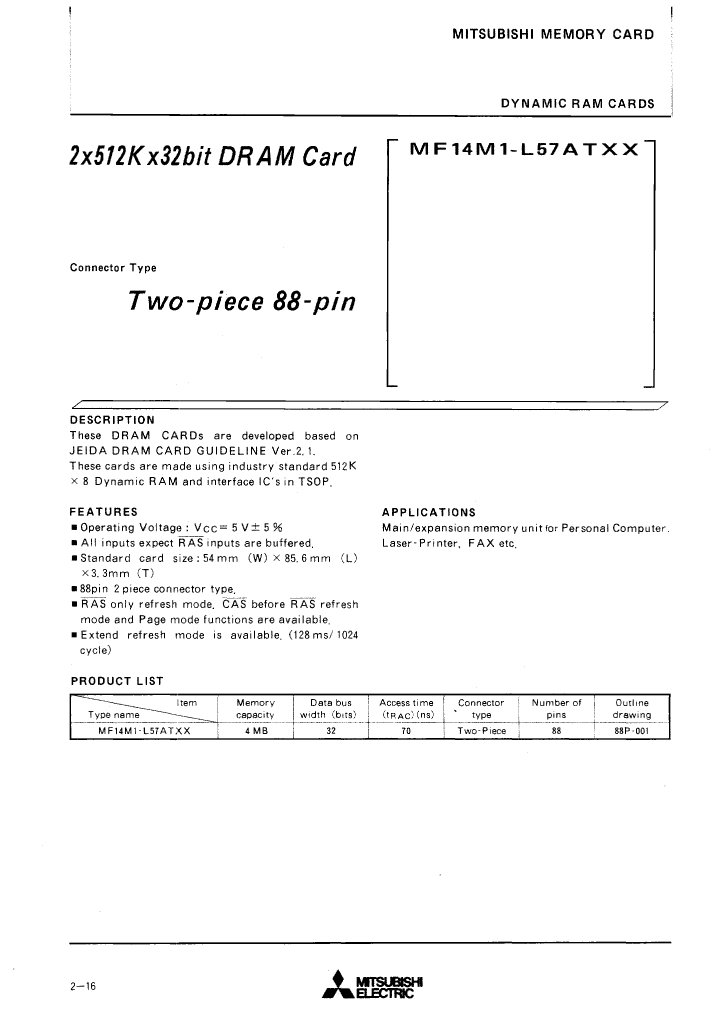

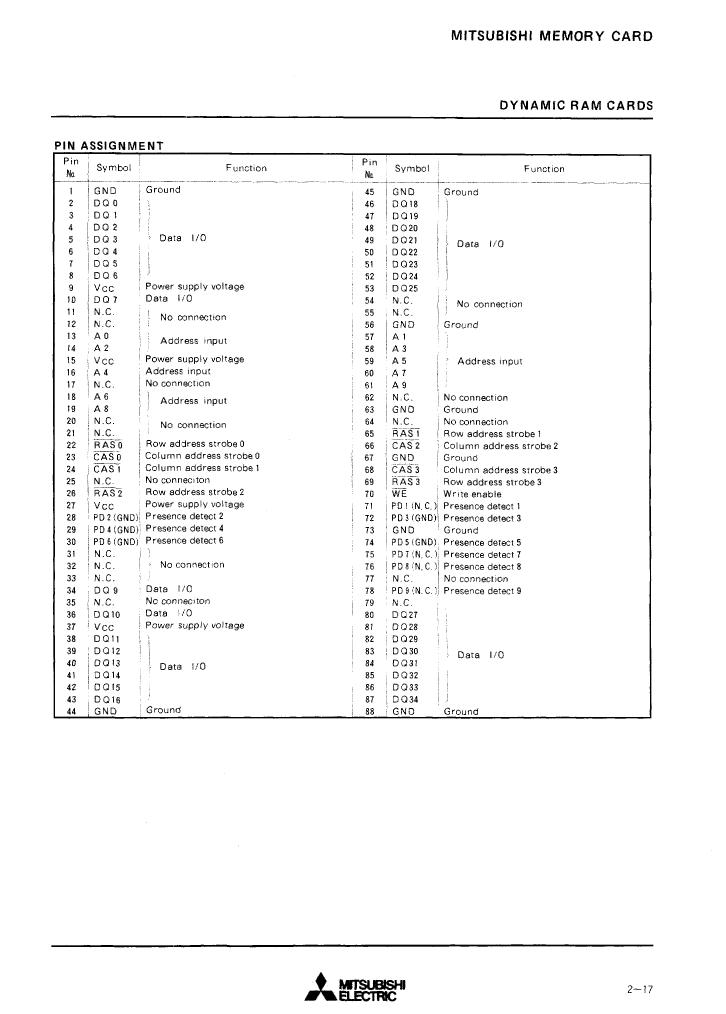

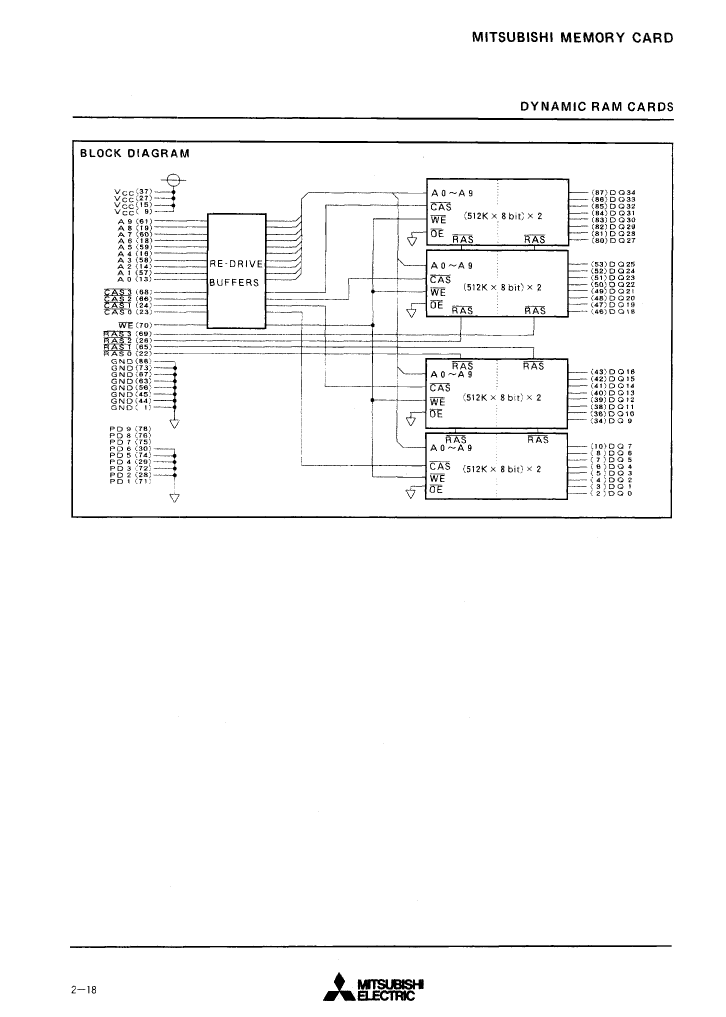

MF14M1-L57AT00 Overview

DRAM Card, 1MX32, 70ns, MOS

Parameter Name	Attribute value
Maker	Mitsubishi
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH
Spare memory width	16
JESD-30 code	X-XXMA-X88
memory density	33554432 bit
Memory IC Type	DRAM CARD
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	88
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	55 °C
Minimum operating temperature
organize	1MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	1024
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED

	MF14M1-L57AT00	MF14M1-L57AT01	MF14M1-L57ATXX
Description	DRAM Card, 1MX32, 70ns, MOS	DRAM Card, 1MX32, 70ns, MOS	DRAM Card, 1MX32, 70ns, MOS
Maker	Mitsubishi	Mitsubishi	Mitsubishi
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
access mode	PAGE	PAGE	PAGE
Maximum access time	70 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH	RAS ONLY/CAS BEFORE RAS REFRESH
Spare memory width	16	16	16
JESD-30 code	X-XXMA-X88	X-XXMA-X88	X-XXMA-X88
memory density	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	DRAM CARD	DRAM CARD	DRAM CARD
memory width	32	32	32
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	88	88	88
word count	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	55 °C	55 °C	55 °C
organize	1MX32	1MX32	1MX32
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
