OP09GRBC datasheet, PDF - EEWORLD Datasheet

OP09GRBC: DescriptionIC IC,OP-AMP,QUAD,BIPOLAR,DIE, Operational Amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size421KB，7 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

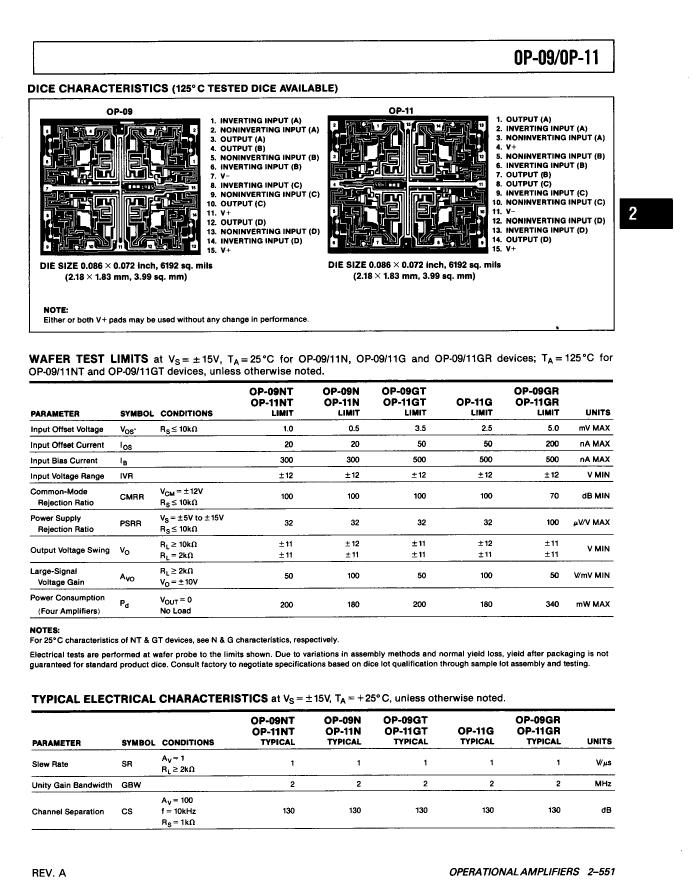

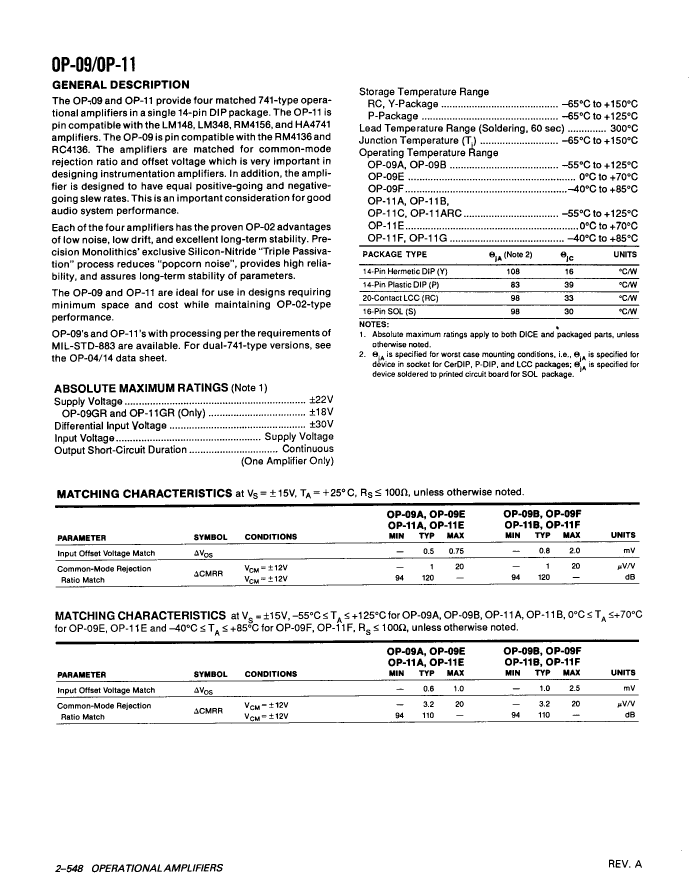

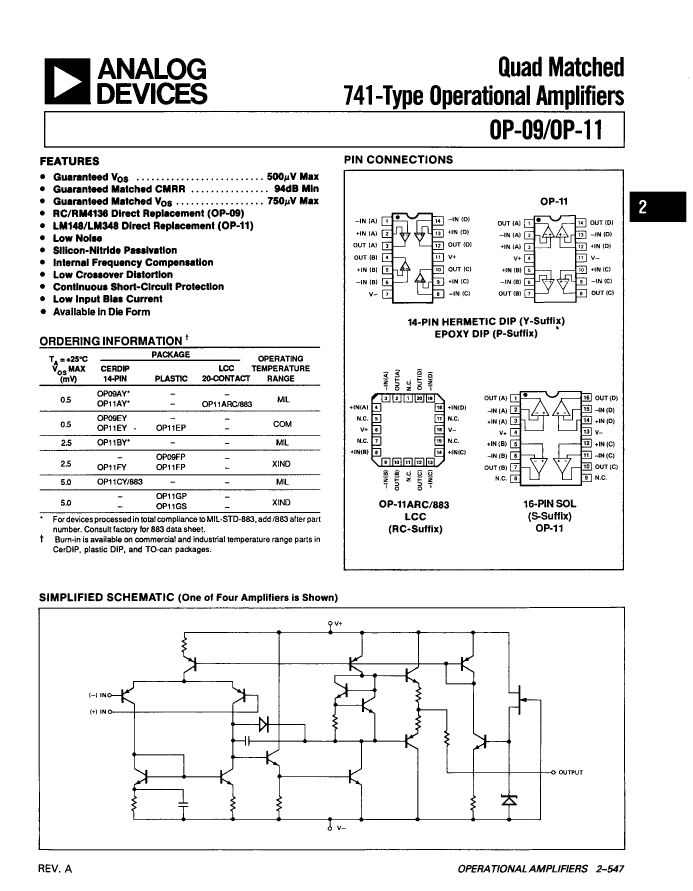

OP09GRBC Overview

IC IC,OP-AMP,QUAD,BIPOLAR,DIE, Operational Amplifier

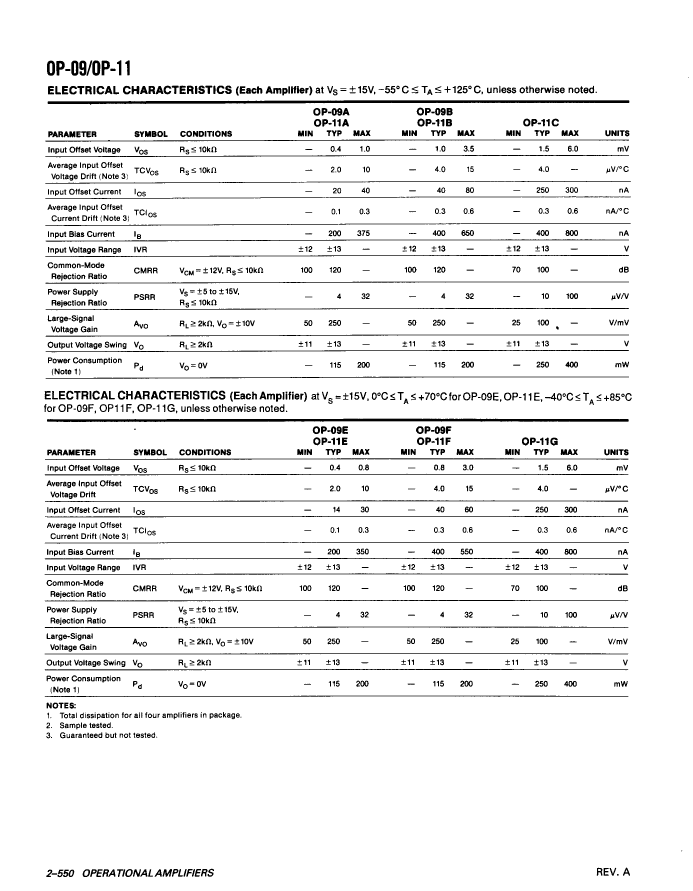

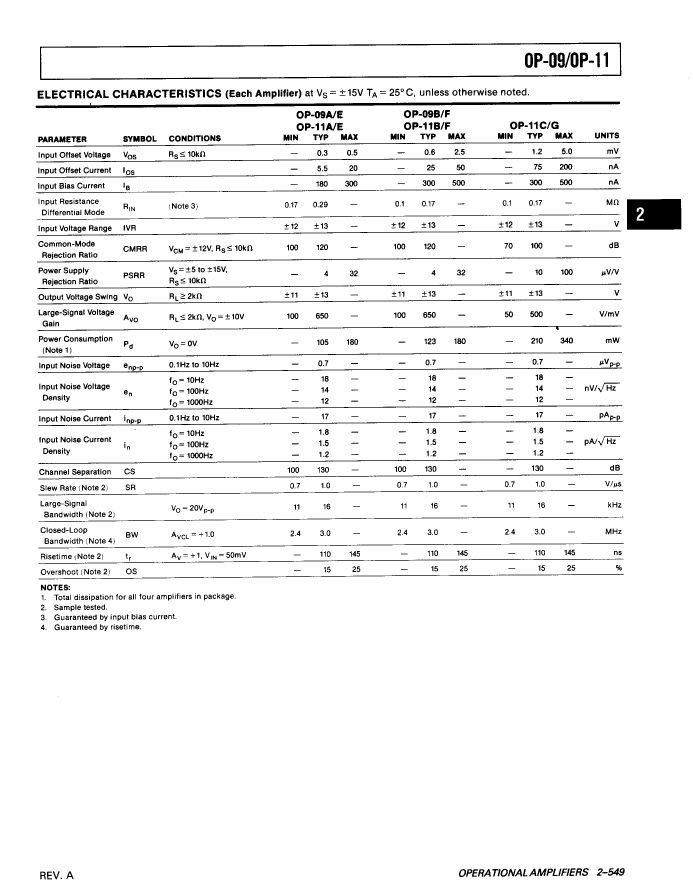

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIE
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.5 µA
frequency compensation	YES
Maximum input offset voltage	5000 µV
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Maximum operating temperature	25 °C
Minimum operating temperature	25 °C
Encapsulate equivalent code	DIE OR CHIP
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
minimum slew rate	0.7 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	OTHER
Minimum voltage gain	50000

	OP09GRBC	OP09GTBC	OP09NTBC
Description	IC IC,OP-AMP,QUAD,BIPOLAR,DIE, Operational Amplifier	IC IC,OP-AMP,QUAD,BIPOLAR,DIE, Operational Amplifier	IC IC,OP-AMP,QUAD,BIPOLAR,DIE, Operational Amplifier
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI
Parts packaging code	DIE	DIE	DIE
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.5 µA	0.5 µA	0.3 µA
frequency compensation	YES	YES	YES
Maximum input offset voltage	5000 µV	3500 µV	1000 µV
low-dissonance	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	4	4	4
Maximum operating temperature	25 °C	125 °C	125 °C
Minimum operating temperature	25 °C	25 °C	25 °C
Encapsulate equivalent code	DIE OR CHIP	DIE OR CHIP	DIE OR CHIP
power supply	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)
minimum slew rate	0.7 V/us	0.7 V/us	0.7 V/us
Supply voltage upper limit	18 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	OTHER
Minimum voltage gain	50000	50000	50000
