OP-221GR datasheet, PDF - EEWORLD Datasheet

OP-221GR: DescriptionOperational Amplifier, 2 Func, 500uV Offset-Max, BIPolar,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size325KB，8 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric Compare View All

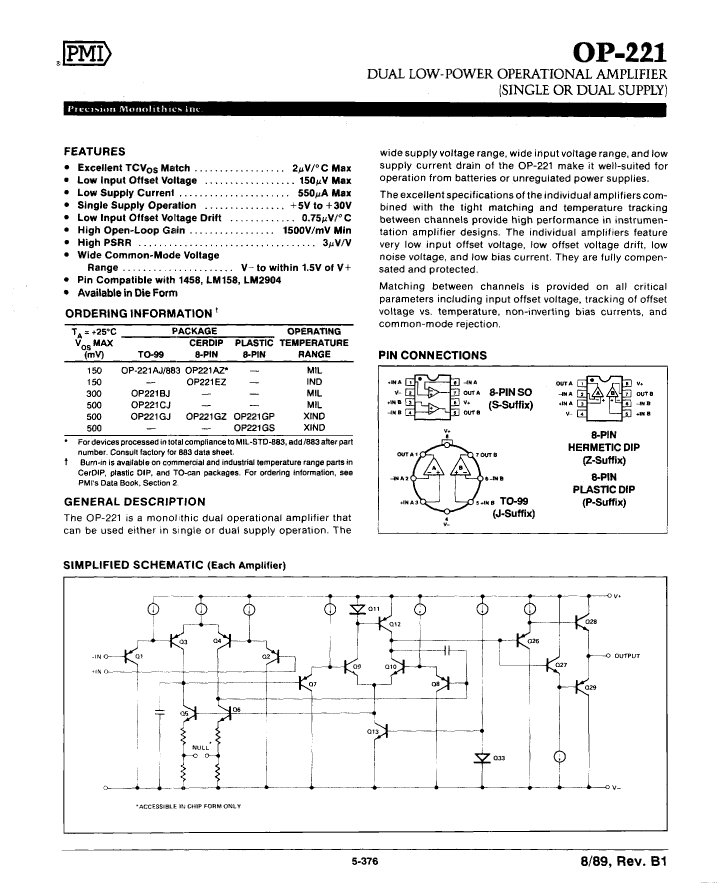

OP-221GR Overview

Operational Amplifier, 2 Func, 500uV Offset-Max, BIPolar,

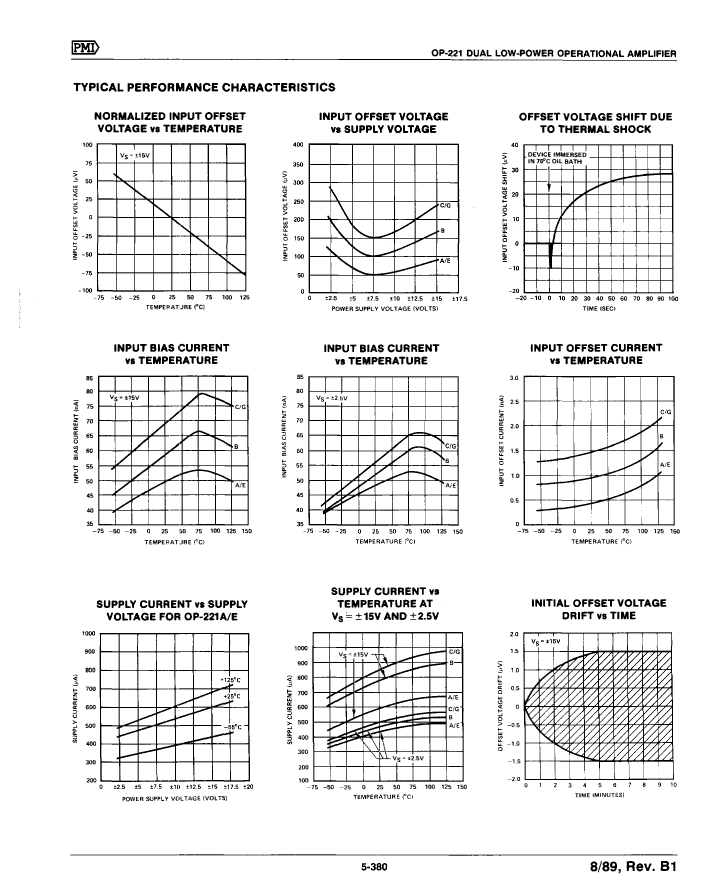

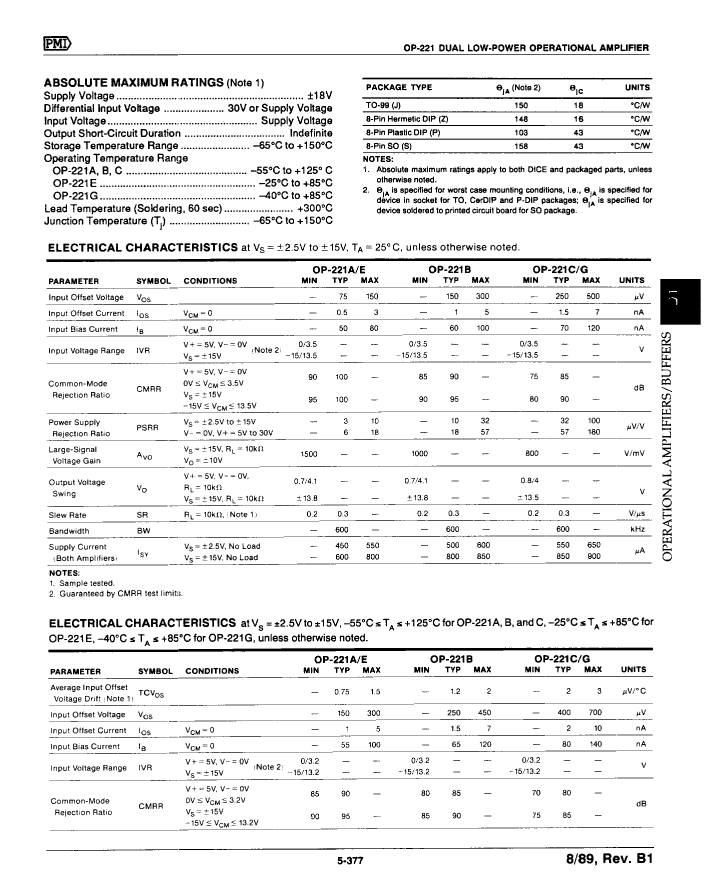

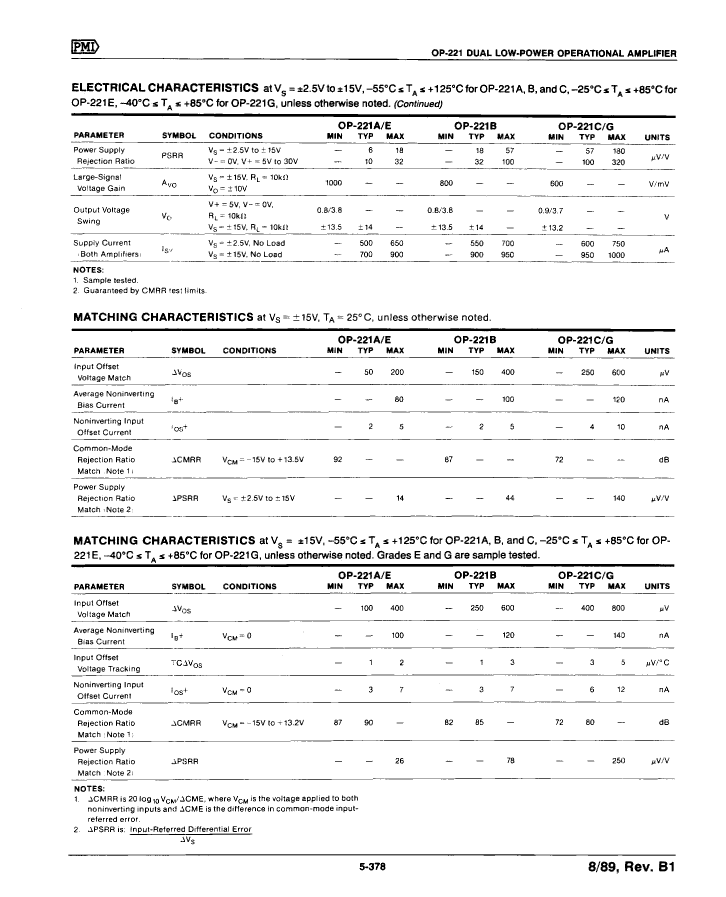

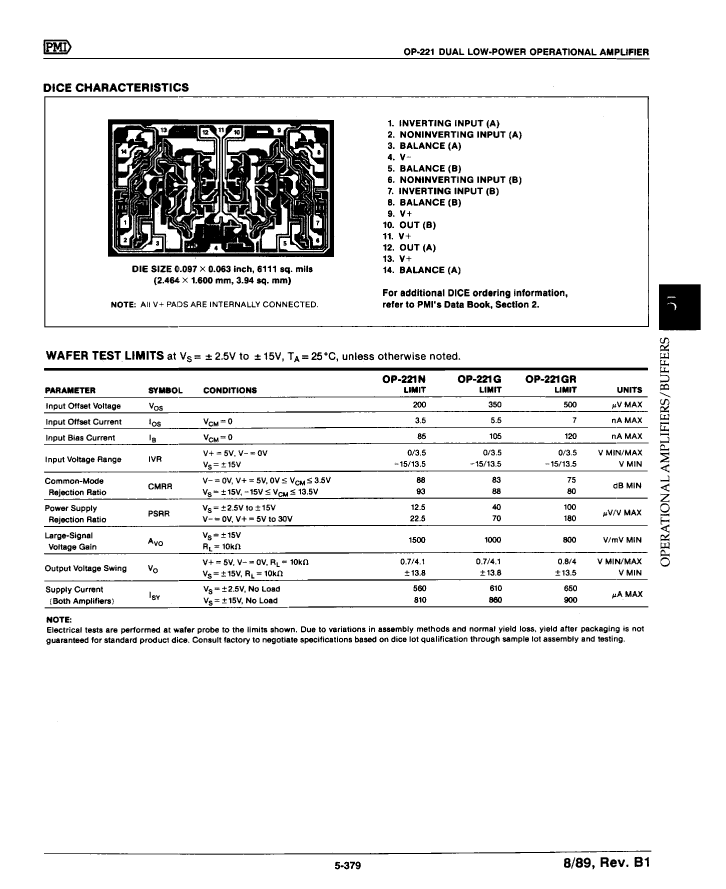

Parameter Name	Attribute value
Maker	Precision Monolithics Inc
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.12 µA
Nominal Common Mode Rejection Ratio	80 dB
Maximum input offset voltage	500 µV
JESD-30 code	X-XUUC-N14
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	14
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Terminal form	NO LEAD
Terminal location	UPPER

	OP-221GR	OP-221G	OP-221N	OP221GP
Description	Operational Amplifier, 2 Func, 500uV Offset-Max, BIPolar,	Operational Amplifier, 2 Func, 350uV Offset-Max, BIPolar,	Operational Amplifier, 2 Func, 200uV Offset-Max, BIPolar,	Operational Amplifier, 2 Func, 700uV Offset-Max, BIPolar, PDIP8,
Maker	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.12 µA	0.105 µA	0.085 µA	0.14 µA
Nominal Common Mode Rejection Ratio	80 dB	88 dB	93 dB	85 dB
Maximum input offset voltage	500 µV	350 µV	200 µV	700 µV
JESD-30 code	X-XUUC-N14	X-XUUC-N14	X-XUUC-N14	R-PDIP-T8
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2
Number of terminals	14	14	14	8
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY
encapsulated code	DIE	DIE	DIE	DIP
Package shape	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	NO LEAD	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal location	UPPER	UPPER	UPPER	DUAL
