RS205: DescriptionBridge Rectifier Diode, 1 Phase, 2A, 600V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN; CategoryDiscrete semiconductor diode; File Size236KB，5 Pages; ManufacturerRectron; Environmental Compliance

Download Datasheet Parametric Compare View All

RS205 Overview

Bridge Rectifier Diode, 1 Phase, 2A, 600V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN

RS205 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron
package instruction	ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN
Contacts	4
Reach Compliance Code	not_compliant
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSIP-W4
JESD-609 code	e3
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	265
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

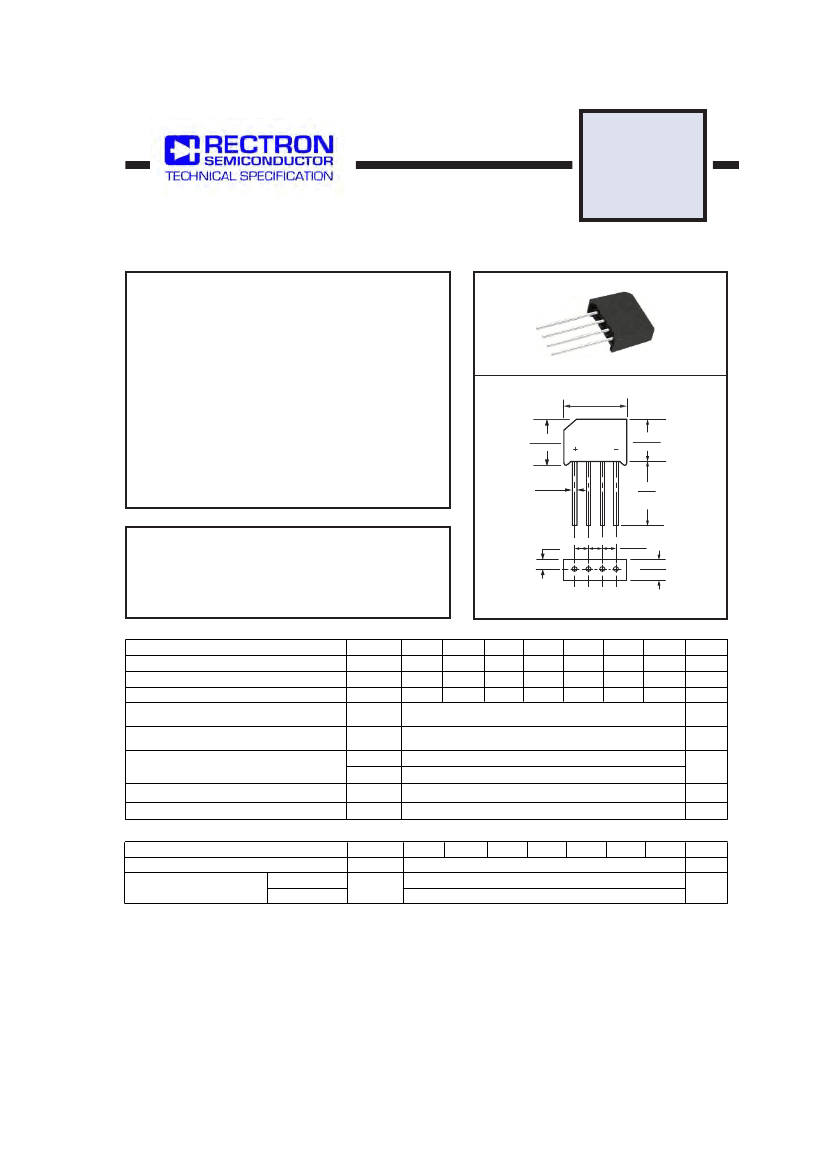

SINGLE-PHASE GLASS PASSIVATED

SILICON BRIDGE RECTIFIER

VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes

FEATURES

Ideal for printed circuit board

Surge overload rating: 50 amperes peak

Weight: 2.74 grams

Mounting position: Any

RS201

THRU

RS207

RS-2

MECHANICAL DATA

Epoxy: Device has UL flammability classification 94V-O

UL listed the recognized component directory,file #94233

.566 (14.4)

.528 (13.4)

.710 (18.0)

.670 (17.0)

.528 (13.4)

.488 (12.4)

DIA.

.035 (0.9)

.028 (0.7)

.787

(20.0)

MIN.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

.125

(3.2)

.160 (4.1)

.140 (3.6)

.260 (6.6)

.240 (6.1)

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(@ T

=25

C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

at T

= 50 C

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Typical Thermal Resistance (Note 1)

Typical Junction Capacitance (Note 3)

Operating and Storage Temperature Range

SYMBOL

RRM

RMS

FSM

, T

STG

RS201

RS202

100

RS203

200

140

200

RS204

400

280

400

2.0

-55 to + 150

RS205

600

420

600

RS206

800

560

800

RS207

1000

700

1000

UNITS

Volts

Amps

C/ W

ELECTRICAL CHARACTERISTICS

(@T

=25

C unless otherwise noted)

CHARACTERISTICS

Maximum Instantaneous Forward Voltage at 2.0A DC

Maximum DC Reverse Current

at Rated DC Blocking Voltage

= 25

= 100

SYMBOL

RS201

RS202

RS203

RS204

1.1

5.0

100

RS205

RS206

RS207

UNITS

Volts

µAmps

2013-03

REV:A

NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted.

2. "Fully ROHS compliant", "100% Sn plating (Pb-free)".

3. Measureed at 1MHz and applied reverse voltage of 4.0 volts.

RS205 Related Products

	RS205	RS203	RS207	RS201	RS202	RS206
Description	Bridge Rectifier Diode, 1 Phase, 2A, 600V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 200V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 1000V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 50V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 100V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	Bridge Rectifier Diode, 1 Phase, 2A, 800V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Rectron	Rectron	Rectron	Rectron	Rectron	Rectron
package instruction	ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN	ROHS COMPLIANT, PLASTIC, RS-2, 4 PIN
Contacts	4	4	4	4	4	4
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V
JESD-30 code	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4
JESD-609 code	e3	e3	e3	e3	e3	e3
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	4	4	4	4	4	4
Phase	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	265	265	265	265	265	265
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	200 V	1000 V	50 V	100 V	800 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
