MT2510T

Description
Three-phase rectifier bridge, 1000V, 25V, 300A, 1.2V, 12.5A, 10uA
CategoryAnalog mixed-signal IC    Three-phase rectifier bridge
File Size1MB，3 Pages
ManufacturerLGE
Websitehttp://www.luguang.cn/web_en/index.html
Download Datasheet Parametric Compare View All

MT2510T Overview

Three-phase rectifier bridge, 1000V, 25V, 300A, 1.2V, 12.5A, 10uA

MT2510T Parametric

Parameter NameAttribute value
PackageMT
Maximum recurrent peak reverse voltage1000
IAV(V)25
Peak forward surge current300
Maximum instantaneous forward voltage1.2
Maximum average forward rectified current12.5
Maximum reverse current10
TJ(℃）-55-150

MT2510T Preview

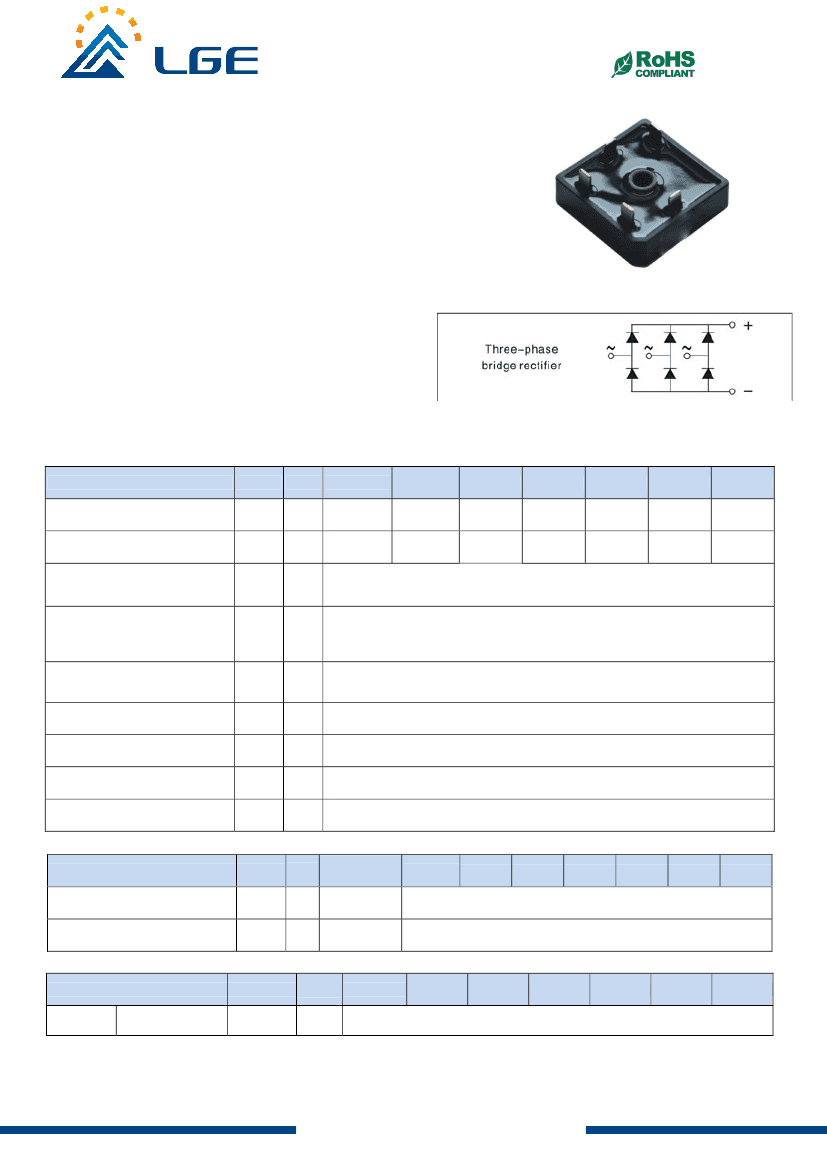

MT2504TTHRU MT2516T
Three Phase Bridge Rectifiers
Features
● UL recognition, file #E230084
● Glass passivated chip
● High surge current capability
● Low thermal resistance
● Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications
General purpose use in AC/DC bridge full wave
rectification for power supply, home appliances, office
equipment, industrial automation applications.
Mechanical Data
●
Package:
MT
Molding compound meets UL 94 V-0
flammability rating, RoHS-compliant
●
Terminals:
Tin plated leads, solderable
per J-STD-002 and JESD22-B102
■
Maximum Ratings
(Ta=25℃ Unless otherwise specified)
PARAMETER
Device marking code
Repetitive Peak Reverse Voltage
Average Rectified Output Current
@60Hz sine wave, R-load, With
heatsink, Tc=55℃
Surge(Non-repetitive)Forward
Current
@60Hz Half- sine Wave, 1 cycle,
Ta=25℃
Current Squared Time
@1ms≤t≤8.3ms Tj=25℃, Rating of
per diode
Storage Temperature
Junction Temperature
Dielectric Strength, Terminals to
case, AC 1 minute
Mounting Torque
VRRM
IO
V
A
SYMBOL UNIT
MT2504T
MT2504T
400
MT2506T
MT2506T
600
MT2508T
MT2508T
800
MT2510T
MT2510T
1000
MT2512T
MT2512T
1200
MT2514T
MT2514T
1400
MT2516T
MT2516T
1600
25
IFSM
A
300
I
2
t
Tstg
Tj
Vdis
TOR
AS
℃
℃
KV
kg·cm
2
373.5
-55~+150
-55 ~+150
2.5
10
■
Electrical Characteristics
(Ta=25℃ Unless otherwise specified)
PARAMETER
Maximum instantaneous forward
voltage drop per diode
Maximum DC reverse current at
rated DC blocking voltage per diode
SYMBOL UNIT
VFM
IRRM
V
TEST
CONDITIONS
IFM=12.5A
MT2504T MT2506T MT2508T MT2510T  MT2512T  MT2514T MT2516T
1.2
10
μA VRM=VRRM
■
Thermal Characteristics
(Ta=25℃ Unless otherwise specified)
PARAMETER
Thermal
Resistance
Between junction and
case, With heatsink
SYMBOL
R
θJ-C
UNIT
℃/W
MT2504T
MT2506T
MT2508T
MT2510T
1.7
MT2512T
MT2514T
MT2516T
Revision:20170701-P1
ht
t
p
:
//
www.lgesem i
.c
o
m
mail:lge@lgesemi.com
MT2504T THRU MT2516T
■
Characteristics
(Typical)
FIG1:Io-Tc Curve
FIG2:Surge Forward Current Capability
Half-sine Wave
Average Rectified Output Current (A)
Peak Forward Surge Current (A)
30
300
20
200
non-repetitive
Ta=25
℃
10
100
0
0
50
100
150
0
1
2
5
10
20
50
100
Case Temperature(°C)
Number of Cycles
FIG3:Instantaneous Forward Voltage
60
FIG4:Typical Reverse Characteristics
1000
Tj=125
℃
Instantaneous Forward Current (A)
20
10
5.0
Ta=25
℃
Instantaneous Reverse Current (uA)
100
10
1.0
0.5
Tj=25
℃
1
0.2
0.1
0.4
0.1
0.6
0.8
1.0
1.2
1.4
0
20
40
60
80
100
Instantaneous Forward Voltage (V)
Percent Rated Peak Reverse Voltage(%)
Revision:20170701-P1
ht
t
p
:
//
www.lgesem i
.c
o
m
mail:lge@lgesemi.com
MT2504T THRU MT2516T
■

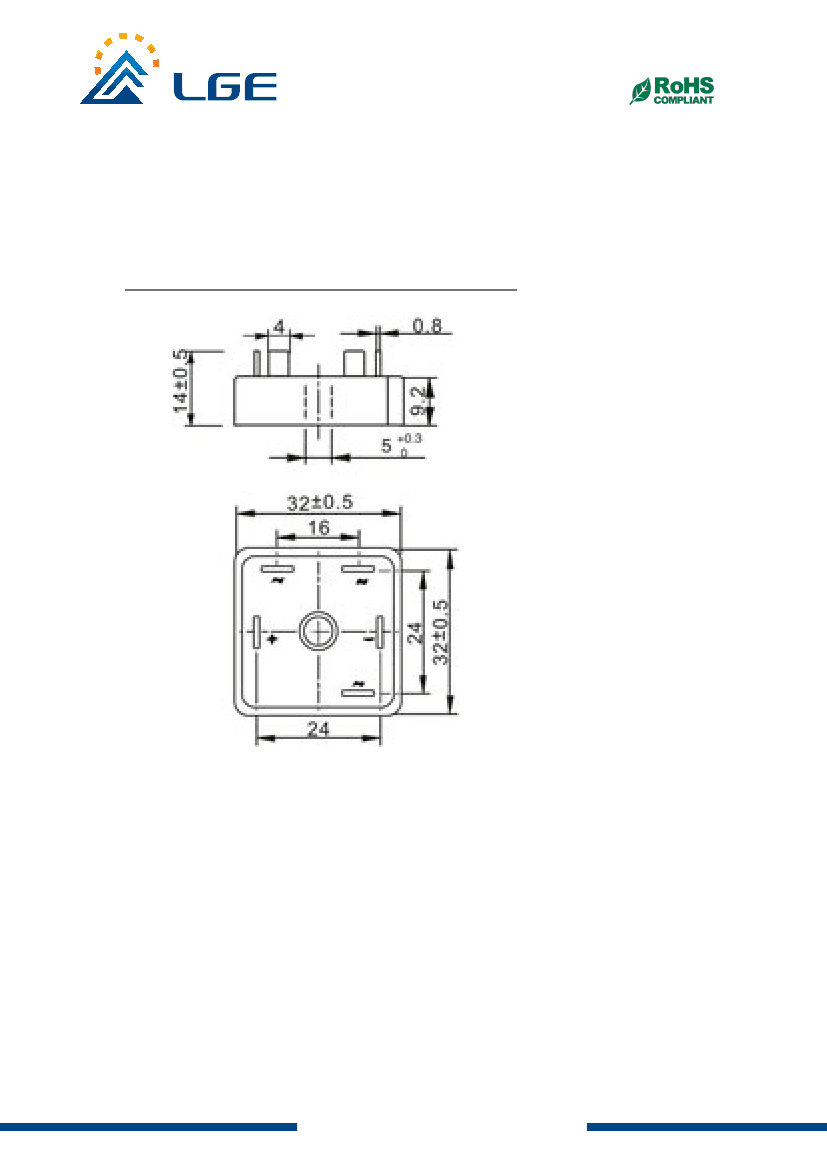

Outline Dimensions
MT
Revision:20170701-P1
ht
t
p
:
//
www.lgesem i
.c
o
m
mail:lge@lgesemi.com
