Cardedge
Press-Fit
.100" CENTER-TO-CENTER
.200" ROW-TO-ROW
PRESS-FIT WITHOUT
STANDOFFS
LR49571
E60980
P
HYSICAL
P
ROPERTIES
I
NSULATION
R
ESISTANCE
:
5000 megohms minimum.
C
ONTACT
R
ETENTION
I
NTO
PCB:
5 lbs.
I
NSERTION
/W
ITHDRAWAL
F
ORCE
:
8 oz./2 oz. average
contact pair using .0620 steel blade.
I
NSULATOR
B
ODY
:
Glass filled thermoplastic,
UL rating 94V-O
C
OLOR
:
Black
C
ONTACTS
:
High strength copper alloy.
C
ONTACT
P
LATING
:
50 microinches nickel
underplate with 30 microinches gold in the mating
area, tin/lead on tails, 100 microinches minimum
E
LECTRICAL
P
ROPERTIES
O
PERATING
V
OLTAGE
:
600 VDC (sea level)
C
URRENT
R
ATING
:
3 Amperes
I
NITIAL
C
ONTACT
R
ESISTANCE
:
10 milliohms
E
NVIRONMENTAL
P
ROPERTIES
O
PERATING
T
EMPERATURE
:
-55˚C to +125˚C
T
EMPERATURE
C
YCLING
:
MIL-STD-202 method 107
V
IBRATION
:
MIL-STD-202, method 204
A
PPLICATION
T
OOLING
I
NSERTION
T
OOL
:
Cat. # 98236, see page 357
A
CCESSORIES
P
OLARIZATION
K
EY
:
Cat. # 98014-00, see page 322
D
AUGHTER
C
ARD
See page 323 for layout
.200
.100
Open ends and open/closed ends are available. Consult factory.
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in inches.
344
Cardedge
Press-Fit
O
RDERING
I
NFORMATION
-

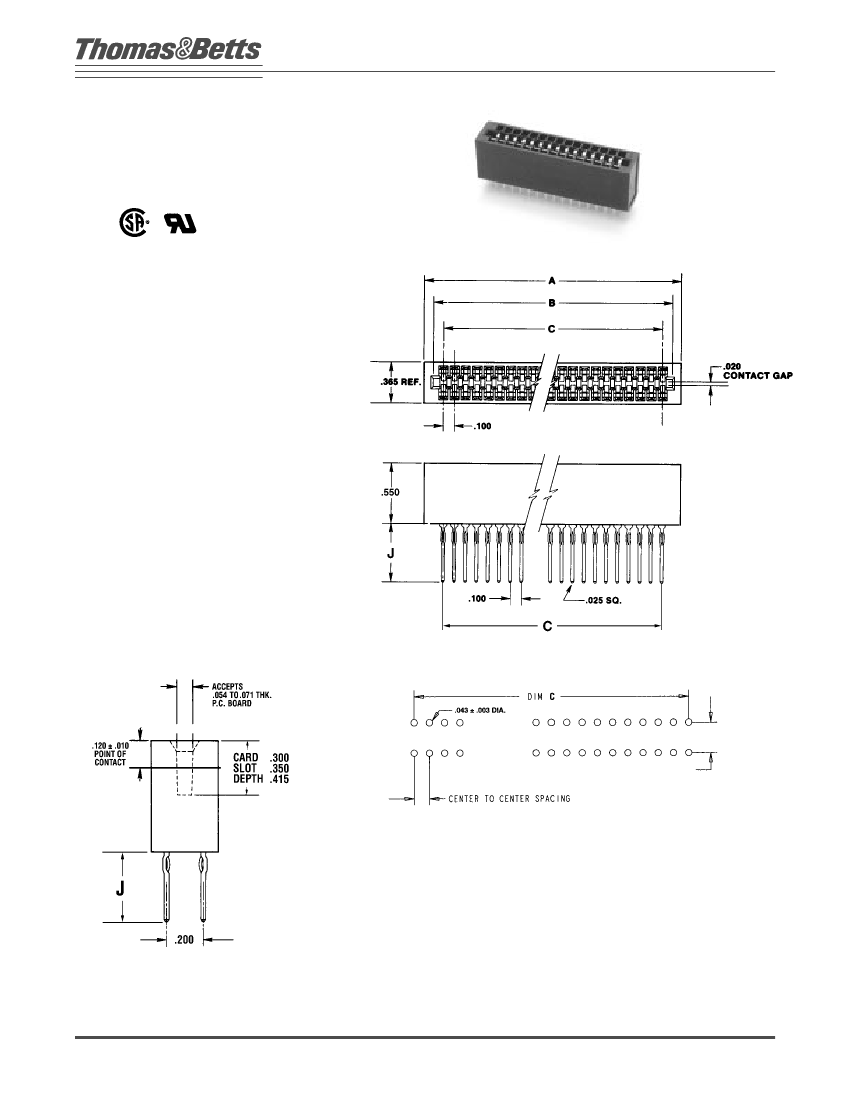

.100 CENTER-TO-CENTER/.200 ROW-TO-ROW
CATALOG NUMBER
# OF DUAL
READOUT POS. .300 CARD SLOT DEPTH
TAIL LENGTH .670 (“J”)
DIMENSIONS
.415 CARD SLOT DEPTH
C8D06PF29022
C8D10PF29022
C8D12PF29022
C8D15PF29022
C8D20PF29022
C8D22PF29022
C8D25PF29022
C8D28PF29022
C8D30PF29022
C8D31PF29022
C8D35PF29022
C8D36PF29022
C8D40PF29022
C8D43PF29022
C8D50PF29022
C8D60PF29022
C8D06PF29023
C8D10PF29023
C8D12PF29023
C8D15PF29023
C8D20PF29023
C8D22PF29023
C8D25PF29023
C8D28PF29023
C8D30PF29023
C8D31PF29023
C8D35PF29023
C8D36PF29023
C8D40PF29023
C8D43PF29023
C8D50PF29023
C8D60PF29023
A
0.860
1.260
1.460
1.760
2.260
2.460
2.760
3.060
3.260
3.360
3.760
3.860
4.260
4.560
5.260
6.260
0.860
1.260
1.460
1.760
2.260
2.460
2.760
3.060
3.260
3.360
3.760
3.860
4.260
4.560
5.260
6.260
B
0.700
1.100
1.300
1.600
2.100
2.300
2.600
2.900
3.100
3.200
3.600
3.700
4.100
4.400
5.100
6.100
0.700
1.100
1.300
1.600
2.100
2.300
2.600
2.900
3.100
3.200
3.600
3.700
4.100
4.400
5.100
6.100
C
0.500
0.900
1.100
1.400
1.900
2.100
2.400
2.700
2.900
3.000
3.400
3.500
3.900
4.200
4.900
5.900
0.500
0.900
1.100
1.400
1.900
2.100
2.400
2.700
2.900
3.000
3.400
3.500
3.900
4.200
4.900
5.900
.350 CARD SLOT DEPTH
C8D06PF29142
C8D10PF29142
C8D12PF29142
C8D15PF29142
C8D20PF29142
C8D22PF29142
C8D25PF29142
C8D28PF29142
C8D30PF29142
C8D31PF29142
C8D35PF29142
C8D36PF29142
C8D40PF29142
C8D43PF29142
C8D50PF29142
C8D60PF29142
C8D06PF29143
C8D10PF29143
C8D12PF29143
C8D15PF29143
C8D20PF29143
C8D22PF29143
C8D25PF29143
C8D28PF29143
C8D30PF29143
C8D31PF29143
C8D35PF29143
C8D36PF29143
C8D40PF29143
C8D43PF29143
C8D50PF29143
C8D60PF29143
6
10
12
15
20
22
25
28
30
31
35
36
40
43
50
60
6
10
12
15
20
22
25
28
30
31
35
36
40
43
50
60
C8D06PF29032
C8D10PF29032
C8D12PF29032
C8D15PF29032
C8D20PF29032
C8D22PF29032
C8D25PF29032
C8D28PF29032
C8D30PF29032
C8D31PF29032
C8D35PF29032
C8D36PF29032
C8D40PF29032
C8D43PF29032
C8D50PF29032
C8D60PF29032
C8D06PF29033
C8D10PF29033
C8D12PF29033
C8D15PF29033
C8D20PF29033
C8D22PF29033
C8D25PF29033
C8D28PF29033
C8D30PF29033
C8D31PF29033
C8D35PF29033
C8D36PF29033
C8D40PF29033
C8D43PF29033
C8D50PF29033
C8D60PF29033
TAIL LENGTH .180 (“J”)
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in inches.
345
