BCR12PM-12

Description
TRIAC, 600V V(DRM), 12A I(T)RMS, TO-220AB, TO-220F, 3 PIN
CategoryAnalog mixed-signal IC    Trigger device
File Size152KB，11 Pages
ManufacturerMitsubishi
Websitehttp://www.mitsubishielectric.com/semiconductors/
Download Datasheet Parametric View All

BCR12PM-12 Overview

TRIAC, 600V V(DRM), 12A I(T)RMS, TO-220AB, TO-220F, 3 PIN

BCR12PM-12 Parametric

Parameter NameAttribute value
MakerMitsubishi
Parts packaging codeTO-220F
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codeunknown
Shell connectionISOLATED
ConfigurationSINGLE
Critical rise rate of commutation voltage - minimum value10 V/us
Maximum DC gate trigger current30 mA
Maximum DC gate trigger voltage1.5 V
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Maximum leakage current2 mA
Number of components1
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum rms on-state current12 A
Off-state repetitive peak voltage600 V
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Trigger device typeTRIAC

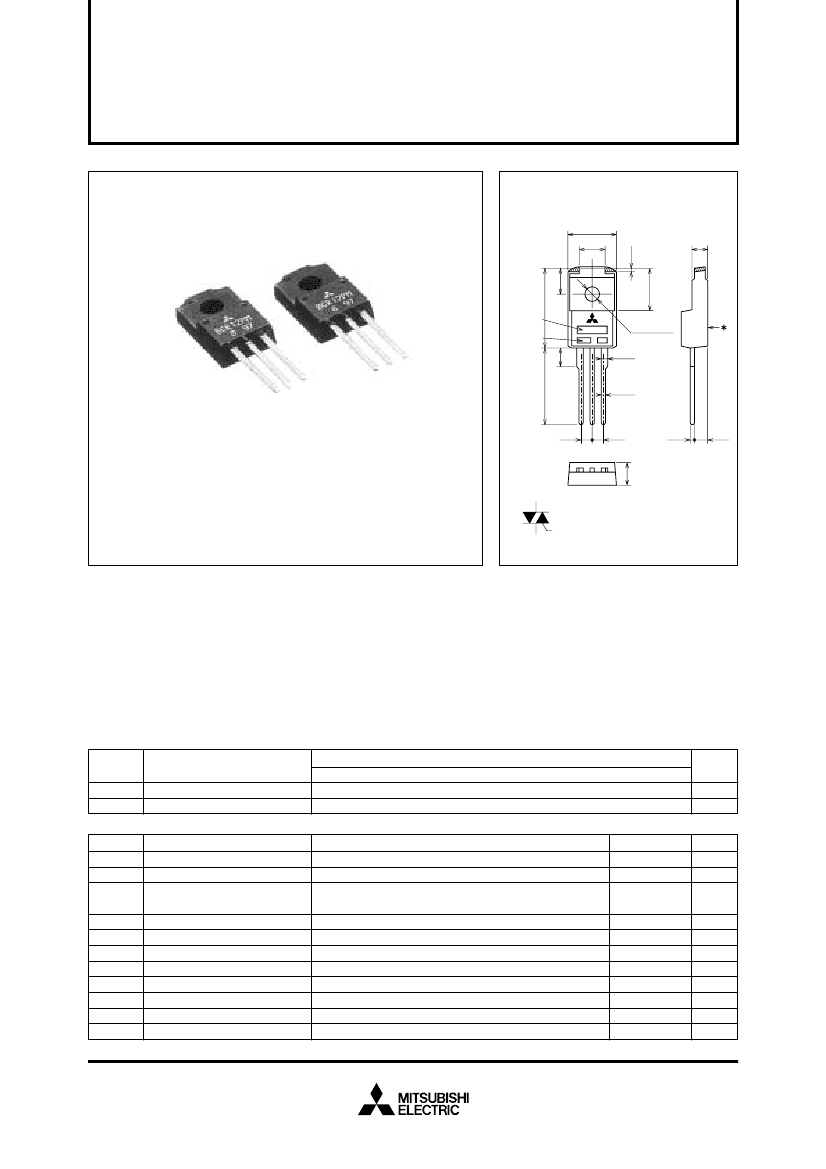

BCR12PM-12 Preview

MITSUBISHI SEMICONDUCTOR
〈TRIAC〉
BCR12PM
Refer to the page 6 as to the product guaranteed
maximum junction temperature 150°C
MEDIUM POWER USE
INSULATED TYPE, PLANAR PASSIVATION TYPE
BCR12PM
OUTLINE DRAWING
10.5 MAX
5.2
Dimensions
in mm
2.8
17
5.0
1.2
TYPE
NAME
VOLTAGE
CLASS
φ3.2±0.2
13.5 MIN
3.6
1.3 MAX
0.8
2.54
2.54
8.5
0.5
2.6
•
•
•
•
•
I
T (RMS)
...................................................................... 12A
V
DRM
....................................................................... 600V
I
FGT
!
, I
RGT
!
, I
RGT
#
............................................ 20mA
V
iso
........................................................................ 2000V
UL Recognized: Yellow Card No.E80276(N)
File No. E80271
123
2
∗
Measurement point of
case temperature
1
1
T
1
TERMINAL
2
T
2
TERMINAL
3 3
GATE TERMINAL
TO-220F
APPLICATION
Switching mode power supply, light dimmer, electric flasher unit, hair driver,
control of household equipment such as TV sets · stereo · refrigerator · washing machine · infrared
kotatsu · carpet, solenoid drivers, small motor control,
copying machine, electric tool
MAXIMUM RATINGS
Symbol
V
DRM
V
DSM
Parameter
Repetitive peak off-state voltage
½1
Non-repetitive peak off-state
voltage
½1
Voltage class
12
600
720
Unit
V
V
Symbol
I
T (RMS)
I
TSM
I
2t
P
GM
P
G (AV)
V
GM
I
GM
T
j
T
stg
—
V
iso
Parameter
RMS on-state current
Surge on-state current
I
2t
for fusing
Peak gate power dissipation
Average gate power dissipation
Peak gate voltage
Peak gate current
Junction temperature
Storage temperature
Weight
Isolation voltage
Typical value
4.5
Conditions
Commercial frequency, sine full wave 360° conduction, T
c
=74°C
60Hz sinewave 1 full cycle, peak value, non-repetitive
Value corresponding to 1 cycle of half wave 60Hz, surge on-state
current
Ratings
12
120
60
5
0.5
10
2
–40 ~ +125
–40 ~ +125
2.0
2000
Unit
A
A
A
2
s
W
W
V
A
°C
°C
g
V
T
a
=25°C, AC 1 minute, T
1
· T
2
· G terminal to case
½1.
Gate open.
Mar. 2002
MITSUBISHI SEMICONDUCTOR
〈TRIAC〉
BCR12PM
Refer to the page 6 as to the product guaranteed
maximum junction temperature 150°C
MEDIUM POWER USE
INSULATED TYPE, PLANAR PASSIVATION TYPE
ELECTRICAL CHARACTERISTICS
Limits
Symbol
I
DRM
V
TM
V
FGT
!
V
RGT
!
V
RGT
#
I
FGT
!
I
RGT
!
I
RGT
#
V
GD
R
th (j-c)
(dv/dt)
c
Gate non-trigger voltage
Thermal resistance
Critical-rate of rise of off-state
commutating voltage
½4
Parameter
Repetitive peak off-state current
On-state voltage
!
Gate trigger voltage
½2
@
#
!
Gate trigger
current
½2
@
#
T
j
=125°C, V
D
=1/2V
DRM
Junction to
T
j
=125°C
case
½3
Test conditions
T
j
=125°C, V
DRM
applied
T
c
=25°C, I
TM
=20A, Instantaneous measurement
Min.
—
—
—
Typ.
—
—
—
—
—
—
—
—
—
—
—
Max.
2.0
1.6
1.5
1.5
1.5
20
20
20
—
3.5
—
Unit
mA
V
V
V
V
mA
mA
mA
V
°C/
W
V/µs
T
j
=25°C, V
D
=6V, R
L
=6Ω, R
G
=330Ω
—
—
—
T
j
=25°C, V
D
=6V, R
L
=6Ω, R
G
=330Ω
—
—
0.2
—
10
½2.
Measurement using the gate trigger characteristics measurement circuit.
½3.
The contact thermal resistance R
th (c-f)
in case of greasing is 0.5°C/W.
½4.
Test conditions of the critical-rate of rise of off-state commutating voltage is shown in he table below.
Test conditions
Commutating voltage and current waveforms
(inductive load)
1. Junction temperature
T
j
=125°C
2. Rate of decay of on-state commutating current
(di/dt)
c
=–6.0A/ms
3. Peak off-state voltage
V
D
=400V
SUPPLY
VOLTAGE
MAIN CURRENT
MAIN
VOLTAGE
(dv/dt)c
(di/dt)c
TIME
TIME
TIME
V
D
PERFORMANCE CURVES
MAXIMUM ON-STATE CHARACTERISTICS
SURGE ON-STATE CURRENT (A)
RATED SURGE ON-STATE CURRENT
200
180
160
140
120
100
80
60
40
20
0
10
0
2 3 4 5 7 10
1
2 3 4 5 7 10
2
ON-STATE CURRENT (A)
10
2
7
5
3
2
10
1
7
5
3
2
10
0
7
5
3
2
T
j
= 125°C
T
j
= 25°C
10
–1
0.6 1.0 1.4 1.8 2.2 2.6 3.0 3.4 3.8
ON-STATE VOLTAGE (V)
CONDUCTION TIME
(CYCLES AT 60Hz)
Mar. 2002
MITSUBISHI SEMICONDUCTOR
〈TRIAC〉
BCR12PM
Refer to the page 6 as to the product guaranteed
maximum junction temperature 150°C
MEDIUM POWER USE
INSULATED TYPE, PLANAR PASSIVATION TYPE
GATE CHARACTERISTICS
(Ι,
ΙΙ
AND
ΙΙΙ)
100 (%)
GATE TRIGGER CURRENT VS.
JUNCTION TEMPERATURE
10
3
7
5
4
3
2
10
2
7
5
4
3
2
TYPICAL EXAMPLE
GATE VOLTAGE (V)
GATE TRIGGER CURRENT (T
j
= t°C)
GATE TRIGGER CURRENT (T
j
= 25°C)
10
2
7
5
3
2 V
GM
= 10V
10
1
7
5
3
2
10
0
7
5
3
2
V
GD
= 0.2V
I
RGT I
I
FGT I,
I
RGT III
10
–1
1
2 3 5 7 10
2
2 3 5 7 10
3
2 3 5 7 10
4
10
GATE CURRENT (mA)
P
GM
= 5W
P
G(AV)
=
0.5W
V
GT
= 1.5V
I
GM
= 2A
I
RGT I,
I
RGT III
I
FGT I
10
1
–60 –40 –20 0 20 40 60 80 100 120 140
JUNCTION TEMPERATURE (°C)
MAXIMUM TRANSIENT THERMAL
IMPEDANCE CHARACTERISTICS
(JUNCTION TO CASE)
GATE TRIGGER VOLTAGE VS.
JUNCTION TEMPERATURE
100 (%)
GATE TRIGGER VOLTAGE (T
j
= t°C)
GATE TRIGGER VOLTAGE (T
j
= 25°C)
10
3
7
5
4
3
2
10
2
7
5
4
3
2
TYPICAL EXAMPLE
TRANSIENT THERMAL IMPEDANCE (°C/W)
10
2
2 3 5 7 10
3
2 3 5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
10
–1
2 3 5 7 10
0
2 3 5 7 10
1
2 3 5 7 10
2
CONDUCTION TIME
(CYCLES AT 60Hz)
10
1
–60 –40 –20 0 20 40 60 80 100 120 140
JUNCTION TEMPERATURE (°C)
MAXIMUM TRANSIENT THERMAL
IMPEDANCE CHARACTERISTICS
(JUNCTION TO AMBIENT)
TRANSIENT THERMAL IMPEDANCE (°C/W)
7
5
3
2
7
5
3
2
7
5
3
2
7
5
3
2
MAXIMUM ON-STATE POWER
DISSIPATION
ON-STATE POWER DISSIPATION (W)
10
3
NO FINS
16
14
12 360°
CONDUCTION
10 RESISTIVE,
INDUCTIVE
8 LOADS
6
4
2
0
0
2
4
6
8
10
12
14
16
10
2
10
1
10
0
10
–1
10
1
2 3 5 7
10
2
2 3 5 7
10
3
2 3 5 7
10
4
2 3 5 7
10
5
CONDUCTION TIME
(CYCLES AT 60Hz)
RMS ON-STATE CURRENT (A)
Mar. 2002
MITSUBISHI SEMICONDUCTOR
〈TRIAC〉
BCR12PM
Refer to the page 6 as to the product guaranteed
maximum junction temperature 150°C
MEDIUM POWER USE
INSULATED TYPE, PLANAR PASSIVATION TYPE
ALLOWABLE CASE TEMPERATURE
VS. RMS ON-STATE CURRENT
160
CASE TEMPERATURE (°C)
140
120
100
80
60
AMBIENT TEMPERATURE (°C)
CURVES APPLY REGARDLESS
OF CONDUCTION ANGLE
ALLOWABLE AMBIENT TEMPERATURE
VS. RMS ON-STATE CURRENT
160
ALL FINS ARE BLACK PAINTED
ALUMINUM AND GREASED
140
CURVES APPLY REGARDLESS
OF CONDUCTION ANGLE
120
120 120 t2.3
100
100 100 t2.3
80
60 NO FINS
RESISTIVE,
40 INDUCTIVE
LOADS
20 NATURAL
CONVECTION
0
2
4
6
0
60 60 t2.3
360°
40 CONDUCTION
RESISTIVE,
20 INDUCTIVE
LOADS
0
2
4
6
0
8
10
12
14
16
8
10
12
14
16
RMS ON-STATE CURRENT (A)
RMS ON-STATE CURRENT (A)
REPETITIVE PEAK OFF-STATE CURRENT (T
j
= t°C)
REPETITIVE PEAK OFF-STATE CURRENT (T
j
= 25°C)
AMBIENT TEMPERATURE (°C)
ALLOWABLE AMBIENT TEMPERATURE
VS. RMS ON-STATE CURRENT
160
NATURAL CONVECTION
NO FINS
140
CURVES APPLY REGARDLESS
OF CONDUCTION ANGLE
120
RESISTIVE, INDUCTIVE LOADS
100
80
60
40
20
0
0
0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2
RMS ON-STATE CURRENT (A)
100 (%)
REPETITIVE PEAK OFF-STATE
CURRENT VS. JUNCTION
TEMPERATURE
10
5
7 TYPICAL EXAMPLE
5
3
2
10
4
7
5
3
2
10
3
7
5
3
2
10
2
–60 –40 –20 0 20 40 60 80 100 120 140
JUNCTION TEMPERATURE (°C)
HOLDING CURRENT VS.
JUNCTION TEMPERATURE
10
3
7
5
4
3
2
10
2
7
5
4
3
2
10
1
–60 –40 –20 0 20 40 60 80 100 120 140
JUNCTION TEMPERATURE (°C)
TYPICAL EXAMPLE
10
3
7
5
3
2
10
2
7
5
3
2
10
1
7
5
3
2
LACHING CURRENT VS.
JUNCTION TEMPERATURE
100 (%)
HOLDING CURRENT (T
j
= t°C)
HOLDING CURRENT (T
j
= 25°C)
LACHING CURRENT (mA)
DISTRIBUTION
+
T
2
, G
–
TYPICAL
EXAMPLE
10
0
–40
+
T
2
, G
+
TYPICAL
½
–
T
2
, G
–
EXAMPLE
0
40
80
120
160
JUNCTION TEMPERATURE (°C)
Mar. 2002
MITSUBISHI SEMICONDUCTOR
〈TRIAC〉
BCR12PM
Refer to the page 6 as to the product guaranteed
maximum junction temperature 150°C
MEDIUM POWER USE
INSULATED TYPE, PLANAR PASSIVATION TYPE
100 (%)
BREAKOVER VOLTAGE VS.
JUNCTION TEMPERATURE
BREAKOVER VOLTAGE VS.
RATE OF RISE OF
OFF-STATE VOLTAGE
160
140
TYPICAL EXAMPLE
T
j
= 125°C
100 (%)
160
TYPICAL EXAMPLE
140
BREAKOVER VOLTAGE (dv/dt = xV/µs )
BREAKOVER VOLTAGE (dv/dt = 1V/µs )
BREAKOVER VOLTAGE (T
j
= t°C)
BREAKOVER VOLTAGE (T
j
= 25°C)
120
100
80
60
40
20
0
–60 –40 –20 0 20 40 60 80 100 120 140
JUNCTION TEMPERATURE (°C)
120
100
III QUADRANT
80
60
40
20
I QUADRANT
0
10
1
2 3 5 7 10
2
2 3 5 7 10
3
2 3 5 7 10
4
RATE OF RISE OF OFF-STATE VOLTAGE (V/µs)
CRITICAL RATE OF RISE OF OFF-STATE
COMMUTATING VOLTAGE (V/µs)
COMMUTATION CHARACTERISTICS
7
TYPICAL
5
EXAMPLE
3 T
j
= 125°C
2 I
T
= 4A
τ
= 500µs
V
D
= 200V
10
1
f = 3Hz
7
5
MINIMUM
3 CHARAC-
2 TERISTICS
VALUE
10
0
7
10
0
SUPPLY
VOLTAGE
MAIN CURRENT
MAIN
VOLTAGE
(dv/dt)c
TIME
(di/dt)c
TIME
TIME
V
D
GATE TRIGGER CURRENT VS.
GATE CURRENT PULSE WIDTH
10
3
7
5
4
3
2
10
2
7
5
4
3
2
10
1 0
10
2 3 4 5 7 10
1
2 3 4 5 7 10
2
100 (%)
TYPICAL EXAMPLE
I
FGT I
I
RGT I
I
RGT III
I QUADRANT
III QUADRANT
2 3
5 7 10
1
2 3
5 7 10
2
RATE OF DECAY OF ON-STATE
COMMUTATING CURRENT (A /ms)
GATE TRIGGER CURRENT (tw)
GATE TRIGGER CURRENT (DC)
GATE CURRENT PULSE WIDTH (µs)
GATE TRIGGER CHARACTERISTICS TEST CIRCUITS
6Ω
6Ω
6V
V
A
R
G
6V
V
A
R
G
TEST PROCEDURE
1
6Ω
TEST PROCEDURE
2
6V
V
A
R
G
TEST PROCEDURE
3
Mar. 2002
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

TMPO1 internal functional block diagram and basic application circuit

High Q Band Pass Filter Amplifier

Equivalent circuit with bass attenuation

Triangular wave and square wave generator circuit diagram installed with NE555

Broadband multivibrator circuit diagram

pulse stretching circuit

Android system transplantation and compilation (I)
: [p=25, null, center][color=#333333][font=Verdana, Arial, Tahoma][b]Android source code directory structure[/b][/font][/color][/p] [p=25, null, left][color=#333333][font=Verdana, Arial, Tahoma] [b]Au...
武汉linux Linux and Android
I am using vs2005 to develop CE programs. Where can I find the created files when debugging?
I am using vs2005 to develop a CE program. Where can I find the created file when debugging? I searched my computer but couldn't find it. However, the bytes read in the program are all correct. Why? B...
hawkliu83 Embedded System
A question about the STK card. I wonder if this function can be realized?
One of my clients asked me if it is possible to add a function in the STK card that automatically adds an IP prefix to the number dialed by the user on the mobile phone. For example, if it is a number...
wangke3721 Embedded System
The domestically produced CSM32RV20 is a low-power MCU chip based on the RISC-V core
CSM32RV20 is a low-power MCU chip based on the RISC-V core. The chip has a built-in 4k-byte SRAM. It can be accessed as bytes, half words (16 bits) or full words (32 bits), supports 4 low-power modes,...
DN13924672287 stm32/stm8
Input impedance of the instrument
[i=s]This post was last edited by bjhyyq on 2017-11-6 10:11[/i] [color=#000000] The input impedance characteristics of each instrument vary greatly, but they can generally be divided into two categori...
bjhyyq Test/Measurement
[Raspberry Pi 4B Review] + OPENCV Simple License Plate Location
In recent years, license plate recognition has attracted more and more attention. Especially in intelligent transportation systems, license plate recognition plays a huge role. The automatic recogniti...
29447945 Special Edition for Assessment Centres
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. SIT9005AIB1G-33DI
  2. MC0410S-R68J-S
  3. EQDP-028-06.00-TBL-TTR-4-S
  4. CX635BZ-A2B3C440-FREQD16-BT
  5. CA3100E36-6SYB-A232
  6. PH2R15-130GAB3.9/2.8/2.5-L
  7. 7203L2PY3W1RE
  8. GUS-QS8ALF-002612-FC
  9. GQZJ43T/R7
  10. P6SMB33C-AU_R2_100A1
  11. A2547WVB-5P-D144
  12. A2541WR-2x3P-E381-G15

Popular Articles

  1. Vishay Introduces Automotive-Grade IHLP® Inductors for Continuous High-Temperature Operation in 7575 Package Size
  2. Renesas Electronics Accelerates Deep Learning Development for ADAS and Autonomous Driving Applications
  3. Mouser Electronics to Exhibit at 2021 ELEXCON Shenzhen International Electronics Show
  4. When supply and demand are out of balance, how can local IC substrate manufacturers seize the opportunity to win?
  5. AI-powered machine vision for manufacturing and industrial environment monitoring applications
  6. Yocto system programming for Xunwei 4418/6818 development board
  7. Xiaobai learns about HC-05 Bluetooth transparent transmission module
  8. Xiaomi officially responds to 10 questions including "Xiaomi 11 stable version charges slowly"
  9. 51 MCU memory
  10. What preparations do we need to do before operating the spectrum analyzer?

Technical ResourceMore

  1. AG6202 Chinese Manual | AG6206 Chinese Specification
  2. Zero Voltage Switching Multi-Resonant Three-Level DC-DC Converter
  3. Complete Switching Power Supply Design Report
  4. Common knowledge documents for digital IC circuit design written test and interview
  5. ascii quick search tool
  6. MATLAB Case 8 GRNN Data Prediction - Freight Volume Prediction Based on Generalized Regression Neural Network.rar
  7. How to use long integer variables in COSMIC
  8. Altium Designer schematic library field effect tube.SchLib
  9. Basic knowledge of varistor
  10. Introduction to switching power supply design knowledge

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1922  1180  1844  891  1123  39  24  38  18  23
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
