32HR03632: DescriptionInterconnection Device,; CategoryThe connector The connector; File Size83KB，2 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric Compare View All

32HR03632 Overview

Interconnection Device,

32HR03632 Parametric

Parameter Name	Attribute value
Maker	Switchcraft
Reach Compliance Code	compliant
Other features	PLUG-TO-PLUG
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

Welcome to Switchcraft! Consistently Excellent since 1946!

Last updated:

5/15/06

Return to Index

|

Chicago, IL 60630

Phone:

773.792.2700

Fax:

773.792.2129

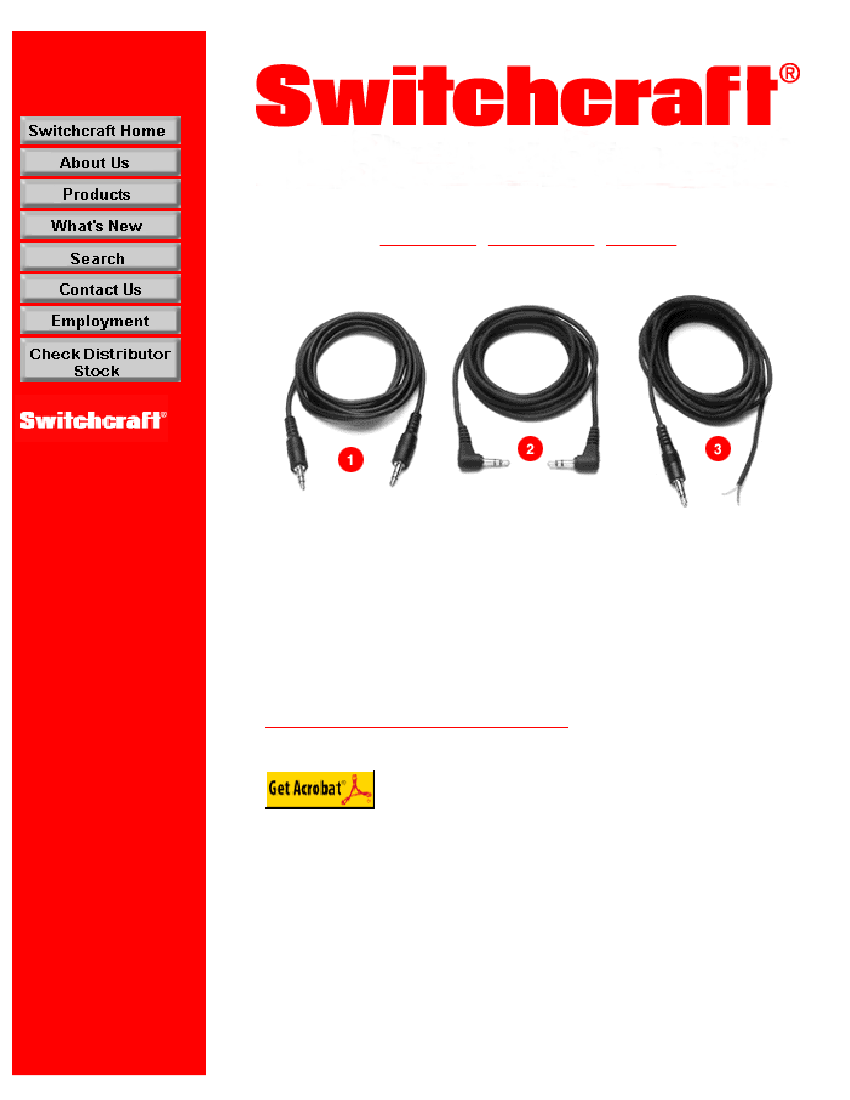

MOLDED CABLE ASSEMBLIES

3.5 mm with Plugs

1.

35HRXXX35

2.

36HRXXX36

3.

35HRXXX84

click here to download a schematic drawing

(you will need to have Adobe Acrobat installed on your system to do this)

FEATURES AND BENEFITS

q

Choose plug-to-plug or plug-to-stripped and tinned leads

3.5 mm plugs available as straight or right-angle

Available in mono and stereo

NOM.29 GA jacketed conductors (red and white) with copper spiral

shield

Cable O.D. 3.0 mm nom./.118" nom.

Black cable

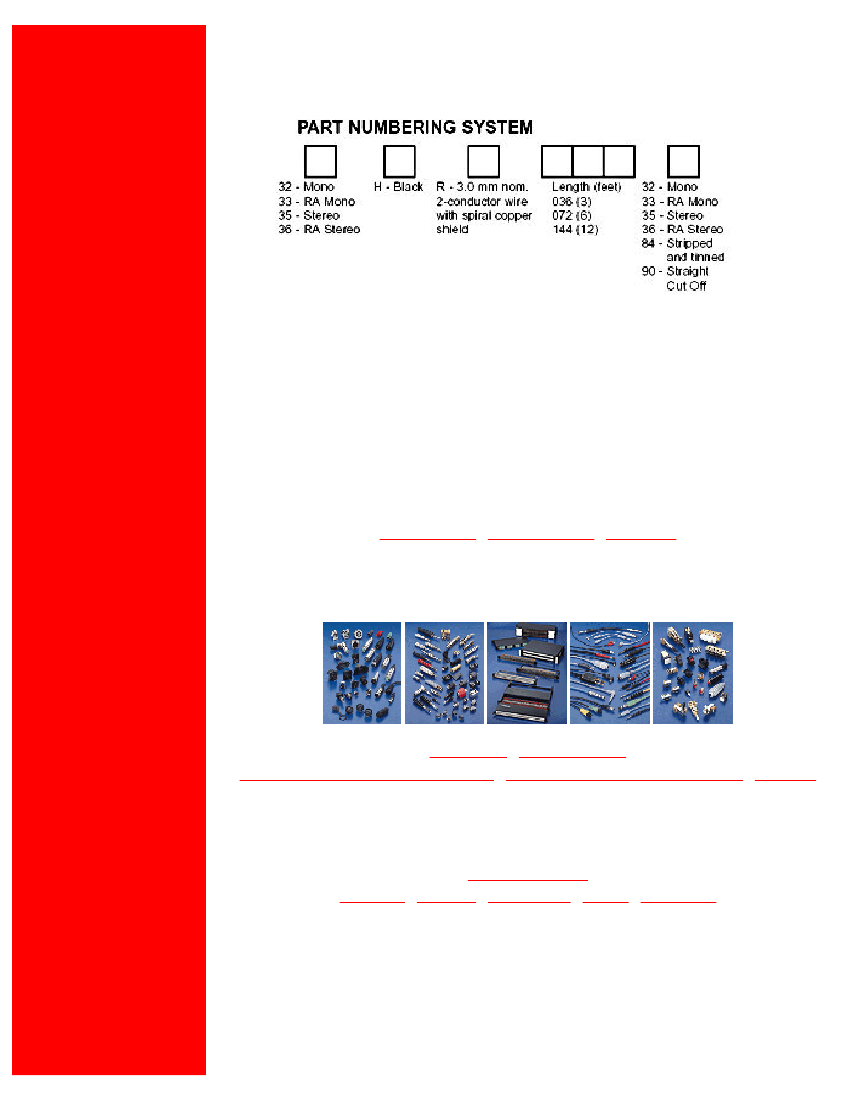

ORDERING

http://www.switchcraft.com/ (1 of 2)5/30/2006 9:48:20 AM

32HR03632 Related Products

	32HR03632	35HR14435	33HR14433	35HR03635	32HR14432	32HR07232	36HR14436	33HR03633
Description	Interconnection Device,	Interconnection Device,	Interconnection Device,	Interconnection Device,	Interconnection Device,	Interconnection Device,	Interconnection Device,	Interconnection Device,
Reach Compliance Code	compliant	not_compliant	compliant	not_compliant	compliant	not_compliant	compliant	compliant
Other features	PLUG-TO-PLUG	PLUG-TO-PLUG, STRAIGHT	PLUG-TO-PLUG	PLUG-TO-PLUG, STRAIGHT	PLUG-TO-PLUG	PLUG-TO-PLUG	PLUG-TO-PLUG, RIGHT ANGLE	PLUG-TO-PLUG
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE
Maker	Switchcraft	Switchcraft	-	-	Switchcraft	Switchcraft	Switchcraft	Switchcraft
