THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
1000 ± 30
200 ± 20
REV.
REVISION
DESCRIPTION
DATE
APPROVED
P3
B
B
P1
12 ± 0.3
A
P2
A
12 ± 0.3
5.5 ±
0.3
0.1
CONTROLLED
No.
1
CABLE
CABLE
USB 3.0 A M 9PIN GOLD PLATED
MICRO USB3.0 B M 10PIN GOLD PLATED
USB A/M 4PIN GOLD PLATED FLASH
PARTS NAME
SPECIFICATION STANDARD
UL 20276 O.D. 5.5mm COLOR: BLACK
UL 2725 O.D. 3.5mm COLOR: BLACK
30U” SHELL NICKEL PLATED INSULATOR BLUE
15U” SHELL NICKEL PLATED INSULATOR BLACK
SHELL NICKEL PLATED INSULATOR BLACK
QTY REMARKS
1
1
1
1
1
20
3
2
g
g
A-A
2
3
4
5
6
PVC
PE
CABLE TIE
Dim
range
(mm)
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
45P PVC BLACK
CLEAR PE
L=9cm COLOR: BLACK
B-B
110 ± 10
7
8
NOTES:
1. CABLE 1: UL20276
(1Px30AWG+D+AL+MY)x2C+1Px30AWG+2Cx24AWG+AL+B
OUTER JACKET: BLACK, O.D.: 5.5mm
2. CABLE 2: UL2725
(1Px30AWG+28AWGx2C)+A+B(32B AM)+D
OUTER JACKET: BLACK, O.D.: 3.5mm
2. CONNECTORS: USB 3.0 A MALE TO MICRO USB 3.0 B MALE + POWER
3. HOOD: MOLDED TYPE, COLOR: BLACK
4. PACKING: 1PC/POLYBAG
5. RoHS COMPLIANT
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
3023011-01M
8”
0-1
1-6
6-18
18-50
50-120
120-250
250-500

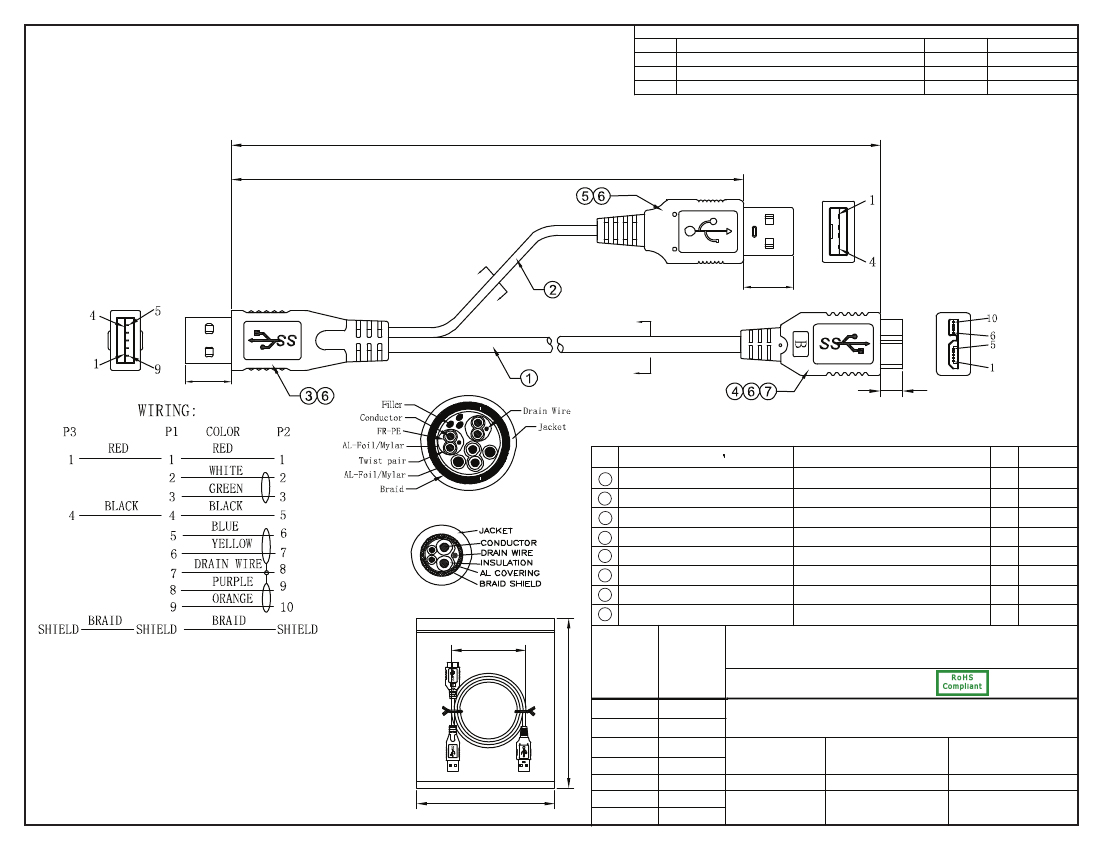

USB 3.0 A/M - MICRO USB 3.0 B/M + POWER CABLE
UNIT: mm
Drawn / Date
R.Nuti
06-25-10
Checked / Date
06-25-10
Approved / Date
LY / 06-25-10
6”
