BAV99_D87Z

Description
Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon
CategoryDiscrete semiconductor    diode
File Size192KB，6 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric View All

BAV99_D87Z Online Shopping

Suppliers Part Number Price MOQ In stock
BAV99_D87Z - - View Buy Now

BAV99_D87Z Overview

Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon

BAV99_D87Z Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerON Semiconductor
package instructionR-PDSO-G3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresULTRA FAST
ConfigurationSERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.3 V
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Humidity sensitivity level1
Number of components2
Number of terminals3
Maximum operating temperature150 °C
Maximum output current0.2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.35 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage70 V
Maximum reverse recovery time0.006 µs
surface mountYES
Terminal surfaceMatte Tin (Sn) - annealed
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

BAV99_D87Z Preview

BAV99 — 200 mA 70 V High Conductance Ultra-Fast Switching Diode
April 2014
BAV99
200 mA 70 V High Conductance Ultra-Fast Switching
Diode
Features
•
•
•
•
High Conductance: I
F
= 200 mA
Fast Switching Speed: t
rr
< 6 ns Maximum
Small Plastic SOT-23 Package
Series-Pair Configuration
Description
The BAV99 is a 350 mW high-speed switching diode
array with series-pair diode configuration. It achieves
high-current conductivity, up to 200 mA, in a very small
7mm
2
footprint. These features make the BAV99 optimal
for area-constrained applications that need a little extra
power capability.
For common cathode and common anode high-speed
switching diodes, explore Fairchild's BAV70 and BAW56.
Looking for more options in the SOT-23 package? Check
Fairchild's MMBD family.
Applications
• High-Speed Switching Applications
Connection Diagram
3
3
3
2
1
A7
2
1
2
1
SOT-23
Ordering Information
Part Number
BAV99
BAV99_D87Z
Marking
A7
A7
Package
SOT-23 3L
SOT-23 3L
Packing Method
Tape and Reel, Reel 7 inch
Tape and Reel, Reel 13 inch
© 2001 Fairchild Semiconductor Corporation
BAV99 Rev. 1.1.0
1
www.fairchildsemi.com
BAV99 — 200 mA 70 V High Conductance Ultra-Fast Switching Diode
Absolute Maximum Ratings
(1)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
V
RRM
I
F(AV)
I
FSM
T
STG
T
J
Parameter
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current
Non-Repetitive Peak
Forward Surge Current
Pulse Width = 1.0 Second
Pulse Width = 300 Microseconds
Value
70
200
1.0
8.0
-55 to +150
-55 to +150
Unit
V
mA
A
°C
°C
Storage Temperature Range
Operating Junction Temperature Range
Note:
1. These ratings are based on a maximum junction temperature of 150°C.
These are steady-state limits. Fairchild Semiconductor should be consulted on applications involving pulsed
or low-duty cycle operations.
Thermal Characteristics
(2)
Values are at T
A
= 25°C unless otherwise noted.
Symbol
P
D
R
θJA
Power Dissipation
Parameter
Thermal Resistance, Junction to Ambient
Value
350
357
Unit
mW
°C/W
Note:
2. PCB size: FR-4, 76 mm x 114 mm x 1.57 mm (3.0 inch x 4.5 inch x 0.062 inch) with minimum land pattern size.
Electrical Characteristics
Values are at T
A
= 25°C unless otherwise noted.
Symbol
V
R
Parameter
Breakdown Voltage, per Diode
Conditions
I
R
= 100
μA
I
F
= 1 mA
I
F
= 10 mA
I
F
= 50 mA
I
F
= 150 mA
V
R
= 70 V
Min.
70
Max.
715
855
1.00
1.25
2.5
30.0
50.0
1.5
6.0
Unit
V
mV
V
V
F
Forward Voltage, per Diode
I
R
C
T
t
rr
Reverse Leakage, per Diode
Total Capacitance, per Diode
Reverse-Recovery Time,
per Diode
V
R
= 25 V, T
A
= 150°C
V
R
= 70 V, T
A
= 150°C
V
R
= 0 V, f = 1.0 MHz
I
F
= I
R
= 10 mA,
I
RR
= 1 mA,
R
L
= 100
Ω
μA
pF
ns
© 2001 Fairchild Semiconductor Corporation
BAV99 Rev. 1.1.0
2
www.fairchildsemi.com
BAV99 — 200 mA 70 V High Conductance Ultra-Fast Switching Diode
Typical Performance Characteristics
150
Ta= 25
°
C
300
Ta= 25
°
C
Reverse Current, I
R
[nA]
1
2
3
5
10
20
30
50
100
Reverse Voltage, V
R
[V]
140
250
200
130
150
100
120
50
110
0
10
20
30
50
70
100
Reverse Current, I
R
[uA]
Reverse Voltage, V
R
[V]
Figure 1. Reverse Voltage vs. Reverse Current
Figure 2. Reverse Current vs. Reverse Voltage
Ta= 25
°
C
450
700
Ta= 25
°
C
Forward Voltage, V
F
[mV]
Forward Voltage, V
F
[mV]
650
400
600
350
550
300
500
250
450
1
2
3
5
10
20
30
50
100
0.1
0.2
0.3
0.5
1
2
3
5
10
Forward Current, I
F
[uA]
Forward Current, I
F
[mA]
Figure 3. Forward Voltage vs. Forward Current
V
F
- 1 to 100
μA
Figure 4. Forward Voltage vs. Forward Current
V
F
- 0.1 to 10 mA
1.3
Ta= 25
°
C
1.4
Ta= 25
°
C
Forward Voltage, V
F
[V]
Total Capacitance [pF]
10
20
30
50
100
200
300
500
1.2
1.2
1.0
1.1
0.8
0.6
1.0
0
2
4
6
8
10
12
14
Forw ard C urrent, I
F
[m A ]
R everse V oltage [V ]
Figure 5. Forward Voltage vs. Forward Current
V
F
- 10 to 800 mA
Figure 6. Total Capacitance vs. Reverse Voltage
© 2001 Fairchild Semiconductor Corporation
BAV99 Rev. 1.1.0
3
www.fairchildsemi.com
BAV99 — 200 mA 70 V High Conductance Ultra-Fast Switching Diode
Typical Performance Characteristics
(Continued)
4.0
Reverse Recovery Time [ns]
Ta= 25
°
C
400
3.5
300
2.5
Current [mA]
3.0
200
I
F
(A V
)
-A
VE
RA
2.0
GE
RE
CT
100
IF IE
1.5
DC
UR
RE
NT
-m
A
1.0
10
20
30
40
50
60
0
0
50
100
o
150
Reverse Current [mA]
Ambient Temperature, T
A
[ C]
Figure 7. Reverse-Recovery Time vs.
Reverse Current
500
Figure 8. Average Rectified Current (I
F(AV)
) vs.
Ambient Temperature (T
A
)
Power Dissipation, P
D
[mW]
400
300
SOT-23 Pkg
200
100
0
0
25
50
75
100
125
o
150
175
200
Average Tem perature, [ C]
Figure 9. Power Derating Curve
© 2001 Fairchild Semiconductor Corporation
BAV99 Rev. 1.1.0
4
www.fairchildsemi.com
BAV99 — 200 mA 70 V High Conductance Ultra-Fast Switching Diode

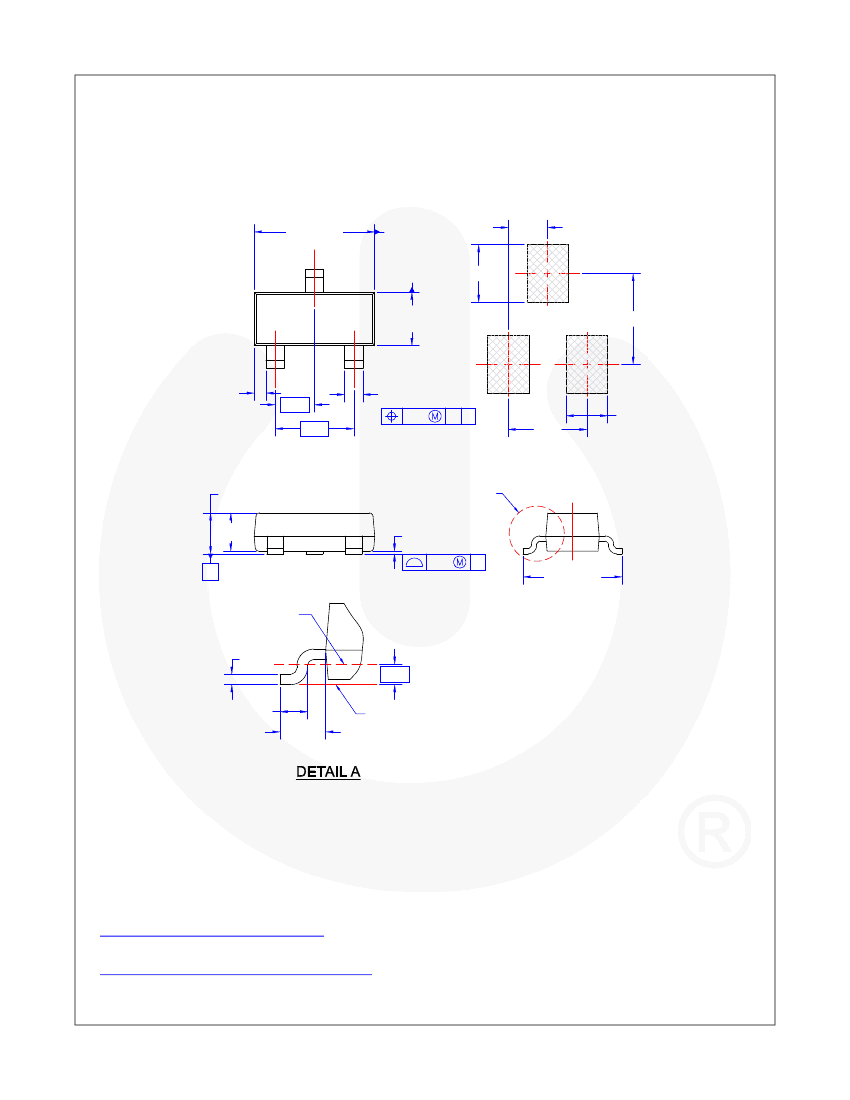

Physical Dimensions
SOT-23
2.92±0.20
3
1.40
0.95
1.30+0.20
-0.15
2.20
1
(0.29)
0.95
1.90
2
0.60
0.37
0.20
A B
1.90
LAND PATTERN
RECOMMENDATION
1.00
1.20 MAX
(0.93)
SEE DETAIL A
0.10
0.00
0.10
C
2.40±0.30
NOTES: UNLESS OTHERWISE SPECIFIED
C
GAGE PLANE
A) REFERENCE JEDEC REGISTRATION
TO-236, VARIATION AB, ISSUE H.
B) ALL DIMENSIONS ARE IN MILLIMETERS.
C) DIMENSIONS ARE INCLUSIVE OF BURRS,
MOLD FLASH AND TIE BAR EXTRUSIONS.
D) DIMENSIONING AND TOLERANCING PER
ASME Y14.5M - 1994.
E) DRAWING FILE NAME: MA03DREV10
0.23
0.08
0.25
0.20 MIN
(0.55)
SEATING
PLANE
SCALE: 2X
Figure 10. 3-LEAD, SOT23, JEDEC TO-236, LOW PROFILE
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner
without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or
obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the
warranty therein, which covers Fairchild products.
Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:
http://www.fairchildsemi.com/dwg/MA/MA03D.pdf.
For current tape and reel specifications, visit Fairchild Semiconductor’s online packaging area:
http://www.fairchildsemi.com/packing_dwg/PKG-MA03D.pdf.
© 2001 Fairchild Semiconductor Corporation
BAV99 Rev. 1.1.0
5
www.fairchildsemi.com
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

A differential line driver circuit diagram

Remote control line b

CF1 (CF2) trigger circuit

Nine-speed adjustable DC power circuit

Digital alarm clock circuit using 3817

Loeyer basic circuit

Embedded C code optimization
When I first started working, I participated in embedded code optimization. In addition to the most basic function implementation algorithm optimization, there were also some details to deal with. Of ...
灞波儿奔 Microcontroller MCU
ESP32-S2-Saola-1 Review—by dcexpert
ESP32-S2-Saola-1Get to know this board: https://docs.espressif.com/projects/esp-idf/zh_CN/latest/esp32s2/hw-reference/esp32s2/user-guide-saola-1-v1.2.html@dcexpertBoard: ESP32-S2-Saola-1 development b...
okhxyyo MicroPython Open Source section
What is the relationship between FPGA, microcontroller, DSP, and ARM, and what are the advantages of each?
[align=center][/align] [size=4]Among these, FPGA and ARM are the hottest now. But the other two are still alive. [/size] [size=4] [/size] [size=4]Can you guys tell me what are the advantages of each o...
高进 Talking
Perfect replacement for STC's MCU data
Perfect replacement for STC's MCU, no software or hardware modification is required. For other information and DEMO programs, please go to [url]http://www.megawin.net.cn[/url] to download...
gjgaolin MCU
Porting of ucgui on LM4F232XXX
Recently, I implemented the transplantation of UCGUI on LM4F232. Here I share the pictures with you. The source code is too large and I don’t know how to upload it. If you need it, you can add my QQ, ...
Triton.zhang Microcontroller MCU
Has anyone done the test of 6410+3G?
Does China Telecom provide WINCE drivers for its EVDO modules? I want to test the speed but I can't get the drivers. I'm very frustrated!...
wu086 Embedded System
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. MBA0414-250.5CT47K
  2. 803-99-064-10-001000
  3. 54122-813-12-1850LF
  4. DBM109CR5K-60V/20-BP
  5. MD15M59B8FT0/AA
  6. D55342M07B187DPT5V
  7. 292D15X06R3R2035
  8. CHP1010K2232DWTE
  9. GMZJ36DT/R7
  10. ZMM55-D3V0_R2_10001
  11. SMBJ28A
  12. CR1210J13RP05

Popular Articles

  1. How to deal with the influence of steam and foam on ultrasonic level meter
  2. ZDS2022 Oscilloscope 100 Practical Videos 33: How to use the reference waveform function of the oscilloscope
  3. Mendix Intelligent Solutions Introduces Business Events and Enhances Artificial Intelligence and Machine Learning
  4. China's two power battery giants are competing with Japanese and Korean companies, and their global market share has exceeded 50%
  5. Rockwell Automation Introduces New CENTERLINE 1500 Motor Control Center Grounding Device
  6. Power Upgrade: Next Generation ANCA EDG Sets New Benchmark in PCD Manufacturing
  7. The importance of correctly selecting the action form of the regulating valve 
  8. Comparison of LG Chem VS Samsung SDI's lithium battery technology layout
  9. Velodyne Lidar Provides Advanced Perception for ROBORACE Autonomous Racing Series
  10. ATmega168 reset and interrupt handling

Technical ResourceMore

  1. Using L4981B to realize switching frequency modulation of variable frequency air conditioner
  2. MCU Elf_1.3.zip
  3. Huawei\'s internal hardware development and design process
  4. Altium Designer schematic library optoelectronic devices.SchLib
  5. Design of forward high frequency transformer)
  6. MSP430 series single chip microcomputer interface technology and system design examples
  7. PLC Tutorial 3rd Edition
  8. Embedded Linux Primer （Second Edition）
  9. Infineon six-unit SIO driver IC introduction
  10. Doubts about the magnetic reset process of the forward transformer

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1399  1102  2402  692  1324  29  23  49  14  27
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
