LM101AH/883 datasheet, PDF - EEWORLD Datasheet

LM101AH/883: DescriptionIC OP-AMP, Operational Amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size397KB，6 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

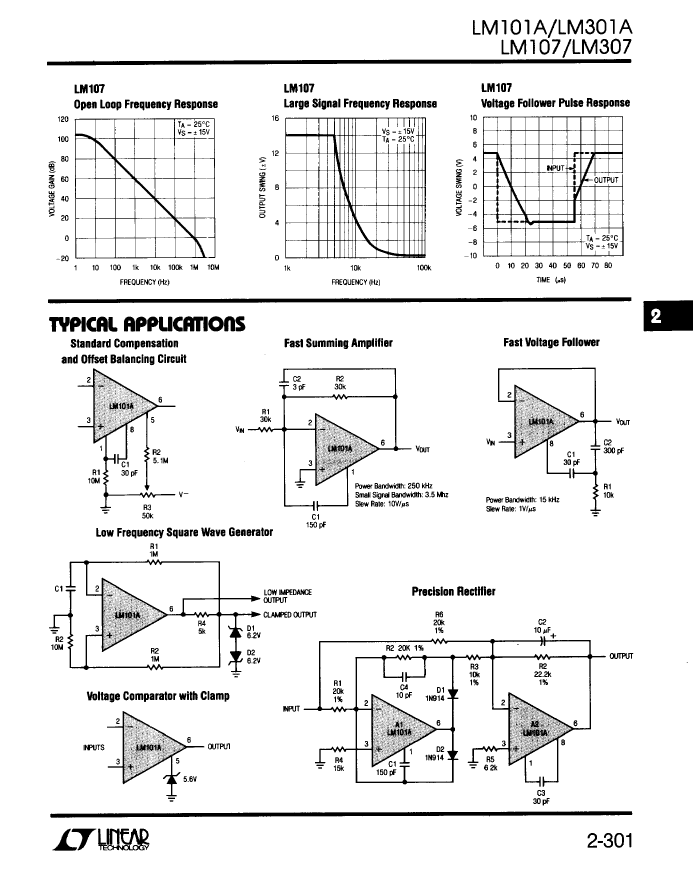

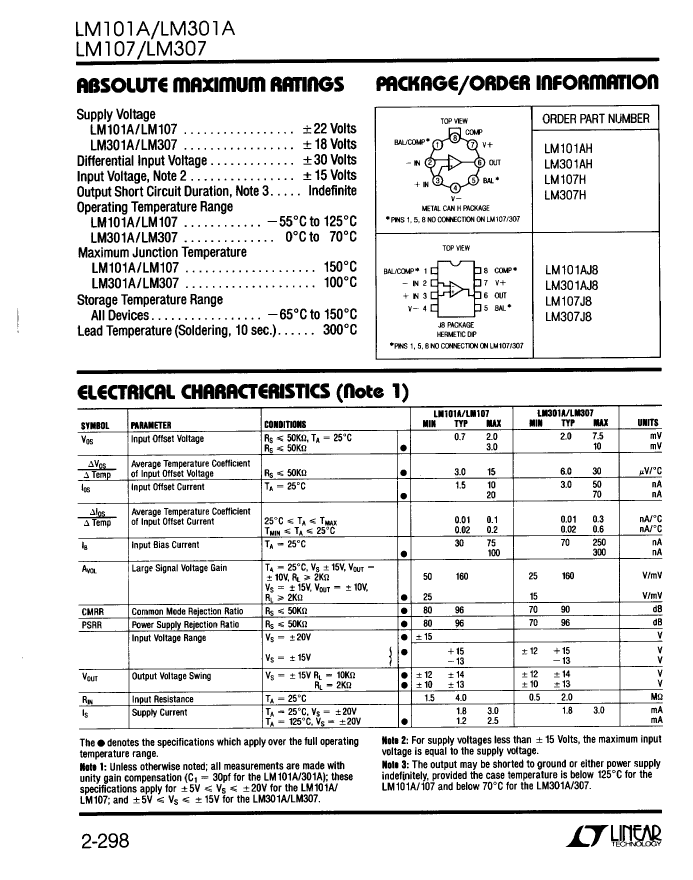

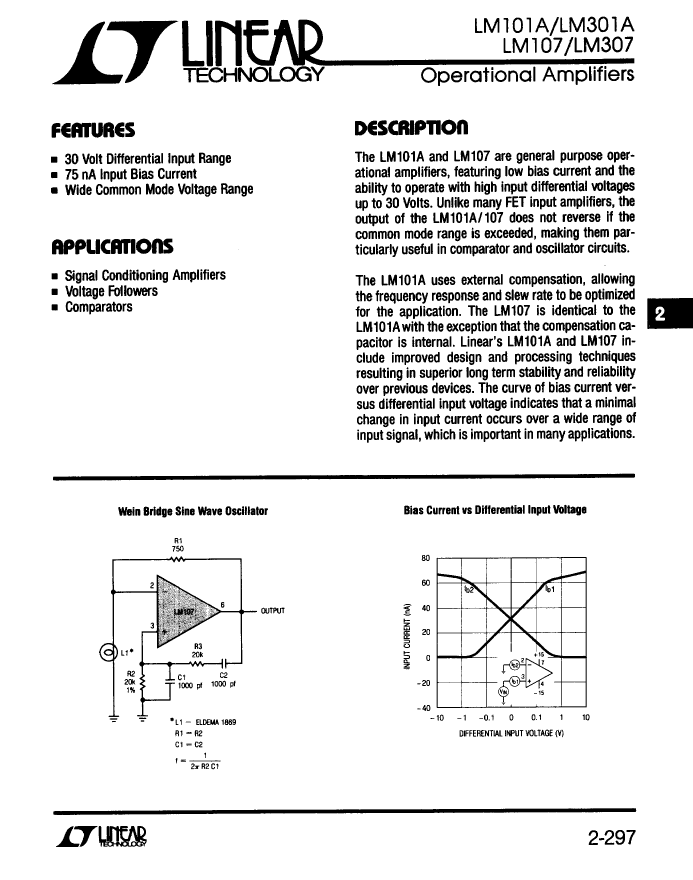

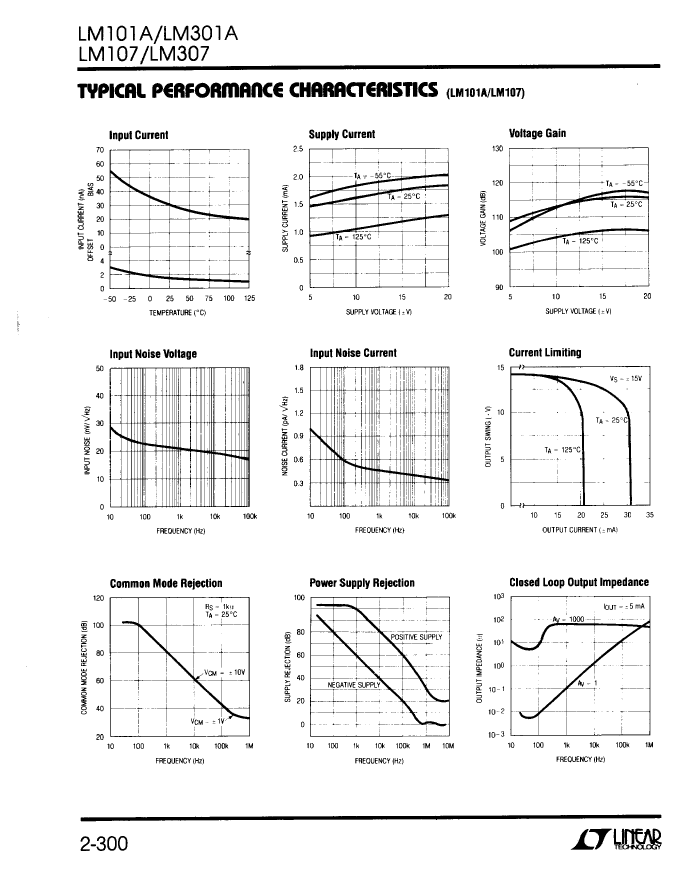

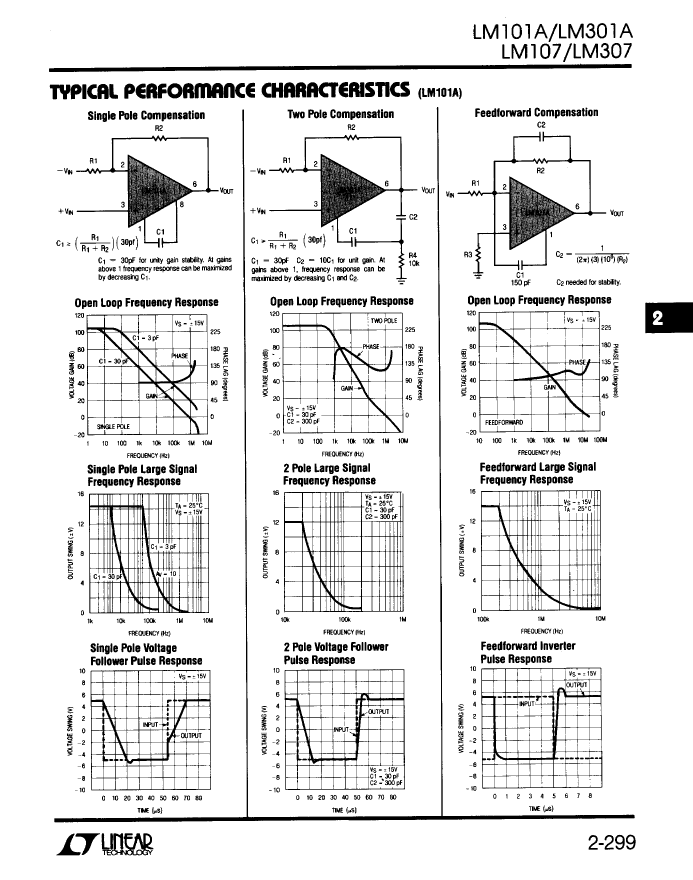

LM101AH/883 Overview

IC OP-AMP, Operational Amplifier

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
package instruction	, CAN8,.2
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.075 µA
frequency compensation	NO
Maximum input offset voltage	3000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	NO
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5/+-20 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum slew rate	3 mA
Supply voltage upper limit	22 V
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	25000

	LM101AH/883	LM107H/883	LM101AJ8/883
Description	IC OP-AMP, Operational Amplifier	LM107H/883	LM101AJ8/883
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.075 µA	0.075 µA	0.075 µA
frequency compensation	NO	YES	NO
Maximum input offset voltage	3000 µV	3000 µV	3000 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8	R-XDIP-T8
JESD-609 code	e0	e0	e0
low-dissonance	NO	NO	NO
Number of functions	1	1	1
Number of terminals	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	METAL	METAL	CERAMIC
Encapsulate equivalent code	CAN8,.2	CAN8,.2	DIP8,.3
Package shape	ROUND	ROUND	RECTANGULAR
Package form	CYLINDRICAL	CYLINDRICAL	IN-LINE
power supply	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum slew rate	3 mA	3 mA	3 mA
Supply voltage upper limit	22 V	22 V	22 V
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	DUAL
Minimum voltage gain	25000	25000	25000
Maker	Linear ( ADI )	Linear ( ADI )	-
Base Number Matches	-	1	1
