MIS-095-01-C-D-K datasheet, PDF

Datasheet> All Categories > The connector> The connector> MIS-095-01-C-D-K

MIS-095-01-C-D-K: DescriptionBoard Connector, 190 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size257KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MIS-095-01-C-D-K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MIS-095-01-C-D-K	-	-	View	Buy Now

MIS-095-01-C-D-K Overview

Board Connector, 190 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

MIS-095-01-C-D-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	POLYAMIDE FILM
Board mount options	HOLE .086-.098
body width	0.245 inch
subject depth	0.135 inch
body length	3 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Durability	100 Cycles
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	MIS
Plug contact pitch	0.025 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.0866 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	190

Preview

Download Datasheet

View All

REVISION T

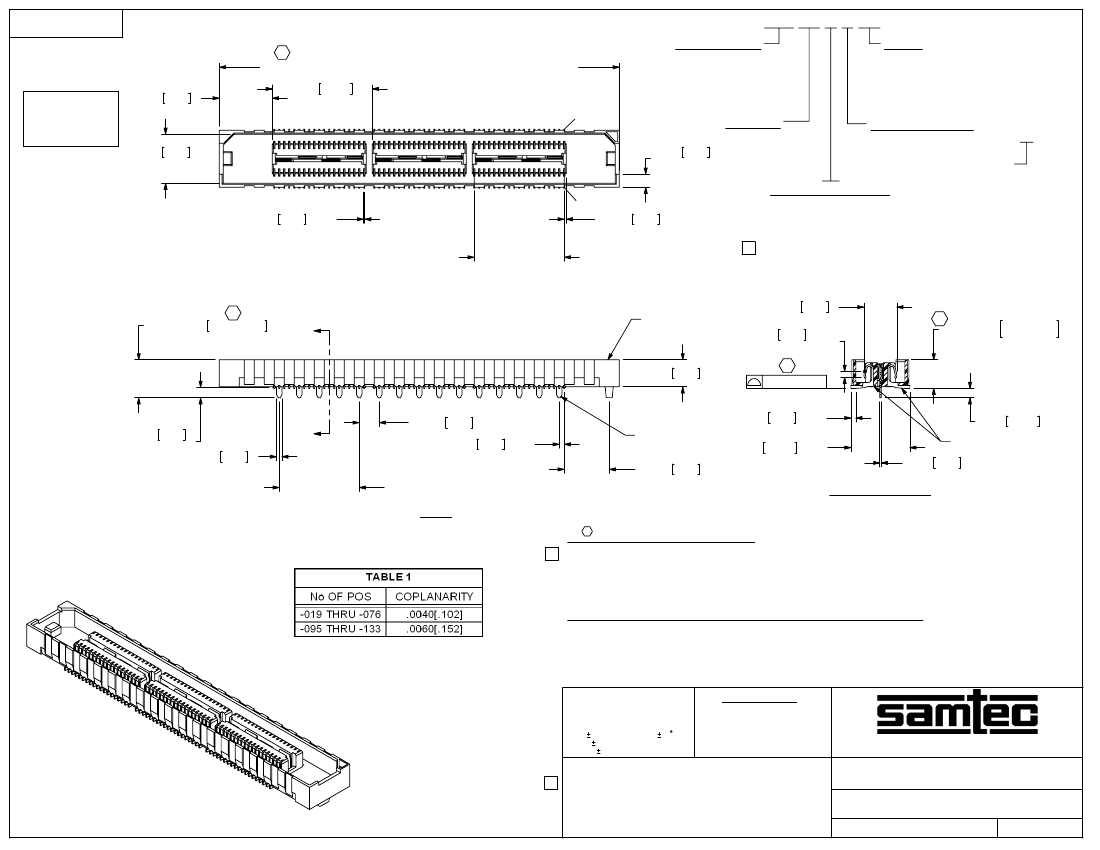

MIS-XXX-XX-X-D-XX

* = SEE NOTE 11

((No OF POSITIONS / 19) x .5000[12.700]) + .5000[12.700] REF

No OF POSITIONS

-019, -038, -057, *-076,

*-095, *-114, *-133

(PER ROW)

.065 1.65

REF

OPTION

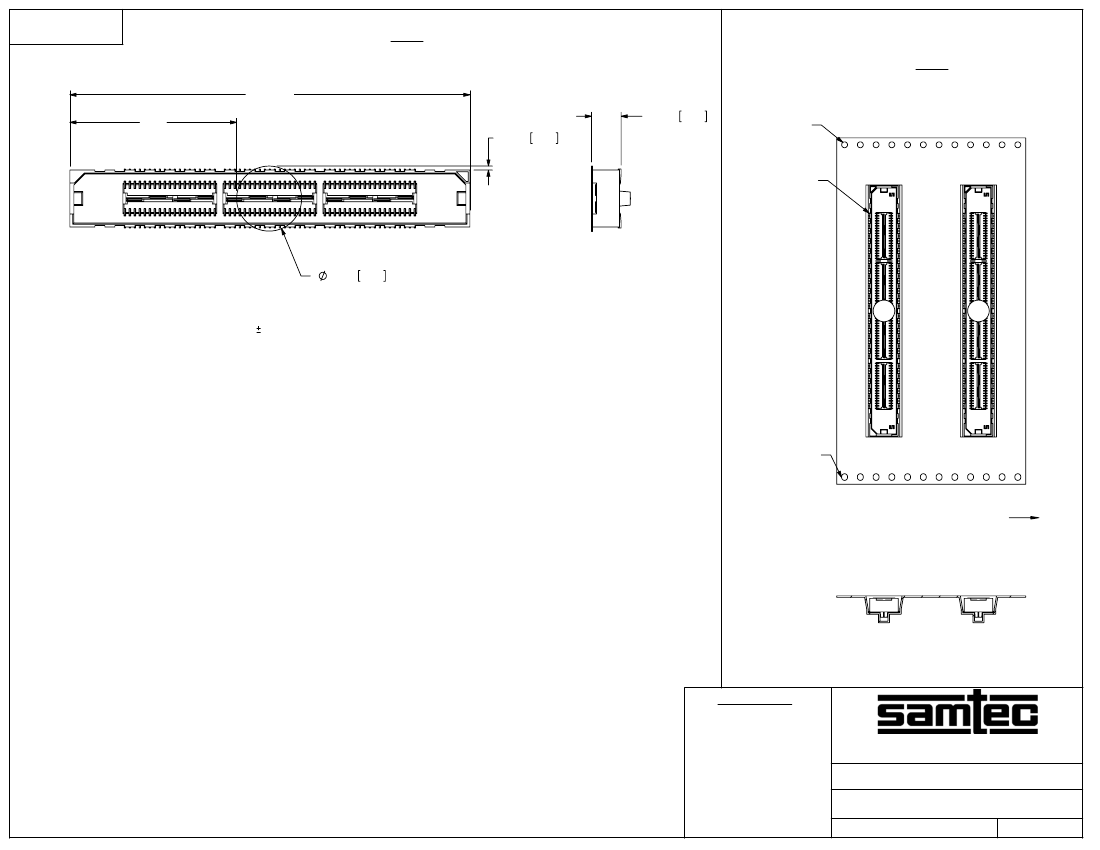

-K: POLYIMIDE FILM PAD

(USE K-850-650, SEE FIG 2)

-TR: TAPE & REEL (076 POS MAX)

DO NOT

SCALE FROM

THIS PRINT

.2650 6.73

.5000 12.70

LEAD STYLE

-01: .1430[3.632]

ROW SPECIFICATION

-D: DOUBLE (USE MIS-19-01-D-XX)

No OF BANKS

.245 6.22

REF

.0060 0.15 REF

18 EQ SPACES

@ .0250[.635]

.0100 0.25 REF

PLATING SPECIFICATION

-F: FLASH GOLD (USE C-149-01-F & T-1G6-01-F) (SEE NOTE 10)

WITH MATTE TIN TAILS.

-L: LIGHT GOLD (USE C-149-01-L & T-1G6-01-L)

WITH MATTE TIN TAILS.

-H: HEAVY GOLD WITH MATTE TIN TAILS

(USE C-149-01-H & T-1G6-01-G)

-C: ELECTRO-POLISHED GOLD, MATTE TIN TAILS

(USE C-149-01-C, T-1G6-01-L)

.1650 4.19

.030 0.76 REF

(MATING AREA)

.190±.0030 4.83±0.076

"A"

MIS-19-01-D-XX

.1430

- .0010

3.632

- 0.025

(SEE NOTE 8)

+.0030

+0.076

.1350 3.43 REF

SEE TABLE 1

.025 0.64 REF

.047 1.194 REF

C-149-01-X

.007 0.18 REF

.052 1.32

REF

"A"

.0270 0.69

.1000 2.54 REF

.0250 0.64 REF

T-1G6-01-X

.2250 5.72 REF

.295 7.493 REF

4 EQ. SPACES @ .100 [2.54] REF

MIS-057-01-X-D SHOWN

SECTION "A"-"A"

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. COPLANARITY TO BE WITHIN .004.

3. MAXIMUM BURR ALLOWANCE: .0015[.038] MAX.

4. MINIMUM TERMINAL RETENTION: 8 OZ.

5. MINIMUM GROUND PLANE RETENTION: 8 OZ.

6. MAXIMUM ALLOWABLE BOW: .002[.05] INCH/INCH AFTER ASSEMBLY.

7. PARTS TO BE MOLDED TO POSITION.

8. MAX VARIANCE: .002[.05].

9. DIMENSION APPLIES TO CONTACTS AND GROUND PLANE LEDGE.

10. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.

11. FOR APPLICATIONS REQUIRING THESE POSITIONS, PLEASE CONTACT SAMTEC

INTERCONNECT PROCESSING GROUP.

12. TO BE PACKAGED IN TRAYS.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

MATERIAL:

FIG 1

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

DECIMALS

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP, UL 94 VO

COLOR: BLACK

CONTACT & GROUND PLANE: PHOS BRONZE

F:\DWG\MISC\MKTG\MIS-XXX-XX-X-D-XX-MKT.SLDDRW

.635mm DOUBLE ROW HS SOCKET ASSEMBLY

DWG. NO.

MIS-XXX-XX-X-D-XX

7/7/1999

SHEET

BY:

DEAN P
