BA3703F-E2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> BA3703F-E2

BA3703F-E2: DescriptionConsumer Circuit, Bipolar, PDSO8, SOP-8; CategoryOther integrated circuit (IC) Consumption circuit; File Size78KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA3703F-E2 Overview

Consumer Circuit, Bipolar, PDSO8, SOP-8

BA3703F-E2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	SOP-8
Contacts	8
Reach Compliance Code	compliant
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G8
JESD-609 code	e3/e2
length	5 mm
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	9 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum slew rate	2 mA
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	6 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm

BA3703F-E2 Preview

Audio ICs

Mute detector IC

BA3703F

The BA3703F is a mute detector designed for car stereos. It features low external parts count, and can detect mute

whether the tape is playing or being fast-forwarded.

It features a wide power supply voltage range (6.0V to 16.0V) and is ideal for use in car stereos and other audio equip-

ment.

FApplication

Car stereos

FFeatures

1) Can detect mute during playback and fast-forward.

2) The signal detect and mute detect times can be set

using attached components.

FBlock

diagram

3) Wide operating voltage range (6.0V to 16.0V).

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)

750

Audio ICs

FElectrical

characteristics (unless otherwise noted, Ta = 25_C, V

= 9V, V

= 5V, f = 1kHz,

measurement circuit : Fig. 1)

BA3703F

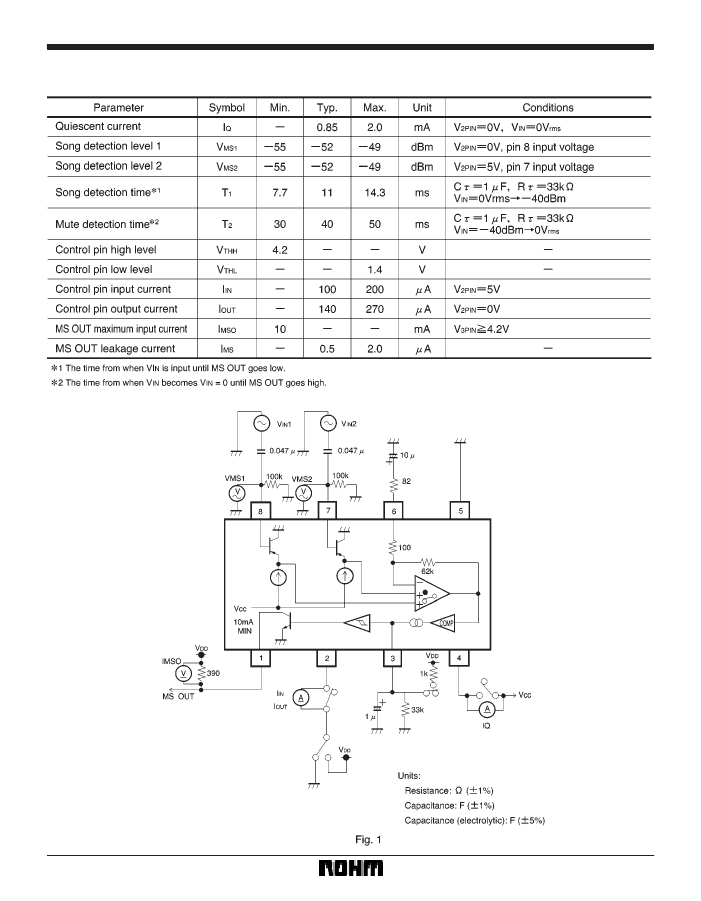

FMeasurement

circuit

751

Audio ICs

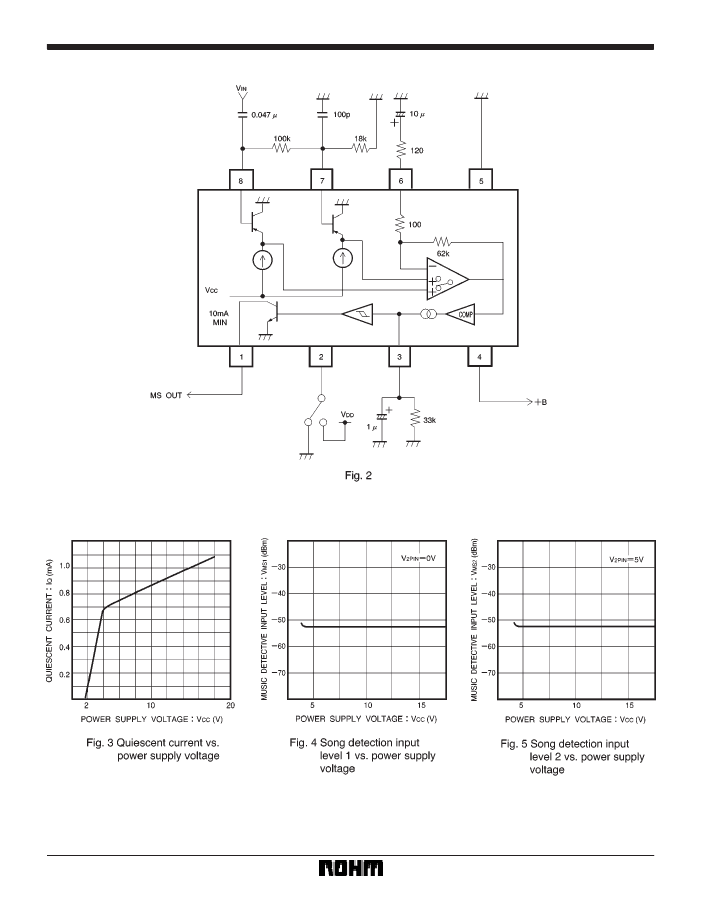

FApplication

example

BA3703F

FElectrical

characteristic curves

752

Audio ICs

BA3703F

FExternal

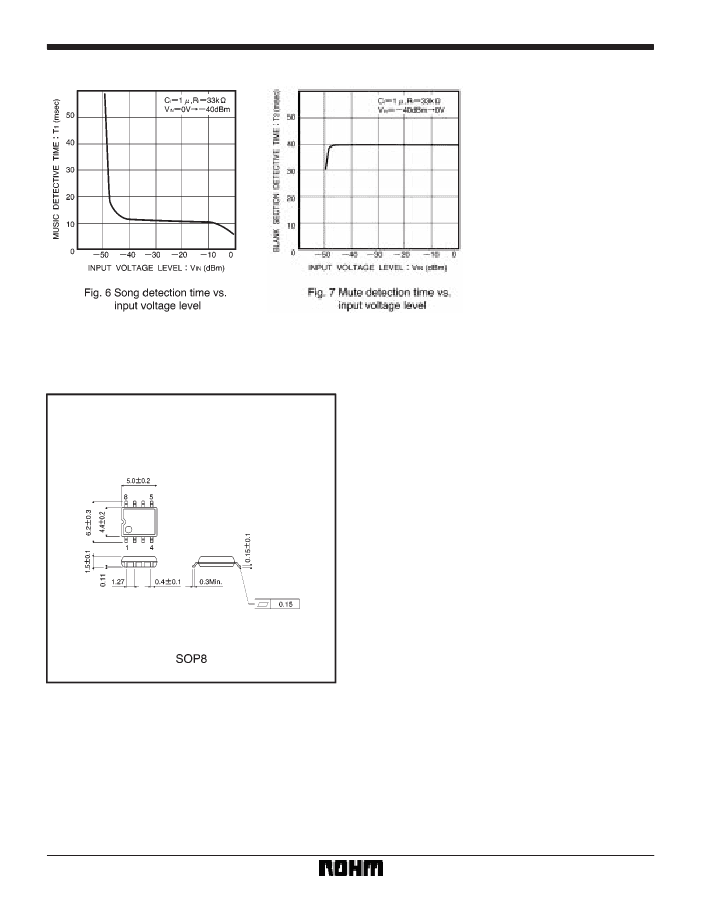

dimensions (Units: mm)

753

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document use silicon as a basic material.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.0
