CTDD1906SF-1215-SU1K-1 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> CTDD1906SF-1215-SU1K-1

CTDD1906SF-1215-SU1K-1: Description1-OUTPUT 1 W DC-DC UNREG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size487KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTDD1906SF-1215-SU1K-1 Overview

1-OUTPUT 1 W DC-DC UNREG PWR SUPPLY MODULE

CTDD1906SF-1215-SU1K-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
Parts packaging code	DIP
package instruction	ROHS COMPLIANT, PLASTIC, DIP-6
Contacts	6
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	R-PDMA-P4
Maximum load regulation	15%
Number of functions	1
Output times	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

DC/DC Converters

ctparts.com

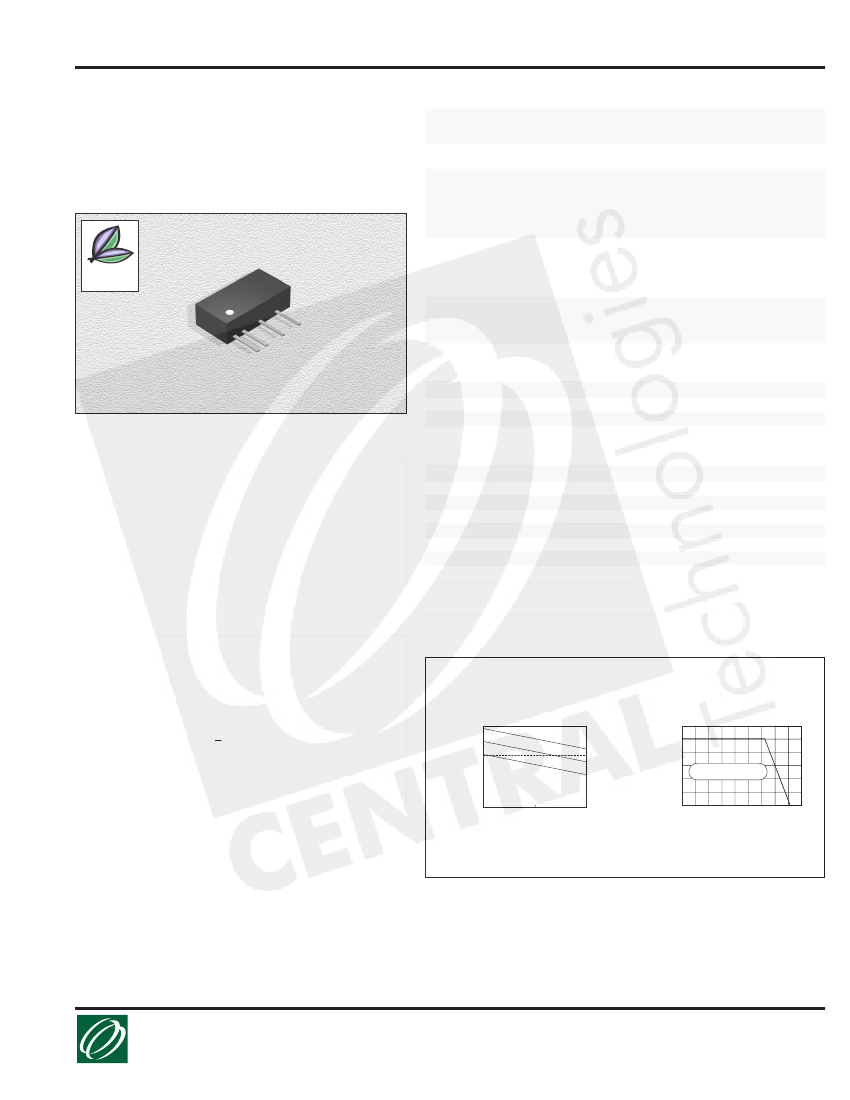

SPECIFICATIONS

CTDD1906SF-SU1K-1 Series

Fixed Input Isolated & Unregulated

1W Output, Single Output

Part

Number

CTDD1906SF-0303-SU1K-1

CTDD1906SF-0305-SU1K-1

CTDD1906SF-0503-SU1K-1

CTDD1906SF-0505-SU1K-1

CTDD1906SF-0509-SU1K-1

CTDD1906SF-0512-SU1K-1

CTDD1906SF-0515-SU1K-W75

CTDD1906SF-0515-SU1K-1

CTDD1906SF-1203-SU1K-1

CTDD1906SF-1205-SU1K-1

CTDD1906SF-1209-SU1K-1

CTDD1906SF-1212-SU1K-1

CTDD1906SF-1215-SU1K-1

CTDD1906SF-2405-SU1K-1

CTDD1906SF-2409-SU1K-1

CTDD1906SF-2412-SU1K-1

CTDD1906SF-2415-SU1K-1

Vin

Nom.

(VDC)

3.3

Input Range

(VDC)

3.0-3.6

4.5-5.5

10.8-13.2

21.6-26.4

Vout

(VDC)

3.3

Iout

Max.

(mA)

300

200

300

200

111

300

200

111

200

111

Iout

Min.

(mA)

Effi.

Typ.

(%)

Not shown at actual size.

Compliant

RoHS

ISOLATION SPECIFICATIONS

Item

Isolation Voltage

Isolation Resistance

Test Condition

Tested for 1 minute

Test at 500VDC

MIN

1000

TYP

MAX

Units

VDC

MΩ

FEATURES

Efficiency:

To 81%

Temperature Range:

-40°C to 85°C

Isolation:

1KVDC

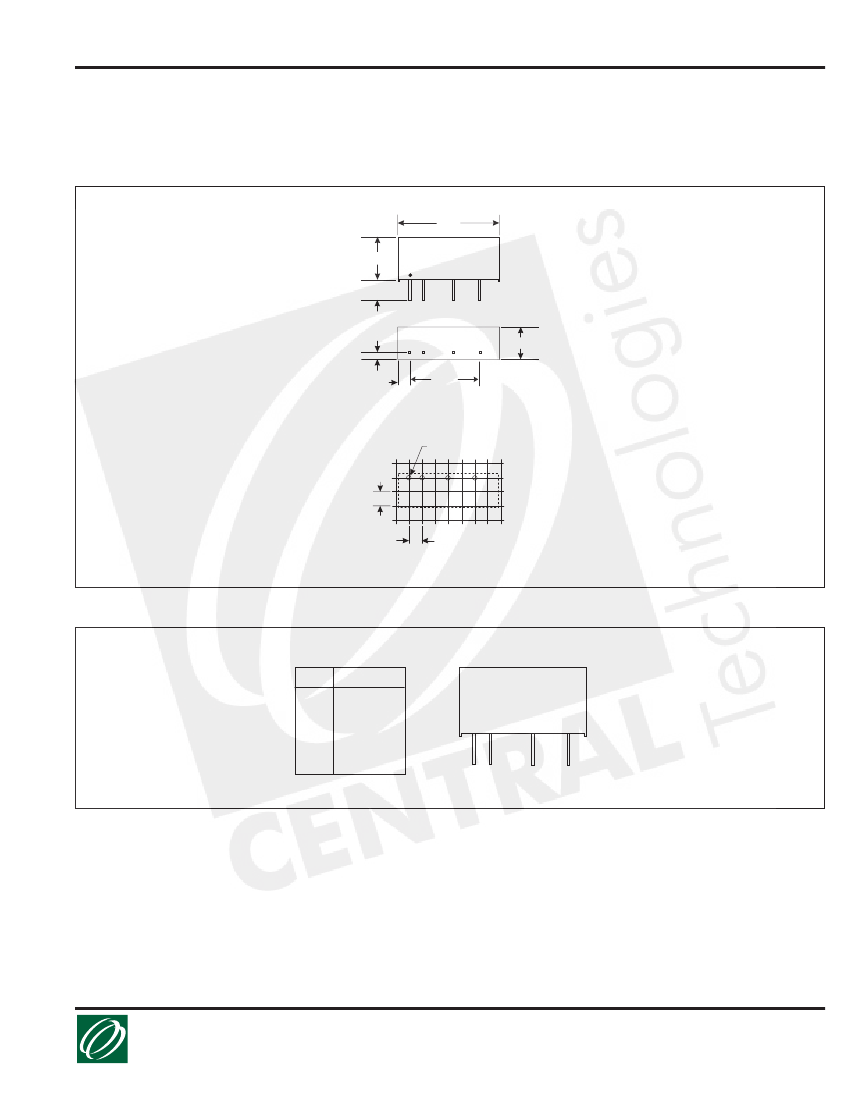

Package:

UL94-V0

Miscellaneous:

Single Output Voltage. Fixed input voltage. SIP

Package. No heat sink required. No external component required.

Industry standard pinout. Unregulated output voltage. Small

Footprint. PCB Mounting.

Samples available.

Item

Output Power

Line regulation

Load regulation

Output voltage accuracy

Temperature drift

Output ripple

Switching frequency

OUTPUT SPECIFICATIONS

Test Condition

For Vin change of 1%

10% to 100% full load

See tolerance envelope graph

100% full load

20MHz bandwidth

Full load, nominal input

100

0.03

%/°C

mVp-p

KHz

MIN

0.1

TYP

MAX

1.2

Units

Note:

1. All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load

unless otherwise specified.

CHARACTERISTICS

Short Circuit Protection:

1 second

Temperature Rise at Full Load:

25°C Max. 15°C Typ.

Cooling:

Free air convection

Operating Temperature Range:

-40°C to +85°C

Storage Temperature Range:

-55°C to +125°C

Lead Temperature:

300°C (1.5mm from case for 10 seconds)

Storage Humidity Range:

< 95%

Case Material:

Plastic (UL94-V0)

MTBF:

>3,500,000 hours

Miscellaneous:

RoHS Compliant.

TYPICAL CHARACTERISTICS

Tolerance Envelope Graph

Temperature Derating Graph

Typic

l Load

Line

+2.5%

-2.5%

-7.5%

Output Power(%)

Output Voltage(%)

+10%

+5%

Nominal

Voltage

120

100

10%

50%

100%

-40

Safe Operating Area

120

Output Current(%)

Ambient Temperature(°C)

06.04.07

Technologies
