ET2010/5B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> ET2010/5B

ET2010/5B: DescriptionInterface Circuit, DIP-20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size325KB，4 Pages; ManufacturerOxley Group Ltd; Websitehttps://www.oxleygroup.com

Download Datasheet Parametric Compare View All

ET2010/5B Overview

Interface Circuit, DIP-20

ET2010/5B Parametric

Parameter Name	Attribute value
Maker	Oxley Group Ltd
Parts packaging code	DIP
package instruction	QIP,
Contacts	20
Reach Compliance Code	compliant
Interface integrated circuit type	INTERFACE CIRCUIT
JESD-30 code	R-XDIP-P20
length	27.4 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	90 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

ET2010/-

Elapsed Time Indicators, Event Counters ET2010/-

Features

• Hours and/or events in a single package.

• EEPROM non-volatile memory.

• 10 years data retention.

• Printed circuit board mounting.

• Remote interrogation with hand-held reader.

• Nuclear survivability.

For ordering information see

page 11.

Description

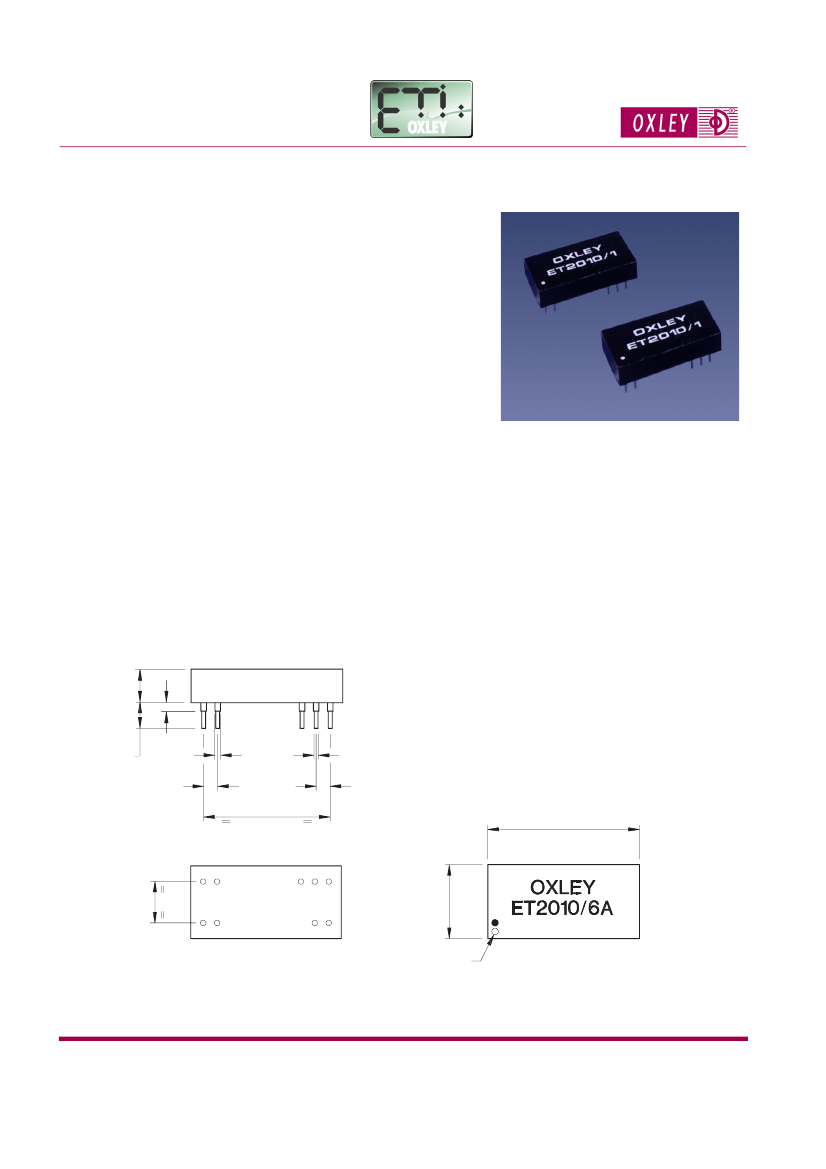

The Oxley Electronic Elapsed Time Indicator Type ET2010 is a PCB mounting device designed to record

both elapsed time and events. It is encapsulated in a low profile, board mounting package and ideal for

incorporation into equipment where individual Printed Circuit Board monitoring is required.

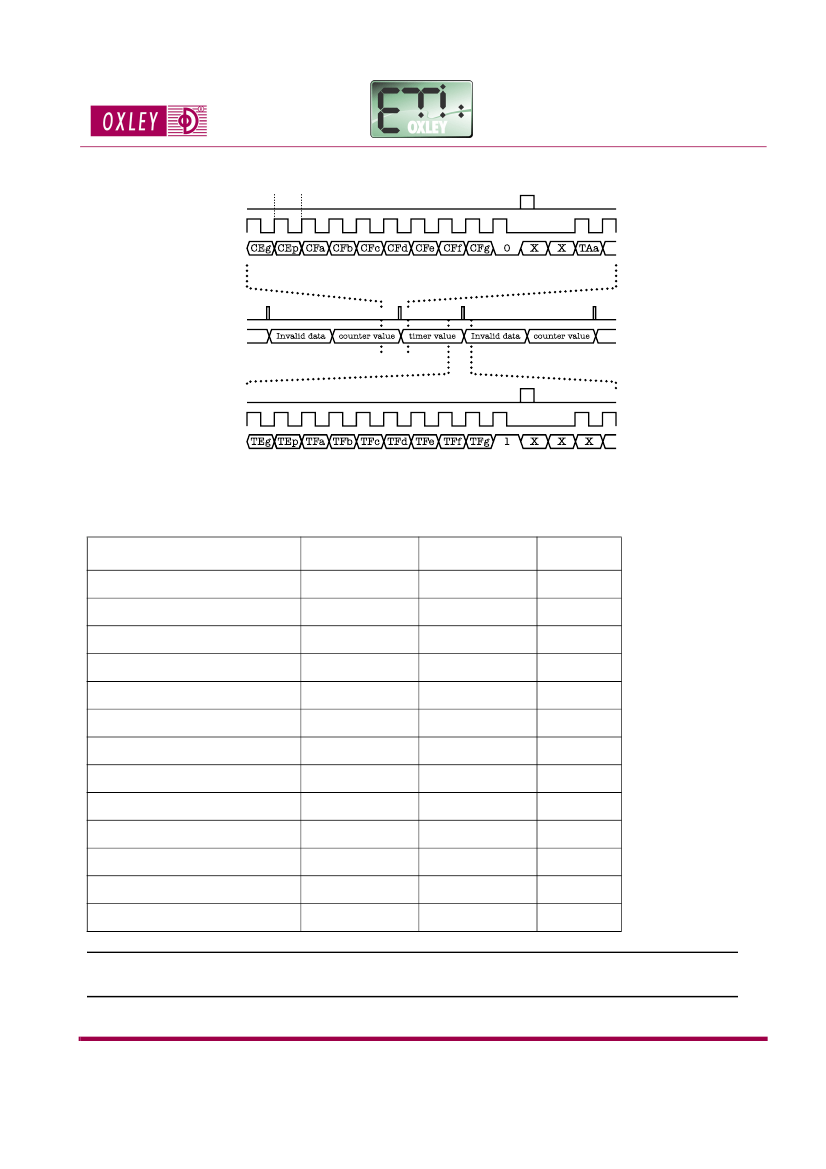

The ET2010 is available in 8 different versions, offering varying combinations of resolution and capacity. It

is equipped with a synchronous output data signal which may be interrogated by host controller or

alternatively the Oxley

ET/HHR/3A hand-held reader

may be used.

6 mm

1.5

4.75 mm

Ø 1 mm

Ø 0.7 mm

2.54mm

2.54 mm

22.86 mm

27.4 mm

8 9 10

13.4 mm

1 2

7.62 mm

20 19

Bottom View

12 11

Pin 1

Oxley Developments Company Ltd

Email:

sales@oxley.co.uk

Tel: +44 (0)1229 483226

Oxley Inc.

Email:

sales@oxleyinc.com

Tel: +1 (203) 488 1033

Oxley Group Australia Pty Ltd

Email:

sales@oxleygroup.com

Tel +61 (0) 2 9967 9488

www.oxleygroup.com/eti

ODCSM40539/2/2005

ET2010/5B Related Products

	ET2010/5B	ET2010/2	ET2010/5A	ET2010/1	ET2010/7A	ET2010/7B	ET2010/6A	ET2010/6B
Description	Interface Circuit, DIP-20	Interface Circuit, DIP-20	Interface Circuit, DIP-20	Interface Circuit, DIP-20	Interface Circuit, DIP-20	Interface Circuit, DIP-20	Interface Circuit, DIP-20	Interface Circuit, DIP-20
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	QIP,	QIP,	QIP,	QIP,	QIP,	QIP,	QIP,	QIP,
Contacts	20	20	20	20	20	20	20	20
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Interface integrated circuit type	INTERFACE CIRCUIT	INTERFACE CIRCUIT	INTERFACE CIRCUIT	INTERFACE CIRCUIT	INTERFACE CIRCUIT	INTERFACE CIRCUIT	INTERFACE CIRCUIT	INTERFACE CIRCUIT
JESD-30 code	R-XDIP-P20	R-XDIP-P20	R-XDIP-P20	R-XDIP-P20	R-XDIP-P20	R-XDIP-P20	R-XDIP-P20	R-XDIP-P20
length	27.4 mm	27.4 mm	27.4 mm	27.4 mm	27.4 mm	27.4 mm	27.4 mm	27.4 mm
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20
Maximum operating temperature	90 °C	90 °C	90 °C	90 °C	90 °C	90 °C	90 °C	90 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	QIP	QIP	QIP	QIP	QIP	QIP	QIP	QIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	Oxley Group Ltd	-	Oxley Group Ltd	Oxley Group Ltd	Oxley Group Ltd	Oxley Group Ltd	Oxley Group Ltd	Oxley Group Ltd
