SP8740ADG datasheet, PDF - EEWORLD Datasheet

SP8740ADG: DescriptionPrescaler, 8740 Series, 1-Func, CDIP16, DG-16; Categorylogic logic; File Size1MB，5 Pages; ManufacturerZarlink Semiconductor (Microsemi); Websitehttp://www.zarlink.com/

Download Datasheet Parametric Compare View All

SP8740ADG Overview

Prescaler, 8740 Series, 1-Func, CDIP16, DG-16

Parameter Name	Attribute value
Maker	Zarlink Semiconductor (Microsemi)
package instruction	DIP,
Reach Compliance Code	unknown
series	8740
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Logic integrated circuit type	PRESCALER
Number of data/clock inputs	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	EMITTER FOLLOWER
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	6 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
minfmax	300 MHz

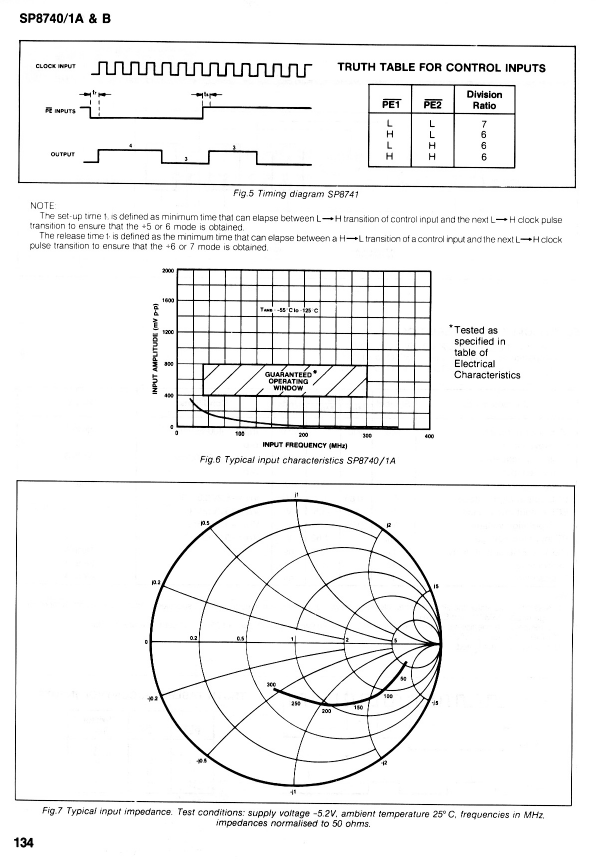

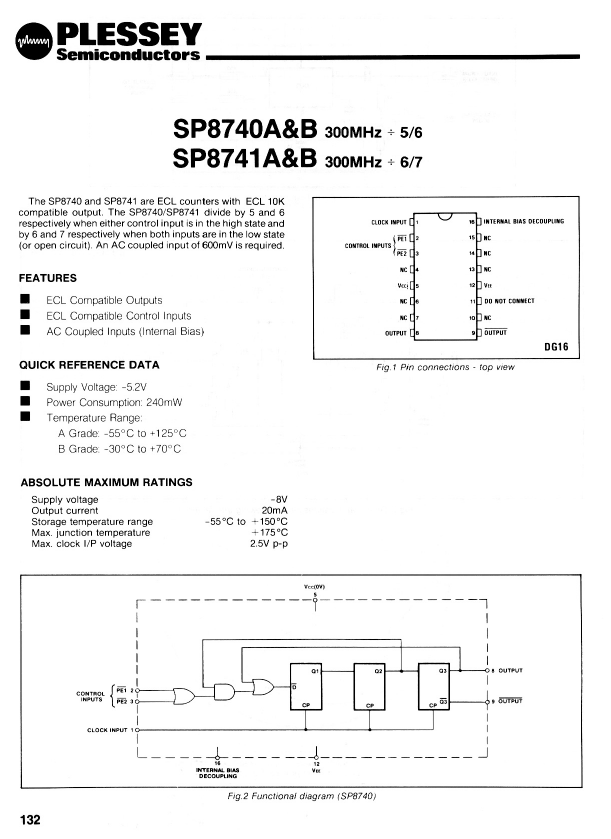

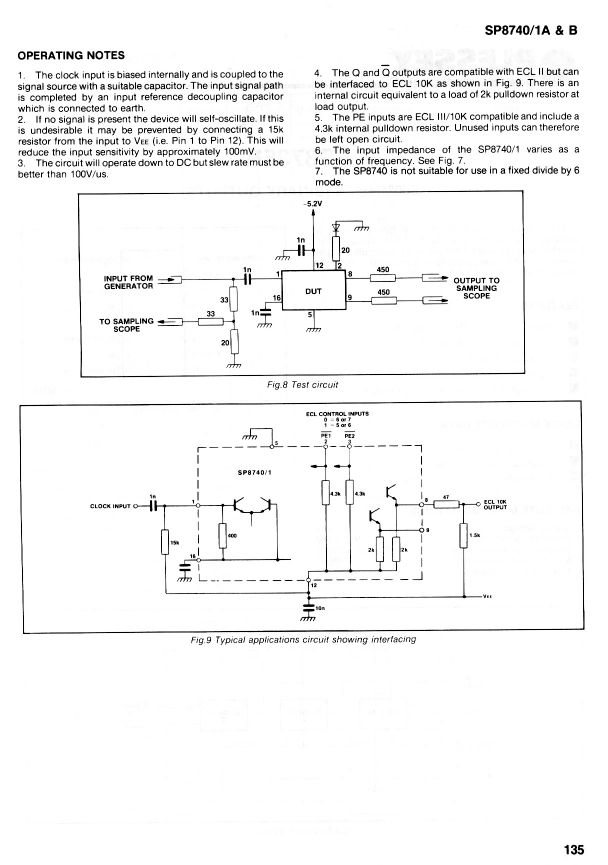

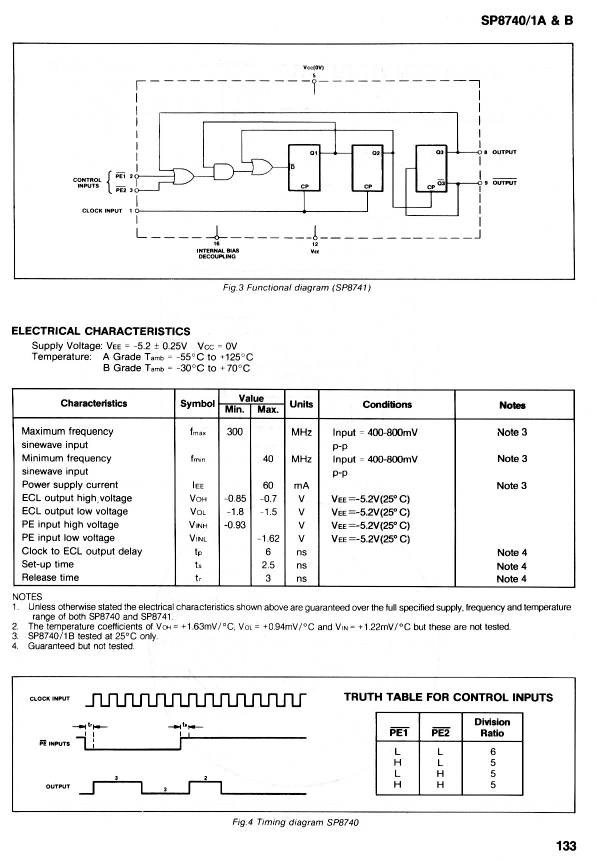

Obsolescence Notice

This product is obsolete.

This information is available for your

convenience only.

For more information on

Zarlink’s obsolete products and

replacement product lists, please visit

http://products.zarlink.com/obsolete_products/

	SP8740ADG	SP8741BDG	SP8740BDG
Description	Prescaler, 8740 Series, 1-Func, CDIP16, DG-16	Prescaler, 8741 Series, 1-Func, CDIP16, DG-16	Prescaler, 8740 Series, 1-Func, CDIP16, DG-16
package instruction	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown
series	8740	8741	8740
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0
Logic integrated circuit type	PRESCALER	PRESCALER	PRESCALER
Number of data/clock inputs	1	1	1
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-30 °C	-30 °C
Output characteristics	EMITTER FOLLOWER	EMITTER FOLLOWER	EMITTER FOLLOWER
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
propagation delay (tpd)	6 ns	6 ns	6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
surface mount	NO	NO	NO
Temperature level	MILITARY	OTHER	OTHER
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm
minfmax	300 MHz	300 MHz	300 MHz
Maker	Zarlink Semiconductor (Microsemi)	-	Zarlink Semiconductor (Microsemi)
