HD74HCT563RP-EL datasheet, PDF

Datasheet> All Categories > logic> logic> HD74HCT563RP-EL

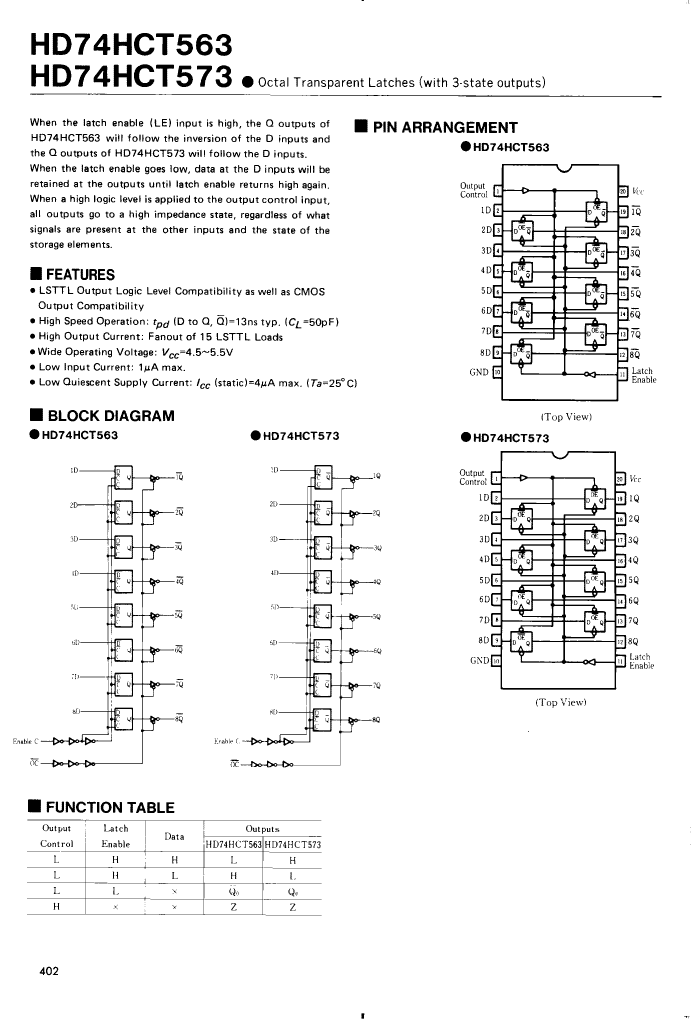

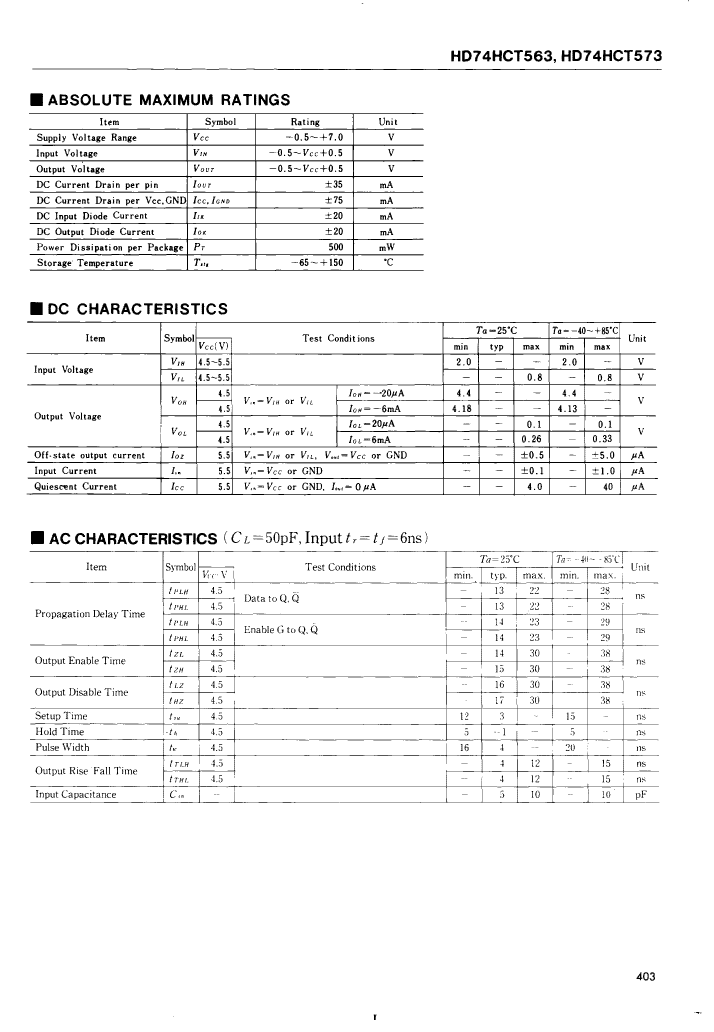

HD74HCT563RP-EL: DescriptionHCT SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, SOP-20; Categorylogic logic; File Size68KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HD74HCT563RP-EL Overview

HCT SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, SOP-20

HD74HCT563RP-EL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Other features	BROADSIDE VERSION OF 533
series	HCT
JESD-30 code	R-PDSO-G20
length	12.8 mm
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	29 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

Preview

Download Datasheet

View All

HD74HCT563RP-EL Related Products

	HD74HCT563RP-EL	HD74HCT573FP-EL	HD74HCT573RP-EL	HD74HCT563FP-EL
Description	HCT SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, SOP-20	HCT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, EIAJ, SOP-20	HCT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, SOP-20	HCT SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDSO20, EIAJ, SOP-20
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,
Contacts	20	20	20	20
Reach Compliance Code	unknown	unknown	compliant	compliant
Is it lead-free?	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to
Other features	BROADSIDE VERSION OF 533	BROADSIDE VERSION OF 373	-	BROADSIDE VERSION OF 533
series	HCT	HCT	-	HCT
JESD-30 code	R-PDSO-G20	R-PDSO-G20	-	R-PDSO-G20
length	12.8 mm	12.6 mm	-	12.6 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	-	BUS DRIVER
Humidity sensitivity level	1	1	-	1
Number of digits	8	8	-	8
Number of functions	1	1	-	1
Number of ports	2	2	-	2
Number of terminals	20	20	-	20
Maximum operating temperature	85 °C	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C
Output characteristics	3-STATE	3-STATE	-	3-STATE
Output polarity	INVERTED	TRUE	-	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	SOP	-	SOP
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	-	260
propagation delay (tpd)	29 ns	29 ns	-	29 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	2.65 mm	2.2 mm	-	2.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V
surface mount	YES	YES	-	YES
technology	CMOS	CMOS	-	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL
Terminal form	GULL WING	GULL WING	-	GULL WING
Terminal pitch	1.27 mm	1.27 mm	-	1.27 mm
Terminal location	DUAL	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
width	7.5 mm	5.5 mm	-	5.5 mm
