SPL3321-6R8M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> SPL3321-6R8M

Preview

SPL3321-6R8M: DescriptionGeneral Purpose Inductor, 6.8uH, 20%, 1 Element, SMD; CategoryPassive components inductor; File Size29KB，1 Pages; ManufacturerInductor Supply Inc

Download Datasheet Parametric View All

SPL3321-6R8M Overview

General Purpose Inductor, 6.8uH, 20%, 1 Element, SMD

SPL3321-6R8M Parametric

Parameter Name	Attribute value
Maker	Inductor Supply Inc
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.022 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SPL3321
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

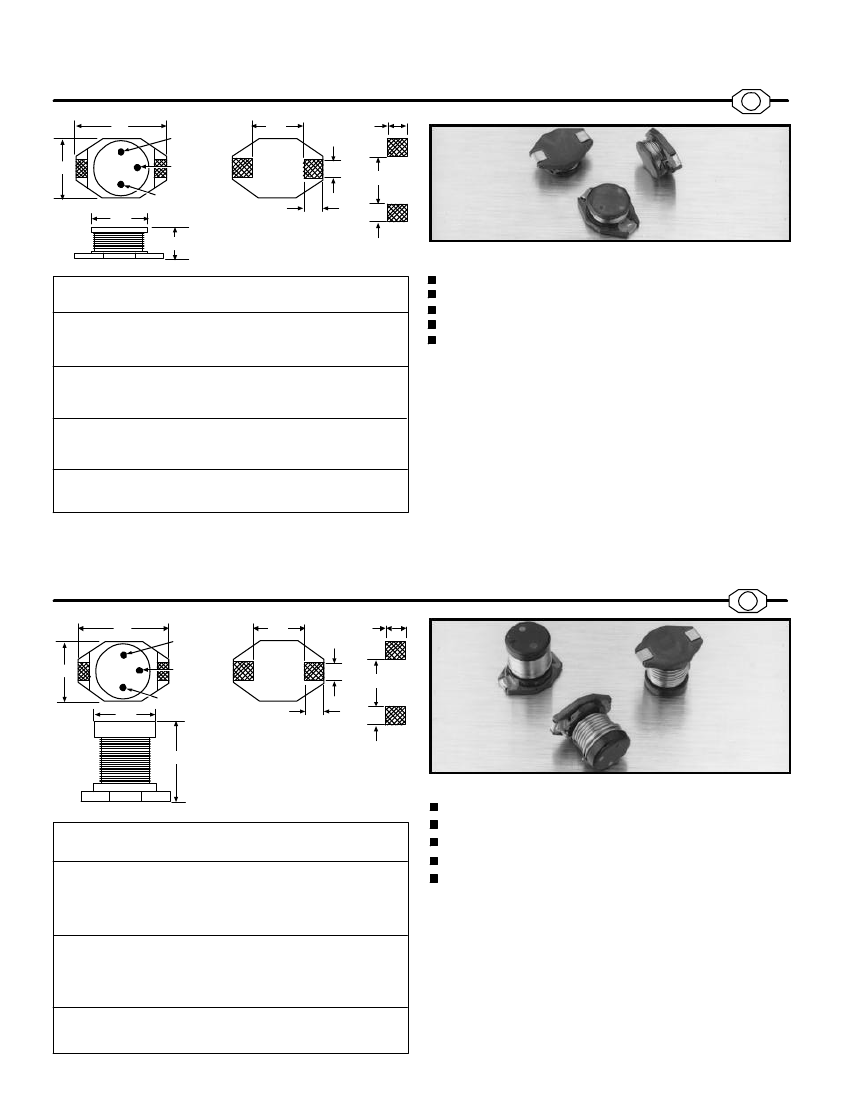

Surface Mount

Power Inductor

.510

1st

Significant

Dig it

2nd

Significant

Dig it

Multiplie

.330

.205

.110

Terminal P

attern

.115

Land

Patter n

.300

.110

SPL3321

.370

.100

.290

PART

NUMBER

SPL3321-1R0M

SPL3321-1R5M

SPL3321-2R2M

SPL3321-3R3M

SPL3321-4R7M

SPL3321-6R8M

SPL3321-100M

SPL3321-150M

SPL3321-220M

SPL3321-330M

SPL3321-470M

SPL3321-680M

SPL3321-101M

SPL3321-151M

SPL3321-221M

SPL3321-331M

SPL3321-471M

SPL3321-681M

SPL3321-102M

INDUCT ANCE

(µH)*+/-20%

(1)

1.0

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

68

100

150

220

330

470

680

1000

DC RESISTANCE

OHMS

MAXIMUM (Ω )(3)

0.009

0.100

0.012

0.015

0.018

0.022

0.038

0.046

0.058

0.100

0.14

0.18

0.26

0.38

0.61

0.93

1.27

1.84

2.88

RATED

CURRENT

(AMPS DC)(2)

9.00

8.00

7.00

6.40

5.40

4.60

3.80

3.00

2.60

2.00

1.60

1.40

1.20

1.00

0.80

0.60

0.50

0.40

0.30

APPLIC

ATIONS

n

DC/DC converters

n

Computers

n

Telecommunications Equipment

n

Filters

n

LCD Display

CHARACTERISTICS

Flat Top for surface mounting.

High Current SMD, up to 9 ADC.

FLAMABIL

TY: To UL94V0.

TEMPERATURE RANGE: -40°C to 85°C.

SOLDERABILITY: Excellent for IR soldering.

PACKAGING: Tape and Reel only.

Notes:

(1) Inductance tested at 100Khz, 0.10VRMS.

(2) Based on 10% drop in initial inductance.

Surface Mount

Power Inductor

.510

1st

Signif icant

Dig it

2nd

Signif icant

Dig it

Multiplie

.330

.110

Ter minal Patter n

.450

.115

Land

Pattern

.300

.110

SPL3345

.370

.100

.290

PART

NUMBER

SPL3345-100M

SPL3345-150M

SPL3345-220M

SPL3345-330M

SPL3345-470M

SPL3345-680M

SPL3345-101M

SPL3345-151M

SPL3345-221M

SPL3345-331M

SPL3345-471M

SPL3345-681M

SPL3345-102M

INDUCT ANCE

(µH)*+/-20%

(1)

10

15

22

33

47

68

100

150

220

330

470

680

1000

DC RESISTANCE

OHMS

MAXIMUM (Ω )(3)

.040

.050

.060

.080

.110

.170

.220

.340

.440

.680

.940

1.200

2.000

RATED

CURRENT

(AMPS DC)(2)

9.00

8.00

7.00

6.40

5.40

4.60

3.80

3.00

2.60

2.00

1.60

1.40

1.20

APPLICATIONS

n

DC/DC converters

n

Computers

n

Telecomm

unications Equipment

n

Filters

n

LCD Display

CHARACTERISTICS

Flat Top for surface mounting.

High Current SMD, up to 9 ADC.

FLAMABILTY: To UL94V0.

TEMPERATURE RANGE: -40°C to 85°C.

SOLDERABILITY: Excellent for IR soldering.

PACKAGING: Tape and Reel only.

Notes:

(1) Inductance tested at 100Khz, 0.10VRMS.

(2) Based on 10% drop in initial inductance.

(3) DCR measured on milliohm meter.
