87044-1000EN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87044-1000EN

87044-1000EN: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY; CategoryThe connector The connector; File Size199KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

87044-1000EN Overview

HEADER CONNECTOR,CABLE MNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY

87044-1000EN Parametric

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
body width	0.16 inch
subject depth	0.29 inch
body length	1.79 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	870
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	5u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	44
Maximum wire diameter	28 AWG

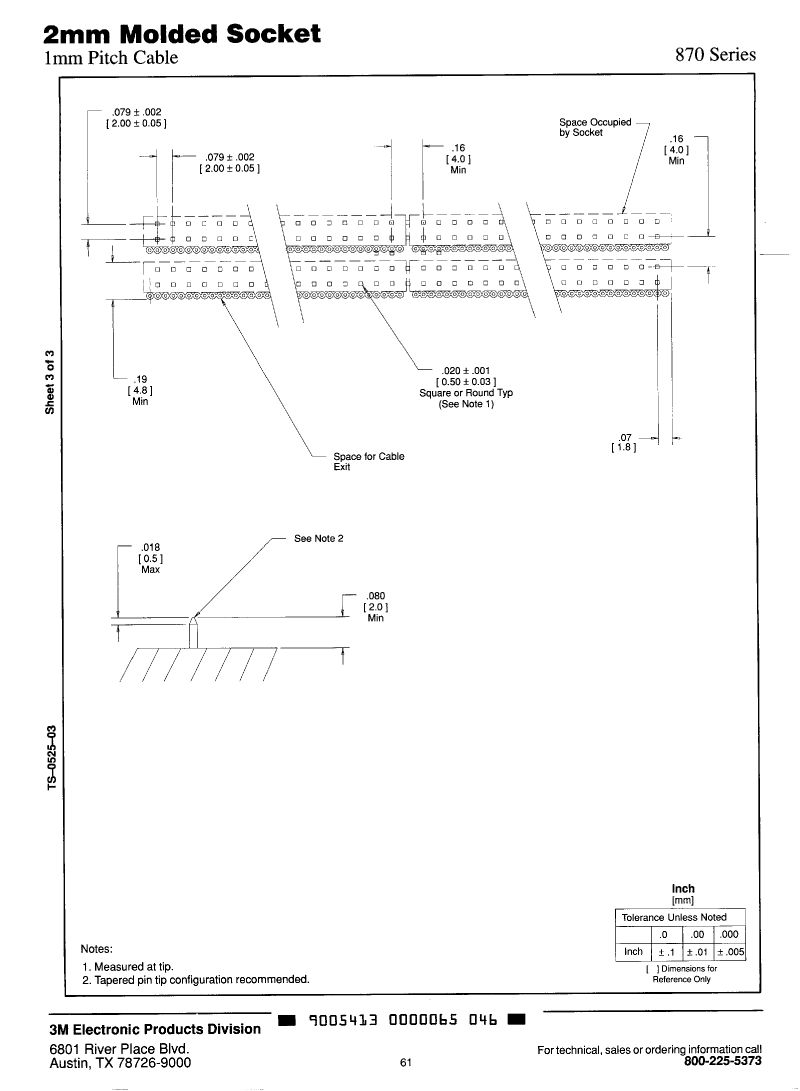

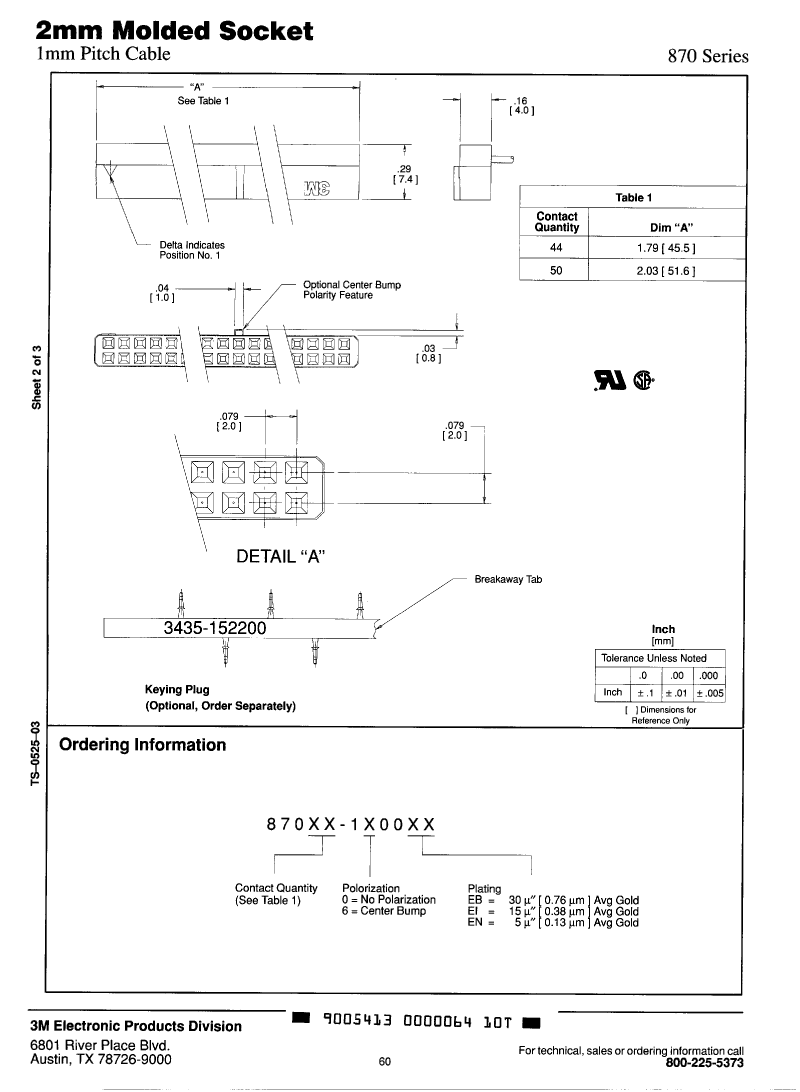

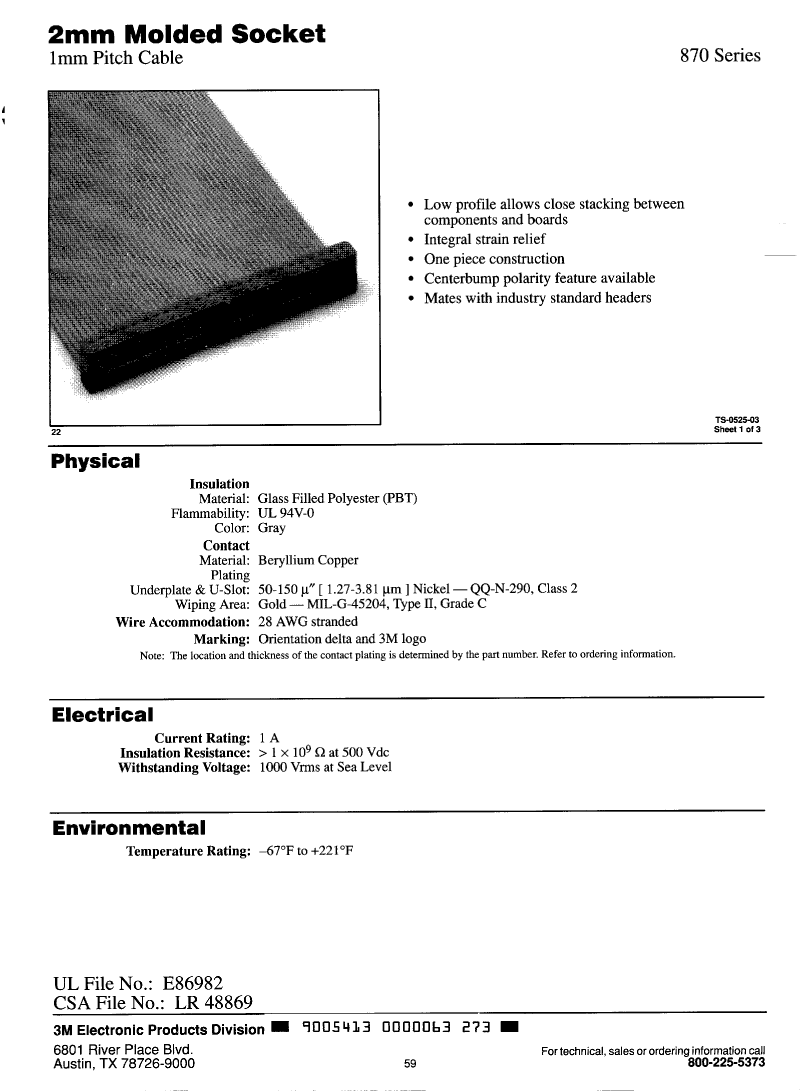

87044-1000EN Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

87044-1000EN Related Products

	87044-1000EN	87044-1000EB	87044-1000EI	87044-1600EB	87044-1600EI	87044-1600EN	87050-1000EB	ASMPH-0805-4R7	87050-1000EN	87050-1600EN
Description	HEADER CONNECTOR,CABLE MNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY	SMD Multilayer Chip Power Inductor	HEADER CONNECTOR,CABLE MNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,GRAY
Maker	3M	3M	3M	3M	3M	3M	3M	-	3M	3M
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	-	unknown	unknown
body width	0.16 inch	0.16 inch	0.16 inch	0.16 inch	0.16 inch	0.16 inch	0.16 inch	-	0.16 inch	0.16 inch
subject depth	0.29 inch	0.29 inch	0.29 inch	0.29 inch	0.29 inch	0.29 inch	0.29 inch	-	0.29 inch	0.29 inch
body length	1.79 inch	1.79 inch	1.79 inch	1.79 inch	1.79 inch	1.79 inch	2.03 inch	-	2.03 inch	2.03 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	-	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	-	AU	AU
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	-	NICKEL	NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	-	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	-	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	870	870	870	870	870	870	870	-	870	870
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	-	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	-	0.079 inch	0.079 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	-	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	-	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	-	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Plating thickness	5u inch	30u inch	15u inch	30u inch	15u inch	5u inch	30u inch	-	5u inch	5u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	-	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	-	IDC	IDC
Total number of contacts	44	44	44	44	44	44	50	-	50	50
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	-	28 AWG	28 AWG
