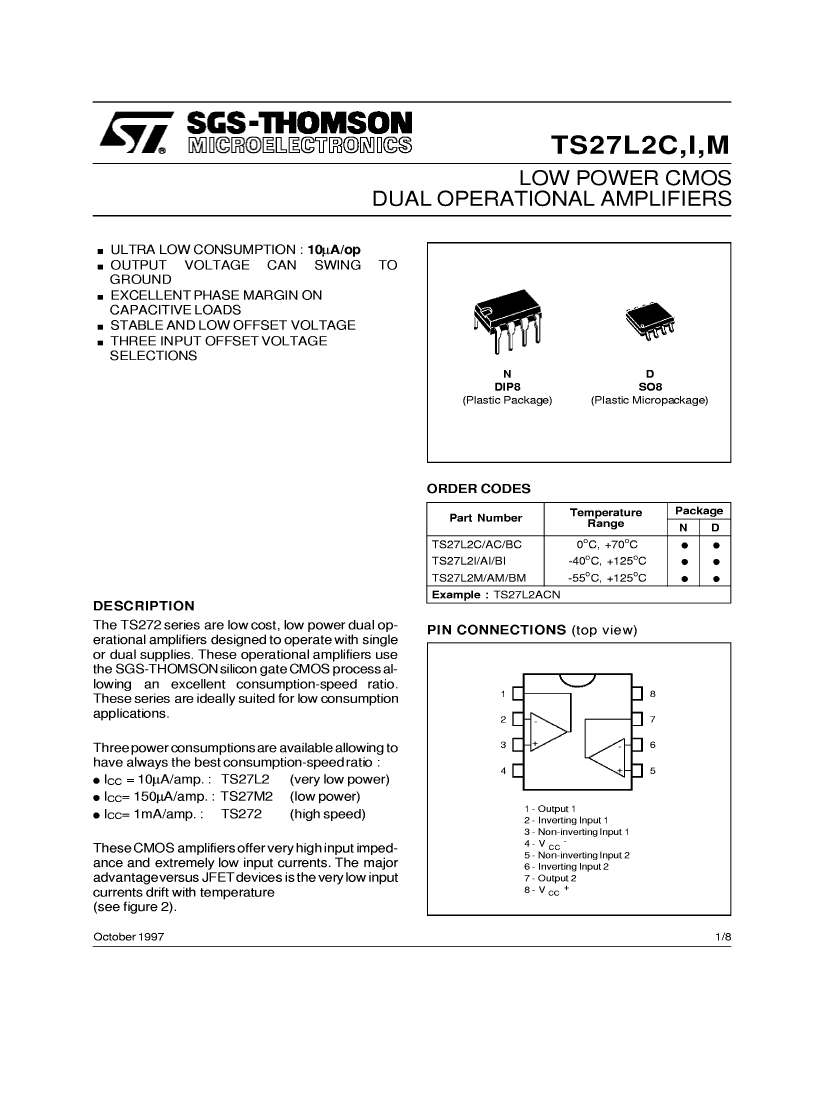

DUAL OP-AMP, 3500uV OFFSET-MAX, 0.1MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8

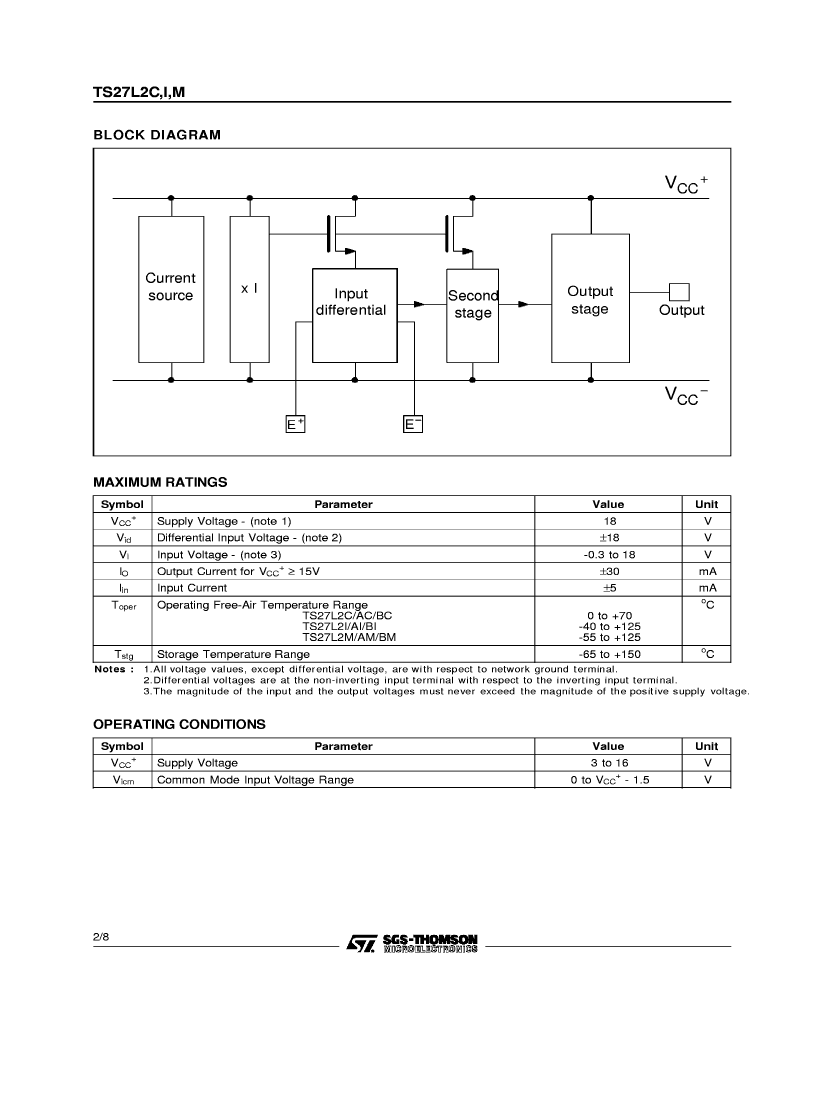

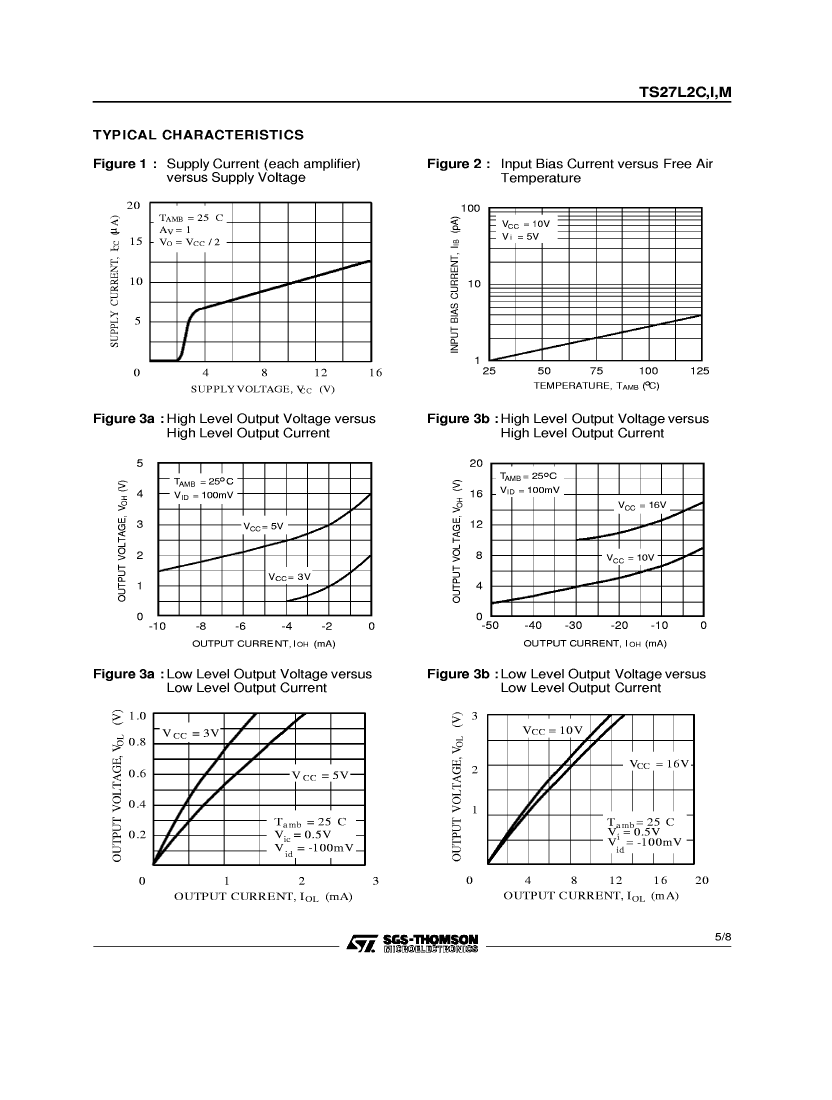

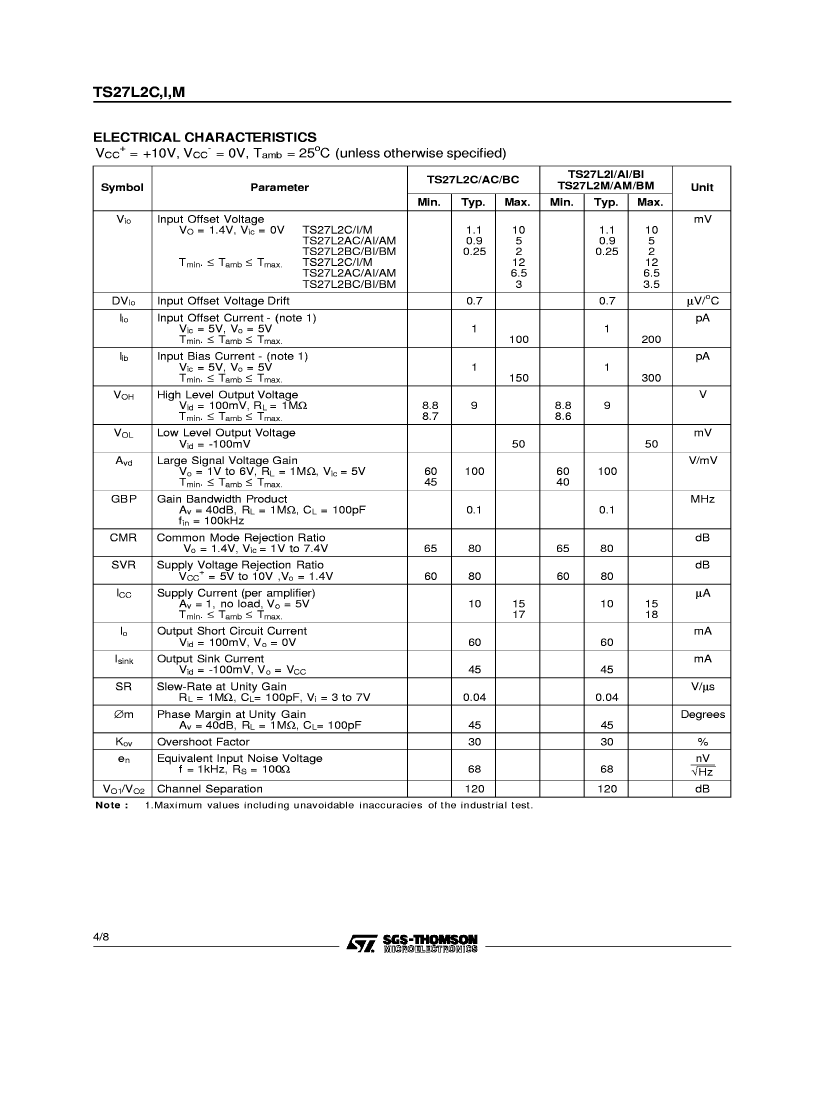

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | STMicroelectronics |
| Parts packaging code | DIP |
| package instruction | DIP, DIP8,.3 |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.0003 µA |
| Nominal Common Mode Rejection Ratio | 80 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 3500 µV |
| JESD-30 code | R-PDIP-T8 |
| JESD-609 code | e3 |
| low-bias | YES |
| low-dissonance | NO |
| micropower | YES |
| Negative supply voltage upper limit | |
| Nominal Negative Supply Voltage (Vsup) | |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power | NO |
| power supply | 5/10 V |
| Programmable power | NO |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Nominal slew rate | 0.04 V/us |
| Maximum slew rate | 0.036 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 10 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | AUTOMOTIVE |
| Terminal surface | Matte Tin (Sn) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 100 kHz |
| Minimum voltage gain | 40000 |
| broadband | NO |
| width | 7.62 mm |
| TS27L2BIN | TS27L2BMD | TS27L2AMD | TS27L2MN | |
|---|---|---|---|---|
| Description | DUAL OP-AMP, 3500uV OFFSET-MAX, 0.1MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8 | DUAL OP-AMP, 3500uV OFFSET-MAX, 0.1MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SO-8 | DUAL OP-AMP, 6500uV OFFSET-MAX, 0.1MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SO-8 | DUAL OP-AMP, 12000uV OFFSET-MAX, 0.1MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8 |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| Maker | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Parts packaging code | DIP | SOIC | SOIC | DIP |
| package instruction | DIP, DIP8,.3 | SOP, SOP8,.25 | SOP, SOP8,.25 | DIP, DIP8,.3 |
| Contacts | 8 | 8 | 8 | 8 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.0003 µA | 0.0003 µA | 0.0003 µA | 0.0003 µA |
| Nominal Common Mode Rejection Ratio | 80 dB | 80 dB | 80 dB | 80 dB |
| frequency compensation | YES | YES | YES | YES |
| Maximum input offset voltage | 3500 µV | 3500 µV | 6500 µV | 12000 µV |
| JESD-30 code | R-PDIP-T8 | R-PDSO-G8 | R-PDSO-G8 | R-PDIP-T8 |
| JESD-609 code | e3 | e4 | e4 | e3 |
| low-bias | YES | YES | YES | YES |
| low-dissonance | NO | NO | NO | NO |
| micropower | YES | YES | YES | YES |
| Number of functions | 2 | 2 | 2 | 2 |
| Number of terminals | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -55 °C | -55 °C | -55 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP | DIP |
| Encapsulate equivalent code | DIP8,.3 | SOP8,.25 | SOP8,.25 | DIP8,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power | NO | NO | NO | NO |
| power supply | 5/10 V | 5/10 V | 5/10 V | 5/10 V |
| Programmable power | NO | NO | NO | NO |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 1.75 mm | 1.75 mm | 5.08 mm |
| Nominal slew rate | 0.04 V/us | 0.04 V/us | 0.04 V/us | 0.04 V/us |
| Maximum slew rate | 0.036 mA | 0.036 mA | 0.036 mA | 0.036 mA |
| Supply voltage upper limit | 18 V | 18 V | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 10 V | 10 V | 10 V | 10 V |
| surface mount | NO | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | AUTOMOTIVE | MILITARY | MILITARY | MILITARY |
| Terminal surface | Matte Tin (Sn) | Nickel/Palladium/Gold (Ni/Pd/Au) | Nickel/Palladium/Gold (Ni/Pd/Au) | Matte Tin (Sn) |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Minimum voltage gain | 40000 | 40000 | 40000 | 40000 |
| broadband | NO | NO | NO | NO |
| width | 7.62 mm | 3.9 mm | 3.9 mm | 7.62 mm |
