863562S015 datasheet, PDF - EEWORLD Datasheet

863562S015: DescriptionD Subminiature Connector, 62 Contact(s), Female, Socket; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

863562S015 Overview

D Subminiature Connector, 62 Contact(s), Female, Socket

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED THERMOSET
MIL compliance	NO
Mixed contacts	NO
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	4/C
Total number of contacts	62
UL Flammability Code	94V-0

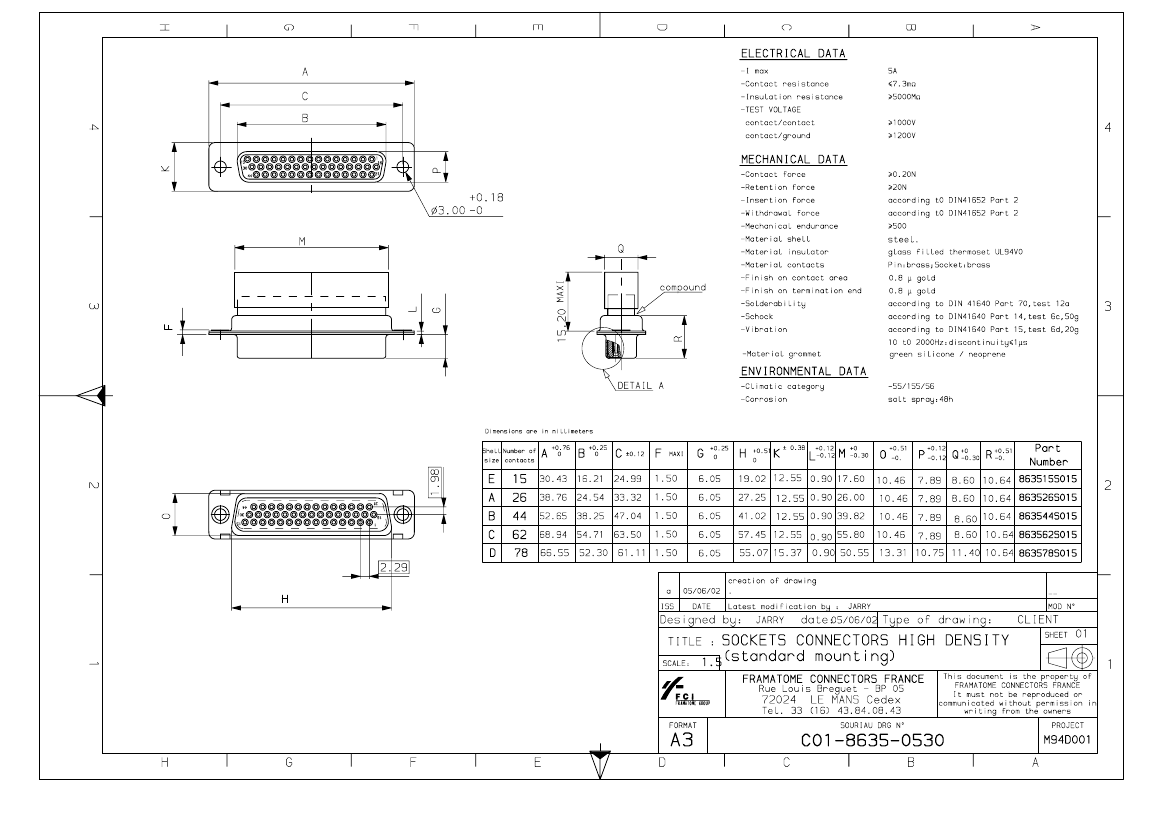

PDM: Rev:A

STATUS:

Released

Printed: Oct 01, 2002

	863562S015	863515S015	863526S015	863578S015	863544S015
Description	D Subminiature Connector, 62 Contact(s), Female, Socket	D Subminiature Connector, 15 Contact(s), Female, Socket	D Subminiature Connector, 26 Contact(s), Female, Socket	D Subminiature Connector, 78 Contact(s), Female, Socket	D Subminiature Connector, 44 Contact(s), Female, Socket
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	GLASS FILLED THERMOSET	GLASS FILLED THERMOSET	GLASS FILLED THERMOSET	GLASS FILLED THERMOSET	GLASS FILLED THERMOSET
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	4/C	1/E	2/A	5/D	3/B
Total number of contacts	62	15	26	78	44
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Is Samacsys	-	N	N	N	-
Base Number Matches	-	1	1	1	-
