Features
■
■
■
■
■
■
Integrates capacitor function in one
package
RoHS compliant*
Design reduces termination noise
Popular standard capacitance values
available
Isolated, bussed and dual-bussed circuits
available
High temperature lead attachment to
withstand reflow temperatures up
to 260 °C
*R
oH
S
CO
M
PL

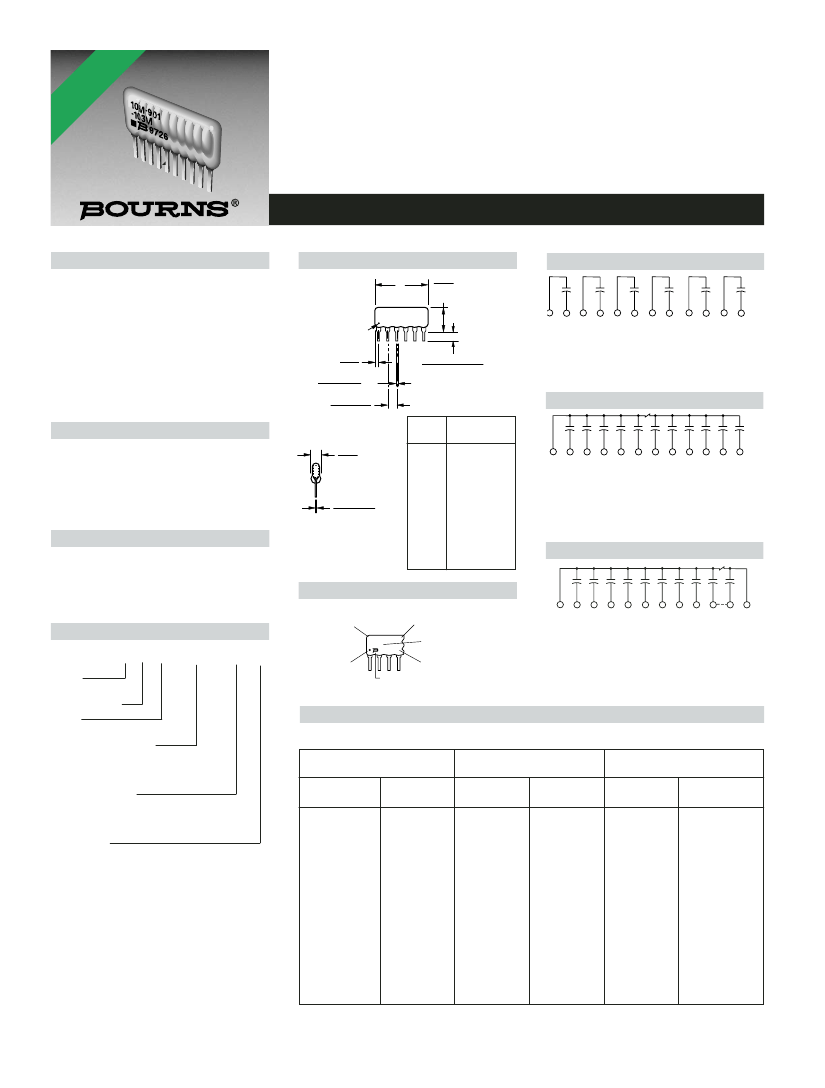

900 Series - Capacitor Networks
Electrical Characteristics
Capacitance Tolerance
39 pF - 270 pF............................±10 %
>270 pF - 0.1
µF.........................±20
%
Circuit Configuration .....Isolated, bussed
and dual-bussed
Capacitor Dielectric.................NPO, X7R
Capacitance Voltage Rating
39 pF - 270 pF
.............................NPO - 50V @ +25 °C
>270 pF - 0.047
µF
..............................X7R - 50V @ +25 °C
Physical Characteristics
Lead Spacing ..............0.100 ” (2.54 mm)
Terminal Coating...........Sn/Ag/Cu-plated
Body Material
....Epoxy/Anhydride conformal material
Product Dimensions
A
MAXIMUM
6.35
(.250)
MAX.
1
PIN #1
REF.
MAX. 1.24
BOTH ENDS (.049)
.508
±
.050
TYP.
(.020
±
.002)
2.54
±
.07
(.100
±
.003*)
TYP.
NON-ACCUM.
3.81
MAX.
(.150)
3.43 + .38/ - .25
(.135 + .015/ - .010)
4
6
Isolated Capacitors (902 Circuit)
...
10
12
14
These models incorporate 2 to 7
isolated capacitors of equal value, each
connected between two pins.
Bussed Capacitors (901 Circuit)
Pin
Count
4
5
6
7
8
9
10
11
12
13
14
A Maximum
mm (Inches)
10.11 (.398)
12.65 (.498)
15.19(.598)
17.73 (.698)
20.27 (.798)
22.81 (.898)
25.35 (.998)
27.89 (1.098)
30.43 (1.198)
32.97 (1.298)
35.51 (1.398)
1
14
.254
±
.050
TYP.
(.010
±
.002 )
These models incorporate 3 to 13
capacitors of equal value, each
connected between a common bus
(Pin 1) and a separate pin.
Dual-Bussed Capacitors (904 Circuit)
Standard High Volume Part Numbers
4610M-901-103LF
4610M-902-103LF
4610M-901-104LF
4610M-902-104LF
Typical Part Marking
PART
NUMBER
4610M - 901
- 103
YYWW
1
CIRCUIT
CAPACITANCE
CODE
DATE CODE
n-1 n
How To Order
46 10 M - 901 - 103 LF
Model
(46 = SIP Pkg)
Number of Pins
Profile
(M = Medium Profile)
Electrical Configuration
• 901 = Bussed
• 902 = Isolated
• 904 = Dual-Bussed
Capacitance Code
• First 2 digits are significant
• Third digit represents the
number of zeros to follow
Terminations
LF = Lead free (Sn/Ag/Cu-plated)
Consult factory for other available options.
PIN ONE
INDICATOR
These models incorporate 2 to 12
capacitors of equal value, each
connected to a dual buss that connects
Pin 1 to the last pin.
MANUFACTURER'S
TRADEMARK
Standard Capacitance Values and Codes
These are the standard and non-standard capacitance values available. Consult factory for
capacitance values and types outside this range. Tolerances of 5 %, 10 % and 20 % are available.
“NPO” DIELECTRICS
10 % Tolerance
Capacitance
(pF)
39
47
56
68
82
100
120
150
180
220
270
Capacitance
Code
390
470
560
680
820
101
121
151
181
221
271
“X7R” DIELECTRICS
20 % Tolerance
Capacitance
(pF)
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
Capacitance
Code
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
“X7R” DIELECTRICS
20 % Tolerance
Capacitance
µ
(µF)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.1
Capacitance
Code
103
123
153
183
223
273
333
393
473
563
683
823
104
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
REV. 11/06
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
