S4H6R datasheet, PDF - EEWORLD Datasheet

S4H6R: DescriptionSP4T, 10MHz Min, 8000MHz Max, 3.5dB Insertion Loss-Max, CASE S4; CategoryWireless rf/communication Radio frequency and microwave; File Size2MB，2 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/

Download Datasheet Parametric Compare View All

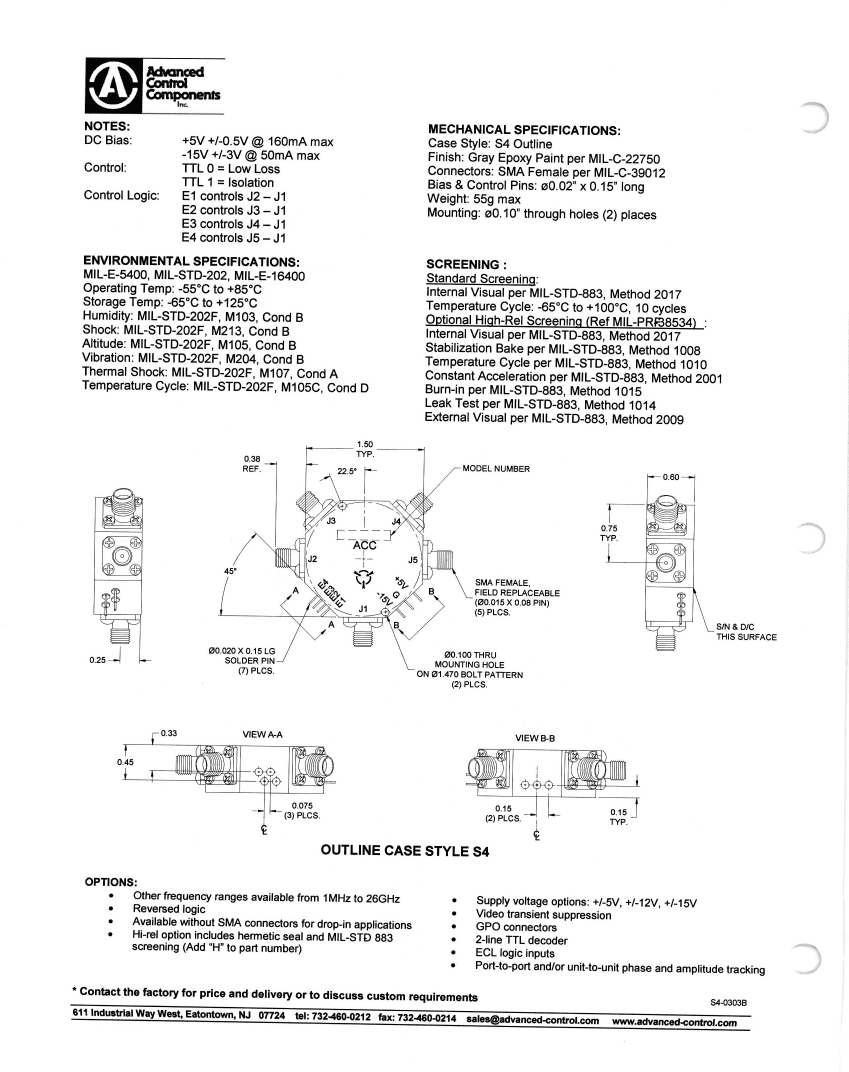

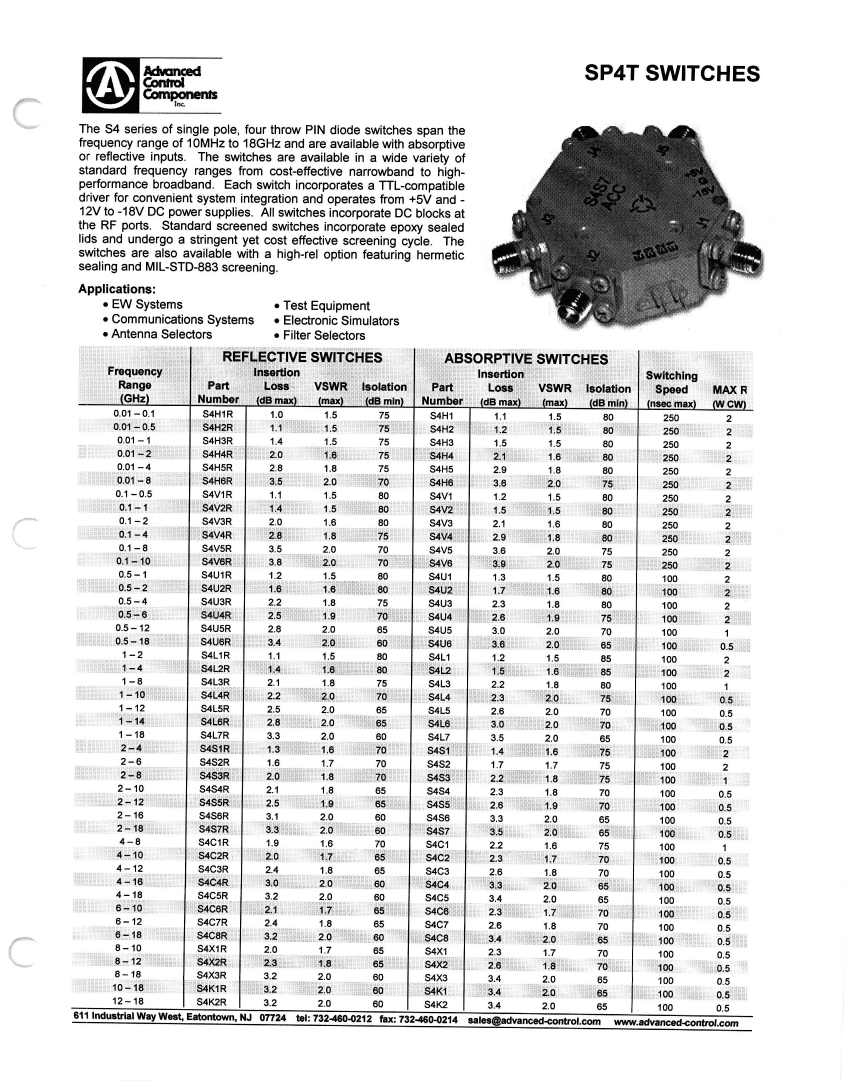

S4H6R Overview

SP4T, 10MHz Min, 8000MHz Max, 3.5dB Insertion Loss-Max, CASE S4

Parameter Name	Attribute value
Maker	Aeroflex
Reach Compliance Code	unknown
Other features	SMA-F, TTL COMPATIBLE
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum insertion loss	3.5 dB
Maximum operating frequency	8000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SP4T
Maximum voltage standing wave ratio	2

	S4H6R	S4H6RH	S4H6	S4H6H
Description	SP4T, 10MHz Min, 8000MHz Max, 3.5dB Insertion Loss-Max, CASE S4	SP4T, 10MHz Min, 8000MHz Max, 3.5dB Insertion Loss-Max, HERMETIC SEALED, CASE S4	SP4T, 10MHz Min, 8000MHz Max, 3.6dB Insertion Loss-Max, CASE S4	SP4T, 10MHz Min, 8000MHz Max, 3.6dB Insertion Loss-Max, HERMETIC SEALED, CASE S4
Maker	Aeroflex	Aeroflex	Aeroflex	Aeroflex
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SMA-F, TTL COMPATIBLE	SMA-F, HIGH RELIABILITY, TTL COMPATIBLE	SMA-F, TTL COMPATIBLE	SMA-F, HIGH RELIABILITY, TTL COMPATIBLE
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
Maximum insertion loss	3.5 dB	3.5 dB	3.6 dB	3.6 dB
Maximum operating frequency	8000 MHz	8000 MHz	8000 MHz	8000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SP4T	SP4T	SP4T	SP4T
Maximum voltage standing wave ratio	2	2	2	2
