SG3542N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> SG3542N

SG3542N: DescriptionPower Management Circuit, PDIP14,; CategoryPower/power management The power supply circuit; File Size345KB，6 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

SG3542N Overview

Power Management Circuit, PDIP14,

SG3542N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linfinity Microelectronics
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	4.5/40 V
Certification status	Not Qualified
Maximum supply current (Isup)	10 mA
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

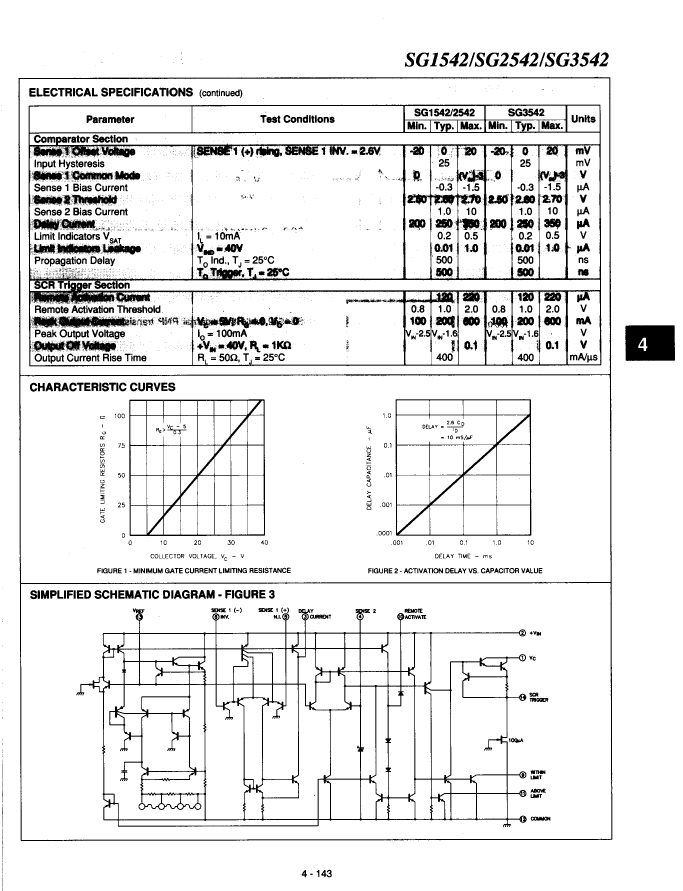

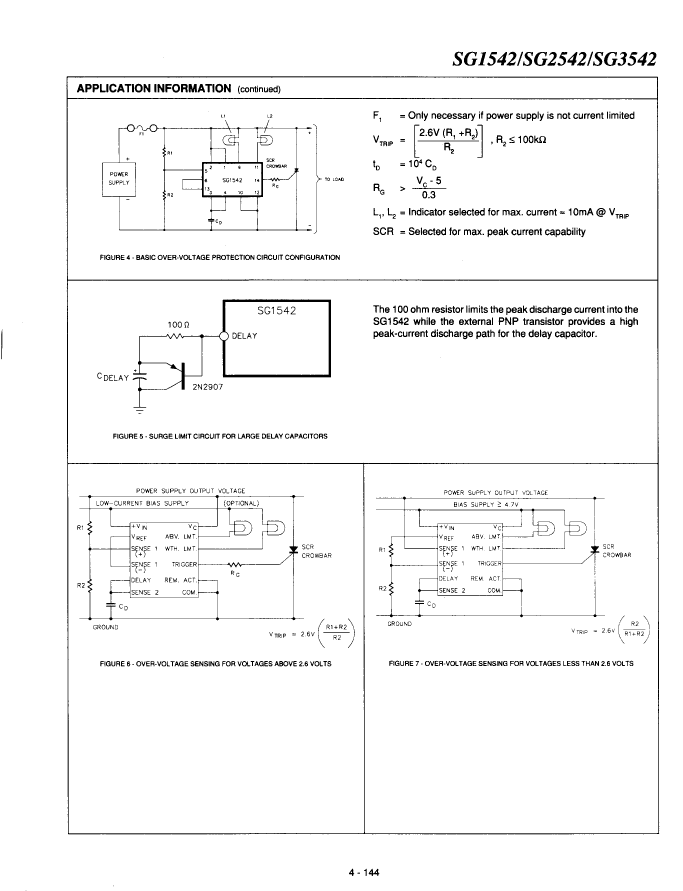

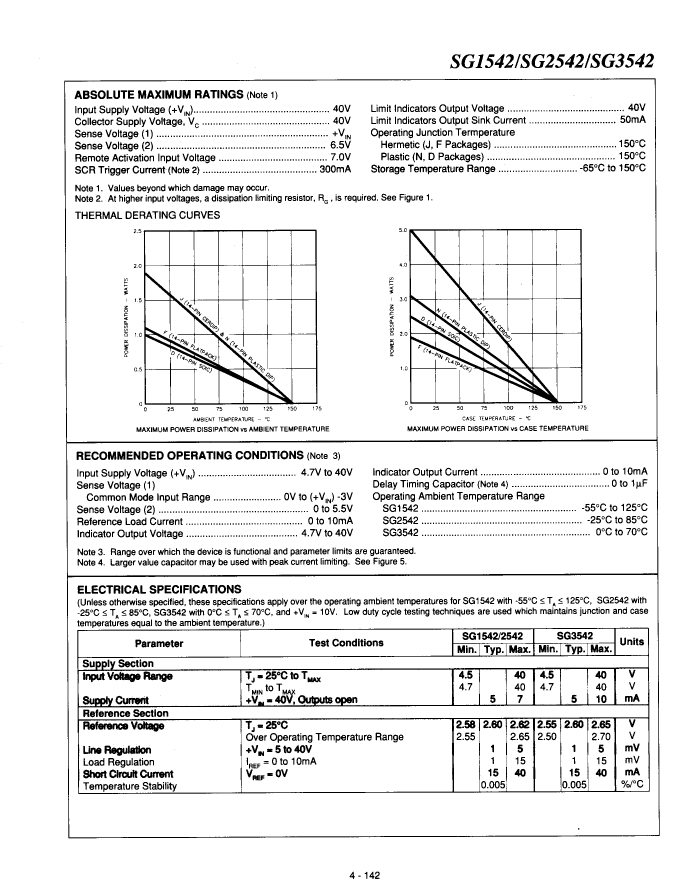

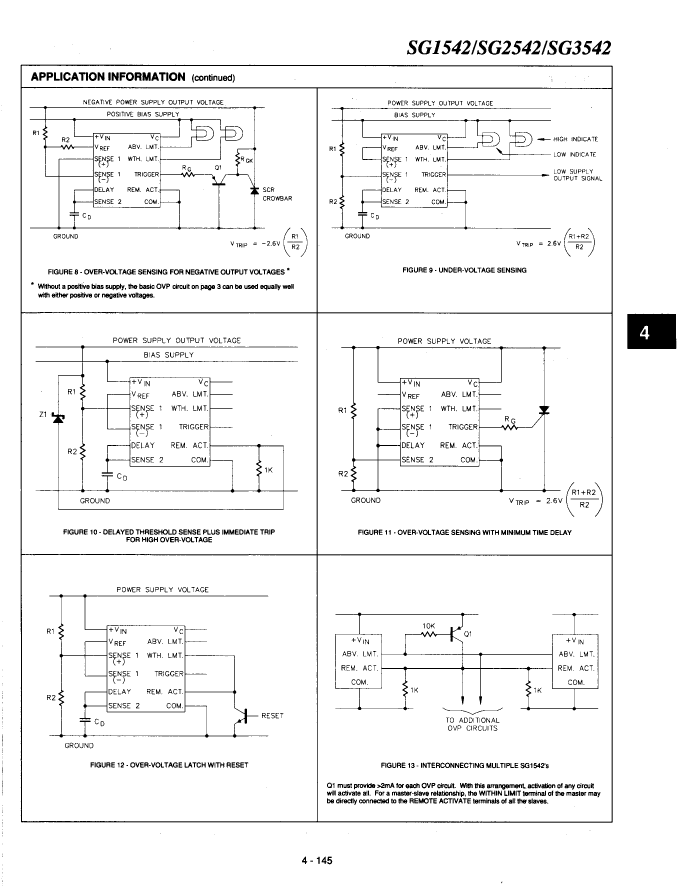

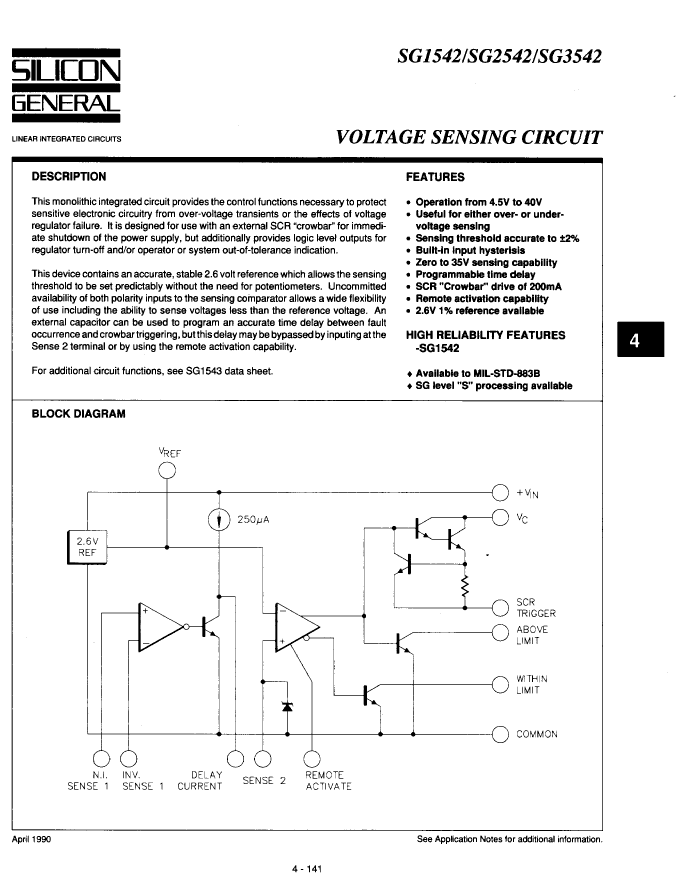

Preview

Download Datasheet

View All

SG3542N Related Products

	SG3542N	SG3542J	SG1542J	SG1542J/883B	SG1542J/883C	SG2542J	SG1542F/883B	SG1542F	SG3542D
Description	Power Management Circuit, PDIP14,	Power Management Circuit, CDIP14,	Power Management Circuit, CDIP14,	Power Management Circuit, CDIP14,	Power Management Circuit, CDIP14,	Power Management Circuit, CDIP14,	Power Management Circuit, CDFP14,	Power Management Circuit, CDFP14,	Power Management Circuit, PDSO14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDFP-F14	R-XDFP-F14	R-PDSO-G14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	14	14	14	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	125 °C	125 °C	125 °C	85 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C	-25 °C	-55 °C	-55 °C	-
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DFP	DFP	SOP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	FL14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK	SMALL OUTLINE
power supply	4.5/40 V	4.5/40 V	4.5/40 V	4.5/40 V	4.5/40 V	4.5/40 V	4.5/40 V	4.5/40 V	4.5/40 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	10 mA	10 mA	7 mA	7 mA	7 mA	7 mA	7 mA	7 mA	10 mA
surface mount	NO	NO	NO	NO	NO	NO	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	OTHER	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Linfinity Microelectronics	-	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics
