AGQ210S09X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AGQ210S09X

AGQ210S09X: DescriptionPower/Signal Relay, 2 Form C, DPDT, Momentary, 0.011A (Coil), 9VDC (Coil), 100mW (Coil), 2A (Contact), 110VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size111KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

AGQ210S09X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AGQ210S09X	-	-	View	Buy Now

AGQ210S09X Overview

Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.011A (Coil), 9VDC (Coil), 100mW (Coil), 2A (Contact), 110VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT

AGQ210S09X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	7.2 mm
body height	5.4 mm
Body length or diameter	10.6 mm
Maximum coil current (DC)	0.011 A
Coil operating voltage (DC)	6.75 V
Coil power	100 mW
Coil release voltage (DC)	6.75 V
Coil resistance	810 Ω
Maximum coil voltage (DC)	9 V
Nominal coil voltage	9 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	37.5VA@125VAC
Contact (AC) maximum rated R load	2A@125VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated power R load	60W@110VDC
Contact (DC) maximum rated R load	2A@110VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	110 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Palladium
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Installation features	SURFACE MOUNT-STRAIGHT
Number of terminals	8
operating hours	4 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C

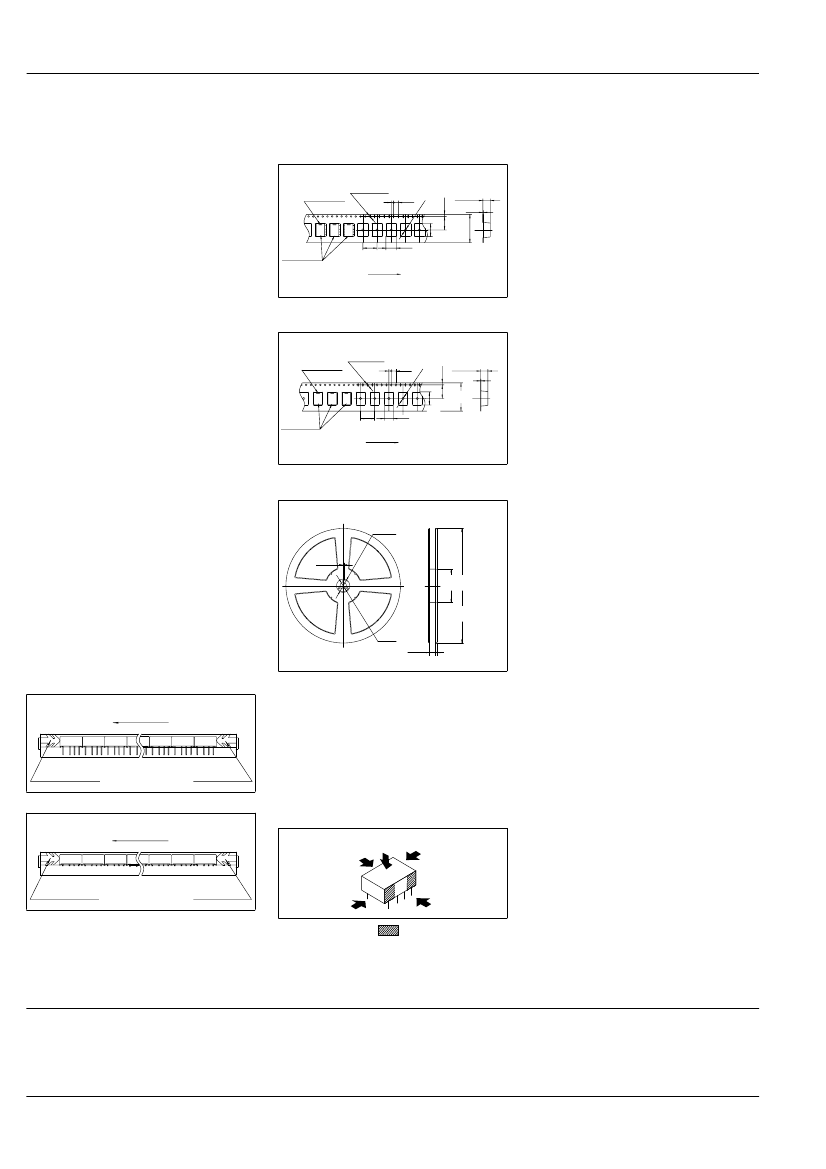

method of packing	TAPE AND REEL
physical size	10.6mm x 7.2mm x 5.4mm
Guideline	BSI; CSA; UL
Relay action	MOMENTARY
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	4 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	Silver/Palladium (Ag/Pd)
Termination type	SOLDER
weight	1 g

Preview

Download Datasheet

View All

TESTING

ULTRA-SMALL PACKAGE

FLAT POLARIZED RELAY

GQ-RELAYS

Due to highly efﬁcient magnetic circuit de-

sign, leakage ﬂux is reduced and changes

in electrical characteristics from compo-

nents being mounted close-together are

minimized. This all means a packaging

density higher than ever before.

• Nominal operating power: 140 mW

• Outstanding vibration and shock re-

sistance.

Functional shock resistance:

750 m/s

{75G}

Destructive shock resistance:

1,000 m/s

{100G}

Functional vibration resistance:

10 to 55 Hz (at double amplitude of 3.3

.130 inch)

Destructive vibration resistance:

10 to 55 Hz (at double amplitude of 5 mm

.197 inch)

FEATURES

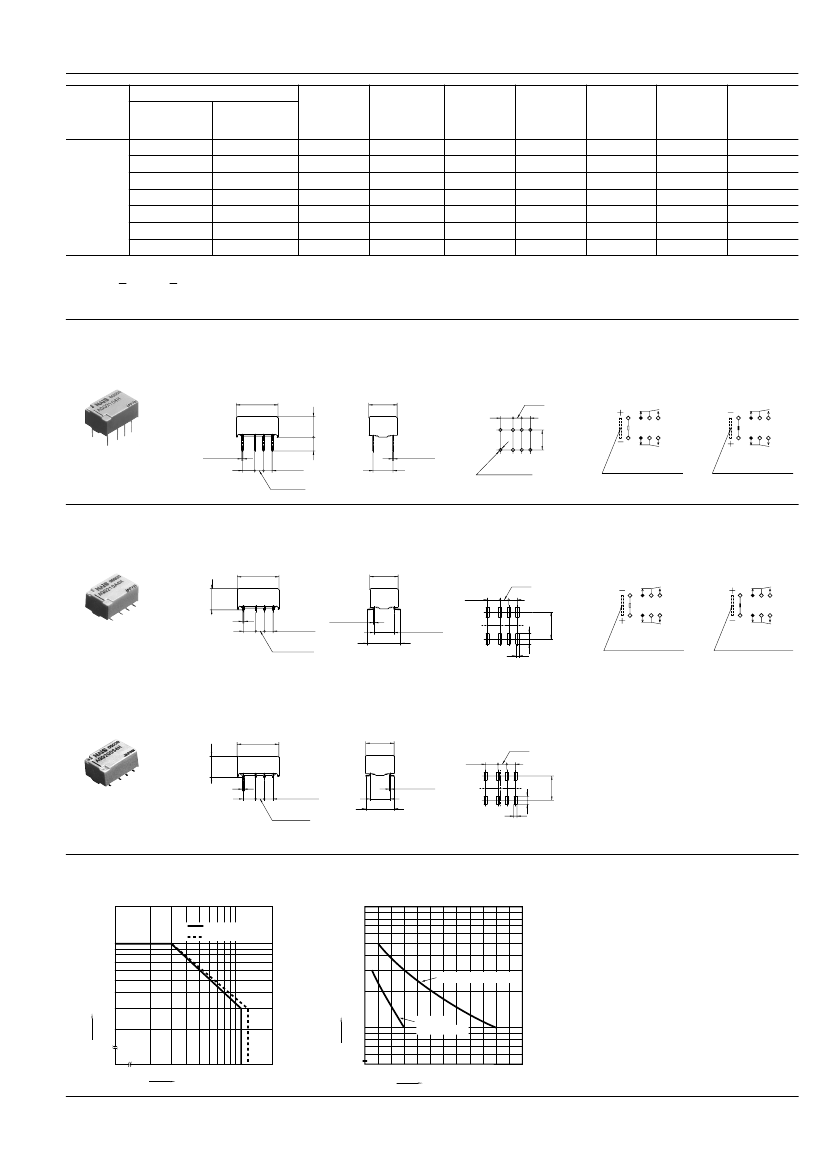

10.60±0.3

.417±.012

7.20±0.3

.283±.012

5.20±0.2

.205±.008

10.60±0.3

.417±.012

7.20±0.3

.283±.012

Max.5.40

.213

inch

• Compact ﬂat body saves space

With a small footprint of 10.6 mm (L)

7.2

mm (W)

.417 inch (L)

.283 inch (W)

for

space savings, it also has a very short

height of 5.2 mm

.205 inch.

(Standard PC

board type.)

• Outstanding surge resistance.

Surge withstand between open contacts:

1,500 V 10

160

s (FCC part 68)

Surge withstand between contacts and

coil: 2,500 V 2

s (Bellcore)

• The use of twin crossbar contacts en-

sures high contact reliability.

AgPd contact is used because of its good

sulﬁde resistance. Adopting low-gas

molding material. Coil assembly molding

technology which avoids generating vola-

tile gas from coil.

• Increased packaging density

SPECIFICATIONS

Contact

Arrangement

Initial contact resistance, max.

(By voltage drop 6 V DC 1A )

Contact material

Nominal switching capacity

(resistive load)

Rating

Max. switching power

(resistive load)

Max. switching voltage

Max. switching current

Min. switching capacity

Nominal

operating

power

Single side stable

1 coil latching

Mechanical (at 180 cpm)

1 A 30 V DC

resistive

Electrical

(at 20 cpm) 0.3 A 125 V AC

resistive

2 Form C

100 m

Ω

Stationary: AgPd+Au clad

Movable: AgPd

1 A 30 V DC

0.3 A 125 V AC

30 W, 37.5 V A

110 V DC, 125 V AC

A 10 mV DC

140mW (1.5 to 12 V DC)

230mW (24 V DC)

100mW (1.5 to 12 V DC)

120mW (24 V DC)

Characteristics

Initial insulation resistance*

Initial

breakdown

voltage*

Between open contacts

Between contact sets

Between contacts and coil

Min. 1,000M

Ω

(at 500V DC)

750 Vrms for 1min.

1,000 Vrms for 1min.

1,500 Vrms for 1min.

1,500 V(FCC Part 68)

2,500 V(Bellcore)

Max. 4 ms (Approx. 2 ms)

[Max. 4 ms (Approx. 2 ms)]

Max. 4 ms (Approx. 1 ms)

[Max. 4 ms (Approx. 2 ms)]

Max. 50

Min. 750 m/s

{75G]

Min. 1,000 m/s

{100G]

10 to 55 Hz at double

amplitude of 3.3 mm

10 to 55 Hz at double

amplitude of 5 mm

–40

C to 85

–40

F to 185

5 to 85% R.H.

Approx. 1 g

.035 oz

Between open contacts

Initial surge (10

160

voltage

Between contacts and coil

Operate time [Set time]*

(at 20

Release time (without diode)

[Reset time]*

(at 20

Temperature rise*

(at 20

Shock resistance

Functional*

Destructive*

Functional*

Vibration resistance

Destructive

Conditions for opera- Ambient

tion, transport and

temperature

storage*

(Not freezing and con-

Humidity

densing at low tem-

perature)

Unit weight

Notes:

Expected

life (min.

operations)

Remarks:

* Speciﬁcations will vary with foreign standards certiﬁcation ratings.

Measurement at same location as "Initial breakdown voltage" section.

Detection current: 10mA.

Nominal voltage applied to the coil, excluding contact bounce time.

By resistive method, nominal voltage applied to the coil; contact carrying current:

1 A.

Half-wave pulse of sine wave: 6 ms;detection time: 10

Half-wave pulse of sine wave: 6 ms.

Detection time: 10

Refer to 5. Conditions for operation, transport and storage mentioned in

AMBIENT ENVIRONMENT (Page 61)

1 This value can change due to the switching frequency, environmental conditions,

and desired reliability level, therefore it is recommended to check this with the

actual load.

2 The upper limit for the ambient temperature is the maximum temperature that

can satisfy the coil temperature rise. Under the packing condition, allowable

temperature range is from –40 to +70

–40

to +158

129
