Features
■
Surface mount for economical assembly
■
High surge current rating
■
Low capacitance and insertion loss
■
Stable breakdown throughout life
■
8 mm diameter, 6 mm long
■
UL Recognized
Applications
■
Telecommunications
■
Industrial electronics
■
Commercial electronics
■
Automotive, aircraft, military electronics

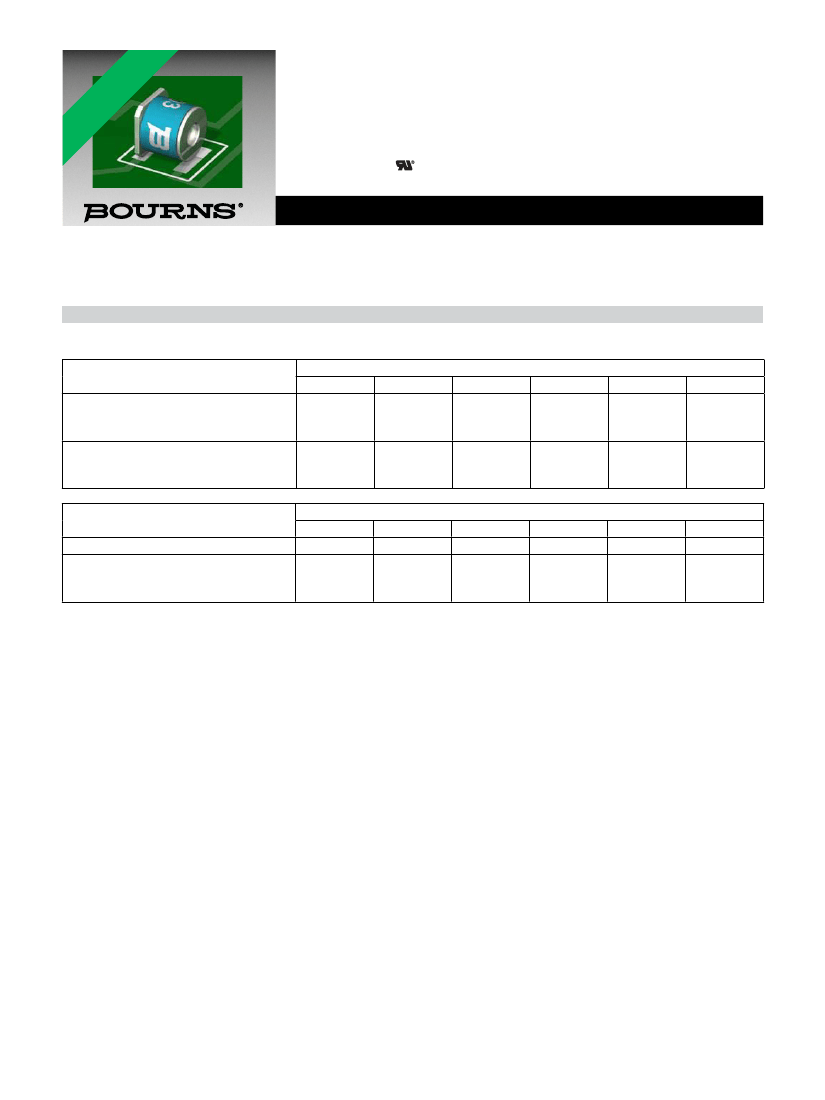

2027-xx-SM Precision Gas Discharge Tube Surge Protector
Bourns offers an 8 x 6 mm Surface Mount (SM) 2-electrode GDT surge protection device. The industry-leading quality and features of
Bourns
®
2027 Series GDT continue in this new SM version. Compatible with “pick and place” assembly systems, the 2027-SM is ideal
for compact applications such as PCBs for telecommunications, commercial and industrial applications.
Characteristics
Test Methods per ITU-T (CCITT) K.12, IEEE C62.31, RUS PE-80, Telcordia GR 1361
Characteristic
DC Sparkover ±15 %
(±20 % for Models 2027-07-SM &
2027-09-SM) @ 100 V/s
Impulse Sparkover
100 V/μs
1000 V/μs
Characteristic
DC Sparkover ±15 % @ 100 V/s
Impulse Sparkover
100 V/μs
1000 V/μs
Model No.
2027-07-SM
2027-09-SM
2027-15-SM
2027-20-SM
2027-23-SM
2027-25-SM
75 V
90 V
150 V
200 V
230 V
250 V
300 V
500 V
300 V
500 V
350 V
575 V
400 V
600 V
450 V
675 V
475 V
700 V
Model No.
2027-30-SM
2027-35-SM
2027-40-SM
2027-42-SM
2027-47-SM
2027-60-SM
300 V
550 V
800 V
350 V
600 V
875 V
400 V
650 V
925 V
420 V
675 V
950 V
470 V
725 V
1000 V
600 V
850 V
1100 V
Insulation Resistance ...................................... 100 V (50 V for Models 2027–07-SM
& 2027-09-SM) .................................................> 10
10
Ω
Glow Voltage ................................................... 10 mA................................................................~ 70 V
Arc Voltage ...................................................... > 1A...................................................................~ 10 V
Glow-Arc Transition Current .......................................................................................................< 0.5 A
Capacitance..................................................... 1 MHz ...............................................................< 1 pF
DC Holdover Voltage
**
................................... 135 V, (52 V for Models 2027-07-SM
& 2027-09-SM; 80 V for Model 2027-15-SM) ...< 150 ms
Impulse Discharge Current .............................. 25000 A, 8/20 μs
***
........................................... 1 operation minimum
10000 A, 8/20 μs ...............................................> 10 operations
2500 A, 10/350 μs ............................................ 2 operations
500 A, 10/1000 μs ............................................> 400 operations
100 A, 10/1000 μs or 10/700 μs ........................> 1000 operations
Alternating Discharge Current ......................... 65 Arms, 11 cycles
***
........................................ 1 operation minimum
10 Arms, 1 s ......................................................> 10 operations
Operating Temperature............................................................................................................... -55 to +85 °C
Climatic Category (IEC 60068-1)................................................................................................ 40/90/21
Notes:
• UL recognized component, UL File E153537.
• Model number marking on tube: 27-xxxV.
• Surface Mount (SM) parts may show a temporary increase in DCBD after the solder reflow process. Most devices will recover
within 24 hours time. It should be noted that there is no quality defect nor change in protection levels during the temporary change
in DCBD.
• Sparkover limits ±20 % after life, IR >10
8
Ω (-25 %, +30 % for Models 2027-07-SM, 2027–09-SM and 2027–60-SM).
• At delivery AQL 0.65 Level II, DIN ISO 2859.
**
***
Network applied.
DC Sparkover may exceed ±20 % after discharge, but will continue to protect without venting.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
2027-xx-SM Precision Gas Discharge Tube Surge Protector

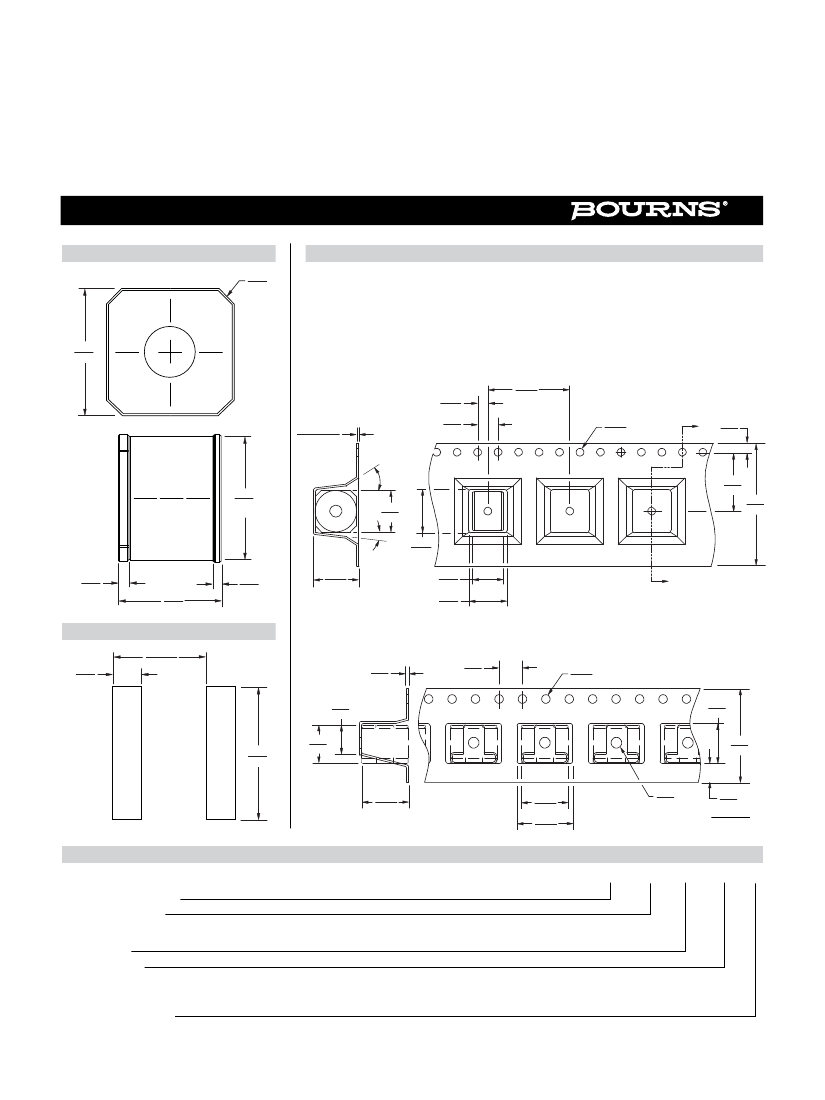

Product Dimensions
9.9
(.390)
DIA.
Packaging Specifications
Model 2027-xx-SM ships standard bulk pack, 100 pcs./bag.
The optional reelpack (-RP) contains 500 pcs./reel. Reel is 33 cm in diameter and
3 cm wide.
The optional reelpack (-RP2) contains 500 pcs./reel. Reel is 33 cm in diameter
and 3 cm wide.
16.00
(0.630)
7.92
(.312)
-RP
0.41 ± 0.10
(0.02 ± 0.004)
2.00
(0.079)
4.00
(0.157)
1.50
DIA.
(0.059)
A
1.75
(0.07)
33 °
7.50
(.295)
DIA.
11.5
(0.45)
24.0
(0.94)
8.08
(0.32)
7°
8.48
(0.334)
7.11
(0.28)
7.51
(0.296)
0.71
(.028)
6.42
(.253)
0.43
(.017)
8.48
(0.334)
A
SECTION A-A
Recommended Pad Layout
1.78
(.070)
5.84
(.230)
-RP2
.36
(.014)
4.00
(0.157)
0.76
R
(.030)
6.85
(.270)
5.19
(.204)
6.85
(.270)
8.25
(.325)
16.00
(.630)
8.41
(.331)
7.95
(.374)
9.51
(.374)
0.95
R
(.037)
DIMENSIONS:
MM
(INCHES)
3.20
(.126)
How to Order
2027 - xx - SM - RP - LF
Model Number Designator
Voltage (Divided by 10)
07 = 75 V
15 = 150 V
09 = 90 V
20 = 200 V
Surface Mount
Packaging Option
Blank = Bulk Packaging (Standard)
RP = 24 mm Reelpack (Optional)
RP2 = 16 mm Reelpack (Optional)
RoHS Compliant Option
Blank = Standard Product
LF = RoHS Compliant Product
23 = 230 V
25 = 250 V
30 = 300 V
35 = 350 V
40 = 400 V
42 = 420 V
47 = 470 V
60 = 600 V
REV. 02/14
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
