16W Single Output AC Dimmable LED Power Supply

Preview

Download Datasheet

View All

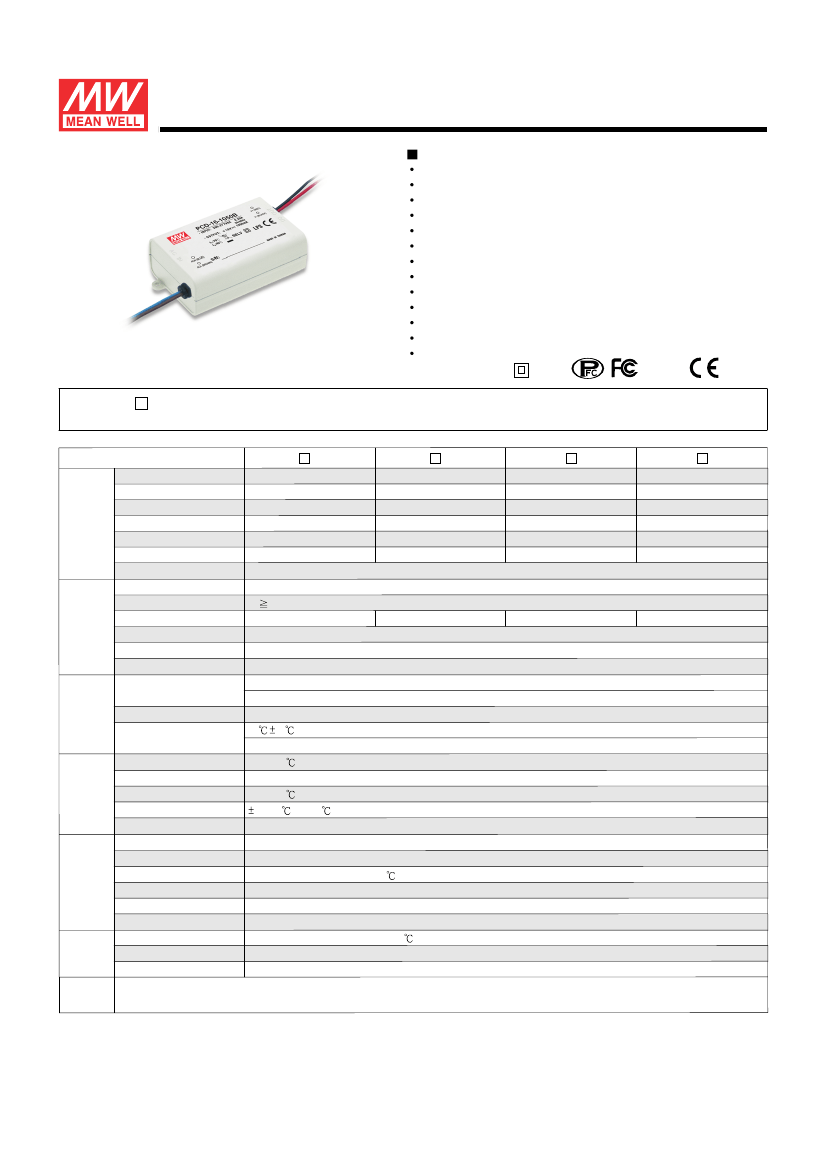

16W Single Output AC Dimmable LED Power Supply

Features :

PCD-16

series

AC phase-cut dimming

Work with leading edge and trailing edge dimmers

115VAC or 230VAC models available

Fully isolated plastic case

Constant current design

Protections: Short circuit / Overload / Over temperature

Built-in active PFC function

Cooling by free air convection

Suitable for indoor LED lighting applications

100% full load burn-in test

Low cost

High reliability

3 years warranty

SELV

( for A type only)

( for B type only)

PCD-16-350 A

A : With AC input 90~ 135VAC.

B : With AC input 180~ 295VAC.

SPECIFICATION

MODEL

RATED CURRENT

CURRENT RANGE

OUTPUT

RATED POWER

PCD-16-350

350mA

0 ~ 350mA

16.8W

OPERATING VOLTAGE RANGE

24 ~ 48V

PCD-16-700

700mA

16 ~ 24V

0 ~ 700mA

16.8W

2.7Vp-p

35V

PCD-16-1050

1050mA

12 ~ 16V

0 ~ 1050mA

16.8W

2.2Vp-p

25V

PCD-16-1400

1400mA

8 ~ 12V

0 ~ 1400mA

16.8W

2Vp-p

16V

RIPPLE & NOISE (max.)

Note.1

4.6Vp-p

NO LOAD OUTPUT VOLTAGE (max.)

63V

SETUP TIME

FREQUENCY RANGE

POWER FACTOR

INPUT

EFFICIENCY(Typ.)

AC CURRENT

INRUSH CURRENT(max.)

LEAKAGE CURRENT

OVER CURRENT

PROTECTION SHORT CIRCUIT

OVER TEMPERATURE

WORKING TEMP.

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

WITHSTAND VOLTAGE

47 ~ 63Hz

1000ms / 230VAC 2000ms / 115VAC at full load

PF 0.9 at full load and rated output voltage

82%

0.4A/115VAC

40A/230VAC

95 ~ 110%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

Hiccup mode, recovers automatically after fault condition is removed.

10 (TSW1) detect on heatsink of power transistor

Protection type : Shut down o/p voltage

-30 ~ +60

-40 ~ +80

0.03%/

(Refer to output load derating curve)

, 10 ~ 95% RH

(0 ~ 50

)

20 ~ 95% RH non-condensing

0.2A/230VAC

81%

80.5%

80%

<0.5mA / 240VAC

10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

TUV EN61347-1, EN61347-2-13 approved ; Design refer to UL1310 Class 2

I/P-O/P:3.75KVAC

SAFETY & ISOLATION RESISTANCE

I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH

EMC

EMI CONDUCTION & RADIATION

Compliance to EN55015 Class B (B type only), FCC part18 Class A (A type only)

Compliance to EN61000-3-2 Class C ; EN61000-3-3

HARMONIC CURRENT

EMS IMMUNITY

MTBF

OTHERS

DIMENSION

PACKING

NOTE

Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024,EN61547, light industry level, criteria A

906.5Khrs min. MIL-HDBK-217F (25

84*57*29.5mm (L*W*H)

0.19Kg; 72pcs/14.7Kg/0.92CUFT

)

1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

2. Direct connecting to LEDs is not using additional drivers is highly recommended.

File Name:PCD-16-SPEC 2011-03-09
