STR-10-H: DescriptionRF Coaxial Relay, SP10T, Failsafe, 0.325A (Coil), 12VDC (Coil), 3900mW (Coil), 18000MHz, 2W (RF Input), DC Input, DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size92KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

STR-10-H Overview

RF Coaxial Relay, SP10T, Failsafe, 0.325A (Coil), 12VDC (Coil), 3900mW (Coil), 18000MHz, 2W (RF Input), DC Input, DC Output, Panel Mount,

STR-10-H Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ISOLATION MIN: 60
Body length or diameter	73.15 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.325 A
Coil power	3900 mW
Coil resistance	36.92 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum input power	2 W
Maximum insertion loss	1 dB
Maximum isolation	60 dB
Manufacturer's serial number	STR
Installation features	PANEL MOUNT
Maximum operating frequency	18000 MHz
Minimum operating frequency
Relay action	FAILSAFE
Relay function	SP10T
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	25 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.8

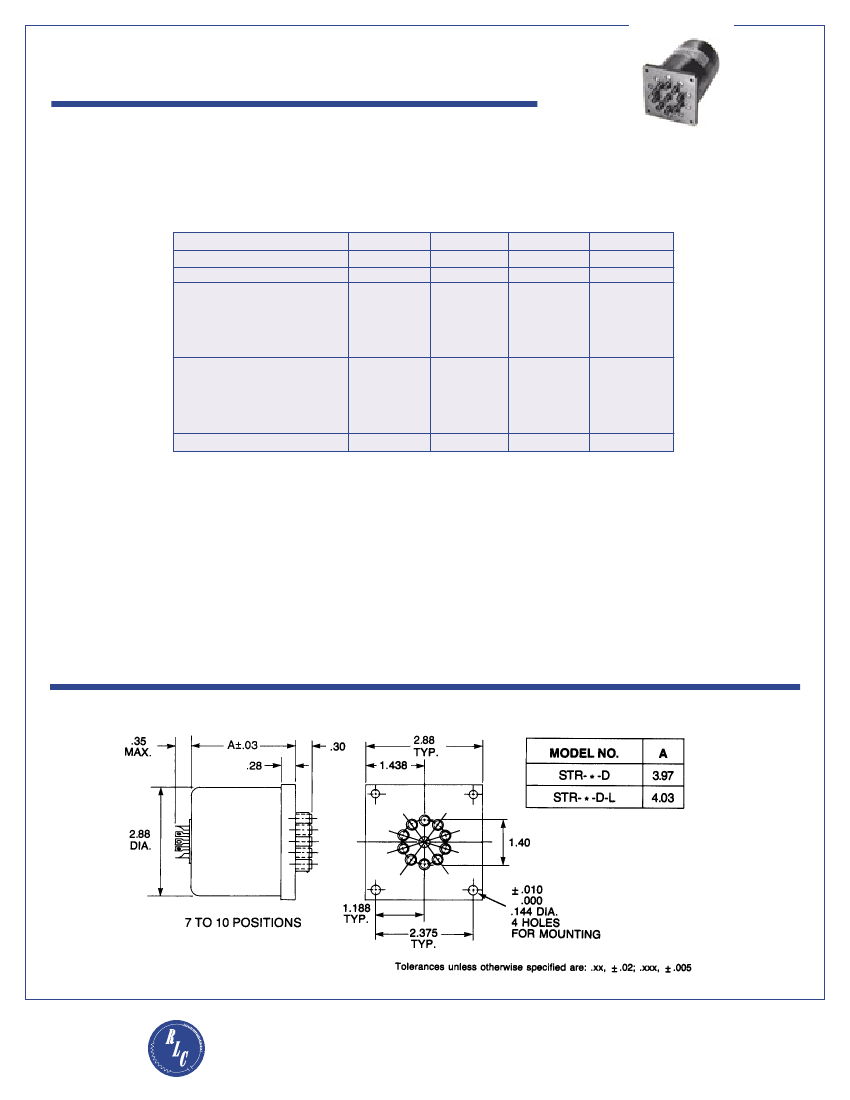

Preview

Download Datasheet

View All

Terminated Multi-Position

Coaxial Switches

(7 to 10 Position)

RLC Electronics' Terminated 7-10 Multi-Position Coaxial Switch

line provides proven reliability, long life and outstanding electri-

cal performance. and features extremely low insertion loss and

VSWR over the entire DC-18 GHz range, while maintaining high

isolation. Standard RF power rating is 2 watts cw limited by the

termination.

Specifications

STR

1-2-3-4-5

RF Positions

Switch Type:

Frequency Range:(GHz)

Insertion Loss (Max dB)

DC-6 GHz

6.0-12.0 GHz

12.0-16.0 GHz

16.0-18.0 GHz

VSWR (Max)

DC-6 GHz

6.0-12.0 GHz

12.0-16.0 GHz

16.0-18.0 GHz

Isolation (dB) (Min)

SP-7T

DC-18

0.30

0.50

0.70

1.00

1.40

1.50

1.70

1.80

SP-8T

DC-18

0.30

0.50

0.70

1.00

1.40

1.50

1.70

1.80

SP-9T

DC-18

0.30

0.50

0.70

1.00

1.40

1.50

1.70

1.80

SP-10T

DC-18

0.30

0.50

0.70

1.00

1.40

1.50

1.70

1.80

Power Rating, RF Cold Switching:

2 watts average

Impedance:

50 Ohms

Operating Power 25°C:

(Failsafe):

12Vdc at 325 ma nom.

28Vdc at 190 ma nom. 115Vac at 20 ma nom.

(Latching)

12Vdc at 480ma nom.

28Vdc at 280ma nom. 115 Vac at 225 ma nom.

Cutthroat circuitry (standard),recovery time 100ms nom.

Connectors, RF:

SMA Female

Life:

1,000,000 operations.

Switching Time:

25 mS Max. (failsafe) 125 ms (latching)

Weight:

30 oz.

Environmental Conditions:

MIL-S-3928

Operating Mode:

Failsafe/Latching

Switching Sequence:

Break before make..

To designate the switch desired use:

(1) “7”, “8”, “9” or “10” throw operation

(2) “A” for 115 Vac, “D” for 28 Vdc or “H” for 12 Vdc

(3) “I” for indicators if desired.

(4) “L” for Latching cutthroat if desired

(5) “TL” for TTL Driver if desired

Example: STR-10-D is a SP-10T, 28 Vdc, Terminated, failsafe switch

Outline Drawing

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
