DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SJ209
P-CHANNEL MOSFET
FOR SWITCHING
The 2SJ209, P-channel vertical type MOSFET, is a switching
device which can be driven directly by the output of ICs having a
5 V power source.
The 2SJ209 has low on-state resistance and excellent switching
characteristics, it is suitable for driving actuators such as motors,
relays, and solenoids.
2.9 ±0.2

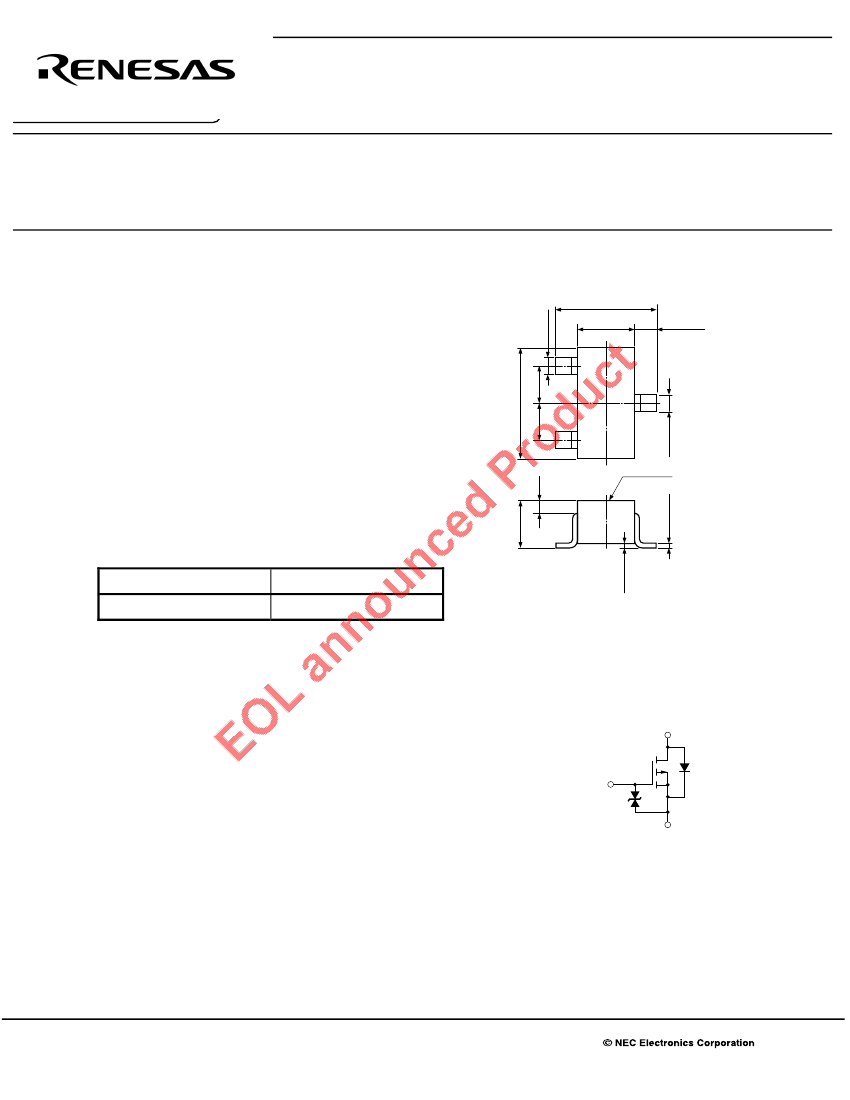

PACKAGE DRAWING (Unit: mm)
2.8 ±0.2
0.4
–0.05
+0.1
1.5
0.65
–0.15
+0.1
0.95
•
Directly driven by ICs having a 5 V power supply.
•
Not necessary to consider driving current because of its high
•
Possible to reduce the number of parts by omitting the bias
resistor.
<R>
input impedance.
1.1 to 1.4
1
0.3
Marking
0.16
–0.06
+0.1
0.4
+0.1
–0.05
FEATURES
0.95
2
3
PART NUMBER
2SJ209
PACKAGE
SC-59 (Mini Mold)
Marking: H17
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
Drain to Source Voltage (V
GS
= 0 V)
Gate to Source Voltage (V
DS
= 0 V)
Drain Current (DC)
Drain Current (pulse)
Note
V
DSS
V
GSS
I
D(DC)
I
D(pulse)
P
T
T
ch
T
stg
−100
m16
m100
m200
200
150
−55
to +150
V
V
mA
mA
mW
°C
°C
EQUIVALENT CIRCUIT
Drain
0 to 0.1
ORDERING INFORMATION
1. Source
2. Gate
3. Drain
Total Power Dissipation
Channel Temperature
Storage Temperature
Note
PW
≤
10 ms, Duty Cycle
≤
50%
<R>
Gate
Gate
Protection
Diode
Body
Diode
Source
Remark
The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage exceeding
the rated voltage may be applied to this device.

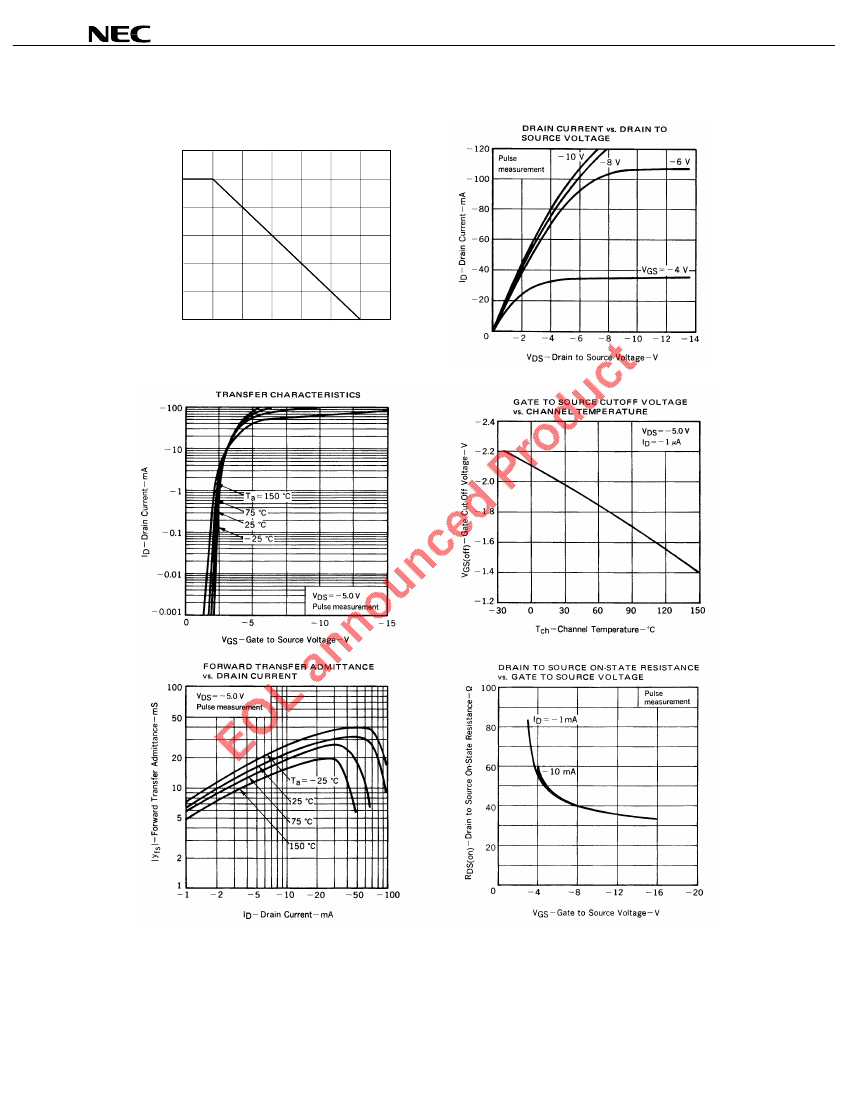

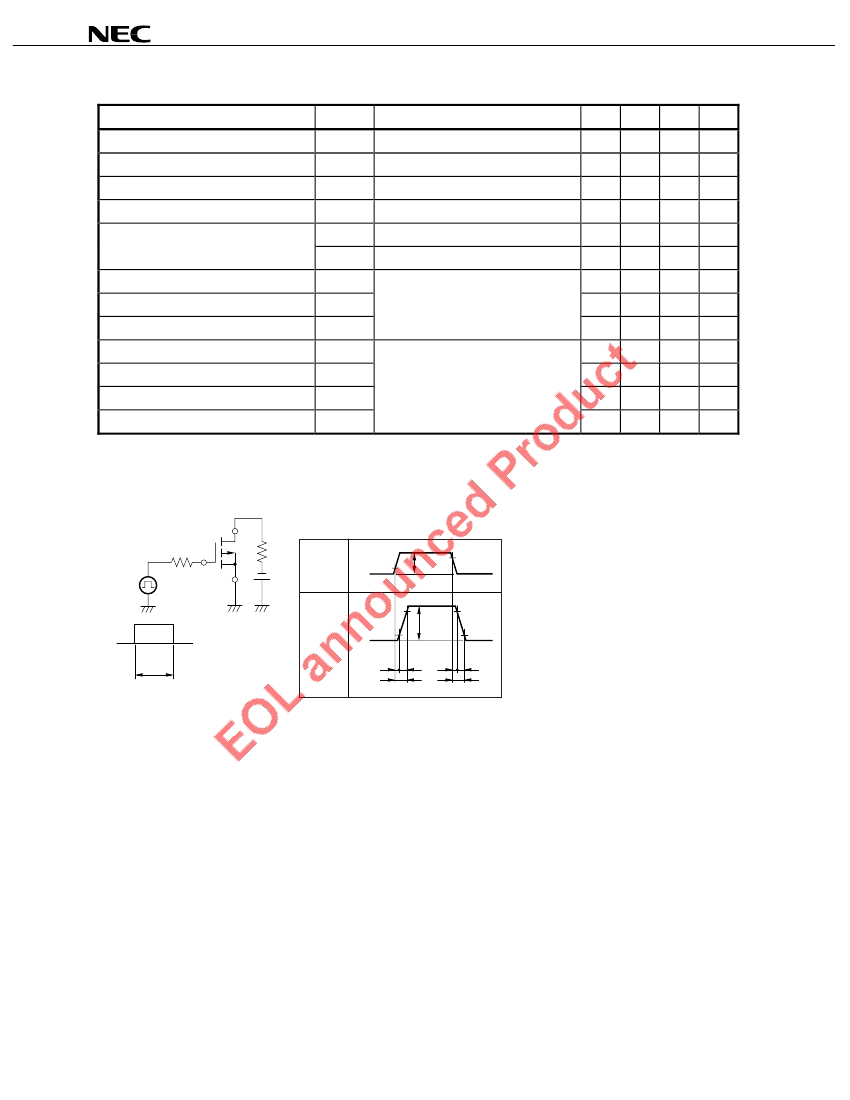

The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D17905EJ3V0DS00 (3rd edition)
(Previous No. TC-2331)
Date Published February 2006 NS CP(K)
Printed in Japan
1991
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
