GBL401 thru GBL410
High Current Glass Passivated
Molding Single-Phase Bridge Rectifier
P b
Lead(Pb)-Free
REVERSE VOLTAGE
100 TO 1000 VOLTS
FORWARD CURRENT
4.0 AMPERE
Features:
* Plastic Package has Underwriters Laboratory
Flammability Classification 94V-0
* High current capacity with small package
* Glass passivated chip junctions
* Superior thermal conductivity
* High IFSM
GBL

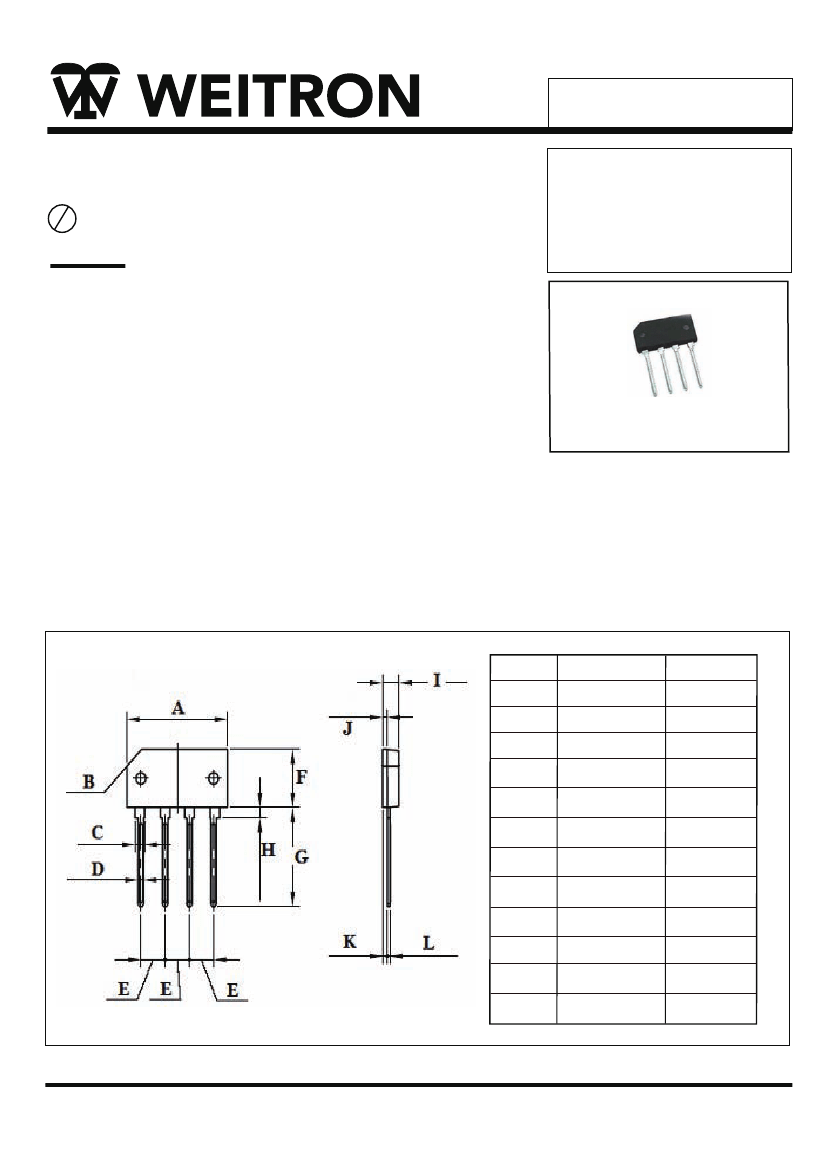

GBL Outline Dimension
Dim
A
B
C
D
E
F
G
H
I
J
K
L
Min
20.4
3x45˚
1.80
0.90
4.80
10.2
17.37
1.37
3.20
0.80
0.80
0.30
Unit:mm
Max
21.0
-
2.20
1.30
5.20
10.8
18.37
2.37
3.60
1.20
1.20
0.70
WEITRON
http://www.weitron.com.tw
1/3
31-Jan-2011
GBL401 thru GBL410
MAXIMUM RATINGS
(T
A
=25°C unless otherwise noted)
Characteristics
Maximum Repetitive Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Average Rectified Forward Current @Tc = 50°C
60Hz Sine Wave Resistance Load @Ta = 40°C
Peak Forward Surge Current,8.3 ms Single Half
Sine-Wave Superimposed on Rated Load
Symbol GBL401 GBL402 GBL404 GBL406 GBL408 GBL410
Unit
V
RRM
V
RMS
V
DC
I
O
I
FSM
V
F
I
R
I2t
Vdia
R
θ
JA
R
θ
JC
T
J
T
STG
100
70
100
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
V
µA
A2sec
KV
°C/W
°C/W
°C
°C
4
3
150
1.1
5
500
93
2.5
32
8
150
-55 to +150
Max instantaneous forward voltage at 2.0A
Maximum DC Reverse Current @Ta = 25°C
At Rated DC BlockingVoltage @Ta = 100°C
Rating Of Fusing (t<8.3ms)
Dielectric Strength Terminals To Case， AC 1
Minute Current 1mA
Maximum Thermal On P.C.B. Without Heat-Sink
Resistance Per Leg On Al Plate Heat-Sink
Operating Junction Temperature
Storage Temperature
WEITRON
http://www.weitron.com.tw
2/3
31-Jan-2011

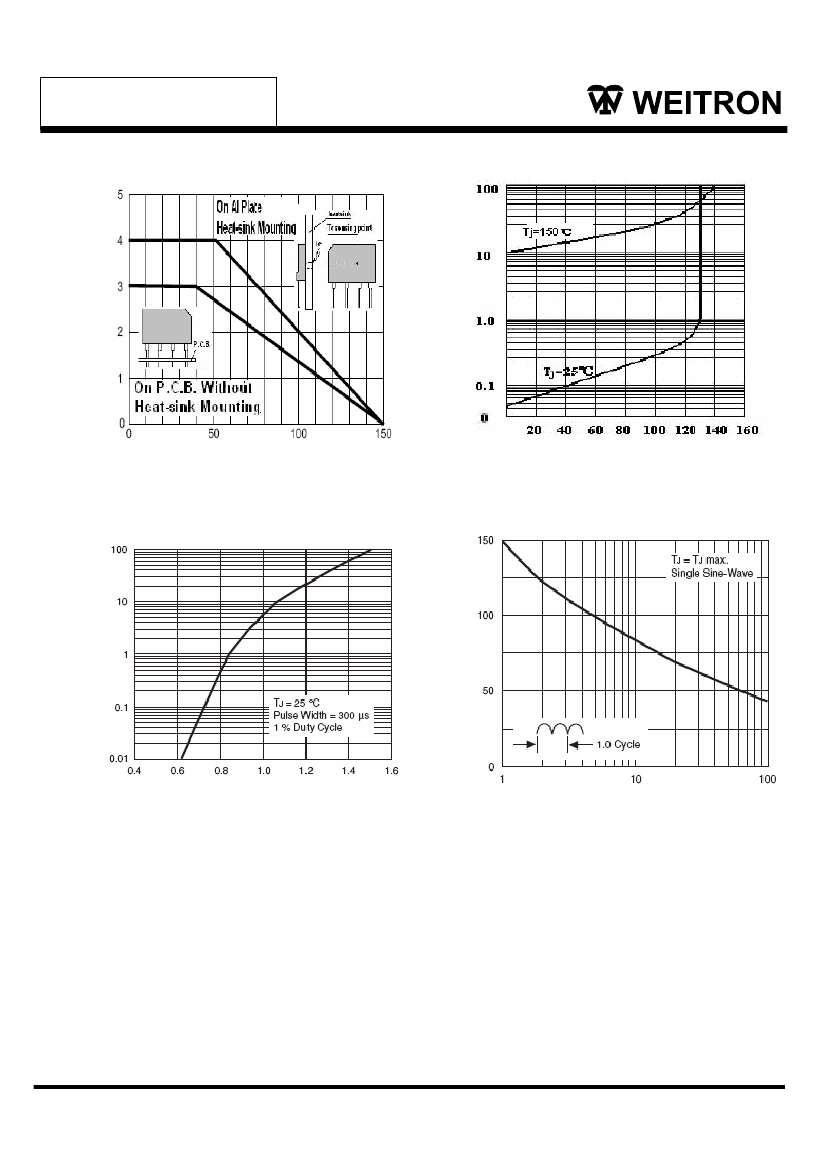

GBL401 thru GBL 410
Average Rectified Forward Current Io(A)
Case Temperature Tc(•
•
)
Fig. 1 Derating Curve
nstantaneous Reverse Current (µA)
Percent of Rated Peak Reverse Voltage•
•
Fig.2•
•
Typical Reverse Characteristics
Forward Voltage VF
Fig.3•
•
Forward Voltage
Peak Surge Forward Current IFSM(A)
Forward Current (A)
Number of Cycles
Fig.4•
•
Peak Surge Forward Capability
WEITRON
http://www.weitron.com.tw
3/3
31-Jan-2011
