3002 datasheet, PDF - EEWORLD Datasheet

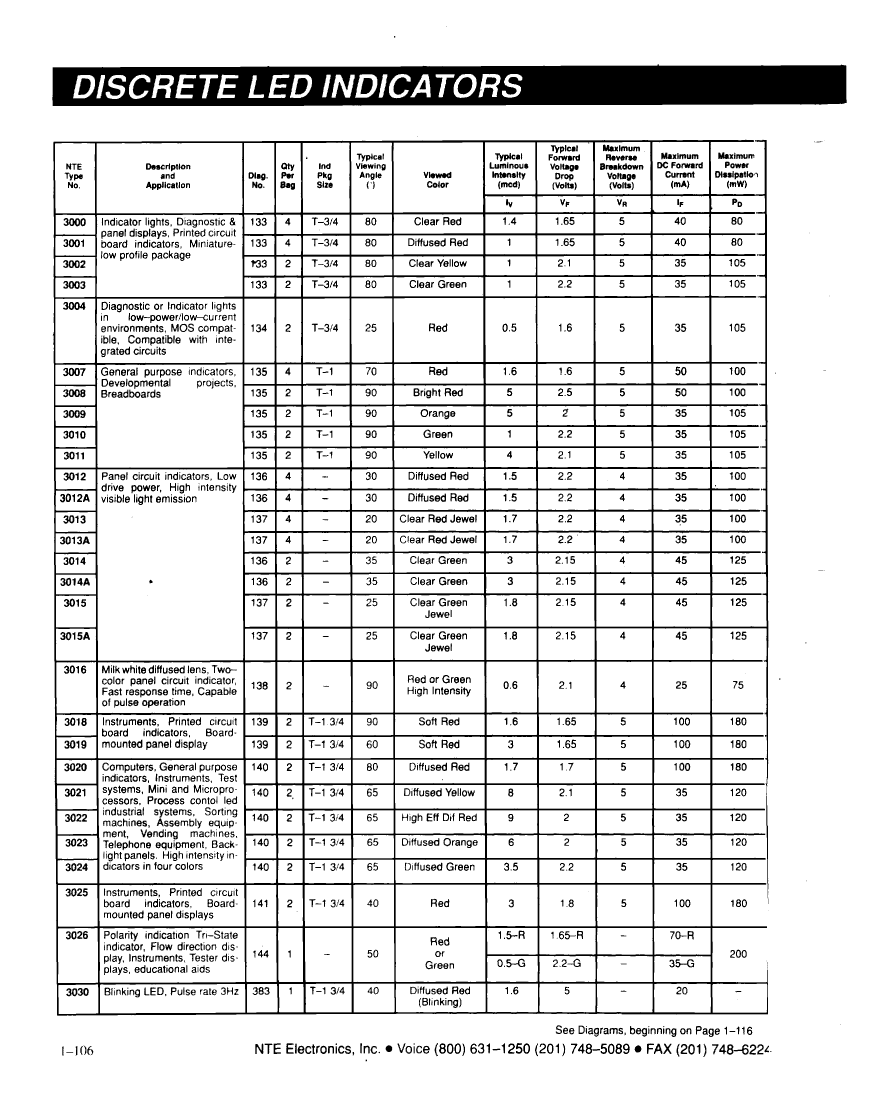

3002: DescriptionSingle Color LED, Yellow, Clear Yellow, T-3/4, 2mm, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size56KB，1 Pages; ManufacturerNTE; Websitehttp://www.nteinc.com

Download Datasheet Parametric Compare View All

3002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3002	-	-	View	Buy Now

Single Color LED, Yellow, Clear Yellow, T-3/4, 2mm, 2 PIN

Parameter Name	Attribute value
Maker	NTE
package instruction	2 PIN
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.035 A
Lens type	CLEAR YELLOW
Nominal luminous intensity	1 mcd
Installation features	AXIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	2.42 mm
method of packing	BULK
shape	ROUND
size	2 mm
surface mount	NO
T code	T-3/4
perspective	80 deg

	3002	3014A	3015A	3003	3013A	3000	3020
Description	Single Color LED, Yellow, Clear Yellow, T-3/4, 2mm, 2 PIN	Single Color LED, Green, Clear, 4.9mm, 2 PIN	Single Color LED, Green, Clear Jewel, 4.9mm, 2 PIN	Single Color LED, Green, Clear, T-3/4, 2mm, 2 PIN	Single Color LED, Red, Clear Jewel, 4.9mm, 2 PIN	Single Color LED, Red, Clear, T-3/4, 2mm, 2 PIN	Single Color LED, Red, Diffused, T-1 3/4, 5mm, 2 PIN
Maker	NTE	NTE	NTE	NTE	NTE	NTE	NTE
package instruction	2 PIN	2 PIN	2 PIN	2 PIN	2 PIN	2 PIN	2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	YELLOW	GREEN	GREEN	GREEN	RED	RED	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.035 A	0.045 A	0.045 A	0.035 A	0.035 A	0.04 A	0.1 A
Lens type	CLEAR YELLOW	CLEAR	CLEAR JEWEL	CLEAR	CLEAR JEWEL	CLEAR	DIFFUSED
Nominal luminous intensity	1 mcd	3 mcd	1.8 mcd	1 mcd	1.7 mcd	1.4 mcd	1.7 mcd
Installation features	AXIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	AXIAL MOUNT	RADIAL MOUNT	AXIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	2.42 mm	6.09 mm	6.09 mm	2.42 mm	6.09 mm	2.42 mm	8.63 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	2 mm	4.9 mm	4.9 mm	2 mm	4.9 mm	2 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO
perspective	80 deg	35 deg	25 deg	80 deg	20 deg	80 deg	80 deg
T code	T-3/4	-	-	T-3/4	-	T-3/4	T-1 3/4
Terminal pitch	-	1.5 mm	1.5 mm	-	1.5 mm	-	2.54 mm
Base Number Matches	-	1	1	1	1	-	-
