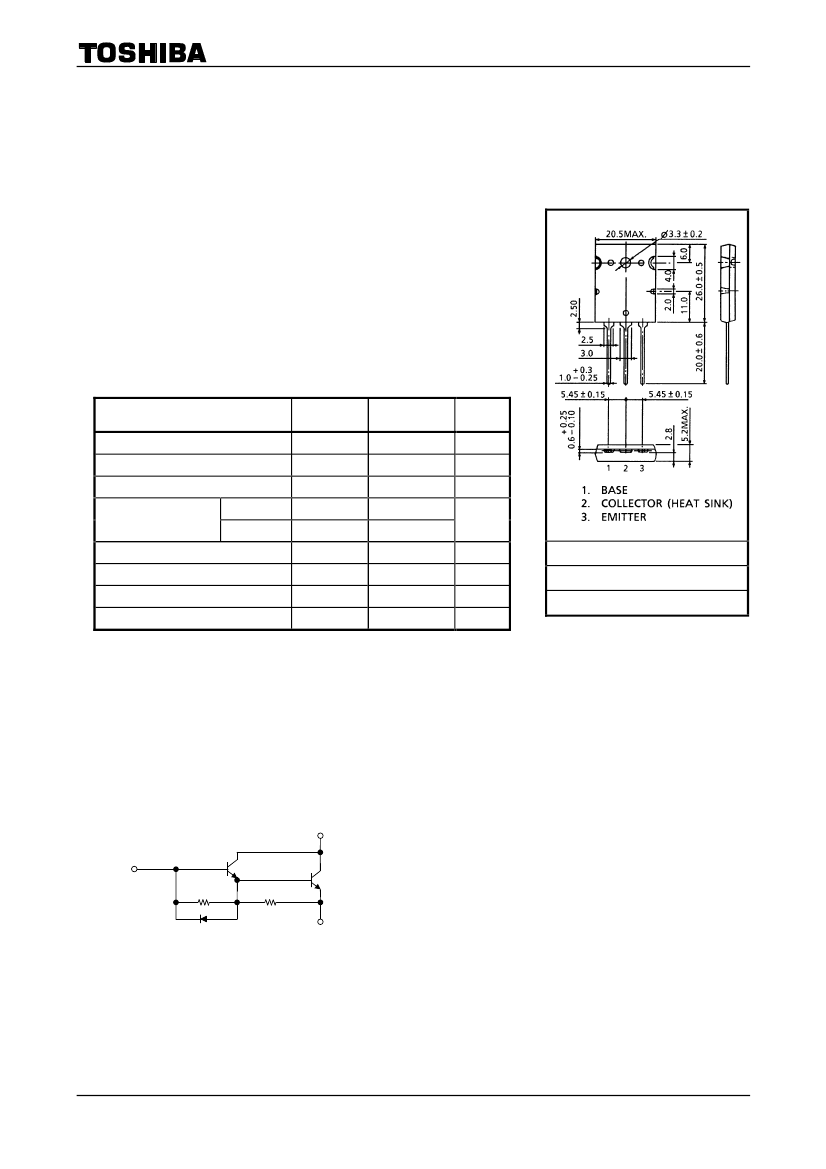

2SD1314
TOSHIBA Transistor
Silicon NPN Triple Diffused Type (Darlington Power Transistor)
2SD1314
High Power Switching Applications
Motor Control Applications
Unit: mm
•
•
•
High DC current gain: h
FE
= 100 (min) (V
CE
= 5 V, I
C
= 15 A)
Low saturation voltage: V
CE (sat)
= 2 V (max) (I
C
= 15 A, I
B
= 0.4 A)
High speed: t
f
= 3
μs
(max) (I
C
= 15 A)
Absolute Maximum Ratings
(Tc = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
DC
Pulse
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
I
B
P
C
T
j
T
stg
Rating
600
450
6
15
30
1.0
150
150
−55
to 150
Unit
V
V
V
A
A
W
°C
°C
JEDEC
JEITA
TOSHIBA
―
―
2-21F1A
Weight: 9.75 g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
Equivalent Circuit
COLLECTOR
BASE
≈
300
Ω
≈
100
Ω
EMITTER
1
2006-11-21
2SD1314
Electrical Characteristics
(Tc = 25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
Collector-emitter sustaining voltage
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage
Collector output capacitance
Turn-on time
Symbol
I
CBO
I
EBO
V
CEO (SUS)
h
FE
V
CE (sat)
V
BE (sat)
C
ob
t
on
I
B1
Test Condition
V
CB
= 600 V, I
E
= 0
V
EB
= 6 V, I
C
= 0
I
C
= 0.5 A, L = 40 mH
V
CE
= 5 V, I
C
= 15 A
I
C
= 15 A, I
B
= 0.4 A
V
CB
= 50 V, I
E
= 0, f = 1 MHz
Min
―
―
450
100
―
―
―
―
Typ.
―
―
―
―
―
―
150
―
Max
1.0
200
―
―
2.0
2.5
―
1.0
V
V
pF
Unit
mA
mA
V
50
μs
0
Input
I
B2
I
B1
I
B2
Output
20
Ω
Switching time
Storage time
t
stg
―
―
12
μs
V
CC
= 300 V
Fall time
t
f
I
B1
=
−I
B2
= 0.4 A, duty cycle = 0.5%
―
―
3.0
Marking
Part No. (or abbreviation code)
TOSHIBA
2SD1314
Lot No.
JAPAN
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
2
2006-11-21

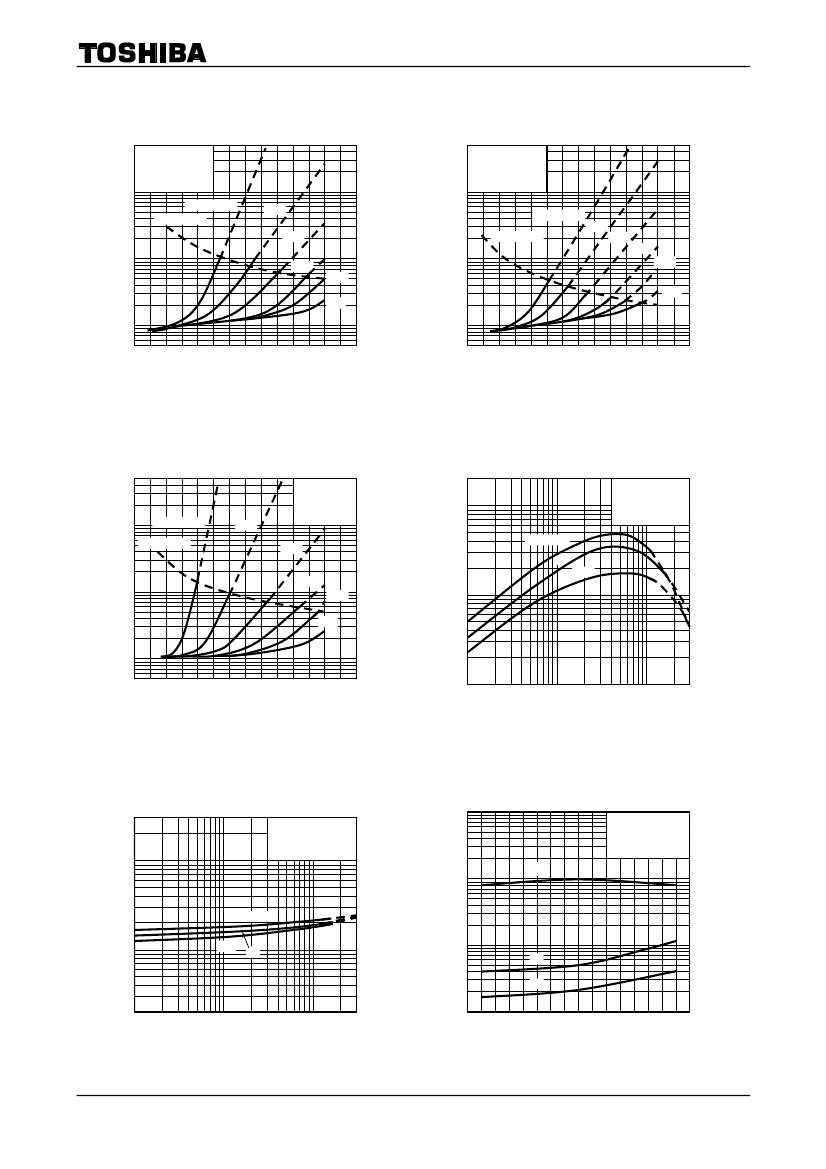

2SD1314
RESTRICTIONS ON PRODUCT USE
•
The information contained herein is subject to change without notice.
20070701-EN
•
TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor
devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical
stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of
safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of
such TOSHIBA products could cause loss of human life, bodily injury or damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as
set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and
conditions set forth in the “Handling Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability
Handbook” etc.
•
The TOSHIBA products listed in this document are intended for usage in general electronics applications
(computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances,
etc.).These TOSHIBA products are neither intended nor warranted for usage in equipment that requires
extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or
bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or
spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments,
medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in his
document shall be made at the customer’s own risk.
•
The products described in this document shall not be used or embedded to any downstream products of which
manufacture, use and/or sale are prohibited under any applicable laws and regulations.
•
The information contained herein is presented only as a guide for the applications of our products. No
responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties which
may result from its use. No license is granted by implication or otherwise under any patents or other rights of
TOSHIBA or the third parties.
•
Please contact your sales representative for product-by-product details in this document regarding RoHS
compatibility. Please use these products in this document in compliance with all applicable laws and regulations
that regulate the inclusion or use of controlled substances. Toshiba assumes no liability for damage or losses
occurring as a result of noncompliance with applicable laws and regulations.
