HV2116C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> HV2116C

HV2116C: DescriptionSingle-Ended Multiplexer, 1 Func, 8 Channel, NMOS, CDIP24, SIDE BRAZED, CERAMIC, DIP-24; CategoryAnalog mixed-signal IC The signal circuit; File Size216KB，9 Pages; ManufacturerSupertex

Download Datasheet Parametric Compare View All

HV2116C Overview

Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, CDIP24, SIDE BRAZED, CERAMIC, DIP-24

HV2116C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Supertex
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T24
length	30.48 mm
Humidity sensitivity level	1
Nominal Negative Supply Voltage (Vsup)	-80 V
Number of channels	8
Number of functions	1
Number of terminals	24
Nominal off-state isolation	33 dB
On-state resistance matching specifications	1.1 Ω
Maximum on-state resistance (Ron)	27 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	3.937 mm
Maximum supply current (Isup)	8 mA
Nominal supply voltage (Vsup)	80 V
surface mount	NO
Maximum disconnect time	3000 ns
Maximum connection time	2000 ns
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

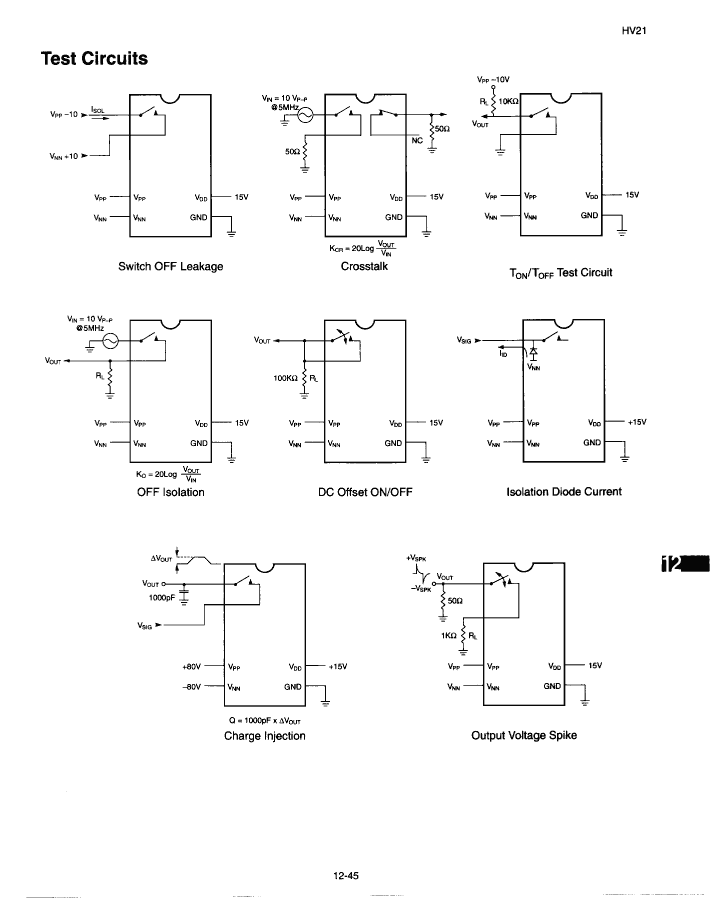

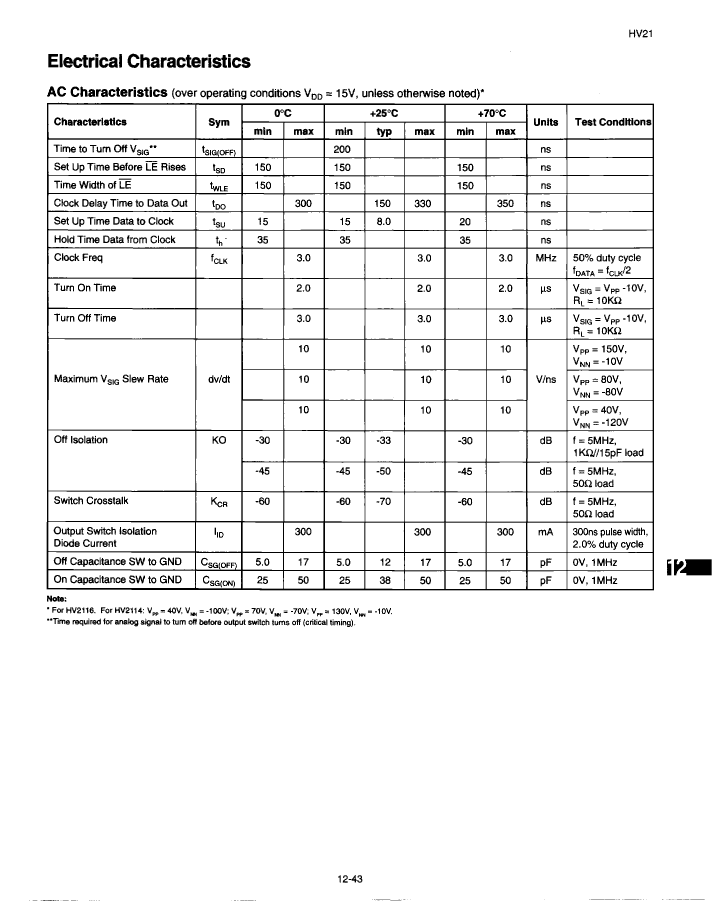

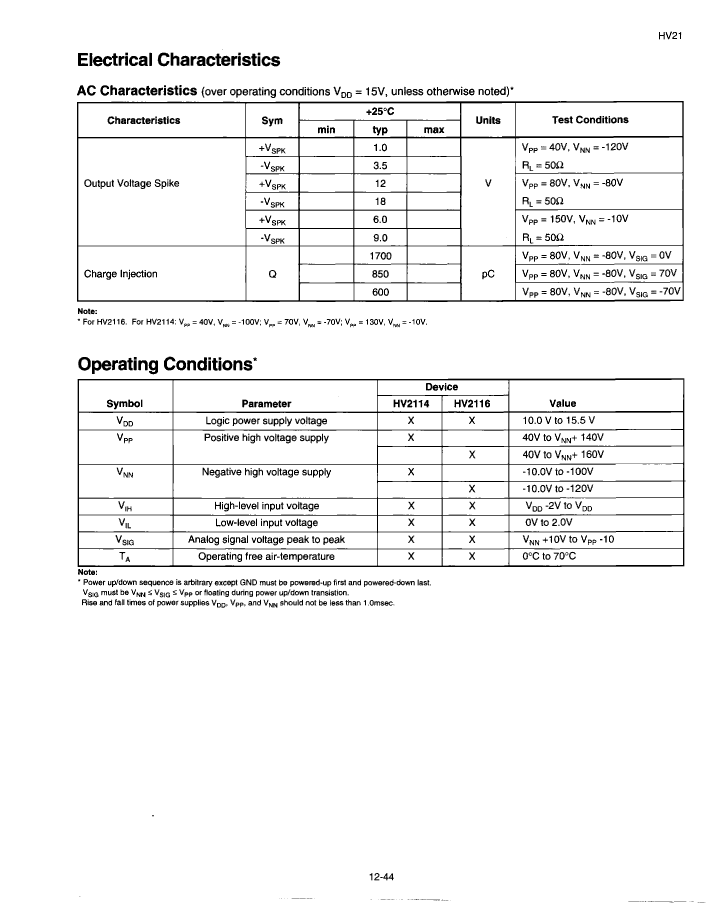

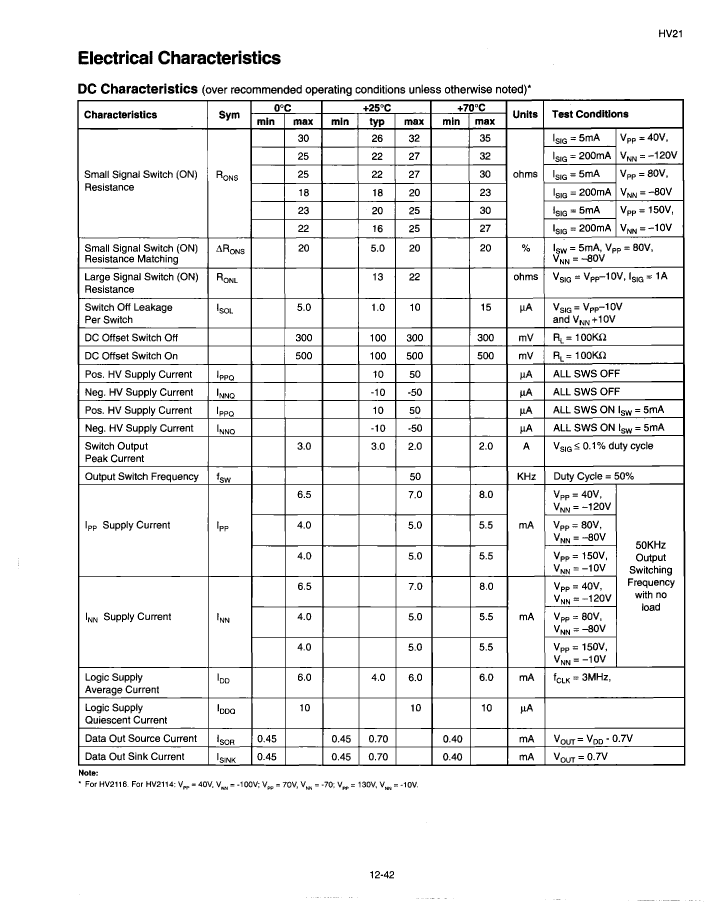

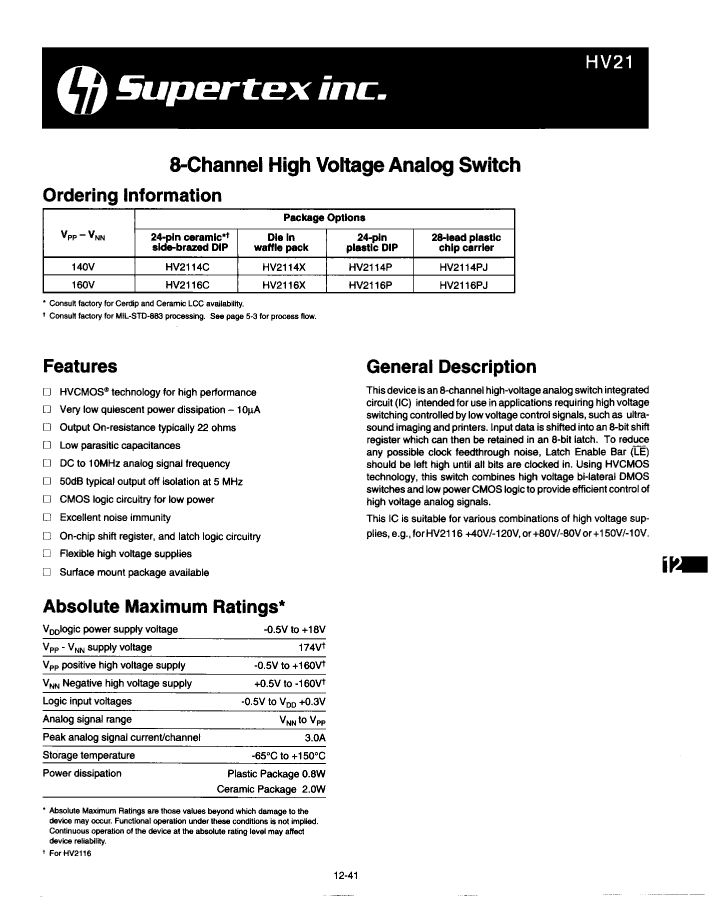

Preview

Download Datasheet

View All

HV2116C Related Products

	HV2116C	HV2114C	HV2114P	HV2114PJ	HV2114X
Description	Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, CDIP24, SIDE BRAZED, CERAMIC, DIP-24	Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, CDIP24, SIDE BRAZED, CERAMIC, DIP-24	Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, PDIP24, PLASTIC, DIP-24	Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, PQCC28, PLASTIC, LCC-28	Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, DIE
Maker	Supertex	Supertex	Supertex	Supertex	Supertex
Parts packaging code	DIP	DIP	DIP	QLCC	DIE
package instruction	DIP,	DIP,	DIP,	QCCJ,	DIE,
Contacts	24	24	24	28	25
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T24	R-CDIP-T24	R-PDIP-T24	S-PQCC-J28	R-XUUC-N25
Nominal Negative Supply Voltage (Vsup)	-80 V	-70 V	-70 V	-70 V	-70 V
Number of channels	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	24	24	24	28	25
Nominal off-state isolation	33 dB	33 dB	33 dB	33 dB	33 dB
On-state resistance matching specifications	1.1 Ω	1.1 Ω	1.1 Ω	1.1 Ω	1.1 Ω
Maximum on-state resistance (Ron)	27 Ω	27 Ω	27 Ω	27 Ω	27 Ω
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	QCCJ	DIE
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	8 mA	8 mA	8 mA	8 mA	8 mA
Nominal supply voltage (Vsup)	80 V	70 V	70 V	70 V	70 V
surface mount	NO	NO	NO	YES	YES
Maximum disconnect time	3000 ns	3000 ns	3000 ns	3000 ns	3000 ns
Maximum connection time	2000 ns	2000 ns	2000 ns	2000 ns	2000 ns
technology	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	NO LEAD
Terminal location	DUAL	DUAL	DUAL	QUAD	UPPER
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-
length	30.48 mm	30.48 mm	31.75 mm	11.43 mm	-
Humidity sensitivity level	1	1	1	1	-
Peak Reflow Temperature (Celsius)	225	225	225	225	-
Maximum seat height	3.937 mm	3.937 mm	4.826 mm	4.57 mm	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
width	15.24 mm	15.24 mm	15.24 mm	11.43 mm	-
