BZX84C39-T

Description
Zener Diode, 39V V(Z), 5.1%, 0.35W
CategoryDiscrete semiconductor    diode
File Size174KB,3 Pages
ManufacturerRectron
Environmental Compliance
Download Datasheet Parametric Compare View All

BZX84C39-T Overview

Zener Diode, 39V V(Z), 5.1%, 0.35W

BZX84C39-T Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerRectron
Reach Compliance Codecompliant
ConfigurationSINGLE
Diode typeZENER DIODE
Maximum dynamic impedance130 Ω
JESD-609 codee3
Number of components1
Maximum operating temperature150 °C
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.35 W
Nominal reference voltage39 V
surface mountYES
Terminal surfaceMatte Tin (Sn)
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance5.1%
Working test current2 mA
BZX84C2V4-
BZX84C39

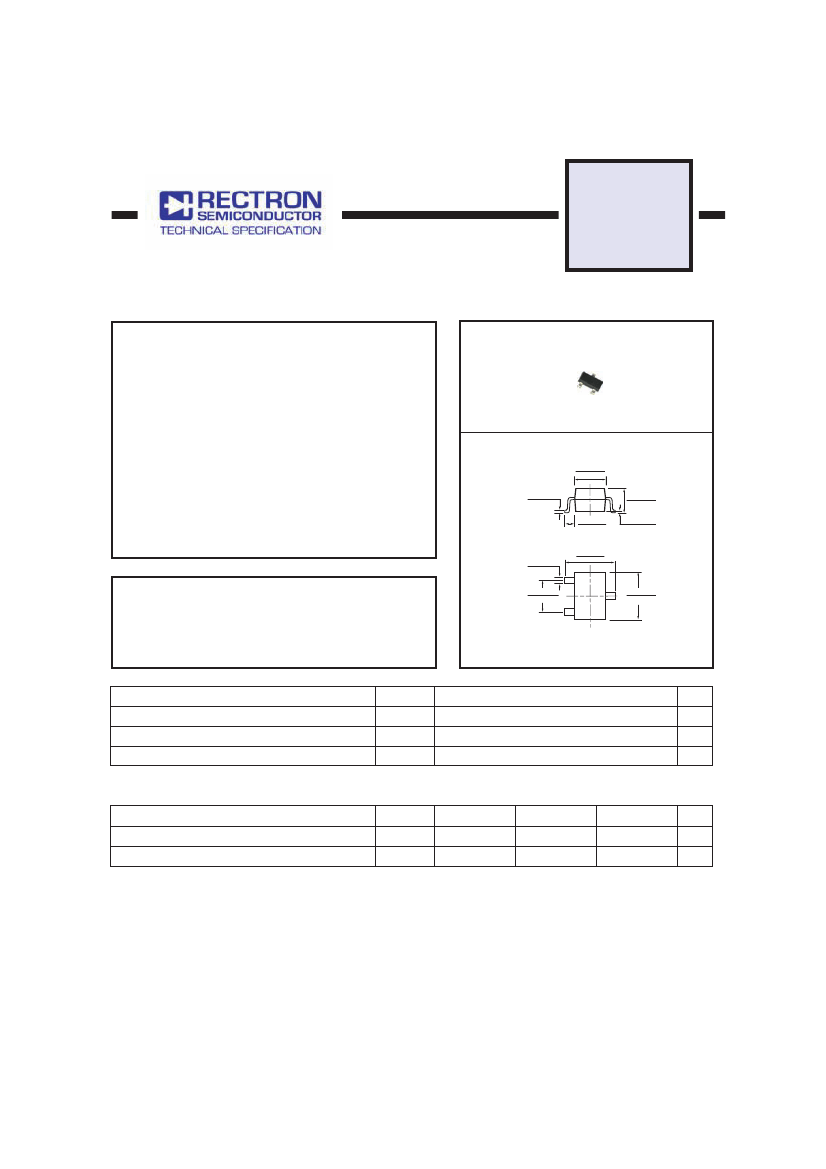

SURFACE MOUNT ZENER DIODE
VOLTAGE RANGE 2.4 to 39 Volts POWER RATING 350 mWatts
FEATURES
*
*
*
*
Planar Die Construction
350mW Power Dissipation
Zener Volages from 2.4V-39V
Ideally Suited for Automated Assembly Processes
SOT-23
MECHANICAL DATA
*
*
*
*
*
Case: Molded plastic
Epoxy: UL 94V-O rate flame retardant
Lead: MIL-STD-202E method 208C guaranteed
Mounting position: Any
Weight: 0.008 gram
0.055(1.40)
0.047(1.20)
0.007(0.178)
0.003(0.076)
0.024(0.61)
0.018(0.45)
0.043(1.10)
0.035(0.89)
0.006(0.150)
0.001(0.013)
0.020(0.51)
0.015(0.37)
0.098(2.50)
0.083(2.10)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
o
0.081(2.05)
0.070(1.78)
0.120(3.05)
0.104(2.65)
Dimensions in inches and (millimeters)
MAXIMUM RATINGES
( @ T
A
= 25
o
C unless otherwise noted )
RATINGS
Max. Steady State Power Dissipation @T
A
=25
o
C (Note 1)
Max. Operating Temperature Range
Storage Temperature Range
SYMBOL
P
D
T
J
T
STG
VALUE
350
150
-65 to +150
UNITS
mW
o
o
C
C
ELECTRICAL CHARACTERISTICS
( @ T
A
= 25
o
C unless otherwise noted )
CHARACTERISTICS
Thermal Resistance Junction to Ambient (Note 1)
Forward Voltage at I
F=
10mA
SYMBOL
R
q
JA
V
F
MIN.
-
-
TYP.
-
-
MAX.
357
0.9
UNITS
o
C/W
Volts
2007-09
Note 1. Valid provided that device terminats are kept at ambient temperature.
2. "Fully RoHS Compliant", "100% Sn plating (Pb-free)".

BZX84C39-T Related Products

BZX84C39-T BZX84C30-T BZX84C33-T BZX84C22-T
Description Zener Diode, 39V V(Z), 5.1%, 0.35W Zener Diode, 30V V(Z), 6.7%, 0.35W Zener Diode, 33V V(Z), 6%, 0.35W Zener Diode, 22V V(Z), 5.4%, 0.35W
Is it Rohs certified? conform to conform to conform to conform to
Maker Rectron Rectron Rectron Rectron
Reach Compliance Code compliant compliant compliant compliant
Configuration SINGLE SINGLE SINGLE SINGLE
Diode type ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE
Maximum dynamic impedance 130 Ω 80 Ω 80 Ω 55 Ω
JESD-609 code e3 e3 e3 e3
Number of components 1 1 1 1
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum power dissipation 0.35 W 0.35 W 0.35 W 0.35 W
Nominal reference voltage 39 V 30 V 33 V 22 V
surface mount YES YES YES YES
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum voltage tolerance 5.1% 6.7% 6% 5.4%
Working test current 2 mA 2 mA 2 mA 5 mA
