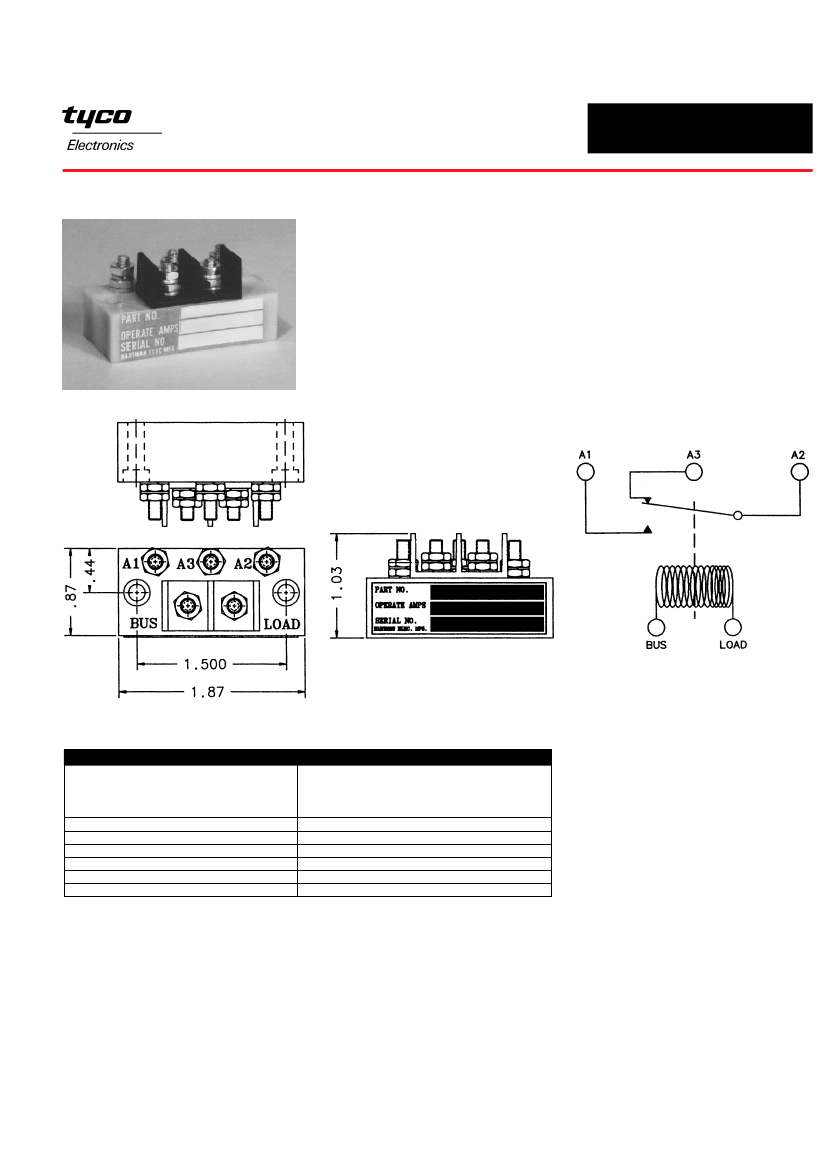

HARTMAN Aerospace Power Products
DC Current Sensor
Features:
• SPDT Main Contacts
• Current Indicator
• Epoxy Encapsulated
• 28 VDC
• .25 Amp
• High Reliability
• Meets many requirements of MIL-R-6106
Q-50B SPDT, .25 Amp, 28 VDC
CONTACTOR CONFIGURATION
Notes:
Dimensions for this product are expressed in inches.
Multiply values by 25.4 for millimeters.
PRODUCT SPECIFICATIONS
Operating Characteristics
Pick-Up
Drop-Out
Continuous
Contact Rating
Lamp Load
Vibration
Altitude
Temperature
Weight Maximum
8 Amps DC Maximum
4 Amps Minimum
15 Amps DC Maximum
.25 Amp 28 VDC
.080 Amp 28 VDC
10 G'S to 500 Hz
60,000 Feet Maximum
-35°C to +71°C
1.25 Oz.
For factory-direct application assistance, contact the HARTMAN
product team at (419) 521-9500, Fax (419) 526-2749.
© 2004 by Tyco Electronics Corporation. All Rights Reserved.
HARTMAN and TYCO are trademarks.
Catalog (web doc only)
Revised 5-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
