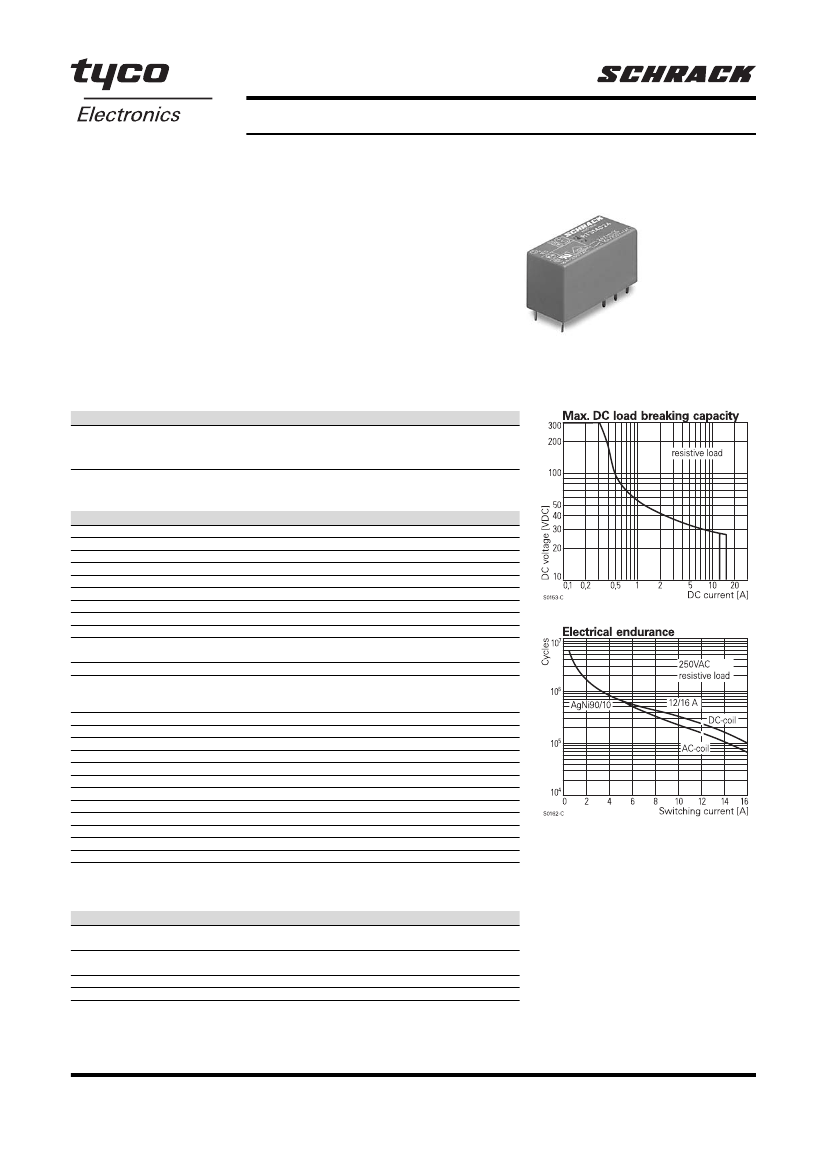

General Purpose Relays
Power PCB Relay RT1
I
I
I
I
I
I
I
1 pole 12 / 16 A, 1 CO or 1 NO contact
DC- or AC-coil
Sensitive coil 400 mW
5 kV / 10 mm coil-contact, reinforced insulation
Ambient temperature 85°C (DC-coil)
WG version: Product in accordance to IEC60335-1
RoHS compliant (Directive 2002/95/EC)
as per product date code 0413
Applications
F0144-B
Boiler control, timers, garage door control, POS automation,
interface modules
Approvals
V
REG.-Nr. 6106,
Z
E214025,
B
C0786,
S
0039110/01-02,
F
FI 190164 A1,
H
98.4118.01
Technical data of approved types on request
Contact data
Contact configuration
1 CO or 1 NO contact
Contact set
single contact
Type of interruption
micro disconnection
Rated current
12 A
16 A
Rated voltage / max.switching voltage AC
240/400 VAC
Limiting continuous current
UL: 20 A
Maximum breaking capacity AC
3000 VA
4000 VA
Limiting making capacity, max 4 s, df 10%
25 A
30 A
Contact material
AgNi 90/10, AgNi 90/10 gold plated
Mechanical endurance DC coil
> 30 x 10
6
cycles
AC coil
> 10 x 10
6
cycles
Rated frequency of operation with / without load
6 / 1200 min
-1
Contact
Type
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
ratings
Load
Cycles
16 A, 250 VAC, NO contact, 85°C, DF 10%, UL508
50x10
3
-1
16 A, 250 VAC, NC contact, 70°C, 30min
53x10
3
20 A, 250 VAC, NO contact, 85°C, UL508
6x10
3
1000 W incandescent lamp, 250 VAC
1.2x10
3
10 A, 250 VAC, cosϕ=0.6, CO contact, 70°C
200x10
3
-1
5 A / 2 A, 250 VAC, cosϕ=1, motor, NO contact, 10min , 70°C
1.1x10
6
-1
0.26 A / 0.01 A, 230 VAC, cosϕ=0.38, valve, NO contact, 25min
7.6x10
6
Pilot duty A300 (NO contact), B300 (CO/NC contact), UL508
1hp @ 240 VAC, 1/2hp @ 120 VAC, NO contact, UL508
AC15, 6 A, 250 VAC, NO and NC contact, 85°C, EN60947-5-1
DC13, 2 A / 24 VDC, 0.2 A / 250 VDC, NO and NC contact, 85°C, EN60947-5-1
Coil data
Rated coil voltage range DC coil
AC coil
Coil power DC coil
AC coil
Operative range
Coil insulation system according UL1446
5...110 VDC
24...230 VAC
typ 400 mW
typ 0.75 VA
2
class F
1
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Power PCB Relay RT1
(Continued)

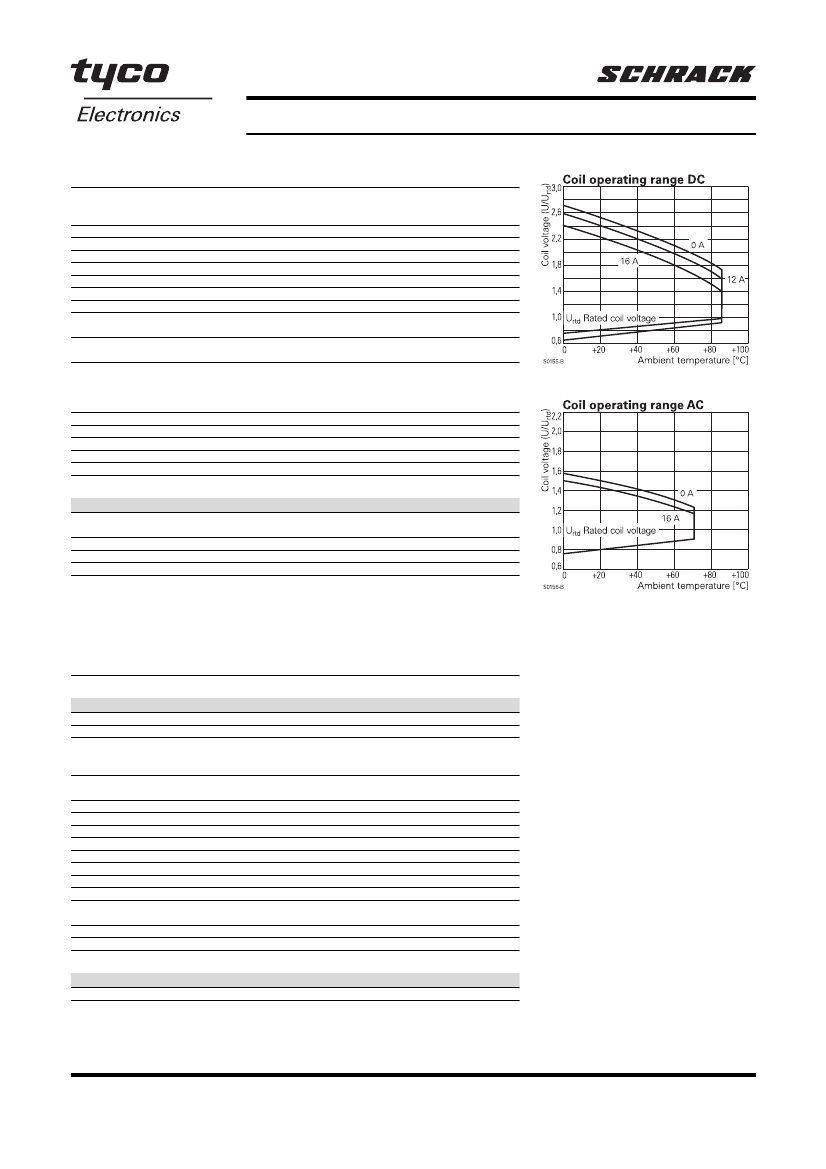

Coil versions, DC-coil
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
VDC
VDC
VDC
Ohm
mW
005
5
3.5
0.5
62+10%
403
006
6
4.2
0.6
90+10%
400
012
12
8.4
1.2
360+10%
400
024
24
16.8
2.4
1440+10%
400
048
48
33.6
4.8
5520+10%
417
060
60
42.0
6.0
8570+12%
420
110
110
77.0
11.0
28800+12%
420
All figures are given for coil without preenergization, at ambient temperature +23°C
Other coil voltages on request
Coil versions, AC-coil 50Hz
Coil
Rated
Operate
Release
Coil
Rated coil
code
voltage
voltage
voltage
resistance
power
50 Hz
50 Hz
50 Hz
VAC
VAC
VAC
Ohm
VA
524
24
18.0
3.6
350+10%
0.76
615
115
86.3
17.3
8100+15%
0.76
700
200
150.0
30.0
24350+15%
0.76
730
230
172.5
34.5
32500+15%
0.74
All figures are given for coil without preenergization, at ambient temperature +23°C
Insulation
Dielectric strength coil-contact circuit
open contact circuit
Clearance / creepage coil-contact circuit
Material group of insulation parts
Tracking index of relay base
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
open contact circuit
Rated insulation voltage
Pollution degree 12 A version
16 A version
Rated voltage system
Overvoltage category
5000 V
rms
1000 V
rms
W
10 / 10 mm
W
IIIa
PTI 250 V
reinforced
functional
250 V
3
3
240 V
III
3
2
400 V
Other data
RoHS - Directive 2002/95/EC
compliant as per product date code 0413
Flammability class according to UL94
V-0
For WG version: GWFI to IEC 60335-1
> 850 °C
GWT to IEC 60335-1 current
w
0,2 A
> 650 °C
current > 0,2 A
> 750 °C
Ambient temperature range DC coil
-40...+85°C
AC coil
-40...+70°C
Operate- / release time DC coil
typ 7 / 3 ms
Bounce time DC coil, NO / NC contact
typ 1 / 3 ms
Vibration resistance (function), NO / NC contact
20 / 5 g, 30 ... 500 Hz
Shock resistance (destruction)
100 g
Category of protection
RTII - flux proof, RTIII - wash tight
Mounting
pcb or on socket
Mounting position
any
Mounting distance DC / AC coils
0 / 2.5 mm
Resistance to soldering heat flux-proof version
270°C / 10 s
wash-tight version
260°C / 5 s
Relay weight
14 g
Packaging unit
20 / 500 pcs
Accessories
For details see datasheet
Accessories Power Relay RT
2
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Power PCB Relay RT1
(Continued)

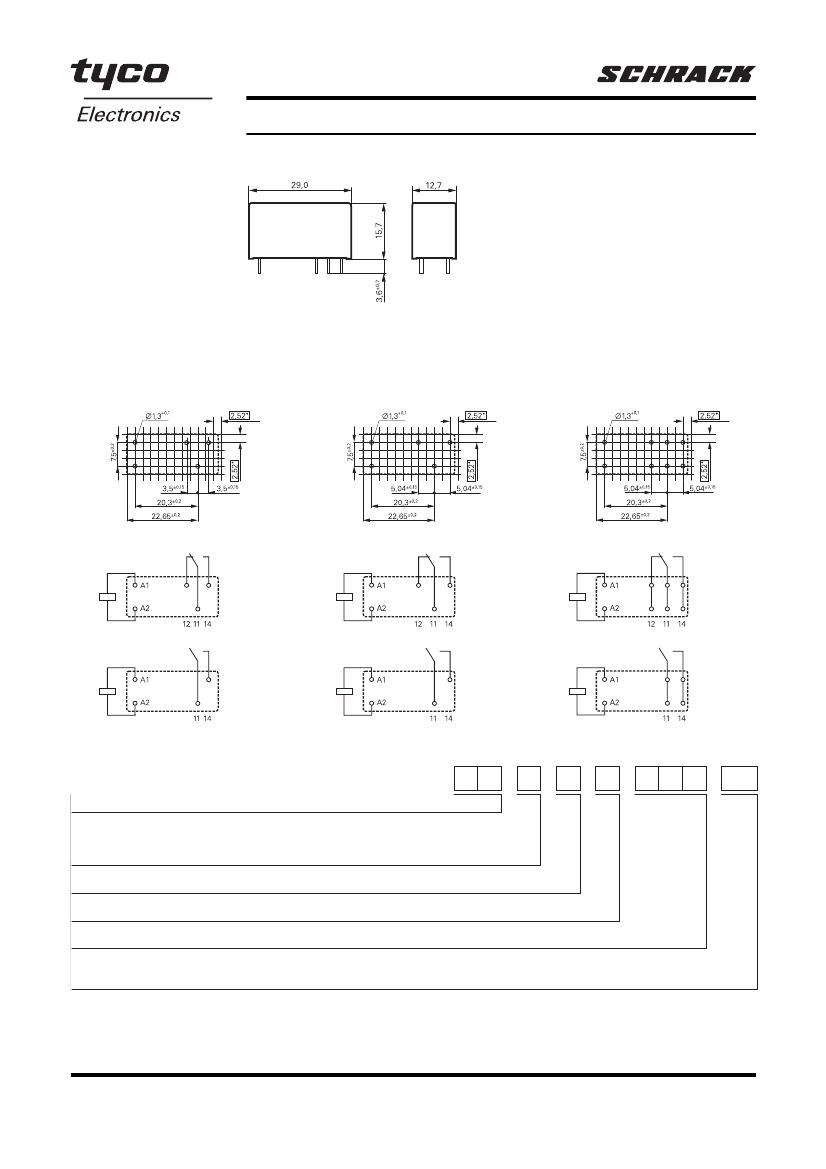

Dimensions
S0272-BB
PCB layout / terminal assignment
Bottom view on solder pins
*) With the recommended PCB hole sizes a grid
pattern from 2.5 mm to 2.54 mm can be used.
12 A, pinning 3.5 mm
12 A, pinning 5 mm
16 A, pinning 5 mm
S0418-CB
S0418-CN
S0418-CA
1 CO contact
1 CO contact
1 CO contact
S0163-BG
S0163-BC
S0163-BE
1 NO contact
1 NO contact
1 NO contact
S0163-BH
S0163-BD
S0163-BF
Product key
R T
Type
Version
1
12 A, pinning 3.5 mm, flux proof
B
12 A, pinning 3.5 mm, wash tight
2
12 A, pinning 5 mm, flux proof *)
3
16 A, pinning 5 mm, flux proof
D
16 A, pinning 5 mm, wash tight
Contact configuration
1
1 CO contact
3
1 NO contact
Contact material
4
AgNi 90/10
5
AgNi 90/10 gold plated (for type RT31.)
Coil
Coil code: please refer to coil versions table
Version
Blank
Standard version
WG
Product in accordance with IEC 60335-1 (domestic appliances)
Preferred types in bold print
*) Wash tight version on request
3
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Power PCB Relay RT1
(Continued)
Product key
RT114005
RT114006
RT114012
RT114024
RT114048
RT114110
RT114524
RT114615
RT114730
RT134012
RT134024
RT214012
RT214024
RT314005
RT314006
RT314012
RT314024
RT314048
RT314060
RT314110
RT314524
RT314615
RT314730
RT315012
RT315024
RT315730
RT334012
RT334024
RT334048
RTB14005
RTB14012
RTB14024
RTB14048
RTD14005
RTD14006
RTD14012
RTD14015
RTD14024
RTD14048
RTD34005
RTD34012
RTD34024
Version
12 A
pinning 3.5 mm
flux proof
Contacts
1 CO contact
Cont. material
AgNi 90/10
Coil
DC-coil
AC-coil
1 NO contact
12 A, pinning 5mm
flux proof
16 A
pinning 5 mm
flux proof
1 CO contact
DC-coil
AC-coil
AgNi 90/10
gold plated
1 NO contact
12 A
pinning 3.5 mm
wash tight
16 A
pinning 5 mm
wash tight
1 CO contact
AgNi 90/10
DC-coil
AC-coil
DC-coil
1 NO contact
Coil
5 VDC
6 VDC
12 VDC
24 VDC
48 VDC
110 VDC
24 VAC
115 VAC
230 VAC
12 VDC
24 VDC
12 VDC
24 VDC
5 VDC
6 VDC
12 VDC
24 VDC
48 VDC
60 VDC
110 VDC
24 VAC
115 VAC
230 VAC
12 VDC
24 VDC
230 VAC
12 VDC
24 VDC
48 VDC
5 VDC
12 VDC
24 VDC
48 VDC
5 VDC
6 VDC
12 VDC
15 VDC
24 VDC
48 VDC
5 VDC
12 VDC
24 VDC
Part number
0-1393239-7
0-1393239-8
0-1419108-1
1-1393239-3
1-1393239-4
1-1393239-6
1-1393239-7
1-1393239-8
1-1393239-9
2-1393239-6
3-1393239-0
5-1393239-4
5-1393239-5
9-1393239-1
9-1393239-3
9-1393239-5
9-1393239-8
0-1393240-1
0-1393240-2
0-1393240-3
0-1393240-4
0-1393240-6
0-1393240-7
1-1393240-1
1-1393240-4
1-1419108-1
4-1393240-5
4-1393240-8
5-1393240-0
1-1393238-2
1-1393238-5
1-1393238-9
2-1393238-1
5-1393238-9
6-1393238-0
6-1393238-2
6-1393238-4
6-1393238-8
6-1393238-9
8-1393238-3
3-1419108-5
3-1419108-8
4
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
