1SMB85CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1SMB85CA

1SMB85CA: Description600 W, UNIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor diode; File Size792KB，4 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

1SMB85CA Overview

600 W, UNIDIRECTIONAL, SILICON, TVS DIODE

1SMB85CA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Other features	UL RECOGNIZED
Maximum breakdown voltage	108.2 V
Minimum breakdown voltage	94.4 V
Maximum clamping voltage	137 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	85 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn80Pb20)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

1SMB85CA Preview

1SMB5.0CA

THRU

1SMB170CA

SURFACE MOUNT

BI-DIRECTIONAL

GLASS PASSIVATED JUNCTION

SILICON TRANSIENT

VOLTAGE SUPPRESSOR

600 WATTS, 5.0 THRU 170 VOLTS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR 1SMB5.0CA

Series types are Surface Mount Bi-Directional Glass

Passivated Junction Transient Voltage Suppressors

designed to protect voltage sensitive components from

high voltage transients.

THIS DEVICE IS MANUFACTURED WITH A GLASS

PASSIVATED CHIP FOR OPTIMUM RELIABILITY.

Note: For Uni-directional devices, please refer to the

1SMB5.0A Series data sheet.

MARKING CODE: SEE ELECTRICAL

CHARACTERISTICS TABLE

SYMBOL

PDM

IFSM

TJ, Tstg

UNITS

°C

SMB CASE

• This series is UL listed, UL file number E130224

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

Peak Power Dissipation (Note 1)

Peak Forward Surge Current (JEDEC Method)

Operating and Storage Junction Temperature

600

100

-65 to +150

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

REVERSE

STAND-OFF

VOLTAGE

VRWM

(V)

1SMB5.0CA

1SMB6.0CA

1SMB6.5CA

1SMB7.0CA

1SMB7.5CA

1SMB8.0CA

1SMB8.5CA

1SMB9.0CA

1SMB10CA

1SMB11CA

1SMB12CA

1SMB13CA

1SMB14CA

1SMB15CA

1SMB16CA

1SMB17CA

1SMB18CA

1SMB20CA

1SMB22CA

1SMB24CA

1SMB26CA

1SMB28CA

1SMB30CA

5.0

6.0

6.5

7.0

7.5

8.0

8.5

9.0

BREAKDOWN

VOLTAGE

VBR @

MIN

(V)

6.40

6.67

7.22

7.78

8.33

8.89

9.44

11.1

12.2

13.3

14.4

15.6

16.7

17.8

18.9

22.2

24.4

26.7

28.9

31.1

33.3

MAX

(V)

7.25

7.67

8.30

8.95

9.58

10.23

10.82

11.5

12.8

15.3

16.5

17.9

19.2

20.5

21.7

23.3

25.5

30.7

33.2

35.8

38.3

(mA)

1.0

TEST

CURRENT

MAXIMUM

REVERSE

LEAKAGE

CURRENT

@ VRWM

(µA)

1600

1000

400

200

100

5.0

MAXIMUM

CLAMPING

VOLTAGE

@ IPP

(V)

9.2

10.3

11.2

12.9

13.6

14.4

15.4

18.2

19.9

21.5

23.2

24.4

27.6

29.2

32.4

35.5

38.9

42.1

45.4

48.4

PEAK

PULSE

CURRENT

(Note 1)

IPP

(A)

65.2

58.3

53.6

46.5

44.1

41.7

35.3

30.2

27.9

25.8

23.1

21.7

20.5

18.5

16.9

15.4

14.2

13.2

12.4

CKEC

CKGC

CKKC

CKMC

CKPC

CKRC

CKTC

CKVC

CKXC

CKZC

CLEC

CLGC

CLKC

CLMC

CLPC

CLRC

CLTC

CLVC

CLXC

CLZC

CMEC

CMGC

CMKC

TYPE

MARKING

CODE

Notes: (1) Non-repetitive 10x1,000µs pulse.

R4 (20-November 2009)

1SMB5.0CA

THRU

1SMB170CA

SURFACE MOUNT

BI-DIRECTIONAL

GLASS PASSIVATED JUNCTION

SILICON TRANSIENT

VOLTAGE SUPPRESSOR

600 WATTS, 5.0 THRU 170 VOLTS

ELECTRICAL CHARACTERISTICS - Continued:

REVERSE

STAND-OFF

VOLTAGE

VRWM

(V)

1SMB33CA

1SMB36CA

1SMB40CA

1SMB43CA

1SMB45CA

1SMB48CA

1SMB51CA

1SMB54CA

1SMB58CA

1SMB60CA

1SMB64CA

1SMB70CA

1SMB75CA

1SMB78CA

1SMB85CA

1SMB90CA

1SMB100CA

1SMB110CA

1SMB120CA

1SMB130CA

1SMB150CA

1SMB160CA

1SMB170CA

100

110

120

130

150

160

170

BREAKDOWN

VOLTAGE

VBR @

MIN

(V)

36.7

44.4

47.8

53.3

56.7

64.4

66.7

71.1

77.8

83.3

86.7

94.4

100

111

122

133

144

167

178

189

MAX

(V)

42.2

51.1

54.9

57.5

61.3

65.2

74.1

76.7

81.8

89.5

95.8

99.7

108.2

115.5

128

140.5

153

165.5

192.5

205

217.5

(mA)

1.0

TEST

CURRENT

MAXIMUM

REVERSE

LEAKAGE

CURRENT

@ VRWM

(µA)

5.0

MAXIMUM

CLAMPING

VOLTAGE

@ IPP

(V)

53.3

58.1

64.5

69.4

72.7

77.4

82.4

87.1

93.6

96.8

103

113

121

126

137

146

162

177

193

209

243

259

275

PEAK

PULSE

CURRENT

(Note 1)

IPP

(A)

11.3

10.3

9.3

8.6

8.3

7.7

7.3

6.9

6.4

6.2

5.8

5.3

4.9

4.7

4.4

4.1

3.7

3.4

3.1

2.9

2.5

2.3

2.2

CMMC

CMPC

CMRC

CMTC

CMVC

CMXC

CMZC

CNEC

CNGC

CNKC

CNMC

CNPC

CNRC

CNTC

CNVC

CNXC

CNZC

CPEC

CPGC

CPKC

CPMC

CPPC

CPRC

TYPE

MARKING

CODE

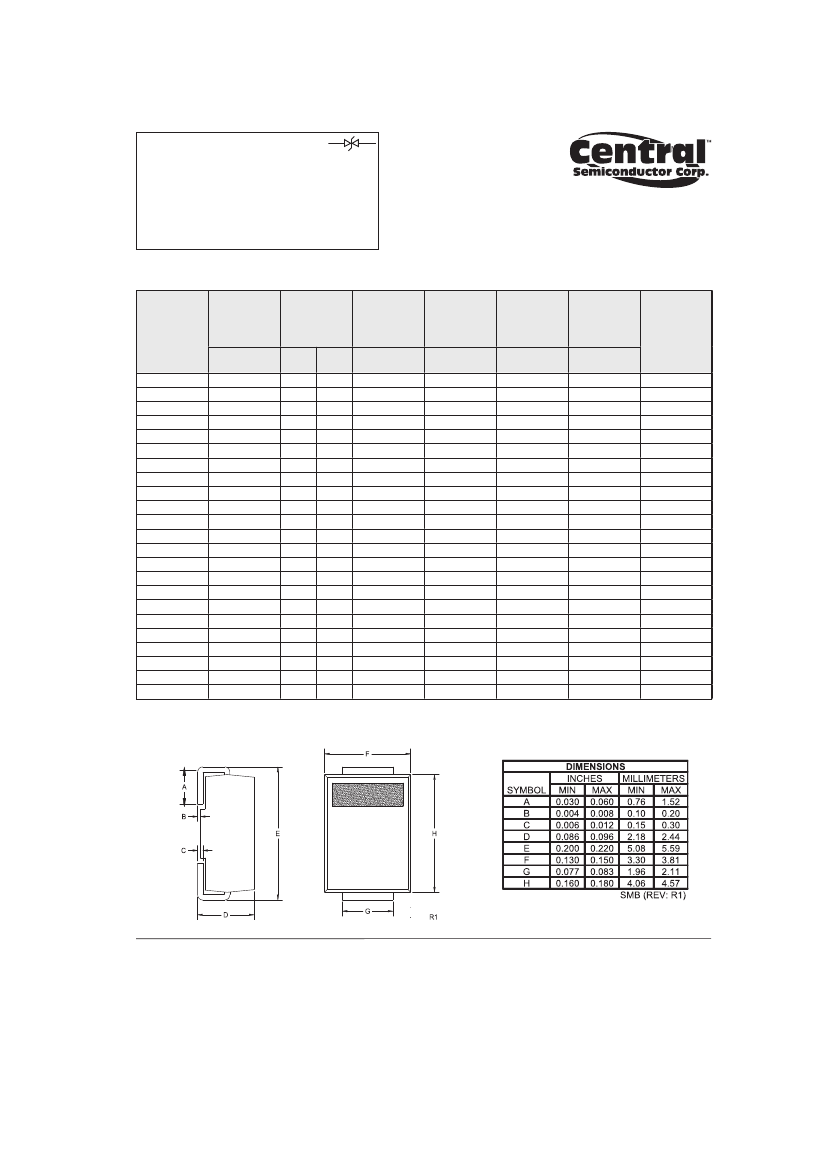

SMB CASE - MECHANICAL OUTLINE

R4 (20-November 2009)

w w w. c e n t r a l s e m i . c o m

1SMB5.0CA

THRU

1SMB170CA

SURFACE MOUNT

BI-DIRECTIONAL

GLASS PASSIVATED JUNCTION

SILICON TRANSIENT

VOLTAGE SUPPRESSOR

600 WATTS, 5.0 THRU 170 VOLTS

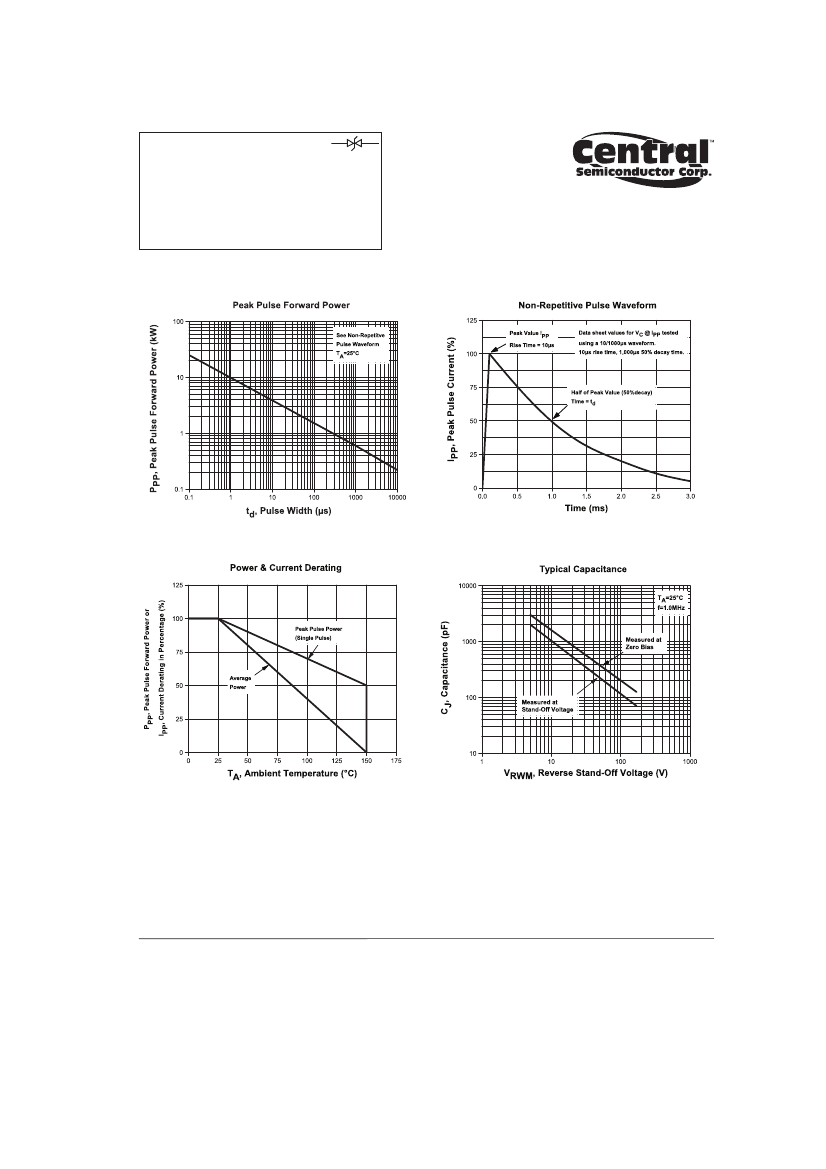

TYPICAL ELECTRICAL CHARACTERISTICS

R4 (20-November 2009)

w w w. c e n t r a l s e m i . c o m

This datasheet has been downloaded from:

www.EEworld.com.cn

Free Download

Daily Updated Database

100% Free Datasheet Search Site

100% Free IC Replacement Search Site

Convenient Electronic Dictionary

Fast Search System

www.EEworld.com.cn

All Datasheets Cannot Be Modified Without Permission

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
