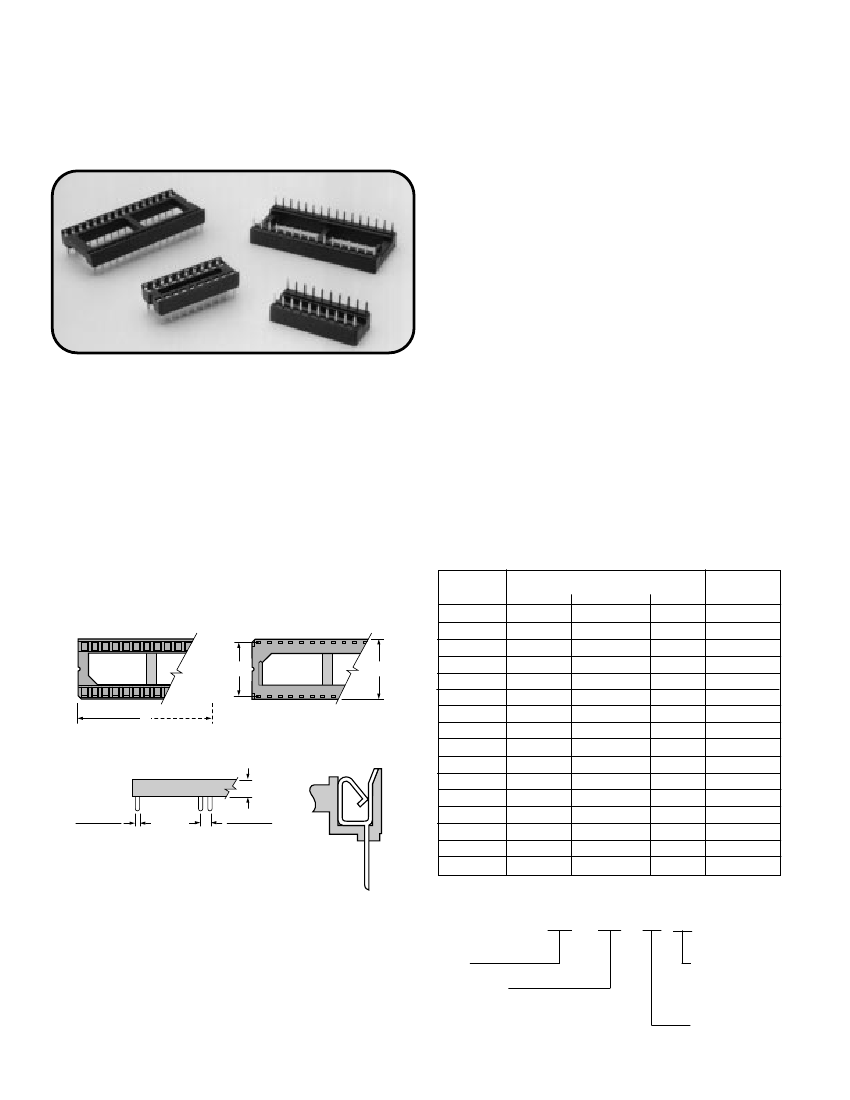

IC SOCKETS
MAXCONN
ICS Series
IC Sockets
6 to 64 Pins
Performance Specifications
Materials and Finish
Dielectric Body:
PBT thermoplastic, black color, 30% glass filled, self-extinguishing,
94V-0 rated
Contact Material:
Phosphor bronze
Contact Finish:
50, 100, 200 microinch tin
Electrical Characteristics
Contact Current Rating:
1Amp
Contact Resistance:
12 milliohms maximum
Dielectric Withstanding Voltage:
1000 Vac
Insulation Resistance:
10,000 megohms minimum
Temperature Rating
-55° C to + 105° C
F
EATURES
s
s
s
s
s
s
s
s
s
Dual wipe contact construction
Low profile construction
6 to 64 positions
Closed bottom for excellent protection from solder wicking into contact area
Grove on side of socket for orientation
Supplied in plastic tubes for automatic insertion
Sockets can be stacked end-to-end on 0.100 centers
Chamfered entry for mating alignment
Ventilated molding with stand-offs allow easy removal of flux residue in the
assembly operation
Mechanical Characteristics
Contact Separation Force:
1.22 ounces minimum per contact
Contact Engagement Force:
1.39 ounces maximum per contact
D
IMENSIONS
D
B
A
Bottom View
C
.24 x .06
(0.6 x 0.152)
.100 x .003
(2.54 x 0.07)
Dual Wipe
Contact
Construction
Number
of Pins
6
8
14
16
18
20
22-3
22
24-3
24-6
28-3
28-6
32
40
48
64
A
0.300
0.396
0.696
0.796
0.896
0.966
1.100
1.096
1.196
1.106
1.396
1.396
1.600
1.996
2.396
3.200
Dimension
B
0.394
0.394
0.394
0.394
0.394
0.394
0.394
0.394
0.394
0.689
0.394
0.689
0.689
0.689
0.689
1.028
C
0.195
0.195
0.195
0.195
0.195
0.195
0.195
0.195
0.195
0.195
0.195
0.195
0.195
0.195
0.195
0.195
Pin Row
Centers D
0.300
0.300
0.300
0.300
0.300
0.300
0.300
0.400
0.300
0.600
0.300
0.600
0.600
0.600
0.600
0.900
H
OW
T
O
O
RDER
ICS — 48 — .6 — 1
Series
Number of Pins
6, 8, 14, 16, 18, 20
22, 24, 28, 32, 40, 42,
48, 64
Contact Finish:
Blank – 50 microinchtin
1 – 100 microinchtin
2 – 200 microinchtin
Lead Spacing
8-6
MAXCONN, INC. • 2151 DEL FRANCO STREET • SAN JOSE, CALIFORNIA 95131 • 408-435-5050 • FAX: 408-435-8377
