CMDSH-4E

ENHANCED SPECIFICATION

SURFACE MOUNT

SILICON SCHOTTKY DIODE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMDSH-4E is an

Enhanced version of the CMDSH-3 Silicon Schottky

Diode in an SOD-323 Surface Mount Package.

ENHANCED SPECIFICATIONS:

♦

from 100mA max to 200mA max.

♦

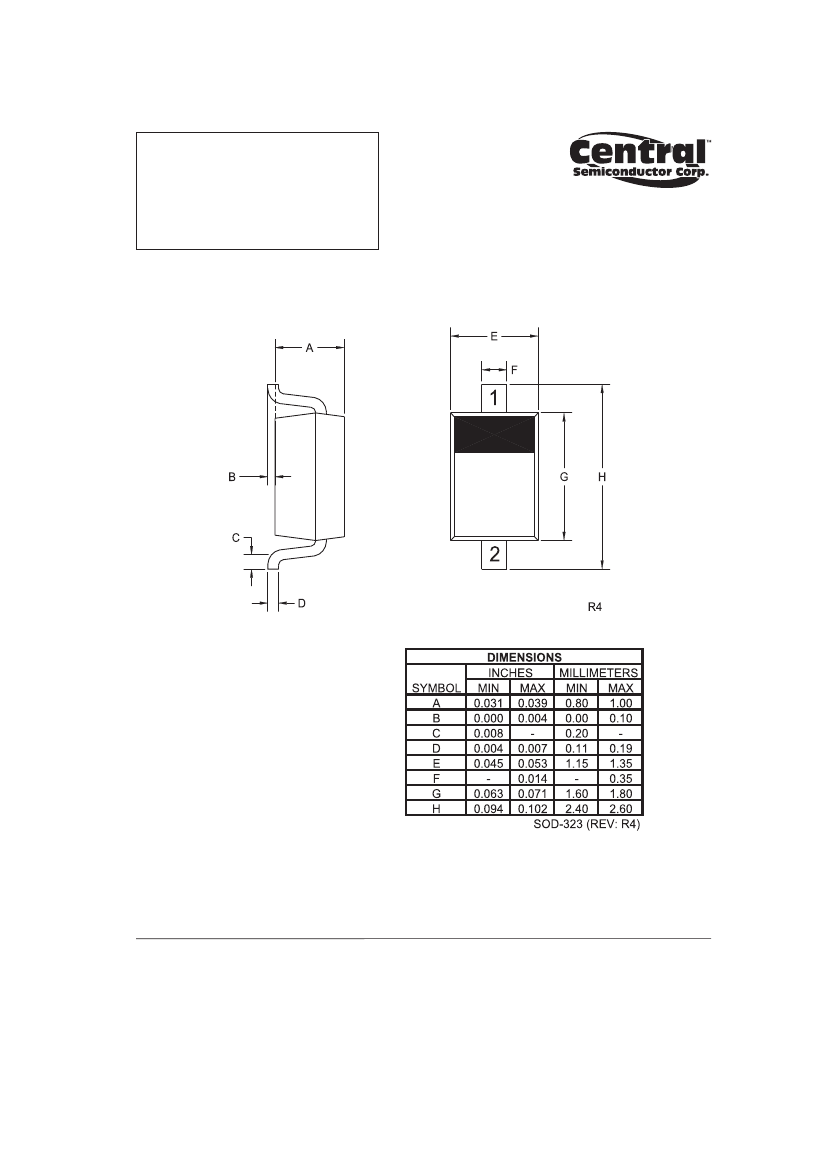

SOD-323 CASE

from 30V min to 40V min.

from 1.0V max to 0.8V max.

MARKING CODE: S1E

♦

Average Forward Current

Power Dissipation

MAXIMUM RATINGS:

(TA=25°C)

♦

Peak Repetitive Reverse Voltage

Peak Repetitive Forward Current

Peak Forward Surge Current, tp=10ms

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VRRM

IFRM

IFSM

TJ, Tstg

200

350

750

250

-65 to +150

500

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

VR=25V

VR=25V, TA=100°C

IR=100μA

IF=2.0mA

IF=15mA

IF=100mA

IF=200mA

VR=1.0V, f=1.0MHz

IF=IR=10mA, Irr=1.0mA, RL=100Ω

TYP

0.29

0.37

0.61

0.65

7.0

MAX

500

100

0.33

0.42

0.80

1.0

5.0

UNITS

μA

♦

BVR

♦

♦♦

trr

♦

♦♦

Enhanced specification.

Additional Enhanced specification.

R2 (8-January 2010)
