CD74HC40103M96 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74HC40103M96

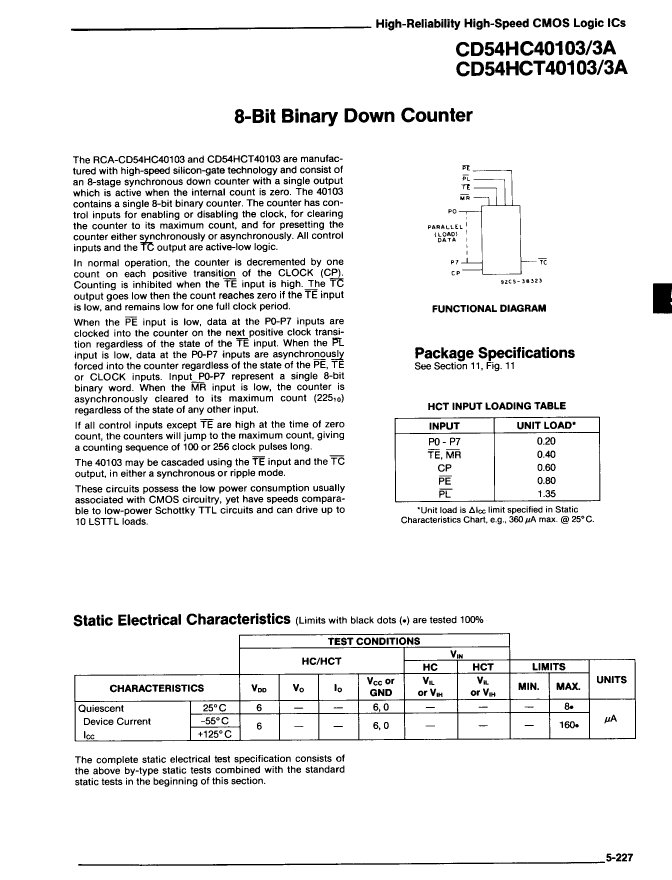

CD74HC40103M96: DescriptionBinary Counter, Synchronous, Down Direction, CMOS, PDSO16,; Categorylogic logic; File Size133KB，2 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD74HC40103M96 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HC40103M96	-	-	View	Buy Now

CD74HC40103M96 Overview

Binary Counter, Synchronous, Down Direction, CMOS, PDSO16,

CD74HC40103M96 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
Counting direction	DOWN
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	12000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	2/6 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

CD74HC40103M96 Related Products

	CD74HC40103M96	CD74HC40103EX	CD74HCT40103M96	CD74HC40103H	CD74HCT40103H	CD74HC40103M	CD74HC40103MX	CD54HC40103F/3A	CD54HCT40103F
Description	Binary Counter, Synchronous, Down Direction, CMOS, PDSO16,	Binary Counter, Synchronous, Down Direction, CMOS, PDIP16,	Binary Counter, Synchronous, Down Direction, CMOS, PDSO16,	Binary Counter, Synchronous, Down Direction, CMOS,	Binary Counter, Synchronous, Down Direction, CMOS,	Binary Counter, Synchronous, Down Direction, CMOS, PDSO16,	Binary Counter, Synchronous, Down Direction, CMOS, PDSO16	Binary Counter, Synchronous, Down Direction, CMOS, CDIP16	Binary Counter, Synchronous, Down Direction, CMOS, CDIP16,
Maker	RCA	RCA	RCA	RCA	RCA	RCA	RCA	RCA	RCA
package instruction	SOP, SOP16,.25	DIP, DIP16,.3	SOP, SOP16,.25	, DIE OR CHIP	, DIE OR CHIP	SOP, SOP16,.25	SOP, SOP16,.25	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Maximum Frequency@Nom-Sup	12000000 Hz	12000000 Hz	11000000 Hz	12000000 Hz	11000000 Hz	12000000 Hz	12000000 Hz	10000000 Hz	9000000 Hz
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C
Encapsulate equivalent code	SOP16,.25	DIP16,.3	SOP16,.25	DIE OR CHIP	DIE OR CHIP	SOP16,.25	SOP16,.25	DIP16,.3	DIP16,.3
power supply	2/6 V	2/6 V	5 V	2/6 V	5 V	2/6 V	2/6 V	2/6 V	5 V
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY
Is it Rohs certified?	incompatible	incompatible	incompatible	-	-	incompatible	incompatible	incompatible	incompatible
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	-	-	R-PDSO-G16	R-PDSO-G16	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	-	-	e0	e0	e0	e0
Number of terminals	16	16	16	-	-	16	16	16	16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	SOP	DIP	SOP	-	-	SOP	SOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	-	-	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
surface mount	YES	NO	YES	-	-	YES	YES	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	-	-	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	-	-	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	-	-	DUAL	DUAL	DUAL	DUAL
