TB-842SD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TB-842SD

TB-842SD: Description1000 MHz - 4000 MHz RF/MICROWAVE SGL POLE EIGHT THROW SWITCH, 1.5 dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size99KB，1 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

TB-842SD Overview

1000 MHz - 4000 MHz RF/MICROWAVE SGL POLE EIGHT THROW SWITCH, 1.5 dB INSERTION LOSS

TB-842SD Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	20 dBm
Maximum insertion loss	1.5 dB
Maximum operating frequency	4000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SP8T
Terminal surface	NOT SPECIFIED
Maximum voltage standing wave ratio	1.95

Preview

Download Datasheet

View All

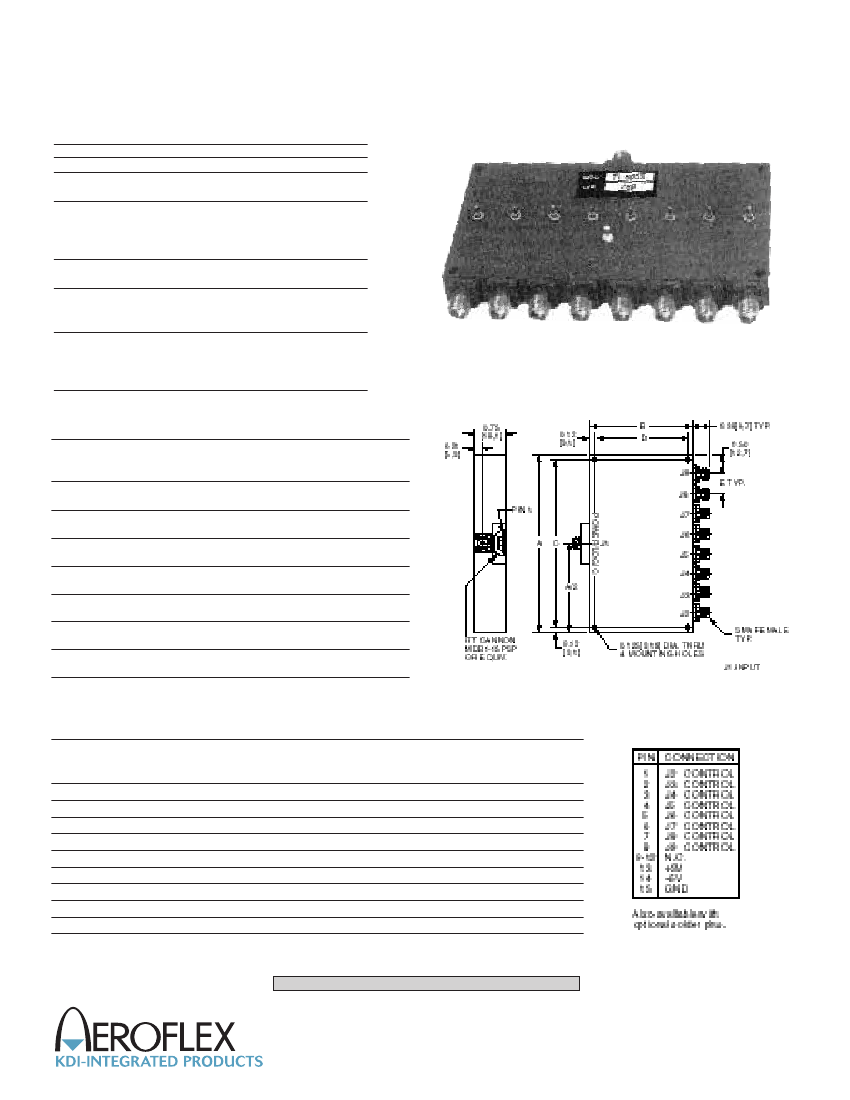

BROADBAND

SP8T DIODE SWITCH

HIGH ISOLATION-REFLECTIVE ABSORPTIVE 0.02–18 GHz

GENERAL SPECIFICATIONS

0.02 to 18.0 GHz.

50 OHMS.

+20 dBm operational. Consult factory

for high power options.

DC Requirements:

Switches with drivers require +5 volts

at +480 mA and –5 volts at –160 mA

supplies. Logic is TTL “0” when “on”

and “1” when “off”.

Temperature Information:

Operating temperature from –55°C to

+85°C.

Switching Speed:

10% to 90% or 90% to 10% of RF.

There is an additional 30 nanosec of

driver delay.

Connectors:

RF connectors are SMA. Mating

connector supplied for all units with

multipin connector; ITT Cannon

MDB1-15SSL or equiv.

Frequency Coverage:

RF Impedance:

RF Power:

SERIES TB800

MECHANICAL OUTLINES

Outline

[mm]

3.80

[96,5]

4.50

[114,3]

1.02

[25,4]

1.30

[33,02]

4.50

[114,3]

1.70

[43,18]

4.50

[114,3]

[mm]

2.00

[50,8]

3.00

[76,2]

1.950

[49,5]

2.550

[64,8]

3.50

[88,9]

2.550

[64,8]

2.35

[59,7]

[mm]

3.550

[90,2]

4.250

[108,0]

—

4.250

[108,0]

3.40

[86,36]

4.250

[108,0]

[mm]

1.750

[44,45]

2.750

[69,91]

—

3.250

[82,55]

—

2.100

[53,3]

[mm]

0.40

[10,2]

0.50

[12,7]

—

0.50

[12,7]

—

0.50

[12,7]

Key:

INCHES[MILLlMETERS] XX ±.03 XXX ±.010 [ X ±0.8 XX 0.25]

OUTLINE

ELECTRICAL PERFORMANCE

Model No.

TB-812-SD

TN-824-HASD

TB-842-SD

TB-854-HASD

TB-854-HASD-2

TB-866-HASD

TN-851-SD

TB-885-ASD

TB-888-HASD

Frequency

Range GHz

0.02–0.1

0.95–1.22

1.0–4.0

2.0–4.0

4.0–8.0

4.2–4.4

6.0–18.0

8.0–18.0

Type

REFL

ABS

REFL

ABS

REFL

ABS

Isolation

Minimum

Insertion Loss

Maximum

1.30

1.40

1.50

1.80

2.10

1.90

1.60

3.40

3.80

VSWR

Maximum Outline

1.95

1.55

1.95

1.55

2.50

Rect.

Speed

2,000 nsec.

20 nsec.

2,000 nsec.

KEY:

Inches[Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]

60 South Jefferson Road, Whippany, NJ 07981

Tel: 973-887-8100 • Fax: 973-884-0445

email: sales@aeroflex-kdi.com

See us on the web @ www.aeroflex-kdi.com

8-10-07
