TL9007: Description10 MHz - 1000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, HERMETIC SEALED, METAL, TO-8, 5 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size545KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

TL9007 Overview

10 MHz - 1000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, HERMETIC SEALED, METAL, TO-8, 5 PIN

TL9007 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
structure	COMPONENT
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR

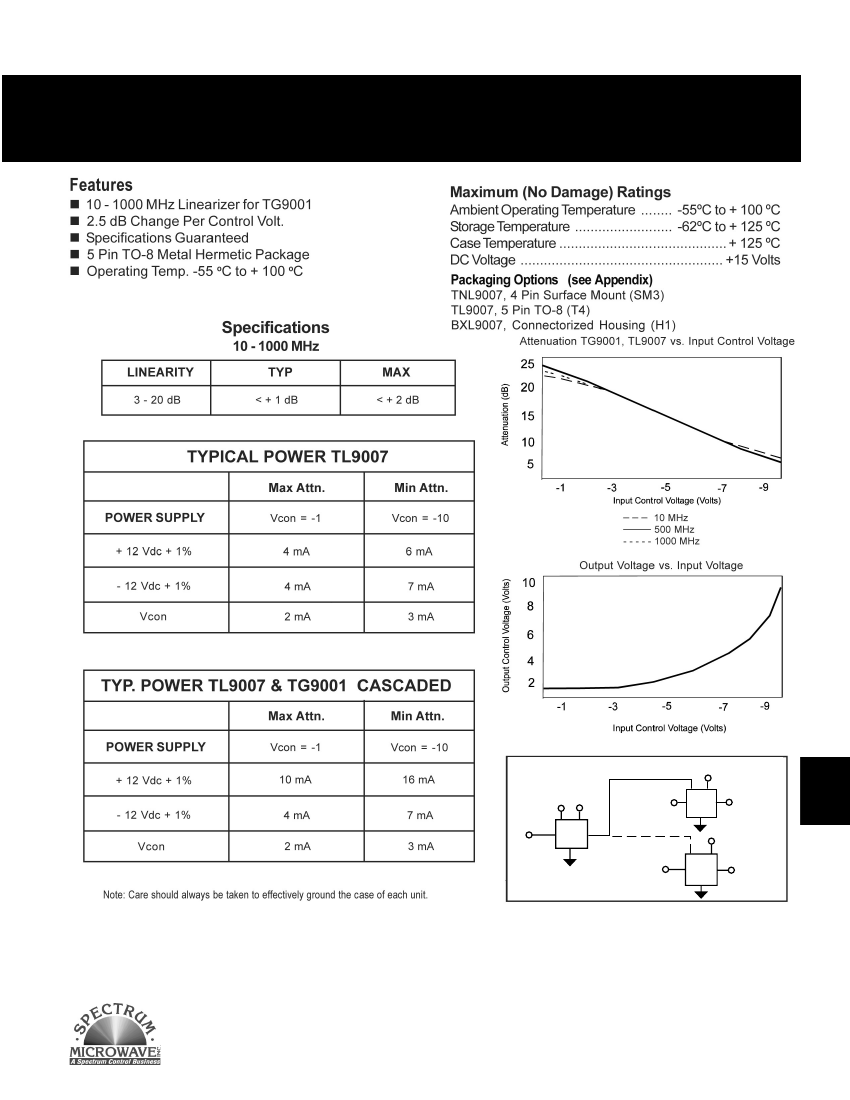

Preview

Download Datasheet

View All

RF Hybrid Linearizers

2.5 dB Change per Control Volt

Model TL9007

10 to 1000 MHz

CONTROL

+12V –12V

VCON

9003

INPUT

+12V

9001

+12V

OUTPUT

CONTROL

INPUT

9001

OUTPUT

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

833

Attenuators

TL9007 Related Products

	TL9007	TNL9007
Description	10 MHz - 1000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, HERMETIC SEALED, METAL, TO-8, 5 PIN	10 MHz - 1000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, SM3, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
structure	COMPONENT	COMPONENT
Maximum operating frequency	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
