50EH-3: DescriptionFixed Attenuator, 0MHz Min, 50000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size225KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

50EH-3 Overview

Fixed Attenuator, 0MHz Min, 50000MHz Max, ROHS COMPLIANT PACKAGE

50EH-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham Semiconductor Solutions
Reach Compliance Code	unknown
Other features	2.4 MM-F; 2.4 MM-M
Nominal attenuation	3 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	26.99 dBm
Maximum operating frequency	50000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.75

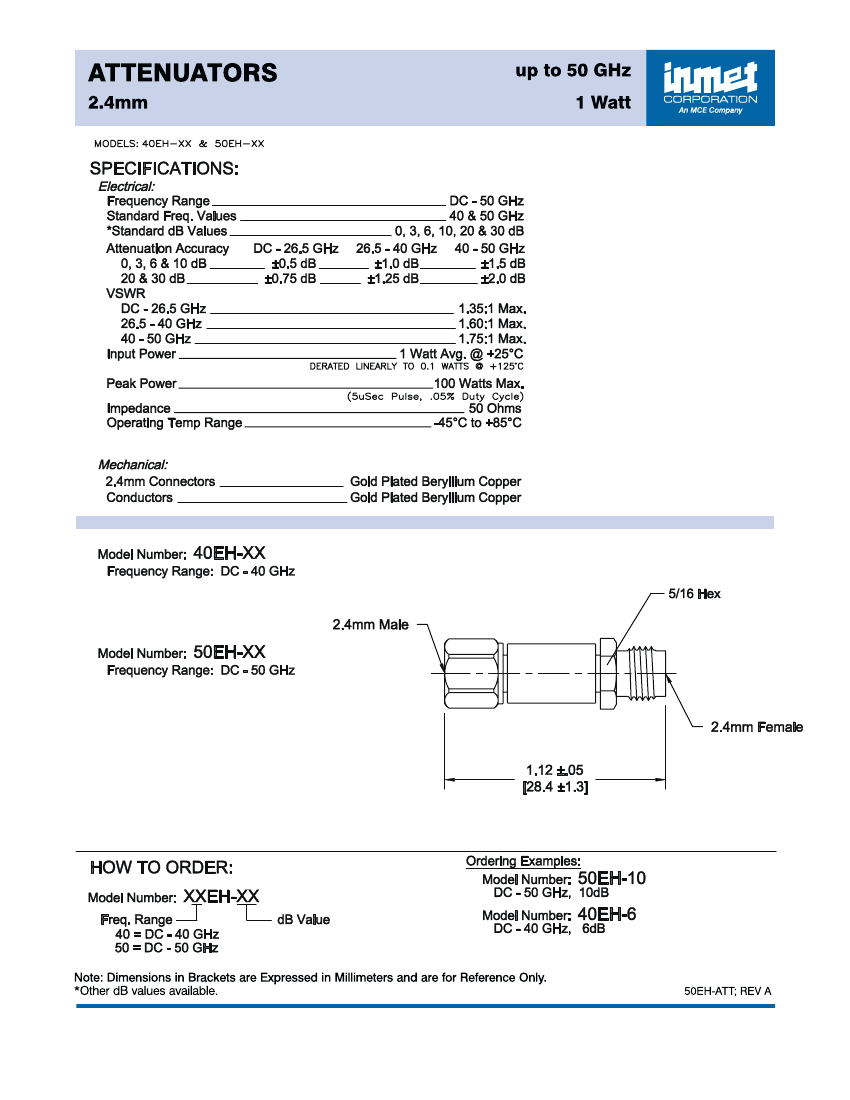

Preview

Download Datasheet

View All

300 DINO DRIVE • ANN ARBOR, MI 48103-9457 • U.S.A. • TELEPHONE 888-244-6638 OR 734-426-5553 • FAX 734-426-5557

WEBSITE www.inmetcorp.com • E-Mail: sales@inmetcorp.com

50EH-3 Related Products

	50EH-3	50EH-30	40EH-20	40EH-30	40EH-3	50EH-20	50EH-10	40EH-10	40EH-6
Description	Fixed Attenuator, 0MHz Min, 50000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 50000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 40000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 40000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 40000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 50000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 50000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 40000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 40000MHz Max, ROHS COMPLIANT PACKAGE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	2.4 MM-F; 2.4 MM-M	2.4 MM-F; 2.4 MM-M	2.4 MM-F; 2.4 MM-M	2.4 MM-F; 2.4 MM-M	2.4 MM-F; 2.4 MM-M	2.4 MM-F; 2.4 MM-M	2.4 MM-F; 2.4 MM-M	2.4 MM-F; 2.4 MM-M	2.4 MM-F; 2.4 MM-M
Nominal attenuation	3 dB	30 dB	20 dB	30 dB	3 dB	20 dB	10 dB	10 dB	6 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	26.99 dBm	26.99 dBm	26.99 dBm	26.99 dBm	26.99 dBm	26.99 dBm	26.99 dBm	26.99 dBm	26.99 dBm
Maximum operating frequency	50000 MHz	50000 MHz	40000 MHz	40000 MHz	40000 MHz	50000 MHz	50000 MHz	40000 MHz	40000 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.75	1.75	1.75	1.75	1.75	1.75	1.75	1.75	1.75
Maker	Cobham Semiconductor Solutions	-	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions
Base Number Matches	-	1	1	1	1	1	1	-	-
