CMPP6027: DescriptionSURFACE MOUNT SILICON PROGRAMMABLE UNIJUNCTION TRANSISTOR; CategoryAnalog mixed-signal IC Trigger device; File Size337KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMPP6027 Overview

SURFACE MOUNT SILICON PROGRAMMABLE UNIJUNCTION TRANSISTOR

CMPP6027 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Parts packaging code	SOT-23
package instruction	SOT-23, 3 PIN
Contacts	3
Reach Compliance Code	_compli
Maximum voltage from anode to cathode	40 V
Configuration	SINGLE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum on-state current	150 A
Maximum operating temperature	100 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum peak current	2 µA
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.35 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	PROGRAMMABLE UJT
Valley Current-Mi	70 µA

Preview

Download Datasheet

View All

CMPP6027

CMPP6028

w w w. c e n t r a l s e m i . c o m

SURFACE MOUNT SILICON

PROGRAMMABLE UNIJUNCTION

TRANSISTOR

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMPP6027 and

CMPP6028 are Silicon Programmable Unijunction

Transistors, manufactured in a surface mount

SOT-23 package, designed for adjustable

(programmable) characteristics such as, Valley Current

(IV), Peak Current (IP), and Intrinsic Standoff Ratio (η).

MARKING CODES: CMPP6027: P27

CMPP6028: P28

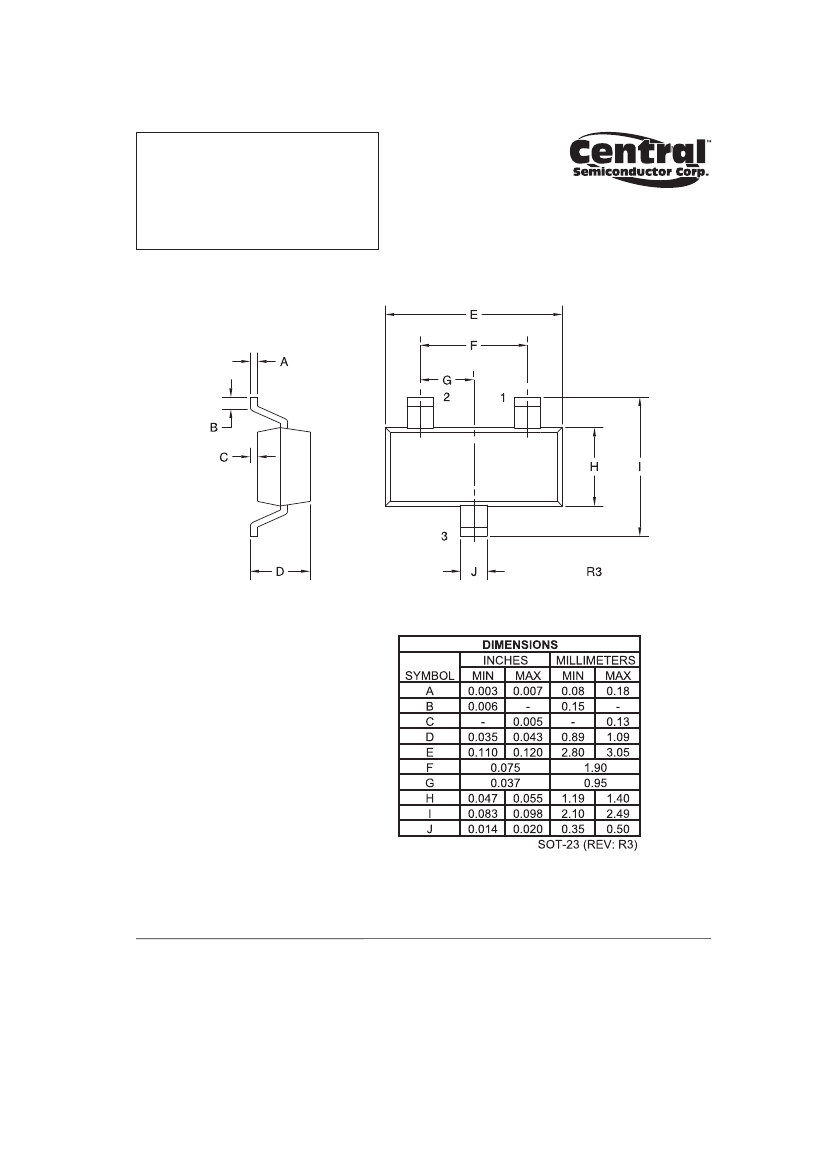

SOT-23 CASE

NOTE: Reverse Lead Codes Available, Add “R” to

the end of the Part #.

SYMBOL

VGKF

VGKR

VGAR

VAK

ITSM

ITRM

IT

IG

PD

Tstg

TJ

40

5.0

40

5.0

2.0

1.0

150

50

350

-55 to +150

-50 to +100

UNITS

V

A

mA

mW

°C

MAXIMUM RATINGS:

(TA=25°C)

Gate-Cathode Forward Voltage

Gate-Cathode Reverse Voltage

Gate-Anode Reverse Voltage

Anode-Cathode Voltage

Peak Non-Repetitive Forward Current (t=10µs)

Peak Repetitive Forward Current (t=20µs, D.C.=1.0%)

Peak Repetitive Forward Current (t=100µs, D.C.=1.0%)

DC Forward Anode Current

DC Gate Current

Power Dissipation

Storage Temperature

Operating Junction Temperature

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

CMPP6027

SYMBOL

TEST CONDITIONS

MIN MAX

IGAO

VS=40V

10

IGKS

IP

IV

VT

VF

VO

tr

VS=40V

VS=10V, RG=1.0MΩ

VS=10V, RG=10kΩ

VS=10V, RG=1.0MΩ

VS=10V, RG=10kΩ

VS=10V, RG=200Ω

VS=10V, RG=1.0MΩ

VS=10V, RG=10kΩ

IF=50mA

VB=20V, CC=0.2µF

50

2.0

5.0

50

70

1.5

0.2

6.0

80

1.6

0.6

1.5

CMPP6028

MIN MAX

10

50

0.15

1.0

25

1.0

0.2

6.0

80

0.6

1.5

UNITS

nA

µA

mA

V

ns

R2 (27-January 2010)

CMPP6027 Related Products

	CMPP6027	CMPP6028	CMPP6027_10
Description	SURFACE MOUNT SILICON PROGRAMMABLE UNIJUNCTION TRANSISTOR	SURFACE MOUNT SILICON PROGRAMMABLE UNIJUNCTION TRANSISTOR	SURFACE MOUNT SILICON PROGRAMMABLE UNIJUNCTION TRANSISTOR
Is it lead-free?	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	-
Maker	Central Semiconductor	Central Semiconductor	-
Parts packaging code	SOT-23	SOT-23	-
package instruction	SOT-23, 3 PIN	SOT-23, 3 PIN	-
Contacts	3	3	-
Reach Compliance Code	_compli	_compli	-
Maximum voltage from anode to cathode	40 V	40 V	-
Configuration	SINGLE	SINGLE	-
JESD-30 code	R-PDSO-G3	R-PDSO-G3	-
JESD-609 code	e0	e0	-
Number of components	1	1	-
Number of terminals	3	3	-
Maximum on-state current	150 A	150 A	-
Maximum operating temperature	100 °C	100 °C	-
Minimum operating temperature	-50 °C	-50 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	-
Maximum peak current	2 µA	0.15 µA	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
Maximum power dissipation	0.35 W	0.35 W	-
Certification status	Not Qualified	Not Qualified	-
surface mount	YES	YES	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	GULL WING	-
Terminal location	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
Trigger device type	PROGRAMMABLE UJT	PROGRAMMABLE UJT	-
Valley Current-Mi	70 µA	25 µA	-
