TMJ9910: Description20 MHz - 550 MHz RF/MICROWAVE LINEAR DETECTOR, 17 dBm INPUT POWER-MAX, TO-8, 5 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size231KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

TMJ9910 Overview

20 MHz - 550 MHz RF/MICROWAVE LINEAR DETECTOR, 17 dBm INPUT POWER-MAX, TO-8, 5 PIN

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	17 dBm
Maximum operating frequency	550 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
RF/Microwave Device Types	LINEAR DETECTOR
Maximum voltage standing wave ratio	1.5

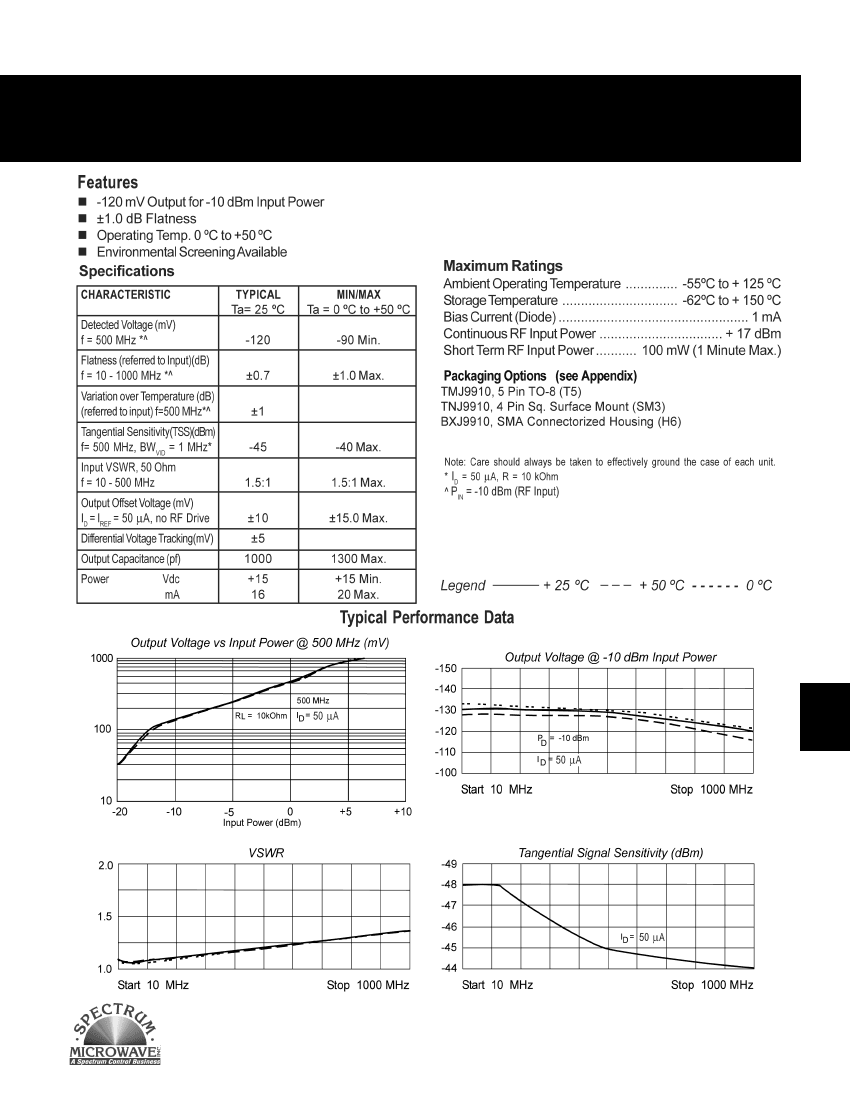

Analog Level Detector

-120mV Output for -10 dBm Input Power

Model TMJ9910

5 to 500 MHz

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

811

Detectors

	TMJ9910	TNJ9910
Description	20 MHz - 550 MHz RF/MICROWAVE LINEAR DETECTOR, 17 dBm INPUT POWER-MAX, TO-8, 5 PIN	20 MHz - 550 MHz RF/MICROWAVE LINEAR DETECTOR, 17 dBm INPUT POWER-MAX, SURFACE MOUNT PACKAGE-4
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknow
Characteristic impedance	50 Ω	50 Ω
structure	COMPONENT	COMPONENT
Maximum input power (CW)	17 dBm	17 dBm
Maximum operating frequency	550 MHz	550 MHz
Minimum operating frequency	20 MHz	20 MHz
Maximum operating temperature	50 °C	50 °C
RF/Microwave Device Types	LINEAR DETECTOR	LINEAR DETECTOR
Maximum voltage standing wave ratio	1.5	1.5
