ZHMA2968 datasheet, PDF - EEWORLD Datasheet

ZHMA2968: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 41 X 26 MM, 6 MM HEIGHT, PACKAGE-12; CategoryPower/power management The power supply circuit; File Size137KB，1 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

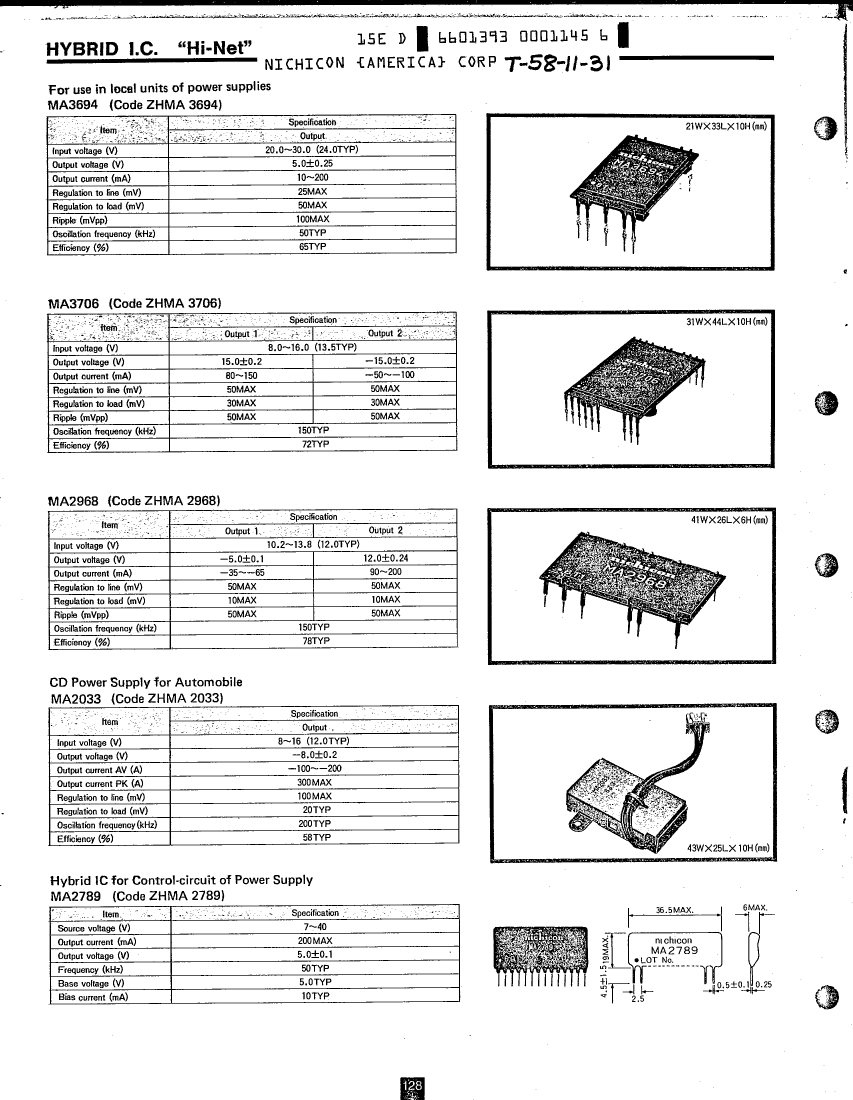

ZHMA2968 Overview

DC-DC Regulated Power Supply Module, 2 Output, 41 X 26 MM, 6 MM HEIGHT, PACKAGE-12

Parameter Name	Attribute value
Maker	Nichicon
Parts packaging code	MODULE
package instruction	,
Contacts	12
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	16 V
Minimum input voltage	12 V
Nominal input voltage	8 V
JESD-30 code	R-MDMA-T12
Maximum load regulation	0.2%
Number of functions	1
Output times	2
Number of terminals	12
Maximum output voltage	-5.1 V
Minimum output voltage	-4.9 V
Nominal output voltage	-5 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Fine-tuning/adjustable output	NO

This Material Copyrighted By Its Respective Manufacturer

	ZHMA2968	MA2968	ZHMA3706
Description	DC-DC Regulated Power Supply Module, 2 Output, 41 X 26 MM, 6 MM HEIGHT, PACKAGE-12	DC-DC Regulated Power Supply Module, 2 Output, Hybrid, 41 X 26 MM, 6 MM HEIGHT, PACKAGE-12	DC-DC Regulated Power Supply Module, 2 Output, 31 X 44 MM, 10 MM HEIGHT, PACKAGE-19
Maker	Nichicon	Nichicon	Nichicon
Parts packaging code	MODULE	MODULE	MODULE
Contacts	12	12	19
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	16 V	13.8 V	16 V
Minimum input voltage	12 V	10.2 V	0.8 V
Nominal input voltage	8 V	12 V	13.5 V
JESD-30 code	R-MDMA-T12	R-MDMA-T12	R-MDMA-T19
Maximum load regulation	0.2%	0.083%	0.2%
Number of functions	1	1	1
Output times	2	2	2
Number of terminals	12	12	19
Maximum output voltage	-5.1 V	12.24 V	15.2 V
Minimum output voltage	-4.9 V	11.76 V	14.8 V
Nominal output voltage	-5 V	12 V	15 V
Package body material	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO
