C2260A1-0009 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> C2260A1-0009

C2260A1-0009: DescriptionC2260A1-0009; CategoryPassive components oscillator; File Size67KB，5 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

C2260A1-0009 Overview

C2260A1-0009

C2260A1-0009 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vectron International, Inc.
Reach Compliance Code	compliant

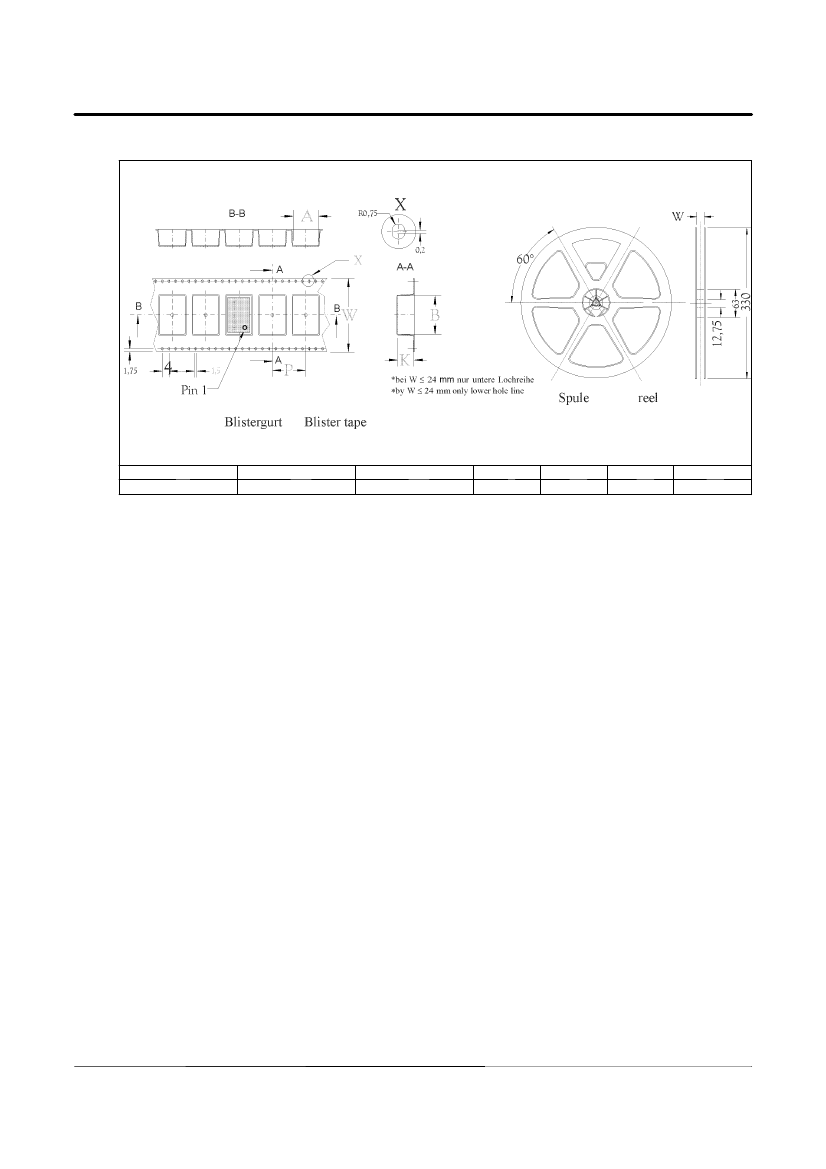

Other features	TAPE AND REEL
Ageing	0.8 PPM/FIRST YEAR
maximum descent time	9 ns
Frequency Adjustment - Mechanical	NO
frequency stability	0.28%
JESD-609 code	e4/e1
Manufacturer's serial number	C2260A1-0009
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 2.3mm
longest rise time	9 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	GOLD OVER NICKEL/TIN SILVER COPPER
Base Number Matches	1

Preview

Download Datasheet

View All

VECTRON

INTERNATIONAL

Nominal frequency (f0)

Frequency stabilities

Parameter

C2260A1-0009

20 MHz

TCXO

Frequency stability

Operating temp. range

Over all (df/f0)

vs. operating temp. range (df/f@25 °C)

Parameter

-4.6 to 4.6 ppm

-0.28 to 0.28 ppm

Value

-20 ... 85 °C

Condition

initial tolerance (df/f0)

-1 to 1 ppm

vs. supply voltage change (df/f)

-0.2 to 0.2 ppm

vs. load change (df/f)

-0.1 to 0.1 ppm

aging first year

<± 0.8 ppm

vs. aging / 20 years (df/f)

<± 2.5 ppm

Holdover 24 h

± 0.37 ppm

Stratum 3 per GR-1244-CORE:<+/-4.6ppm for all causes @ 20 years aging

@25 °C

static; 3.3 V ±5 %

static; Load ± 10 %

@ 40 °C

RF output

Parameter

Value

Condition

Signal

Load

Fan out

Rise Time

Fall Time

Duty cycle

V Low

V High

Sub Harmonics

Spurious

LVCMOS

15 pF ±10 %

< 9 ns

45 / 55 %

x < 0.33 V

x > 2.97 V

<- 80 dBc

@ 10 to 90 %Vout

@ 90 to 10 %Vout

@ 1.65 V

Supply voltage

Parameter

Value

Condition

Supply voltage (Vs)

Current consumption steady state

3.3 V ± 5 %

< 24 mA

@ Vsnom & 25 °C

Additional Parameters

Parameter

Value

Condition

Phase Noise

Short term stability

Start-up time

Processing & Packing

< -85 dBc/Hz

< -110 dBc/Hz

< -125 dBc/Hz

< -135 dBc/Hz

<± 1000.0 E-12

< 10 ms

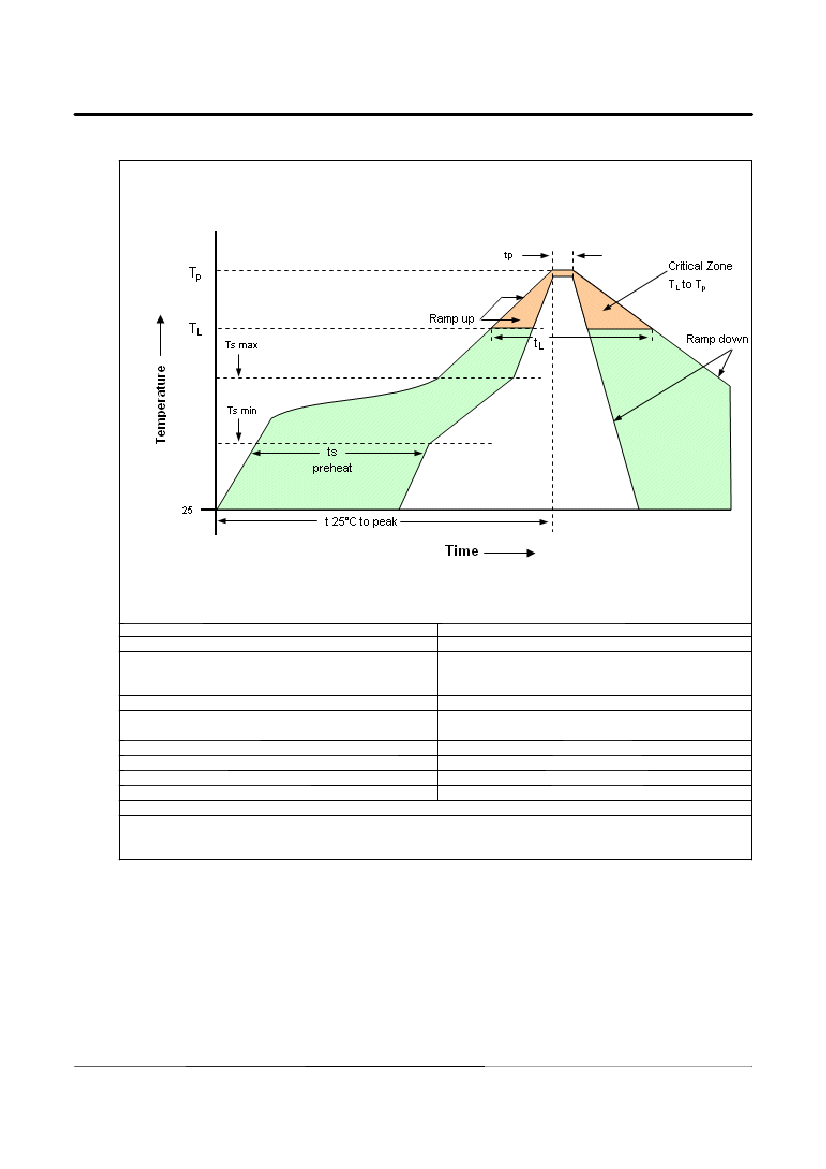

handling&processing note

10 Hz

100 Hz

1000 Hz

10 kHz

100 kHz

1 sec

max

values

Additional environmental conditions

Tensile strength of leads

DIN IEC 68 T2-21 (Ua 1)

Flexibility of leads

DIN IEC 68 T2-21 (Ub)

Sealing test A

nicht dicht (not hermetically sealed)

Solderability

DIN IEC 68 T2-20 (Ta)

100% RoHS compliant

Solvent resistance

EN 60068-2-45, Test xA

washable device

Vectron International

• Product Specifications

Vectron International GmbH & Co. KG

Landstrasse

D-74924 Neckarbischofsheim

Germany

49-07268-801-0 tel

49-07268-801-281 fax

www.vectron.com

modified 2008-01-08 Index : 28

printed 2008-06-25 • page 1 of 4
