SP3488EP-L

Description
Line Receiver, 4 Func, 4 Rcvr, BICMOS, PDIP16, LEAD FREE, PLASTIC, DIP-16
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size117KB，9 Pages
ManufacturerSIPEX
Websitehttp://www.sipex.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

SP3488EP-L Overview

Line Receiver, 4 Func, 4 Rcvr, BICMOS, PDIP16, LEAD FREE, PLASTIC, DIP-16

SP3488EP-L Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSIPEX
package instructionDIP,
Reach Compliance Codeunknown
Other featuresCAN ALSO OPERATE WITH A 5V SUPPLY
Input propertiesDIFFERENTIAL
Interface integrated circuit typeLINE RECEIVER
Interface standardsEIA-422; EIA-485
JESD-30 codeR-PDIP-T16
JESD-609 codee3
length20.066 mm
Number of functions4
Number of terminals16
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT APPLICABLE
Certification statusNot Qualified
Maximum receive delay115 ns
Number of receiver bits4
Maximum seat height5.334 mm
Maximum supply voltage3.465 V
Minimum supply voltage3.135 V
Nominal supply voltage3.3 V
surface mountNO
technologyBICMOS
Temperature levelINDUSTRIAL
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT APPLICABLE
width7.62 mm

SP3488EP-L Preview

®

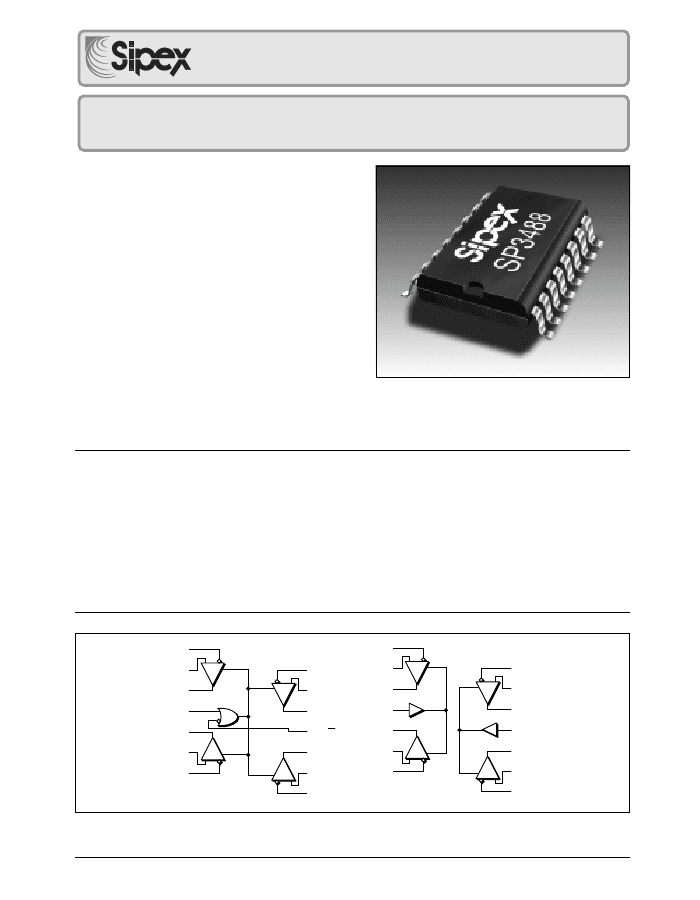

SP3488 and SP3489
+3.3V Low Power Quad
RS-485/RS-422 Line Receivers
■
RS-485 or RS-422 Quad Differential
Line Receivers
■
Operates from a single +3.3V supply
■
Interoperable with +5.0V logic
■
Tri-state Output Control
■
-7V to +12V Common-Mode Input
Voltage Range
■
Common Driver Enable Control
(SP3488)
■
Independent Driver Enable Controls
for each pair of Drivers (SP3489)
■
Compatibility with LTC488
and SN75173 (SP3488)
■
Compatibility with LTC489
and SN75175 (SP3489)
Now Available in Lead Free Packaging
DESCRIPTION…
The
SP3488
and the
SP3489
are +3.3V low power quad line receivers that meet the
specifications of the RS-485 and RS-422 serial protocols. These devices are pin-to-pin
compatible with Sipex's SP488 and SP489 devices as well as popular industry standards.
The
SP3488
and
SP3489
feature Sipex's BiCMOS process allowing low power operation
without sacrificing performance. The
SP3488
and
SP3489
meet the electrical specifications
of RS-485 and RS-422 serial protocols up to 10Mbps under load. The
SP3488
features a
common receiver enable control. The
SP3489
provides independent receiver enable
controls for each pair of receivers. Both devices feature tri-state outputs and a -7V to +12V
common-mode input range. The receivers have a fail-safe feature which forces a logic "1"
output when receiver inputs are left floating.
RI
1
B
RI
1
A
RO
1
EN
RO
2
RI
2
A
RI
2
B
GND
1
2
3
4
5
6
7
8
SP3488
1
4
16
15
14
13
12
V
CC
RI
4
B
RI
4
A
RO
4
EN
RO
3
RI
3
A
RI
3
B
RI
1
B
RI
1
A
RO
1
EN
1
/EN
2
RO
2
RI
2
A
RI
2
B
GND
1
2
3
4
5
6
7
8
SP3489
1
4
16
15
14
13
12
V
CC
RI
4
B
RI
4
A
RO
4
EN
3
/EN
4
RO
3
RI
3
A
RI
3
B
2
3
11
10
9
2
3
11
10
9
10/16/02
SP3488/3489 Low Power Quad RS-485/422 Line Receivers
© Copyright 2002 Sipex Corporation
1
ABSOLUTE MAXIMUM RATINGS
These are stress ratings only and functional operation of the device
at these or any other above those indicated in the operation
sections of the specifications below is not implied. Exposure to
absolute maximum rating conditions for extended periods of time
may affect reliability.
V
CC
......................................................................................... +6.0V
Input Voltages
Logic ...................................................................... –0.3V to +6.0V
Receiver ...............................................................................
±14V
Receiver Output Voltage .......................................... –0.3V to +6.0V
Input Currents
Logic ..................................................................................
±25mA
Storage Temperature ............................................ –65°C to +150°C
Power Dissipation
Plastic DIP ........................................................................ 375mW
(derate 7mW/°C above +70°C)
Small Outline .................................................................... 375mW
(derate 7mW/°C above +70°C)
Lead Temperature (soldering, 10 sec) ................................... 300°C
SPECIFICATIONS
V
CC
= +3.3V±5%; typicals at 25°C; T
MIN
≤
T
A
≤
T
MAX
unless otherwise noted.
PARAMETER
DC CHARACTERISTICS
Digital Inputs
Voltage
V
IL
V
IH
Input Current
RECEIVER INPUTS
Input Resistance
Differential Input Threshold
Input Current (A, B)
MIN.
TYP.
MAX.
UNIT
CONDITIONS
EN, EN, EN
1
/EN
2
, EN
3
/EN
4
0.8
2.0
±2
Volts
Volts
µA
0V
≤
V
IN
≤
V
CC
12
-0.2
+0.2
+1.0
-0.8
kΩ
Volts
mA
mA
Mbps
Maximum Data Rate
10
RECEIVER OUTPUTS
Output Voltage
V
OH
V
CC
-0.4
V
OL
0.4
High Impedance Output Current
±1
POWER REQUIREMENTS
Supply Current
2.2
5
ENVIRONMENTAL AND MECHANICAL
Operating Temperature
–C
0
+70
–E
-40
+85
Storage Temperature
-65
+150
Package
–_P
16–pin Plastic DIP
–_T
16–pin SOIC
-7V
≤
V
CM
≤
12V
-7V
≤
V
CM
≤
12V
V
CC
= 0V or 3.3V; I
IN2
V
IN
= +12V
V
IN
= –7V
V
V
µA
mA
I
O
= -1.5mA; V
ID
= +0.2V
I
O
= +2.5mA; V
ID
= -0.2V
V
CC
= maximum; 0.4V
≤
V
O
≤
V
CC
No load
°C
°C
°C
10/16/02
SP3488/3489 Low Power Quad RS-485/422 Line Receivers
© Copyright 2002 Sipex Corporation
2
15pF EN
A
S
1
RCVR
54Ω
RCVR
ROn
C
L
15pF
EN
1/4 SP3488
1kΩ
V
CC
DI
DRIVER
B
C
L
1kΩ
S
2
1/4 SP3486
Figure 1. Timing Test Circuit
Figure 2. Enable/Disable Timing Test Circuit
SP3488 PINOUT
Pin 1 — RI
1
B — Receiver 1 input B.
Pin 2 — RI
1
A
—
Receiver 1 input A.
Pin 3 — RO
1
— Receiver 1 Output — If Re-
ceiver 1 output is enabled, if RI
1
A > RI
1
B by
200mV, Receiver output is high. If Receiver 1
output is enabled, and if RI
1
A < RI
1
B by 200mV,
Receiver 1 output is low.
Pin 4 — EN — Receiver Output Enable. Please
refer to SP3488
Truth Table (1).
Pin 5 — RO
2
— Receiver 2 Output — If Re-
ceiver 2 output is enabled, if RI
2
A > RI
2
B by
200mV, Receiver 2 output is high. If Receiver 2
output is enabled, and if RI
2
A < RI
2
B by
200mV, Receiver 2 output is low.
PINOUT
Pin 6 — RI
2
A — Receiver 2 input A.
Pin 7 — RI
2
B — Receiver 2 input B.
Pin 8 — GND — Digital Ground.
Pin 9 — RI
3
B — Receiver 3 input B.
Pin 10 — RI
3
A — Receiver 3 input A.
Pin 11 — RO
3
— Receiver 3 Output — If
Receiver 3 output is enabled, if RI
3
A > RI
3
B by
200mV, Receiver 3 output is high. If Receiver 3
output is enabled, and if RI
3
A < RI
3
B by
200mV, Receiver 3 output is low.
Pin 12 — EN — Receiver Output Enable. Please
refer to SP3488 Truth Table (1).
RI
1
B
RI
1
A
RO
1
EN
RO
2
RI
2
A
RI
2
B
GND
1
2
3
4
5
6
7
8
SP3488
1
4
16
15
14
13
12
V
CC
RI
4
B
RI
4
A
RO
4
EN
RO
3
RI
3
A
RI
3
B
RI
1
B
RI
1
A
RO
1
EN
1
/EN
2
RO
2
RI
2
A
RI
2
B
GND
1
2
3
4
5
6
7
8
SP3489
1
4
16
15
14
13
12
V
CC
RI
4
B
RI
4
A
RO
4
EN
3
/EN
4
RO
3
RI
3
A
RI
3
B
2
3
11
10
9
2
3
11
10
9
10/16/02
SP3488/3489 Low Power Quad RS-485/422 Line Receivers
© Copyright 2002 Sipex Corporation
3
Pin 13 — RO
4
— Receiver 4 Output — If
Receiver 4 output is enabled, if RI
4
A > RI
4
B by
200mV, Receiver 4 output is high. If Receiver 4
output is enabled, and if RI
4
A < RI
4
B by
200mV, Receiver 4 output is low.
Pin 14 — RI
4
A — Receiver 4 input A.
Pin 15 — RI
4
B — Receiver 4 input B.
Pin 16 — V
CC
— Positive Supply +3.00V < V
CC
< +3.60V
SP3489 PINOUT
Pin 1 — RI
1
B — Receiver 1 input B.
Pin 2 — RI
1
A — Receiver 1 input A.
Pin 3 — RO
1
— Receiver 1 Output — If
Receiver 1 output is enabled, if RI
1A
> RI
1
B by
200mV, Receiver output is high. If Receiver 1
output is enabled, and if RI
1
A < RI
1
B by 200mV,
Receiver 1 output is low.
Pin 4 — EN1/EN2 — Receiver 1 and 2 Output
Enable. Please refer to SP3489
Truth Table (2).
Pin 5 — RO
2
— Receiver 2 Output — If
Receiver 2 output is enabled, if RI
2
A > RI
2
B by
200mV, Receiver 2 output is high. If Receiver 2
output is enabled, and if RI
2
A < RI
2
B by
200mV, Receiver 2 output is low.
Pin 6 — RI
2
A — Receiver 2 input A.
Pin 7 — RI
2
B — Receiver 2 input B.
Pin 8 — GND — Digital Ground.
Pin 9 — RI
3
B — Receiver 3 input B.
Pin 10 — RI
3
A — Receiver 3 input A.
Pin 11 — RO
3
— Receiver 3 Output — If
Receiver 3 output is enabled, if RI
3
A > RI
3
B by
200mV, Receiver 3 output is high. If Receiver 3
output is enabled, and if RI
3
A < RI
3
B by
200mV, Receiver 3 output is low.
Pin 12 — EN3/EN4 — Receiver 3 and 4 Output
Enable. Please refer to SP3489 Truth Table (2).
Pin 13 — RO
4
— Receiver 4 Output — If
Receiver 4 output is enabled, if RI
4
A > RI
4
B by
200mV, Receiver 4 output is high. If Receiver 4
output is enabled, and if RI
4
A < RI
4
B by
200mV, Receiver 4 output is low.
Pin 14 — RI
4
A — Receiver 4 input A.
Pin 15 — RI
4
B — Receiver 4 input B.
Pin 16 — V
CC
— Positive Supply +3.00V < V
CC
< +3.60V
FEATURES...
The
SP3488
and the
SP3489
are +3.3V low
power quad line receivers that meet the
specifications of the RS-485 and RS-422 serial
protocols. These devices are pin-to-pin
compatible with Sipex's SP488 and SP489
devices as well as popular industry standards.
The
SP3488
and
SP3489
devices feature
Sipex's BiCMOS process allowing low power
operation without sacrificing performance.
The RS-485 standard is ideal for multi-drop
applications or for long distance interfaces.
RS-485 allows up to 32 drivers and 32 receivers
to be connected to a data bus, making it an ideal
choice for multi-drop applications. Since the
DIFFERENTIAL
A–B
V
ID
≥
0.2V
–0.2V < V
ID
< +0.2V
V
ID
≤
0.2V
X
ENABLES
EN
1
/EN
2
or EN
3
/EN
4
H
H
H
L
OUTPUT
RO
H
X
L
Hi–Z
DIFFERENTIAL
A–B
V
ID
≥
0.2V
–0.2V < V
ID
< +0.2V
V
ID
≤
0.2V
X
EN
H
X
H
X
H
X
L
ENABLES
EN
X
L
X
L
X
L
H
OUTPUT
RO
H
H
X
X
L
L
Hi–Z
Table 1. SP3488 Truth Table
10/16/02
Table 2. SP3489 Truth Table
© Copyright 2002 Sipex Corporation
SP3488/3489 Low Power Quad RS-485/422 Line Receivers
4
cabling can be as long as 4,000 feet, RS-485
transceivers are equipped with a wide (-7V to
+12V) common mode range to accomodate
ground potential differences. Because the
RS-485 protocol is a differential interface, data
is virtually immune to noise in the transmission
line.
Receiver...
The
SP3488
and the
SP3489
receivers have
differential inputs with an input sensitivity
as low as +100mV. Input impedance of the
receivers is typically 15KΩ (12KΩ minimum).
A wide common mode range of -7V to +12V
allows for large ground potential differences
between systems.
The
SP3488
features active HIGH and active
LOW common receiver enable controls. Refer
to
SP3488
Truth Table in
Table 1.
The
SP3489
provides independent, active high receiver
enable controls for each pair of receivers. Refer
to
SP3489
Truth Table in
Table 2.
Both devices
feature tri-state outputs and a -7V to +12V
common-mode input range permitting a +7V
ground difference between devices on the
communication bus. The
SP3488
and the
SP3489
are equipped with a fail-safe feature which forces
a logic HIGH at the receiver output when the
input is left floating. The
SP3488
and
SP3489
receivers meet the electrical specifications of
RS-485 and RS-422 serial protocol data rates up
to 10Mbps under load.
AC PARAMETERS
V
CC
= +3.3V±5%; typicals at 25°C; T
AMB
= 25°C unless otherwise noted.
PARAMETER
MIN.
PROPAGATION DELAY
Receiver Input to Output
Low to HIGH (tPLH)
High to LOW (tPH
L
)
Differential Receiver Skew (t
SKD
)
Receiver Rise Time (t
R
)
SP3488
SP3489
Receiver Fall Time (t
F
)
SP3488
SP3489
RECEIVER ENABLE
To Output HIGH
To Output LOW
RECEIVER DISABLE
From Output LOW
From Output HIGH
TYP.
MAX.
UNIT
CONDITIONS
C
L
= 15pF;
Figure 1, 3
75
80
4
7
7
6
6
46
46
115
115
15
15
15
15
100
100
ns
ns
ns
ns
ns
10% to 90%
90% to 10%
ns
ns
ns
ns
C
L
= 15pF;
Figures 2 and 4
(S2 closed)
CL = 15pF;
Figures 2 and 4
(S1 closed)
CL = 15pF;
Figures 2 and 4
(S1 closed)
CL = 15pF;
Figures 2 and 4
(S2 closed)
46
46
100
100
ns
ns
10/16/02
SP3488/3489 Low Power Quad RS-485/422 Line Receivers
© Copyright 2002 Sipex Corporation
5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SP3488EP-L Related Products

SP3488EP-L SP3488CP-L SP3489CP-L SP3489EP-L
Description Line Receiver, 4 Func, 4 Rcvr, BICMOS, PDIP16, LEAD FREE, PLASTIC, DIP-16 Line Receiver, 4 Func, 4 Rcvr, BICMOS, PDIP16, LEAD FREE, PLASTIC, DIP-16 Line Receiver, 4 Func, 4 Rcvr, BICMOS, PDIP16, LEAD FREE, PLASTIC, DIP-16 Line Receiver, 4 Func, 4 Rcvr, BICMOS, PDIP16, LEAD FREE, PLASTIC, DIP-16
Is it Rohs certified? conform to conform to conform to conform to
Maker SIPEX SIPEX SIPEX SIPEX
package instruction DIP, DIP, DIP, DIP,
Reach Compliance Code unknown unknown unknown unknown
Other features CAN ALSO OPERATE WITH A 5V SUPPLY CAN ALSO OPERATE WITH A 5V SUPPLY CAN ALSO OPERATE WITH A 5V SUPPLY CAN ALSO OPERATE WITH A 5V SUPPLY
Input properties DIFFERENTIAL DIFFERENTIAL DIFFERENTIAL DIFFERENTIAL
Interface integrated circuit type LINE RECEIVER LINE RECEIVER LINE RECEIVER LINE RECEIVER
Interface standards EIA-422; EIA-485 EIA-422; EIA-485 EIA-422; EIA-485 EIA-422; EIA-485
JESD-30 code R-PDIP-T16 R-PDIP-T16 R-PDIP-T16 R-PDIP-T16
JESD-609 code e3 e3 e3 e3
length 20.066 mm 20.066 mm 20.066 mm 20.066 mm
Number of functions 4 4 4 4
Number of terminals 16 16 16 16
Maximum operating temperature 85 °C 70 °C 70 °C 85 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP DIP DIP DIP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum receive delay 115 ns 115 ns 115 ns 115 ns
Number of receiver bits 4 4 4 4
Maximum seat height 5.334 mm 5.334 mm 5.334 mm 5.334 mm
Maximum supply voltage 3.465 V 3.465 V 3.465 V 3.465 V
Minimum supply voltage 3.135 V 3.135 V 3.135 V 3.135 V
Nominal supply voltage 3.3 V 3.3 V 3.3 V 3.3 V
surface mount NO NO NO NO
technology BICMOS BICMOS BICMOS BICMOS
Temperature level INDUSTRIAL COMMERCIAL COMMERCIAL INDUSTRIAL
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE
width 7.62 mm 7.62 mm 7.62 mm 7.62 mm

Recommended Resources

non-diode rectifier

Additional power circuit design for USB devices

3V-12V DC DC conversion circuit 1

Waveform generator circuit diagram with variable frequency and pulse width

Constant voltage working circuit of Hall sensor

Computer motherboard circuit diagram 815 3_30

About post review
First of all, I am a newbie to the forum and I don’t know how to post.…… I am so happy that I am about to cry.…… You need to review every post and every link you add, but, reviewing external links is ...
574433742 Suggestions & Announcements
Wanli 199 yuan board upgrade, experience!
I recently registered for the Wanli board upgrade event and chose "Yali (Shenzhen)" as the upgrade point.Yesterday I called "Yali (Shenzhen)" to inquire about this matter, and their attitude was very ...
zhaohuaipu stm32/stm8
Please recommend some voltage regulator chips
Hello, seniors. I am making a power module and want to use a boost chip to generate a 24V voltage output through a 20V DC voltage input. The output current does not exceed 0.1A. Do you know any recomm...
lym1210 Power technology
Communication between wavecom and microcontroller
Recently, I have been using wavecom and a single-chip microcomputer to do text messaging and sending and receiving, but I found that the single-chip microcomputer can only send messages to the gsm mod...
z800f Embedded System
Electronic first post
Electronic first post, report...
khtech Talking
Portable Venus washing machine
[font=微软雅黑][size=3][color=#333333]The washing machine can be said to be a very practical invention. It allows us to get rid of the trouble of washing clothes frequently. However, it is not so convenie...
error_echo Mobile and portable
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. BUS-61569-540L
  2. SCB16S15B-5B
  3. EG-2002CA166.6286M-PCHL3
  4. XCCB2214530AD
  5. KJ3R24A4SNL
  6. 97-3100A-28-18PY
  7. CMZ5939BTR13TIN/LEAD
  8. FP55SP-2741-BT
  9. AME8501CEFVCE29
  10. 1N5261C_AX_10001
  11. PS152-B0-00001
  12. 2EZ8.2_R2_10001

Popular Articles

  1. Three-phase capacitance and inductance tester precautions before use
  2. Types and applications of anti-corrosion tuning fork switches
  3. Ready to use: NVIDIA and VMware deliver AI at scale for the enterprise
  4. Redmi Note 11 Pro+ passes FCC certification: will be released overseas
  5. Why is the iOS 15 system update rate far lower than before?
  6. OnePlus 10 Pro officially released: a high-performance flagship with a starting price of 4,699 yuan
  7. PIC Microcontroller-PICC Introduction
  8. Ethernet AVB real-time transmission technology for network audio and video
  9. After mobile phone manufacturers abandoned TOF, Sony sought its own way out
  10. The emergence and development of new energy vehicles is an inevitable product of social and technological evolution to a certain stage.

Technical ResourceMore

  1. LVDS and M-LVDS Circuit Implementation Guidelines
  2. FPGA Implementation of Miller Modulation Subcarrier Codec
  3. Diffraction grating experiment
  4. Application of Kalman Filter in Passive Target Tracking System
  5. ProE full set of Chinese tutorials - download
  6. Wire connection specifications and standards
  7. Chinese data on MCU peripheral chips
  8. Thyristor phase shift trigger circuit
  9. Wireless Sensor Network Technology Lecture Notes - Network Management
  10. Application of DDS Technology and HDTV Channel Selection Circuit

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 361  988  113  1290  22  8  20  3  26  1
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
