CMSH2-40L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CMSH2-40L

CMSH2-40L: DescriptionSURFACE MOUNT LOW VF SILICON SCHOTTKY RECTIFIER 2 AMP, 20 AND 40 VOLTS; CategoryDiscrete semiconductor diode; File Size359KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMSH2-40L Overview

SURFACE MOUNT LOW VF SILICON SCHOTTKY RECTIFIER 2 AMP, 20 AND 40 VOLTS

CMSH2-40L Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	SMB, 2 PIN
Contacts	2
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.38 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn80Pb20)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

CMSH2-20L

CMSH2-40L

SURFACE MOUNT

LOW VF

SILICON SCHOTTKY RECTIFIER

2 AMP, 20 AND 40 VOLTS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMSH2-20L

Series 2.0 Amp Surface Mount Low VF Schottky

Rectifier is a high quality, well constructed, highly

reliable component designed for use in all types of

commercial, industrial, entertainment, computer,

and automotive applications where high efficiency is

required. To order devices on 12mm Tape and Reel

(3000/13” Reel), add TR13 suffix to part number.

MARKING CODES: CMSH2-20L: CS220L

CMSH2-40L: CS240L

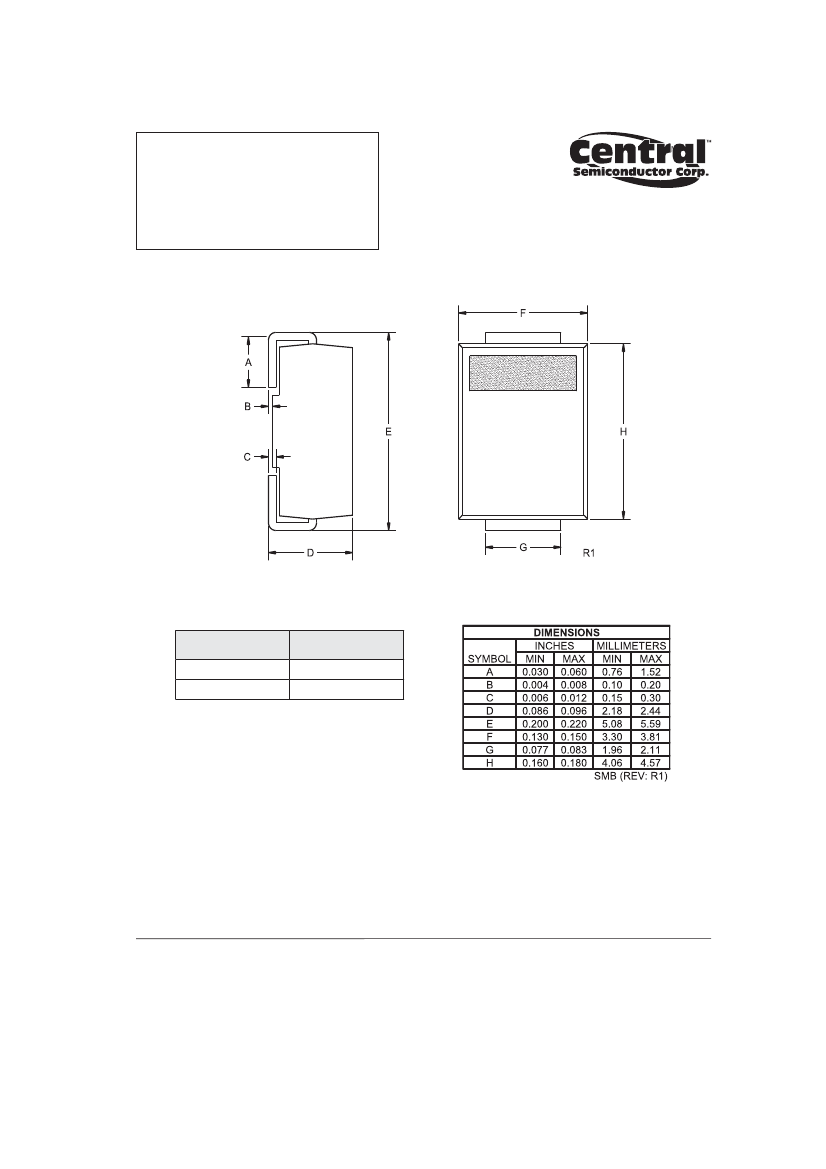

SMB CASE

FEATURES:

• Low forward voltage drop

• Flammability classification UL94V-0

• High current capability

• Superior lot to lot consistency

• Low cost

• High reliability

• “C” bend construction provides strain relief when mounted

on pc board

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

SYMBOL

Peak Repetitive Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Current (TL=105°C)

Peak Forward Surge Current, tp=8.3ms

Operating and Storage Junction Temperature

Thermal Resistance

VRRM

VR(RMS)

IFSM

TJ, Tstg

CMSH2-20L

2.0

-65 to +150

CMSH2-40L

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

VR=Rated

VRRM

VRRM, TA=100°C

TYP

MAX

0.50

0.40

UNITS

IF=2.0A

VR=4.0V, f=1.0MHz

150

R3 (8-February 2010)

CMSH2-40L Related Products

	CMSH2-40L	CMSH2-20L_10	CMSH2-20L
Description	SURFACE MOUNT LOW VF SILICON SCHOTTKY RECTIFIER 2 AMP, 20 AND 40 VOLTS	SURFACE MOUNT LOW VF SILICON SCHOTTKY RECTIFIER 2 AMP, 20 AND 40 VOLTS	SURFACE MOUNT LOW VF SILICON SCHOTTKY RECTIFIER 2 AMP, 20 AND 40 VOLTS
Is it lead-free?	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	-	incompatible
Maker	Central Semiconductor	-	Central Semiconductor
package instruction	SMB, 2 PIN	-	SMB, 2 PIN
Contacts	2	-	2
Reach Compliance Code	_compli	-	_compli
ECCN code	EAR99	-	EAR99
Other features	HIGH RELIABILITY	-	HIGH RELIABILITY
application	EFFICIENCY	-	EFFICIENCY
Configuration	SINGLE	-	SINGLE
Diode component materials	SILICON	-	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE
Maximum forward voltage (VF)	0.38 V	-	0.38 V
JESD-30 code	R-PDSO-C2	-	R-PDSO-C2
JESD-609 code	e0	-	e0
Maximum non-repetitive peak forward current	50 A	-	50 A
Number of components	1	-	1
Phase	1	-	1
Number of terminals	2	-	2
Maximum operating temperature	150 °C	-	150 °C
Minimum operating temperature	-65 °C	-	-65 °C
Maximum output current	2 A	-	2 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified
Maximum repetitive peak reverse voltage	40 V	-	20 V
surface mount	YES	-	YES
technology	SCHOTTKY	-	SCHOTTKY
Terminal surface	Tin/Lead (Sn80Pb20)	-	Tin/Lead (Sn80Pb20)
Terminal form	C BEND	-	C BEND
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
