CMUT2222A
w w w. c e n t r a l s e m i . c o m
SURFACE MOUNT
NPN SILICON TRANSISTOR
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMUT2222A
type is an NPN silicon transistor manufactured by
the epitaxial planar process, epoxy molded in an
ULTRAmini™ surface mount package, designed
for small signal general purpose and switching
applications.
MARKING CODE: PC1
SOT-523 CASE
MAXIMUM RATINGS:
(TA=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VCBO
VCEO
VEBO
IC
PD
TJ, Tstg
Θ
JA
75
40
6.0
600
250
-65 to +150
500
UNITS
V
V
V
mA
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
ICBO
ICBO
ICEV
IEBO
BVCBO
BVCEO
BVEBO
VCE(SAT)
VCE(SAT)
VBE(SAT)
VBE(SAT)
hFE
hFE
hFE
hFE
hFE
hFE
VCB=60V
VCB=60V, TA=125°C
VCE=60V, VEB=3.0V
VEB=3.0V
IC=10μA
IC=10mA
IE=10μA
IC=150mA, IB=15mA
IC=500mA, IB=50mA
IC=150mA,
IC=500mA,
IB=15mA
IB=50mA
75
40
6.0
MAX
10
10
10
10
UNITS
nA
μA
nA
nA
V
V
V
0.3
1.0
0.6
35
50
75
100
50
40
300
1.2
2.0
V
V
V
V
VCE=10V, IC=0.1mA
VCE=10V, IC=1.0mA
VCE=10V, IC=10mA
VCE=10V, IC=150mA
VCE=1.0V, IC=150mA
VCE=10V, IC=500mA
R3 (9-February 2010)
CMUT2222A
SURFACE MOUNT
NPN SILICON TRANSISTOR
ELECTRICAL
SYMBOL
fT
Cob
Cib
hie
hie
hre
hre
hfe
hfe
hoe
hoe
rb’Cc
NF
td
tr
ts
tf
CHARACTERISTICS - Continued:
(TA=25°C unless otherwise noted)
TEST CONDITIONS
MIN
VCE=20V, IC=20mA, f=100MHz
300
VCB=10V, IE=0, f=1.0MHz
VEB=0.5V, IC=0, f=1.0MHz
VCE=10V, IC=1.0mA, f=1.0kHz
2.0
VCE=10V, IC=10mA, f=1.0kHz
0.25
VCE=10V, IC=1.0mA, f=1.0kHz
VCE=10V, IC=10mA, f=1.0kHz
VCE=10V, IC=1.0mA, f=1.0kHz
50
VCE=10V, IC=10mA, f=1.0kHz
75
VCE=10V, IC=1.0mA, f=1.0kHz
5.0
VCE=10V, IC=10mA, f=1.0kHz
25
VCB=10V, IE=20mA, f=31.8MHz
VCE=10V, IC=100μA, RS=1.0kΩ, f=1.0kHz
VCC=30V, VBE=0.5V, IC=150mA, IB1=15mA
VCC=30V, VBE=0.5V, IC=150mA, IB1=15mA
VCC=30V, IC=150mA, IB1=IB2=15mA
VCC=30V, IC=150mA, IB1=IB2=15mA
MAX
8.0
25
8.0
1.25
8.0
4.0
300
375
35
200
150
4.0
10
25
225
60
UNITS
MHz
pF
pF
kΩ
kΩ
x10-4
x10-4
μS
μS
ps
dB
ns
ns
ns
ns

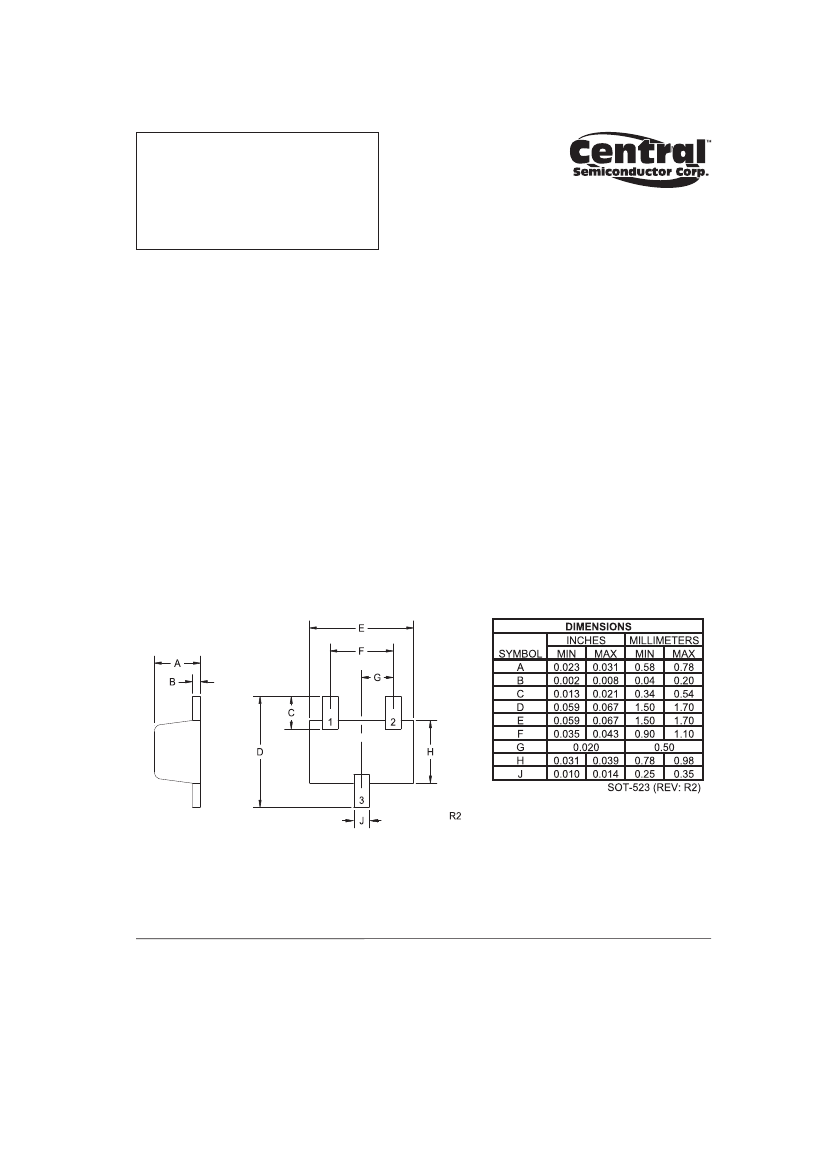

SOT-523 CASE - MECHANICAL OUTLINE
(Bottom View)
LEAD CODE:
1) Base
2) Emitter
3) Collector
MARKING CODE: PC1
R3 (9-February 2010)
